◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#26938) — 185 parça

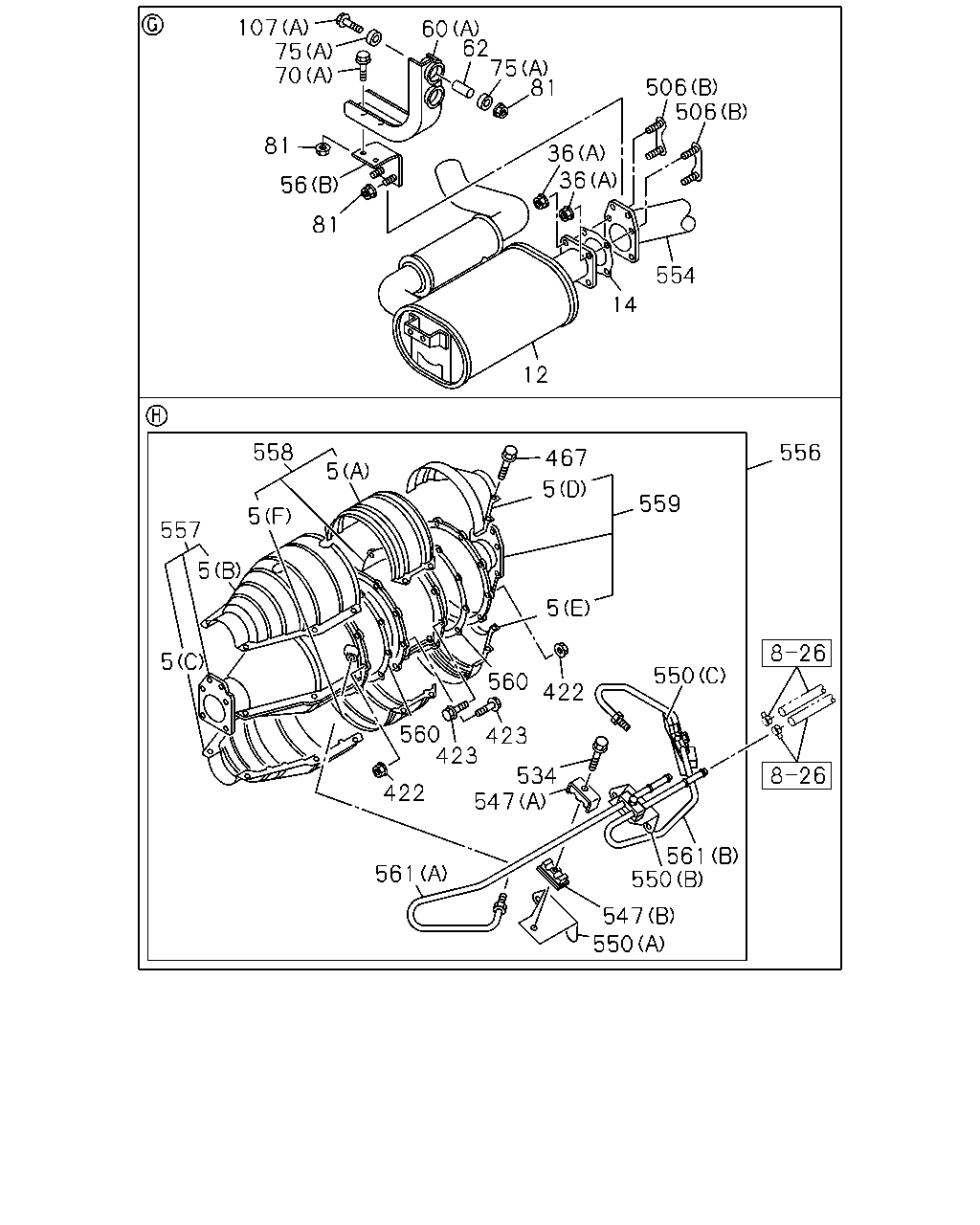

çizim 26873
107 75 70 60 62 75 81 506 506 81 36 36 56 81 554 14 12 558 556 467 5 5 559 5 557 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		1-33659-250-0 01 1 0612-
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0612-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0612-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0612-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0612-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0612-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0612-
12 SILENCER ASM; EXH 8-98043-317-2 01 1 0612-
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(D) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-279-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-328-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(C) 		1-22152-065-0 02 1 0612-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(B) 		8-98056-982-0 01 1 0612-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0612-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0612-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0612-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0612-
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0612-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0612-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0612-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
(B) 		1-22134-214-0 02 1 0612-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0612-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0612-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0612-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0612-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0612-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0612-
554 PIPE; EXH,SILENCER 8-98043-307-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
557 CATALYST ASM 8-97608-055-7 01 1 0612-
558 FILTER ASM 8-97608-057-3 01 1 0612-
559 COVER; RR 8-97611-078-0 01 1 0612-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0612-
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0612-1010
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0612-1010
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-

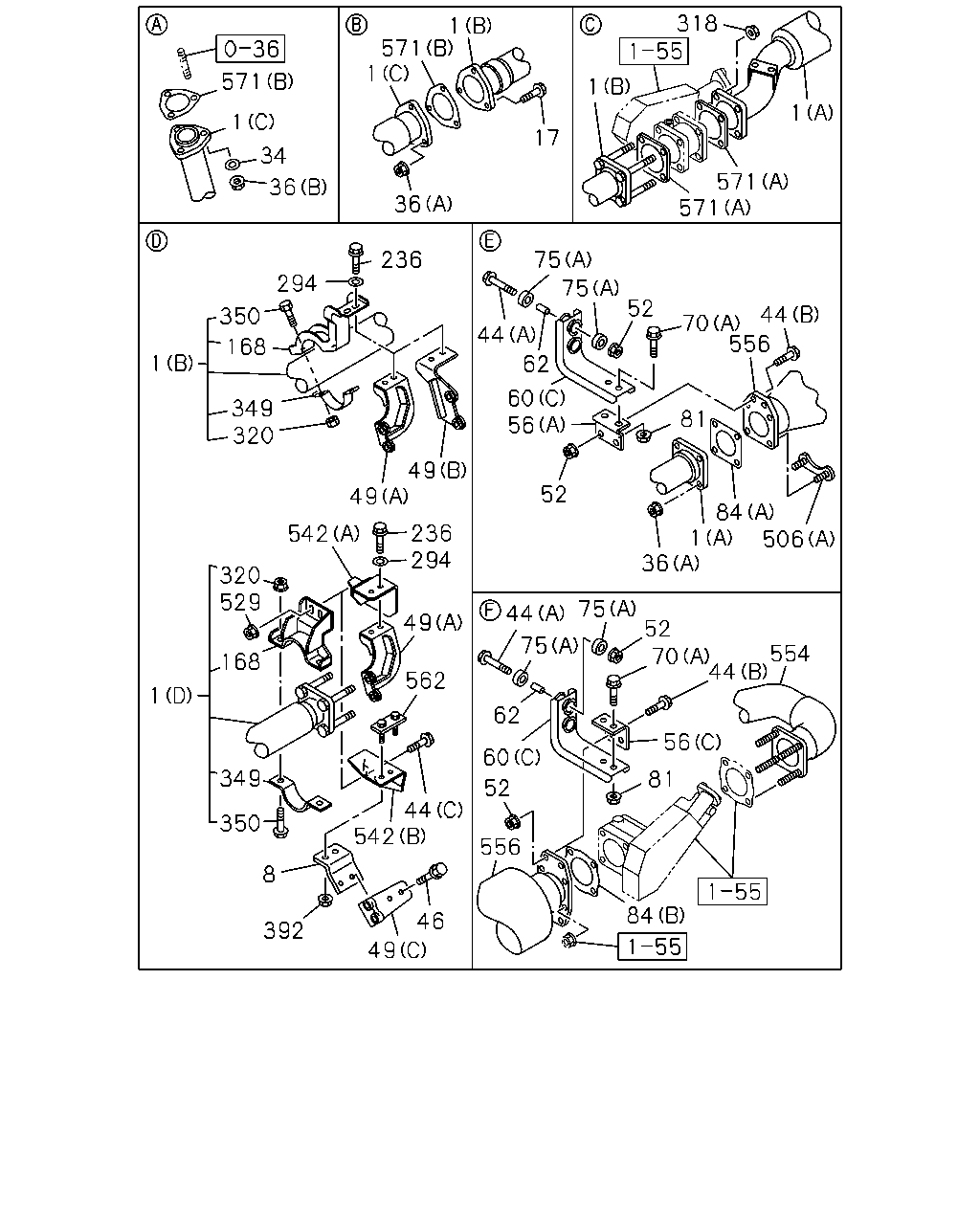

çizim 26927
1 571 571 1 318 17 1 571 1 36 36 1 34 571 236 294 350 168 349 320 1 49 49 542 236 294 49 562 44 542 8 350 349 1 168 529 320 392 49 46 556 52 60 62 84 81 44 554 70 52 75 44 75 506 84 1 36 52 81 556 70 44 52 75 75 44 62 60 56 56
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-856-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-343-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
8 BRACKET; EXH PIPE 8-98233-345-0 01 1 1305-1310
8 BRACKET; EXH PIPE 8-98259-873-0 01 1 1311-
17 BOLT; EXH PIPE
M12X40 FLANGE 		0-28051-240-0 03 1 0612-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 04 1 0612-
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 07 1 0612-
36 NUT; EXH PIPE
(B) M12 		1-09400-010-0 03 1 0612-
44 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 1305-
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0612-
44 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 04 1 0612-
46 BOLT; BRKT,EXH PIPE
M10X25 FLANGE 		0-28051-025-0 02 1 1305-
49 BRACKET; EXH PIPE TO TRANS
ENGINE REAR PTO(SV1) (B) 		8-98058-348-0 01 1 0612-0712
49 BRACKET; EXH PIPE TO TRANS
ENGINE REAR PTO(SV1) (B) 		8-98079-289-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
ENGINE REAR PTO(SV1) (C) 		8-98113-007-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
EXC. ENGINE REAR PTO(SV1) (A) 		8-98058-347-0 01 1 0612-0712
49 BRACKET; EXH PIPE TO TRANS
EXC. ENGINE REAR PTO(SV1) (A) 		8-98079-288-0 01 1 0801-1304
49 BRACKET; EXH PIPE TO TRANS
EXC. ENGINE REAR PTO(SV1) (C) 		8-98113-008-0 01 1 1305-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 11 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(D) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-279-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-328-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(C) 		1-22152-065-0 02 1 0612-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(B) 		8-98056-982-0 01 1 0612-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 02 1 0612-
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 04 1 0612-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0612-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0612-
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0612-
168 BRACKET; EXH PIPE,FRT 8-98063-858-0 01 1 0612-0712
168 BRACKET; EXH PIPE,FRT 8-98079-294-0 01 1 0801-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0712
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0801-1304
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 0612-0712
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0801-
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0612-0712
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0612-
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0612-1304
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1305-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0612-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0612-
506 BRACKET; STUD
(B) 		1-22134-214-0 02 1 0612-
529 NUT; BRKT,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0801-
542 BRACKET
(A) 		8-98079-290-0 01 1 0801-1304
542 BRACKET
(B) 		8-98234-524-0 01 1 1305-
554 PIPE; EXH,SILENCER 8-98043-307-0 01 1 0612-
556 DPD ASM 8-97613-331-6 01 1 0612-1010
556 DPD ASM 8-97622-883-3 01 1 1011-
562 PLATE; STUD,BOLT 8-98233-625-0 01 1 1305-1311
562 PLATE; STUD,BOLT 8-98259-983-0 01 1 1312-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0612-
571 GASKET
(B) 		8-98043-481-0 02 1 0612-

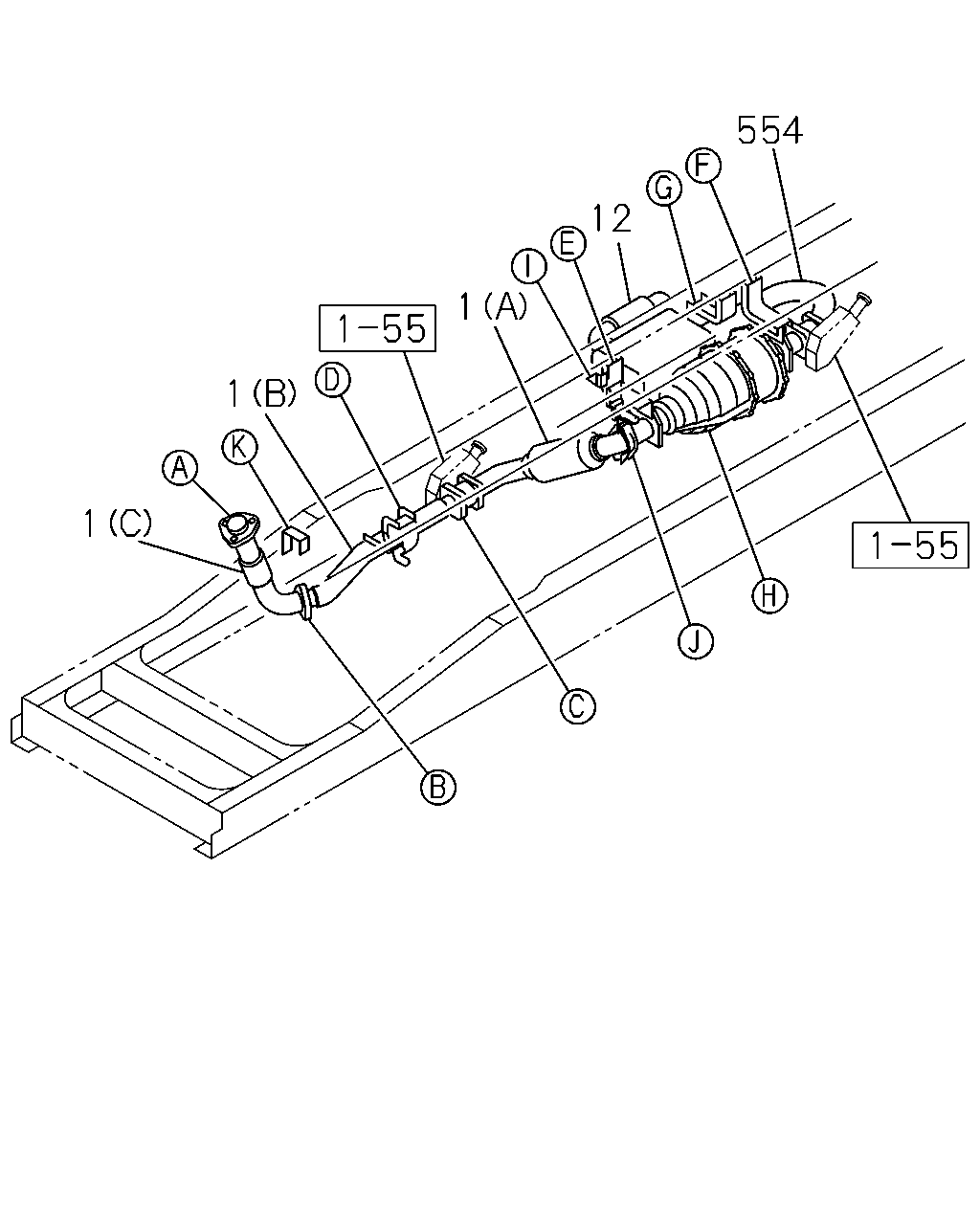

çizim 26928
554 12 1 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98063-856-0 01 1 0612-0712
1 PIPE; EXH
(D) 		8-98079-292-0 01 1 0801-1304
1 PIPE; EXH
(D) 		8-98234-512-0 01 1 1305-
1 PIPE; EXH
(A) 		8-98058-343-0 01 1 0612-
1 PIPE; EXH
(C) 		8-98050-133-2 01 1 0612-1304
1 PIPE; EXH
(C) 		8-98234-509-1 01 1 1305-
12 SILENCER ASM; EXH 8-98043-317-2 01 1 0612-
554 PIPE; EXH,SILENCER 8-98043-307-0 01 1 0612-
çizim 90404
60 81 121 81 75 75 107 12 116 114 118 70 81 60 45 75 75 264 81 45 94 22 97 56 105 22 5 6
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(G) 		1-33659-250-0 01 1 0612-
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0612-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0612-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0612-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0612-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0612-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0612-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 01 1 0612-
12 SILENCER ASM; EXH 8-98043-317-2 01 1 0612-
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0612-
45 BOLT; BRKT
M10X50 		0-10856-050-0 01 1 0612-
45 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(D) L=94 		1-22131-575-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22139-278-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22139-279-0 01 1 0612-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-328-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-536-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(C) 		1-22152-065-0 02 1 0612-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-072-0 01 1 0612-
60 BRACKET; FRAME TO BRKT
(B) 		8-98056-982-0 01 1 0612-
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 01 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0612-
70 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 02 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 04 1 0612-
75 RUBBER; SUPPORT,BRKT
(A) OD=40 		1-22159-094-0 08 1 0612-
75 RUBBER; SUPPORT,BRKT
(B) OD=30 		1-22159-106-1 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 01 1 0612-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0612-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0612-
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0612-
107 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 02 1 0612-
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0612-
114 BRACKET; EXH SILENCER 1-22139-311-0 01 1 0612-
116 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0612-0612
116 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0701-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0612-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0612-
264 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
