Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#26931) — 28 parça
◀

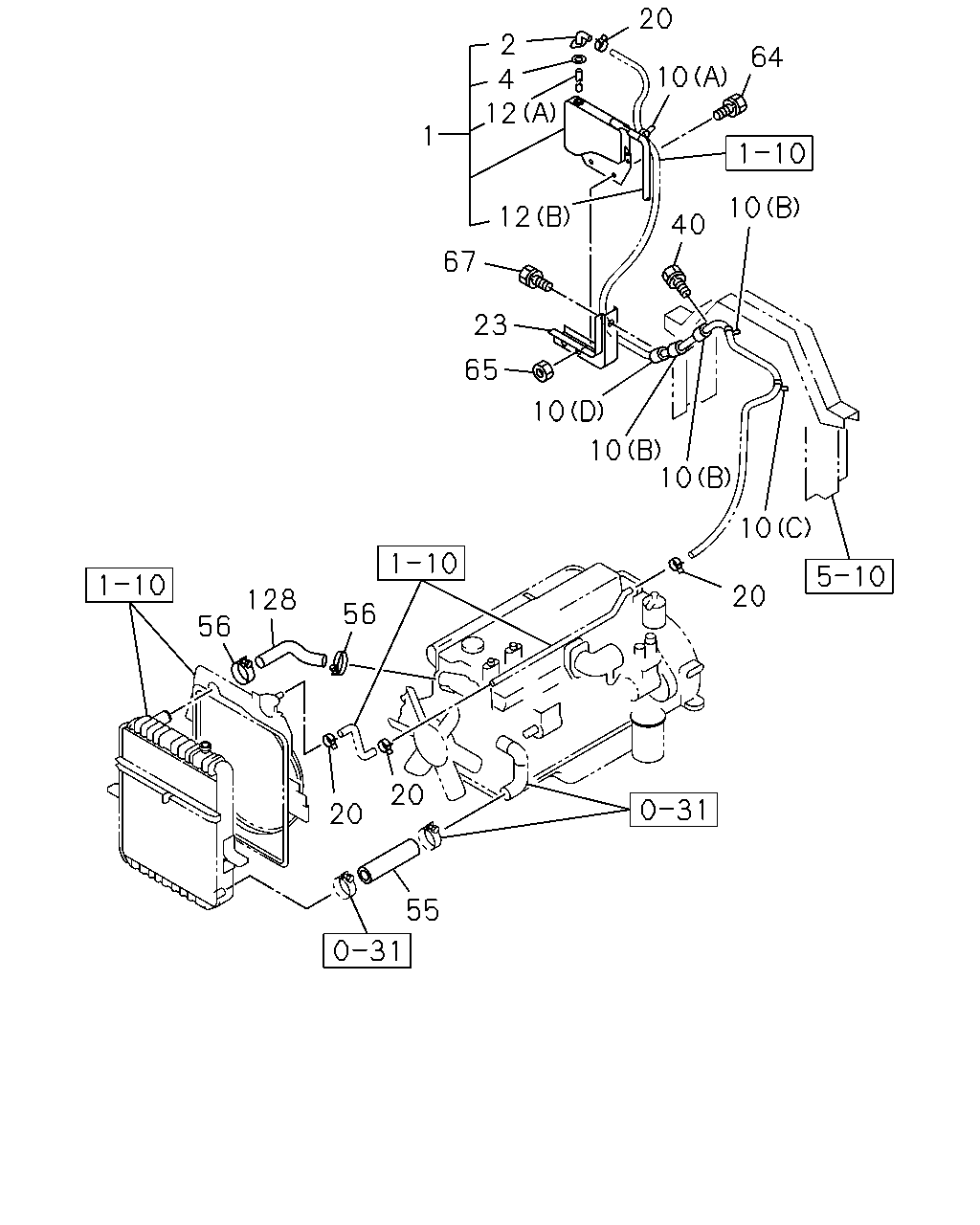

[111A] PIPING;SUB TANK (19 parça)

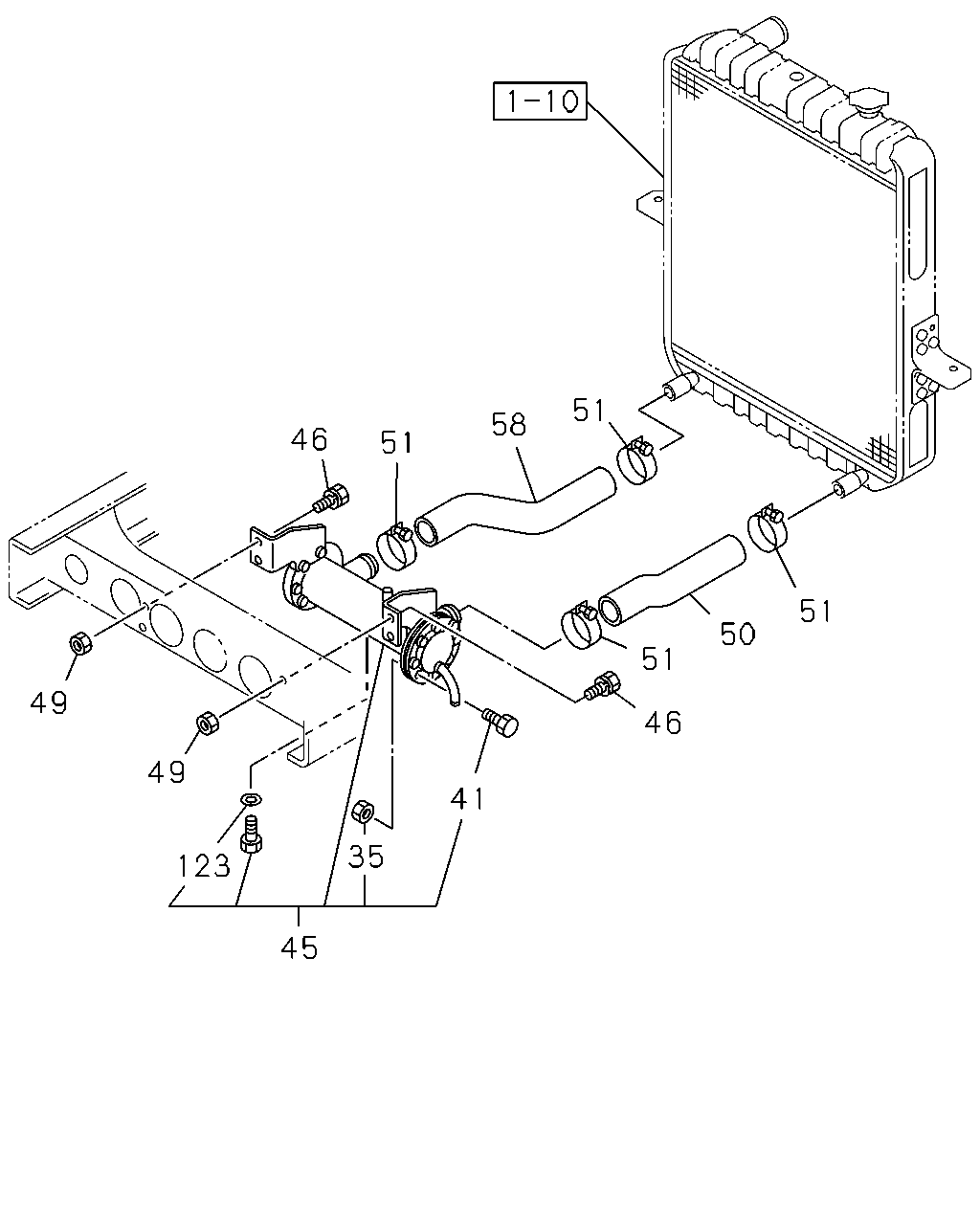

[111A] PIPING;SUB RADIATOR (9 parça)
▶
20
2
4
12
64
10
1
10
12
40
67
23
65
10
10
10
10
20
128
56
56
20
20
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0612-
2
CAP; SURGE TANK
1-21483-008-0
01
1
0612-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0612-
10
CLIP; RUBBER HOSE
(A) L=140
5-09707-031-1
01
1
0612-
10
CLIP; RUBBER HOSE
(B) ID=14 L=44
9-09917-427-0
03
1
0612-
10
CLIP; RUBBER HOSE
(C) ID=20 L=50
9-09917-430-0
01
1
0612-
10
CLIP; RUBBER HOSE
CAB SUSPENSION SEMI FLOATING VAR2<TMR> (D) ID=13 L=50
0-95235-286-0
01
1
0612-
12
HOSE; SURGE TANK
(B) L=300
1-09366-199-0
01
1
0612-
12
HOSE; SURGE TANK
(A)
1-21489-203-0
01
1
0612-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0612-
23
BRACKET; RESERVE TANK
1-21489-128-0
01
1
0612-
40
BOLT; CLIP
CAB SUSPENSION SEMI FLOATING VAR2<TMR> M8X20 FLANGE
0-28650-820-0
01
1
0612-
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
0612-
56
CLIP; WATER HOSE,RAD
ID=63
1-09704-067-0
04
1
0612-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0612-0707
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
04
1
0612-
67
BOLT; BRKT
M10X20 FLANGE
0-28651-020-0
02
1
0612-
128
HOSE; WATER,RAD INL
8-98010-576-2
01
1
0612-
51
58
46
51
51
50
51
49
46
49
41
35
123
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
NUT
FIRE TRUCK(RA9) M6
0-91110-506-0
16
1
0612-
41
BOLT
FIRE TRUCK(RA9) M6X25 FLANGE
0-28650-625-0
16
1
0612-
45
RADIATOR; SUB
FIRE TRUCK(RA9)
1-21410-691-2
01
1
0612-
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK(RA9) M8X30 FLANGE
0-28650-830-0
02
1
0612-
49
NUT; BRKT TO SUB RAD
FIRE TRUCK(RA9) M8 FLANGE
0-91180-108-0
04
1
0612-
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK(RA9)
8-98030-409-0
01
1
0612-
51
CLIP; WATER HOSE,RAD
FIRE TRUCK(RA9) ID=63
1-09704-067-0
04
1
0612-
58
HOSE; WATER,RAD TO PIPE
FIRE TRUCK(RA9)
8-98030-409-0
01
1
0612-
123
GASKET
FIRE TRUCK(RA9) ID=14.2 OD=23.0
9-09572-014-0
01
1
0612-
