6-70 — FLOOR PANEL (#2693) — 119 parça

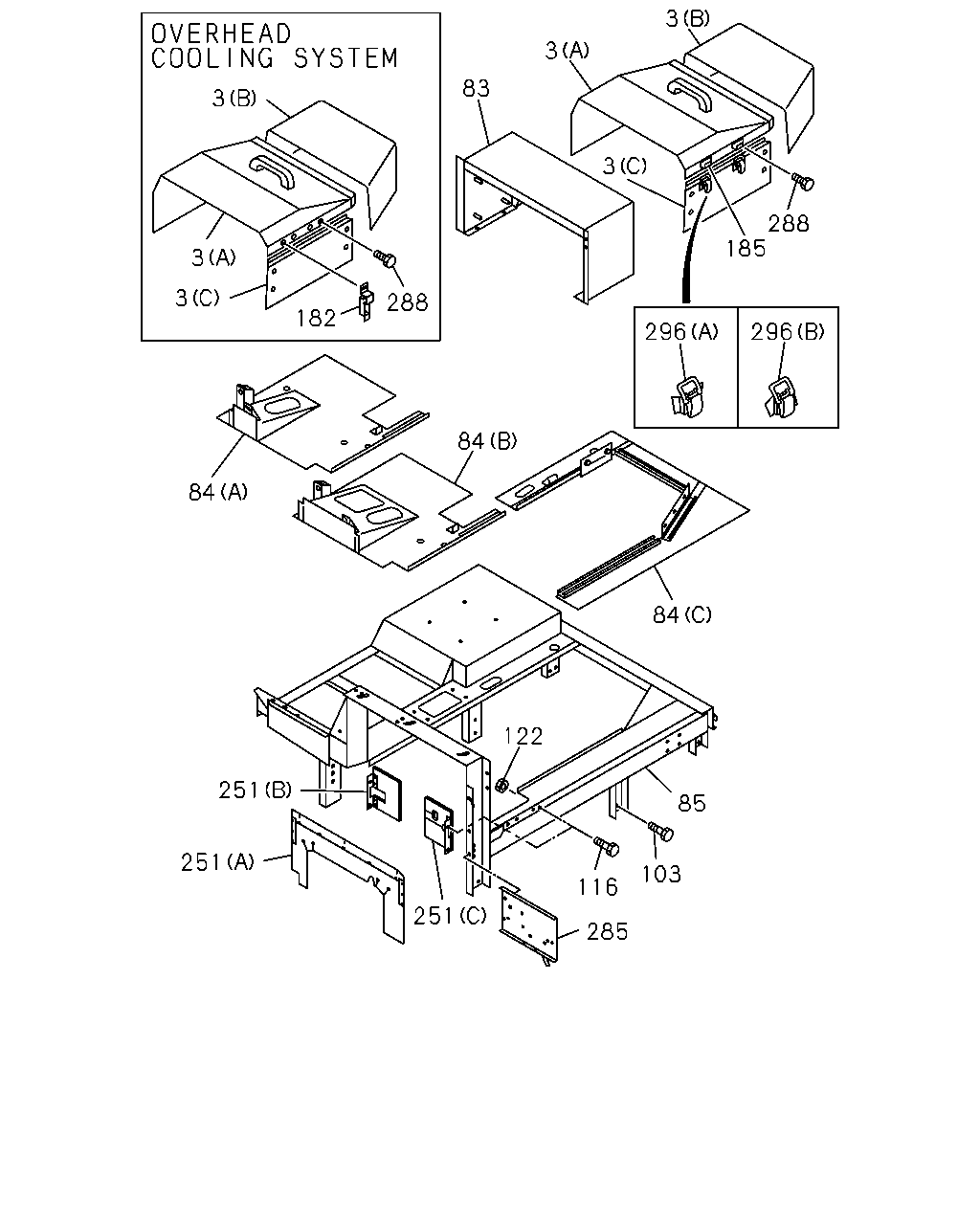

çizim 37151
3 3 83 3 3 288 185 3 3 288 182 296 296 84 84 84 122 251 85 251 103 116 251 285
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
(A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-260-3 01 1 9112- ● ●
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
(C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-271-3 01 1 9112- ● ●
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
(B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-277-1 01 1 9112- ● ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-127-0 01 1 9112- ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-429-1 01 1 9112- ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-430-0 01 1 9112- ●
83 ARCH ASM; WHEEL
EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-259-0 01 1 9101-9111 ●
83 ARCH ASM; WHEEL
EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-259-0 01 1 9112- ●
83 ARCH ASM; WHEEL
OVERHEAD COOLING SYSTEM<YS9> 		1-62101-428-0 01 1 9112- ●
83 ARCH ASM; WHEEL 1-62101-270-1 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-258-0 01 1 9101-9111 ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-258-0 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-62101-293-0 01 1 9101- ●
84 PANEL; FLOOR
EXC. CRANK PULLEY 3 GROOVES<E1T> (C) 		1-62101-282-1 01 1 9101-9111 ●
84 PANEL; FLOOR
EXC. OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-282-1 01 1 9112- ●
84 PANEL; FLOOR
OVERHEAD COOLING SYSTEM<YS9> (B),(C) 		1-62101-427-0 01 1 9112-9207 ●
84 PANEL; FLOOR
OVERHEAD COOLING SYSTEM<YS9> (B),(C) 		1-62101-431-1 01 1 9208- ●
84 PANEL; FLOOR
(C) 		1-62101-281-1 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-62101-280-0 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-62101-276-1 01 1 9101- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-257-1 01 1 9101-9111 ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-257-1 01 1 9112- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-62101-292-1 01 1 9101- ●
85 FRAME ASM; FLOOR
OVERHEAD COOLING SYSTEM<YS9> 		1-62101-426-1 01 1 9112- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62101-286-4 01 1 9101- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-62101-275-5 01 1 9101- ●
103 BOLT; FLOOR BOARD TO FRAME 0-50041-030-0 14 1 9101- ● ●
116 BOLT; SEAL RUBBER 9-01900-820-0 07 1 9101-9204 ● ●
116 BOLT; SEAL RUBBER 0-50040-820-0 07 1 9205- ● ●
122 NUT; SEAL RUBBER 9-09110-408-0 04 1 9101- ● ●
182 HINGE ASM; PANEL
OVERHEAD COOLING SYSTEM<YS9> 		1-62101-129-0 02 1 9112- ●
185 HOOK; ENG HOOD CATCH
EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-317-0 02 1 9101-9111 ●
185 HOOK; ENG HOOD CATCH 1-62101-317-0 02 1 9101-9111 ●
185 HOOK; ENG HOOD CATCH
EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-317-0 02 1 9112- ● ●
251 SEAL; RUBBER
(C) 		1-21590-056-1 01 1 9101- ●
251 SEAL; RUBBER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) 		1-21590-056-1 01 1 9101- ●
251 SEAL; RUBBER
(A) 		1-21590-060-0 01 1 9101- ●
251 SEAL; RUBBER
(B) 		1-21590-055-1 01 1 9101- ● ●
251 SEAL; RUBBER
(A) 		1-21590-054-1 01 1 9101- ●
251 SEAL; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-21590-064-0 01 1 9101- ●
285 PANEL; ELEC 1-62200-209-4 01 1 9101- ●
285 PANEL; ELEC 1-62200-211-2 01 1 9101- ●
288 BOLT; HOOK
EXC. CRANK PULLEY 3 GROOVES<E1T> 		0-50140-616-0 04 1 9101-9111 ●
288 BOLT; HOOK 0-50140-616-0 04 1 9101-9111 ●
288 BOLT; HOOK
EXC. OVERHEAD COOLING SYSTEM<YS9> 		0-50140-616-0 04 1 9112- ● ●
296 CATCH; ENG HOOD
EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-130-0 02 1 9101-9111 ●
296 CATCH; ENG HOOD
(A) 		1-62101-130-0 02 1 9112- ●
296 CATCH; ENG HOOD
EXC. CRANK PULLEY 3 GROOVES<E1T> (B) 		1-62101-316-0 02 1 9101-9111 ●
296 CATCH; ENG HOOD
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-316-0 02 1 9112- ●
296 CATCH; ENG HOOD
(A) 		1-62101-130-0 03 1 9101- ●
296 CATCH; ENG HOOD
(B) 		1-62101-316-0 01 1 9101- ●

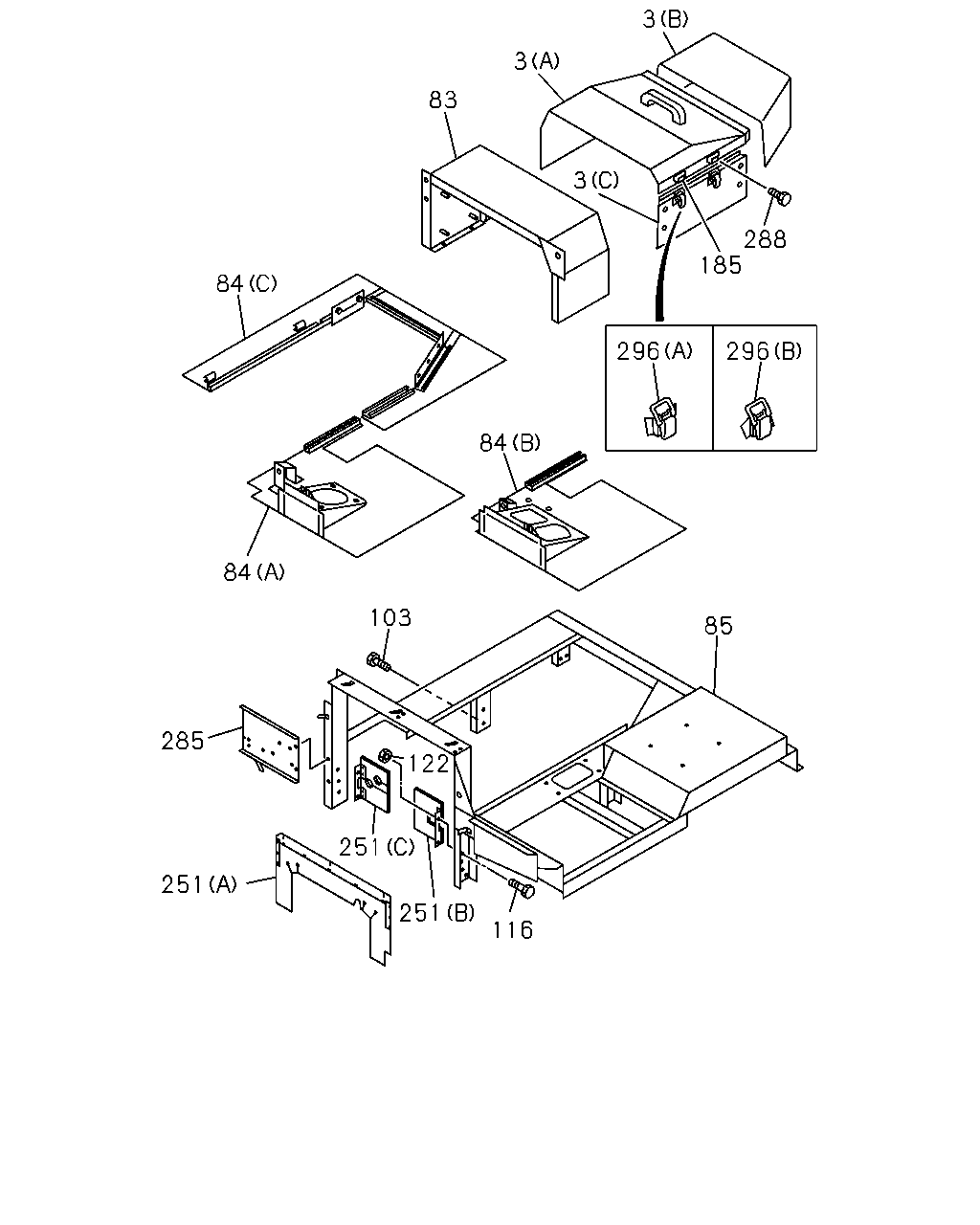

çizim 38996
3 3 83 3 288 185 84 296 296 84 84 103 85 285 122 251 251 251 116
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
(A) 		1-62101-260-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-260-3 01 1 9112- ● ●
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
(C) 		1-62101-271-3 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-271-3 01 1 9112- ● ●
3 HOOD ASM; ENG
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
(B) 		1-62101-277-1 01 1 9101-9111 ●
3 HOOD ASM; ENG
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-277-1 01 1 9112- ● ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-127-0 01 1 9112- ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-429-1 01 1 9112- ●
3 HOOD ASM; ENG
OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-430-0 01 1 9112- ●
83 ARCH ASM; WHEEL
EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-259-0 01 1 9101-9111 ●
83 ARCH ASM; WHEEL
EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-259-0 01 1 9112- ●
83 ARCH ASM; WHEEL
OVERHEAD COOLING SYSTEM<YS9> 		1-62101-428-0 01 1 9112- ●
83 ARCH ASM; WHEEL 1-62101-270-1 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-258-0 01 1 9101-9111 ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> (A) 		1-62101-258-0 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-62101-293-0 01 1 9101- ●
84 PANEL; FLOOR
EXC. CRANK PULLEY 3 GROOVES<E1T> (C) 		1-62101-282-1 01 1 9101-9111 ●
84 PANEL; FLOOR
EXC. OVERHEAD COOLING SYSTEM<YS9> (C) 		1-62101-282-1 01 1 9112- ●
84 PANEL; FLOOR
OVERHEAD COOLING SYSTEM<YS9> (B),(C) 		1-62101-427-0 01 1 9112-9207 ●
84 PANEL; FLOOR
OVERHEAD COOLING SYSTEM<YS9> (B),(C) 		1-62101-431-1 01 1 9208- ●
84 PANEL; FLOOR
(C) 		1-62101-281-1 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-62101-280-0 01 1 9101- ●
84 PANEL; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-62101-276-1 01 1 9101- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-257-1 01 1 9101-9111 ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-257-1 01 1 9112- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-62101-292-1 01 1 9101- ●
85 FRAME ASM; FLOOR
OVERHEAD COOLING SYSTEM<YS9> 		1-62101-426-1 01 1 9112- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62101-286-4 01 1 9101- ●
85 FRAME ASM; FLOOR
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-62101-275-5 01 1 9101- ●
103 BOLT; FLOOR BOARD TO FRAME 0-50041-030-0 14 1 9101- ● ●
116 BOLT; SEAL RUBBER 9-01900-820-0 07 1 9101-9204 ● ●
116 BOLT; SEAL RUBBER 0-50040-820-0 07 1 9205- ● ●
122 NUT; SEAL RUBBER 9-09110-408-0 04 1 9101- ● ●
185 HOOK; ENG HOOD CATCH
EXC. CRANK PULLEY 3 GROOVES<E1T> 		1-62101-317-0 02 1 9101-9111 ●
185 HOOK; ENG HOOD CATCH 1-62101-317-0 02 1 9101-9111 ●
185 HOOK; ENG HOOD CATCH
EXC. OVERHEAD COOLING SYSTEM<YS9> 		1-62101-317-0 02 1 9112- ● ●
251 SEAL; RUBBER
(C) 		1-21590-056-1 01 1 9101- ●
251 SEAL; RUBBER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) 		1-21590-056-1 01 1 9101- ●
251 SEAL; RUBBER
(A) 		1-21590-060-0 01 1 9101- ●
251 SEAL; RUBBER
(B) 		1-21590-055-1 01 1 9101- ● ●
251 SEAL; RUBBER
(A) 		1-21590-054-1 01 1 9101- ●
251 SEAL; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-21590-064-0 01 1 9101- ●
285 PANEL; ELEC 1-62200-209-4 01 1 9101- ●
285 PANEL; ELEC 1-62200-211-2 01 1 9101- ●
288 BOLT; HOOK
EXC. CRANK PULLEY 3 GROOVES<E1T> 		0-50140-616-0 04 1 9101-9111 ●
288 BOLT; HOOK 0-50140-616-0 04 1 9101-9111 ●
288 BOLT; HOOK
EXC. OVERHEAD COOLING SYSTEM<YS9> 		0-50140-616-0 04 1 9112- ● ●
296 CATCH; ENG HOOD
EXC. CRANK PULLEY 3 GROOVES<E1T> (A) 		1-62101-130-0 02 1 9101-9111 ●
296 CATCH; ENG HOOD
(A) 		1-62101-130-0 02 1 9112- ●
296 CATCH; ENG HOOD
EXC. CRANK PULLEY 3 GROOVES<E1T> (B) 		1-62101-316-0 02 1 9101-9111 ●
296 CATCH; ENG HOOD
EXC. OVERHEAD COOLING SYSTEM<YS9> (B) 		1-62101-316-0 02 1 9112- ●
296 CATCH; ENG HOOD
(A) 		1-62101-130-0 03 1 9101- ●
296 CATCH; ENG HOOD
(B) 		1-62101-316-0 01 1 9101- ●
