◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11041 - FSR(LHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#26928) — 77 parça

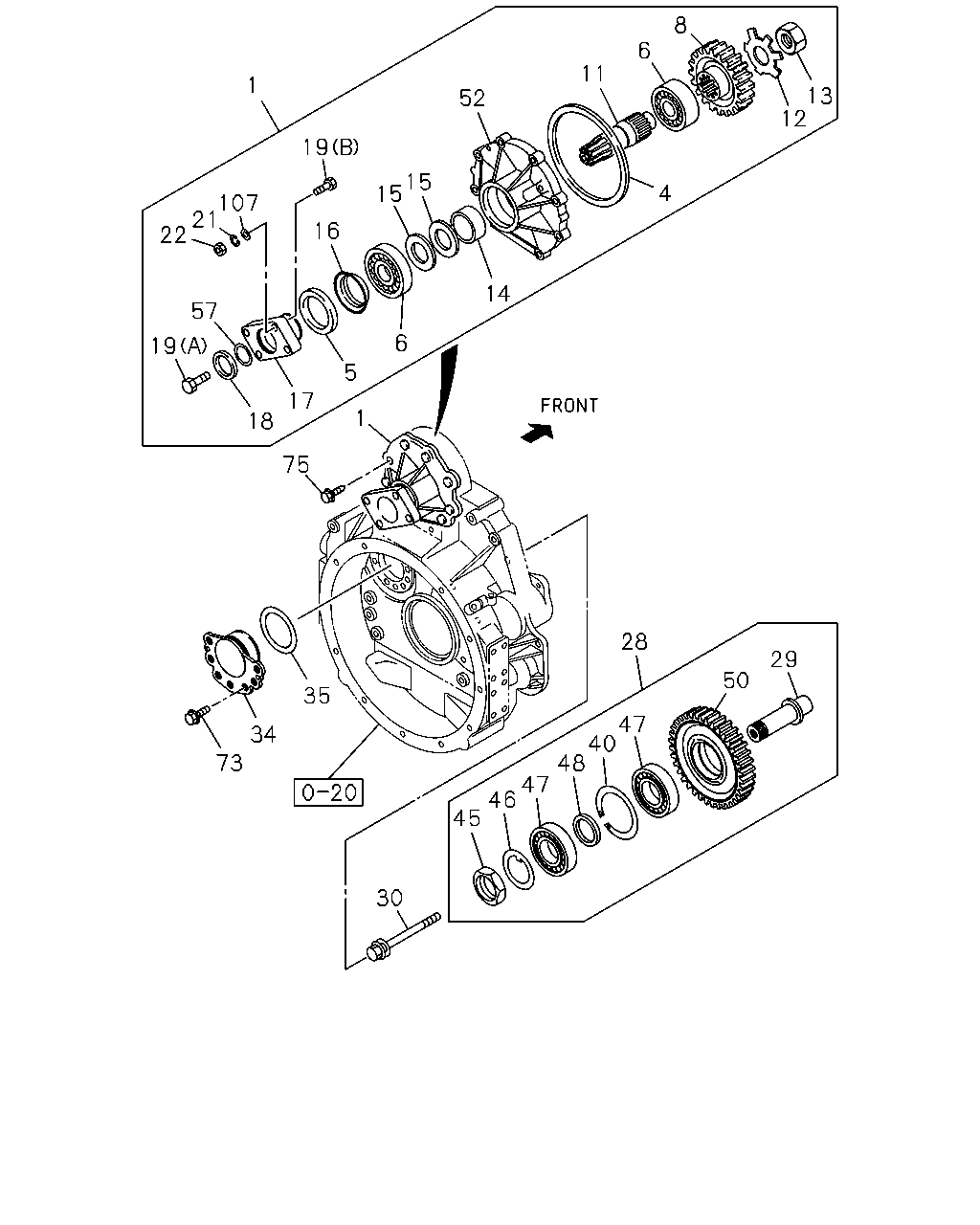

çizim 26949
8 6 11 1 13 12 52 19 15 15 4 107 21 22 16 14 57 6 19 5 17 1 18 75 28 29 50 35 47 40 48 47 46 45 34 73 30
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		8-94396-900-4 01 1 0612-
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		9-09720-519-0 01 1 0612-
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09625-128-0 01 1 0612-0709
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		8-97388-533-0 01 1 0710-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 0612-1204
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-98171-254-0 02 1 1205-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0612-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) BEST VALUE PARTS 		1-87610-134-0 02 1 1205-
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=60 		8-94396-885-0 01 1 0612-
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-94397-265-1 01 1 0612-
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09853-865-0 01 1 0612-
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09843-720-1 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=17.95 		9-38226-045-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.20 		9-38226-046-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.45 		9-38226-047-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.70 		9-38226-048-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.95 		9-38226-049-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0612-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.45 		9-38226-051-0 01 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.50 		9-41229-324-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.51 		9-41229-325-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.52 		9-41229-326-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.53 		9-41229-327-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.54 		9-41229-328-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.55 		9-41229-329-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.56 		9-41229-330-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.57 		9-41229-331-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.58 		9-41229-332-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.59 		9-41229-333-0 AR 1 0612-
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.60 		9-41229-334-0 AR 1 0612-
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38175-011-0 01 1 0612-
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-011-1 01 1 0612-
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-1 01 1 0612-
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (A) M20X60 		9-92052-060-0 01 1 0612-0709
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (A) M20X60 		0-20852-060-0 01 1 0710-
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X45 		9-92621-245-0 04 1 0612-
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-612-0 04 1 0612-0709
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-812-0 04 1 0710-
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0612-
28 GEAR; IDLE
ENGINE REAR PTO(SV1) 		8-98052-224-1 01 1 0612-
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		8-94396-895-1 01 1 0612-
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 01 1 0612-
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-97600-138-0 01 1 0612-
35 GASKET; COVER
ENGINE REAR PTO(SV1) 		8-94396-903-0 01 1 0612-
40 SPACER; IDLE GEAR
ENGINE REAR PTO(SV1) T=3 		1-38226-015-0 01 1 0612-
45 NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1) M45 		8-98013-634-0 01 1 0612-
46 WASHER; LK,BRG
ENGINE REAR PTO(SV1) ID=47 		1-09533-003-0 01 1 0612-
47 BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1) ID=45 OD=85 		9-00032-209-0 02 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.05 		1-38226-016-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.12 		1-38226-017-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.19 		1-38226-018-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.26 		1-38226-019-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.33 		1-38226-020-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.40 		1-38226-021-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.47 		1-38226-022-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.54 		1-38226-023-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.61 		1-38226-024-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.68 		1-38226-025-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.75 		1-38226-026-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.82 		1-38226-027-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.89 		1-38226-028-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=6.96 		1-38226-029-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.03 		1-38226-030-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.10 		1-38226-031-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.17 		1-38226-032-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.24 		1-38226-033-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.31 		1-38226-034-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.38 		1-38226-035-0 01 1 0612-
48 SPACER; INNER
ENGINE REAR PTO(SV1) T=7.45 		1-38226-036-0 01 1 0612-
50 GEAR; IDLE A
ENGINE REAR PTO(SV1) Z=72 		8-94396-884-0 01 1 0612-
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		5-38110-001-0 01 1 0612-
57 GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-09623-285-0 01 1 0612-
73 BOLT; COVER,PTO
ENGINE REAR PTO(SV1) M10X25 FLANGE 		0-28151-025-0 07 1 0612-
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X28 FLANGE 		0-28181-028-0 08 1 0612-0803
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X28 FLANGE 		0-28181-028-0 06 1 0804-0805
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X28 FLANGE 		8-98044-944-0 06 1 0806-
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 OD=22 		0-91610-512-0 04 1 0612-
