0-52 — OIL AND VACUUM PIPING; ENGINE (#26922) — 49 parça

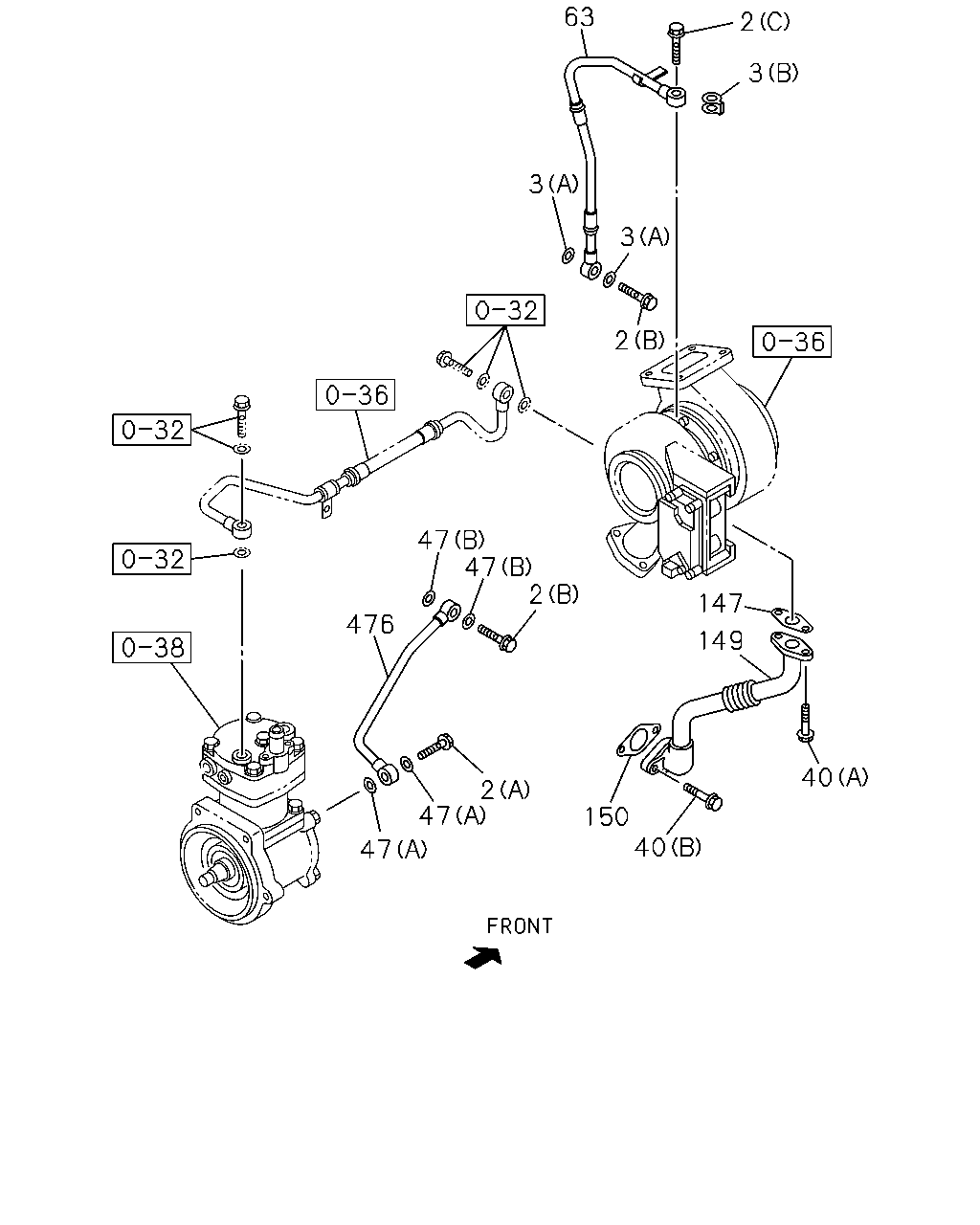

63 2 3 3 3 2 47 47 2 147 476 149 40 2 47 150 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0612-0805
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0612-
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0612-0805
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-239-0	01	1	0612-0704
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-238-0	01	1	0705-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0612-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0612-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0612-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0612-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0612-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0612-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0612-

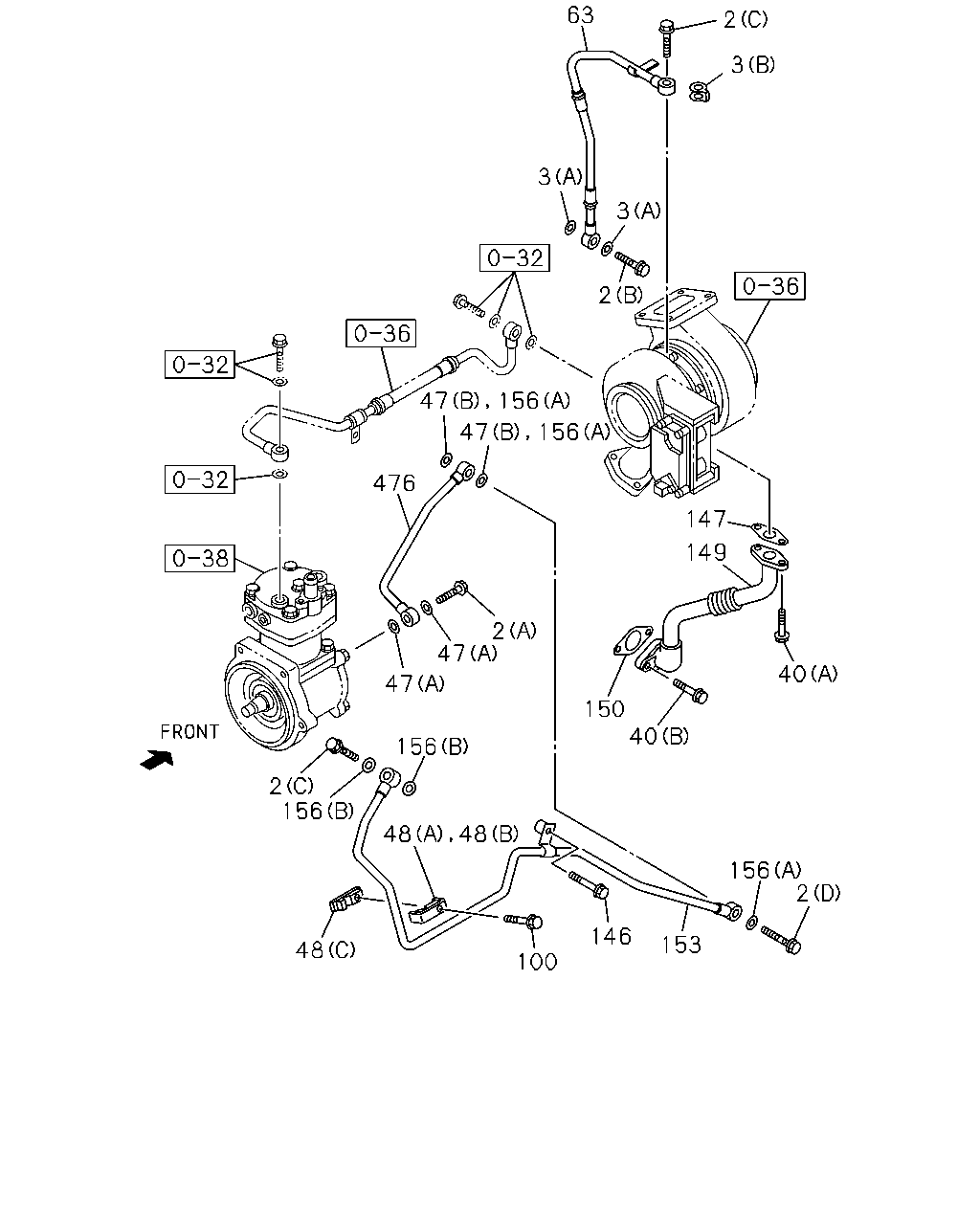

63 2 3 3 3 2 47 156 47 156 476 147 149 2 47 40 47 150 40 156 2 156 48 48 156 2 146 153 48 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0612-0805
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0612-
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0612-0805
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-239-0	01	1	0612-0704
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (C) M10X21 FLANGE	8-97372-238-0	01	1	0705-
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0612-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0612-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0612-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0612-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	8-97372-487-0	02	1	0612-
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	8-97372-488-0	02	1	0612-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0612-
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	01	1	0612-
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	0612-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0612-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0612-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0612-
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-98047-267-1	01	1	0612-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	0612-1312
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0612-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0612-
