Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

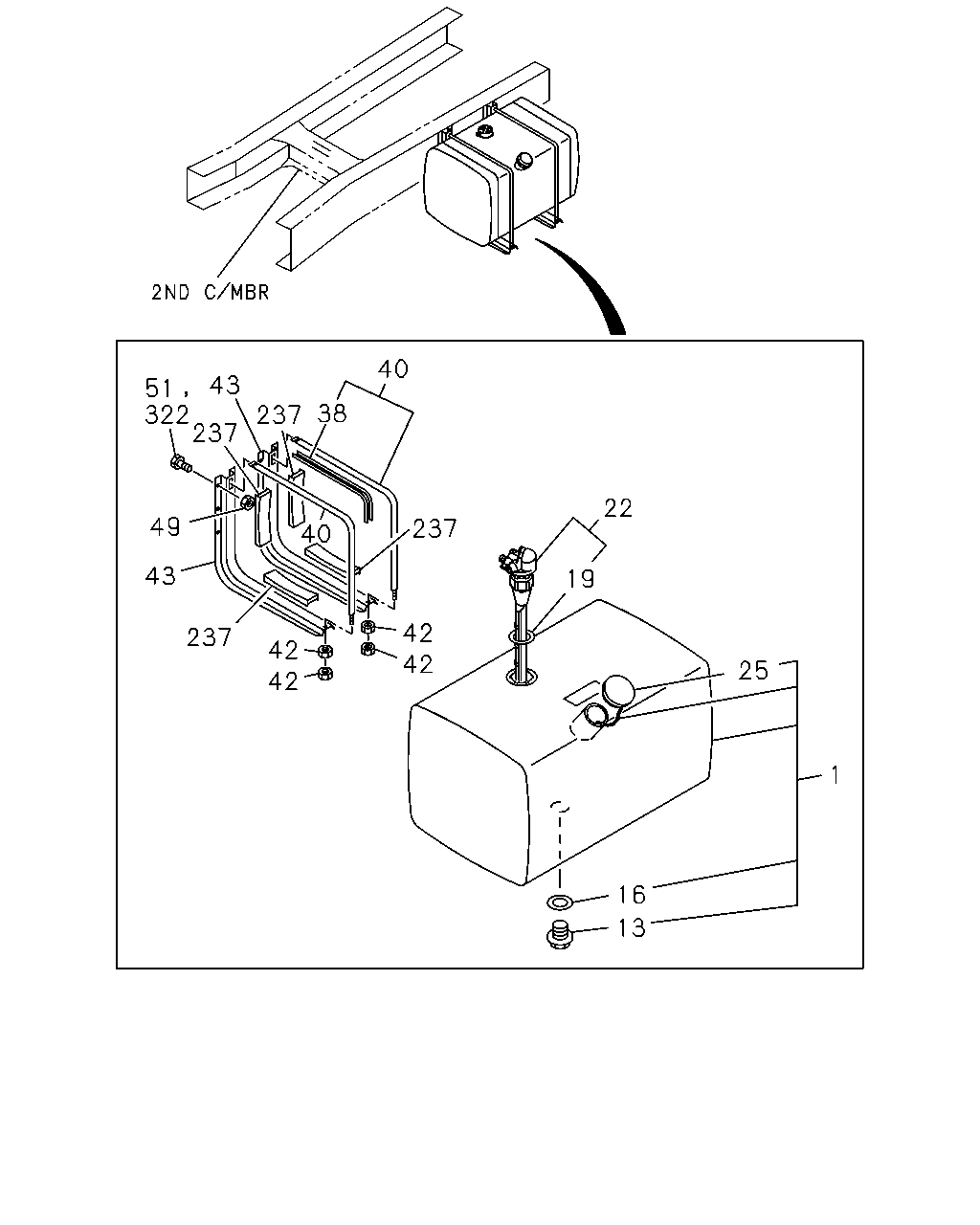

1-40 — FUEL TANK
(#26920) — 16 parça
40
43
51
322
237
38
237
22
49
237
40
43
19
42
237
42
42
25
42
1
16
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0302-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
9-99202-318-0
01
1
0302-
16
GASKET; PLUG
T=1.60
1-22416-001-0
01
1
0302-0509
16
GASKET; PLUG
T=1.60
8-98030-453-0
01
1
0510-
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0302-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0302-
25
CAP; FILLER,FUEL TANK
1-22440-056-0
01
1
0302-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0302-
40
BELT; SUPPORT,FUEL TANK
L=1205
1-22550-227-2
02
1
0302-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0302-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0302-
49
NUT; BRKT
M12
9-99110-512-0
06
1
0302-0302
49
NUT; BRKT
M12
9-99110-512-0
12
1
0303-
51
BOLT; BRKT TO FRAME
M12X45 FLANGE
0-28081-245-0
12
1
0302-0302
237
GASKET; BRKT TO FUEL TANK
1-22553-037-0
04
1
0302-
322
BOLT; BRKT FIX
M12X45 FLANGE
0-28081-245-0
12
1
0303-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
