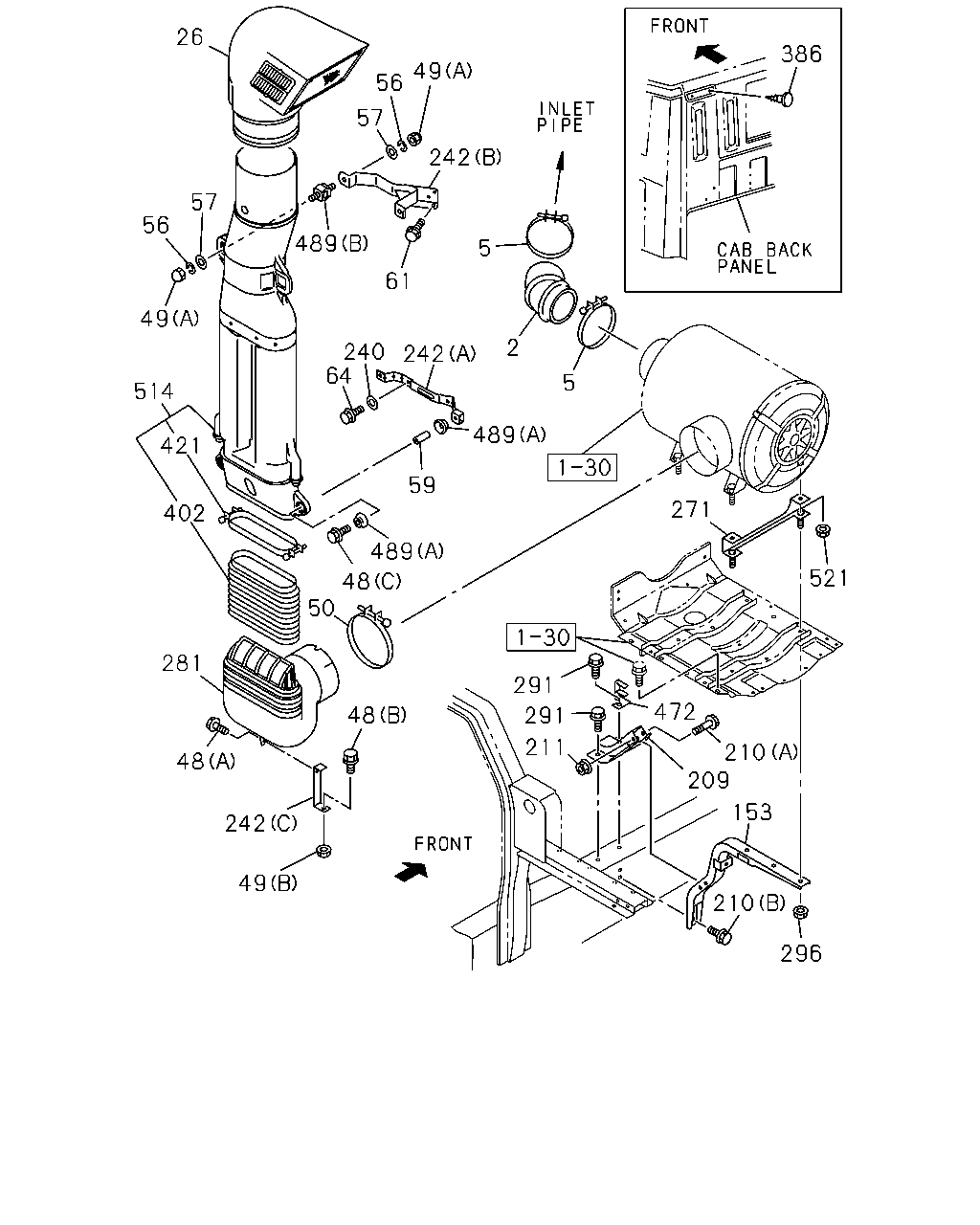

1-31 — AIR DUCT
(#26918) — 36 parça
26
386
49
56
57
242
57
56
489
5
61
49
2
240
64
242
5
514
489
421
59
271
402
489
521
48
50
281
291
472
48
291
211
210
209
48
153
242
49
210
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-955-0
01
1
0302-
5
CLIP; AIR DUCT
ID=130-169
1-09707-157-0
02
1
0302-
26
DUCT; AIR INT
1-14219-258-0
01
1
0302-
48
BOLT; AIR DUCT
(A) M8X25 FLANGE
0-28680-825-0
01
1
0302-
48
BOLT; AIR DUCT
(B) M10X25 FLANGE
0-28681-025-0
01
1
0302-
48
BOLT; AIR DUCT
(C) M10X26
1-09030-044-1
02
1
0302-
49
NUT; AIR DUCT
(B) M10 FLANGE
0-91150-210-0
01
1
0302-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
04
1
0302-
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
0302-
56
WASHER; LK,AIR INT DUCT
ID=8.2
1-09985-177-0
04
1
0302-
57
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
1-09985-188-0
04
1
0302-
59
TUBE; DIST,AIR INT DUCT
1-79998-228-0
02
1
0302-
61
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
8-94279-218-0
02
1
0302-
64
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
8-94279-218-0
02
1
0302-
153
BRACKET; ACL,FRT
1-53419-309-0
01
1
0302-0308
153
BRACKET; ACL,FRT
1-53419-270-2
01
1
0309-
209
BRACKET; ACL
1-53419-276-0
01
1
0302-
210
BOLT; ACL BRKT
(A) M8X70 FLANGE
0-28080-870-0
02
1
0302-
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28081-230-0
01
1
0302-
211
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0302-
240
WASHER; PL,BRKT
ID=8.4 OD=22
1-09985-188-0
01
1
0302-
242
BRACKET; AIR DUCT
(C)
1-23957-008-0
01
1
0302-
242
BRACKET; AIR DUCT
(A)
1-79990-041-0
01
1
0302-
242
BRACKET; AIR DUCT
(B)
1-79990-045-1
01
1
0302-
271
SPACER; BRKT,ACL
1-53419-338-0
02
1
0302-
281
DUCT; AIR,VERTICAL INT
1-14230-192-0
01
1
0302-
291
BOLT; ACL
M12X30 FLANGE
0-28081-230-0
02
1
0302-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0302-
386
PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5
1-76378-157-0
04
1
0302-
402
GASKET; RUBBER
1-14230-149-1
01
1
0302-
421
CLAMP; AIR DUCT
1-14239-237-0
01
1
0302-
472
STOPPER; LINK ROD
1-33659-227-0
01
1
0302-
489
RUBBER; SUPPORT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0302-
489
RUBBER; SUPPORT
(B)
8-97080-149-0
02
1
0302-
514
DUCT; PRE CLEANER
1-14230-170-0
01
1
0302-
521
NUT; SPACER
M8 FLANGE
0-91150-108-0
04
1
0302-
