Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

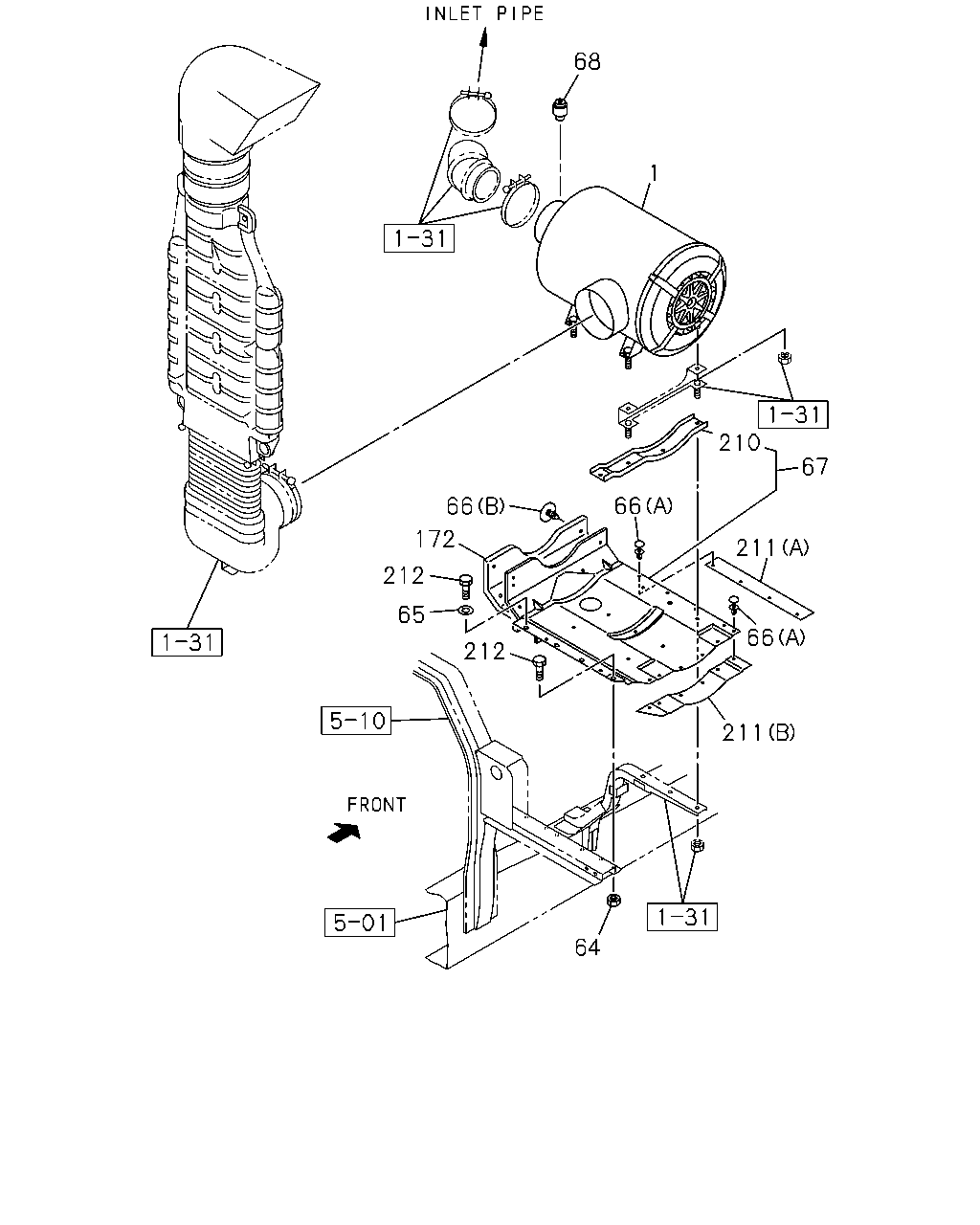

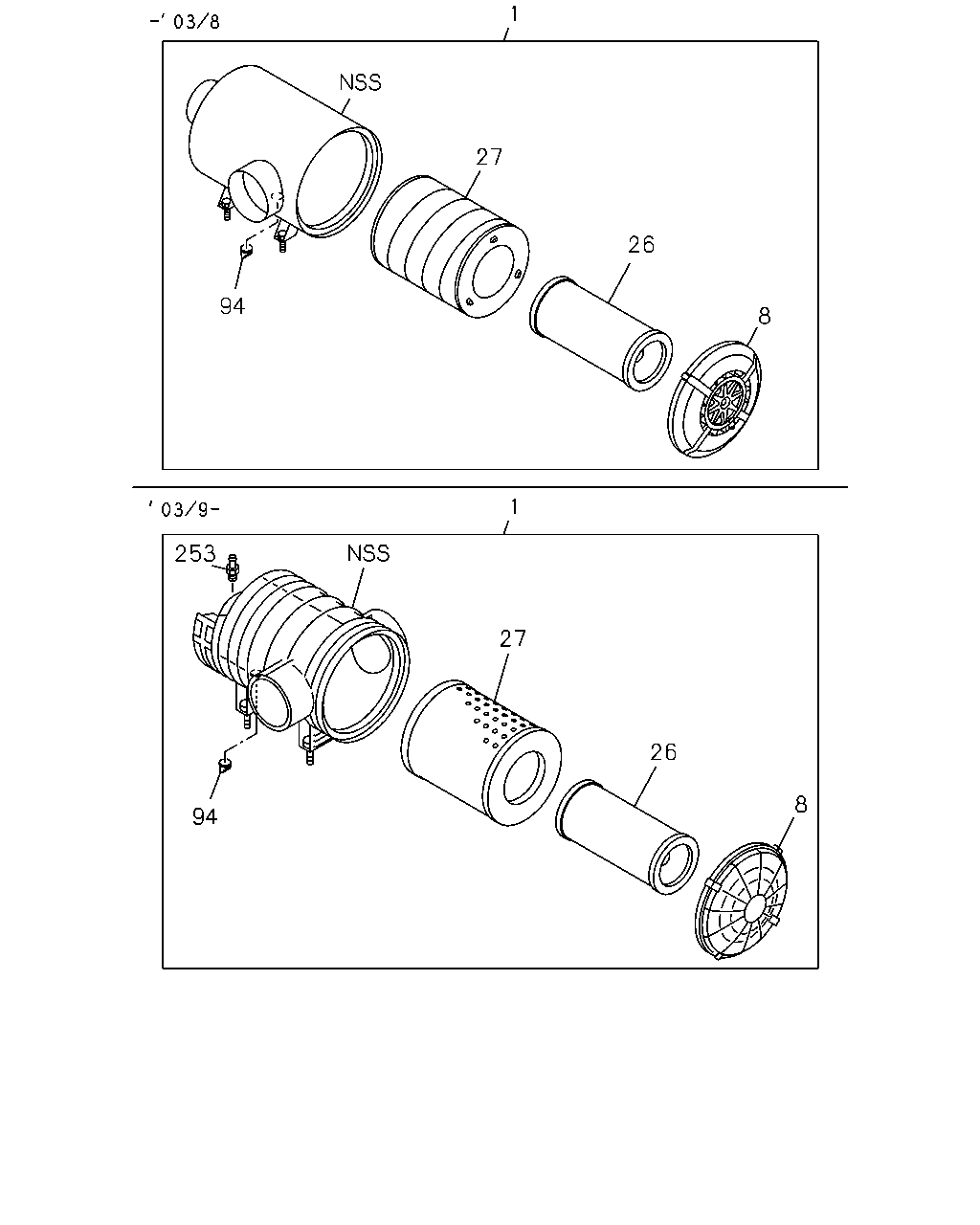

1-30 — AIR CLEANER
(#26917) — 26 parça
◀
[130A] COMPONENT (11 parça)
[130A] FIXING;ASM AND OTHER PARTS (15 parça)
▶
1
27
26
94
8
1
253
27
26
8
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-821-0
01
1
0302-0308
1
CLEANER ASM; AIR
1-14210-832-0
01
1
0309-
8
COVER ASM; ACL
1-14212-132-0
01
1
0302-0308
8
COVER ASM; ACL
1-14212-129-0
01
1
0309-
26
FILTER; ACL,INNER
1-14215-220-0
01
1
0302-0308
26
FILTER; ACL,INNER
1-14215-217-0
01
1
0309-
27
FILTER; ACL,OUTER
1-14215-213-0
01
1
0302-0308
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
0309-
94
VALVE; VACUATOR
1-14219-192-0
01
1
0302-0308
94
VALVE; VACUATOR
1-14219-251-0
01
1
0309-
253
NIPPLE
1-14219-252-0
01
1
0309-
68
1
210
67
66
66
172
211
212
212
65
66
211
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-821-0
01
1
0302-0308
1
CLEANER ASM; AIR
1-14210-832-0
01
1
0309-
64
NUT; BAND BRKT
M10 FLANGE
0-91150-210-0
04
1
0302-
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
03
1
0302-0402
65
WASHER; PL
ID=10.5 OD=26
9-09160-710-0
04
1
0403-
66
CLIP; ACL
(A)
5-09987-033-0
09
1
0302-
66
CLIP; ACL
(B)
8-94279-048-0
07
1
0302-
67
COVER; ACL
1-53419-304-0
01
1
0302-0308
67
COVER; ACL
1-53419-281-3
01
1
0309-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
0305-
172
INSULATOR; NOISE
1-53446-780-1
01
1
0302-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
0302-
211
RUBBER; SEAL
(A)
1-79931-007-0
01
1
0302-
211
RUBBER; SEAL
(B)
1-79931-008-2
01
1
0302-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28681-025-0
04
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
