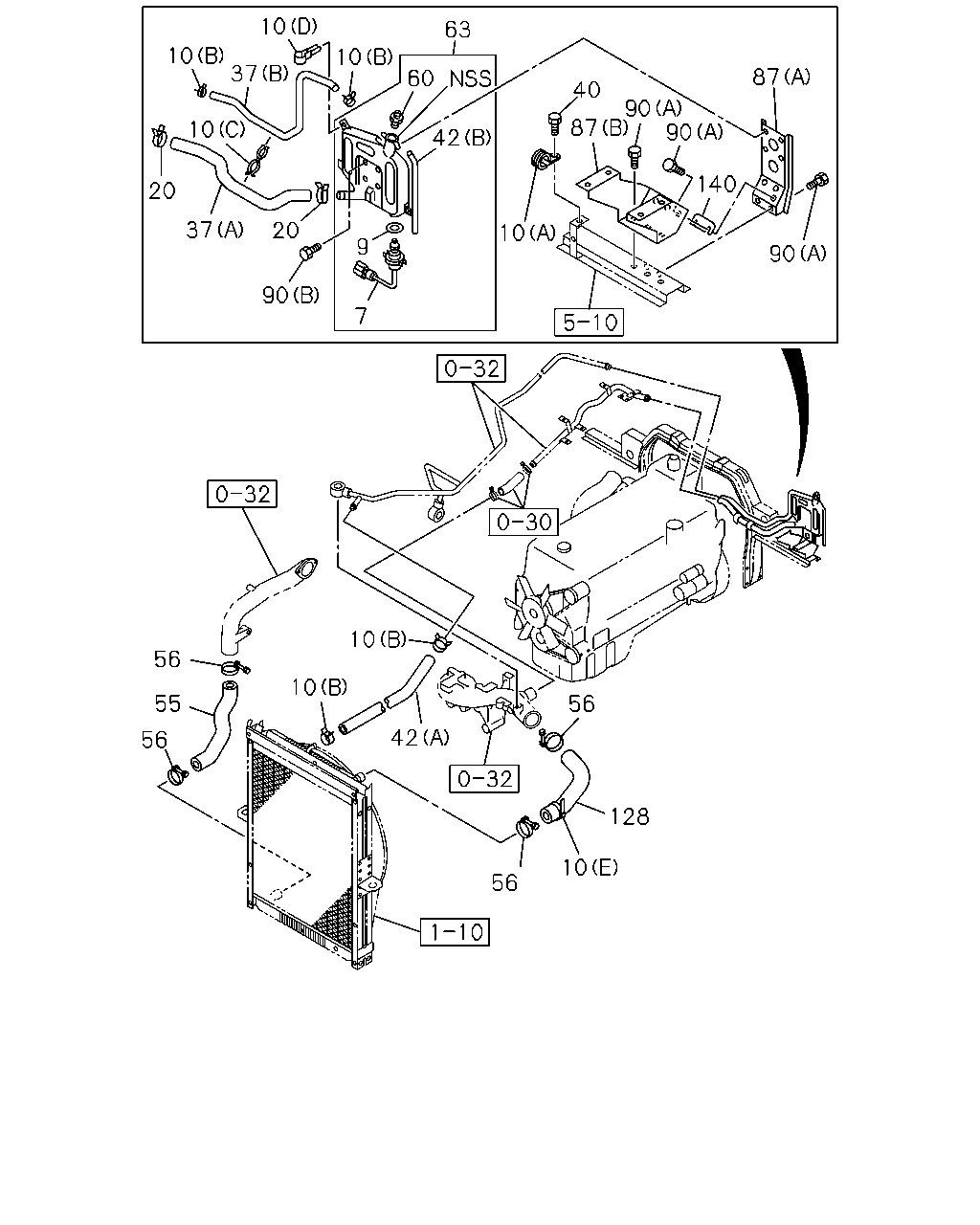

1-11 — RADIATOR HOSE AND SUB TANK
(#26916) — 23 parça
10
63
10
37
10
87
60
40
90
87
90
42
10
140
20
37
20
10
9
90
90
7
10
56
10
55
56
42
56
128
10
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0302-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0302-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0302-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0302-
10
CLIP; RUBBER HOSE
(E) L=350
1-09707-183-0
01
1
0302-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0302-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0302-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0302-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
37
HOSE; RUBBER
(A)
1-21437-755-0
01
1
0302-
40
BOLT; CLIP
M10X20 FLANGE
0-28681-020-0
01
1
0302-
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0302-
55
HOSE; WATER,RAD OUTLET
1-21437-931-1
01
1
0302-
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0302-
60
CAP; SUB TANK
1-21450-137-0
01
1
0302-
63
TANK ASM; SUB
1-21481-146-0
01
1
0302-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0302-
87
BRACKET; SUB TANK
(A)
1-21489-156-0
01
1
0302-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0302-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0302-
128
HOSE; WATER,RAD INL
1-21437-876-0
01
1
0302-
140
SHIM
T=0.8
1-53458-716-0
AR
1
0302-
