Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#26915) — 38 parça
◀

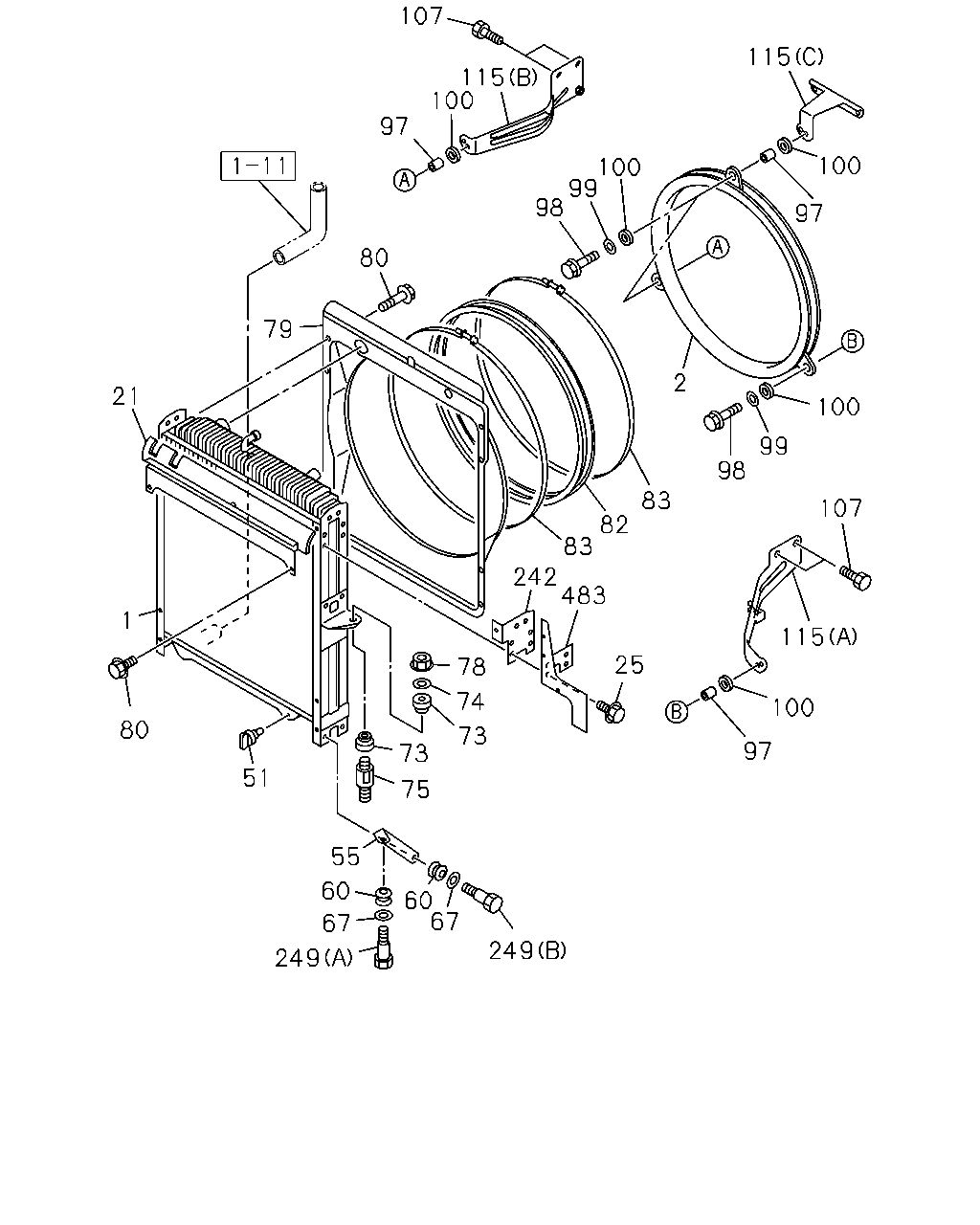

[110A] FIXING;ASM AND OTHER PARTS (32 parça)
[110A] COMPONENT (6 parça)
▶
107
115
115
100
97
100
100
99
98
97
80
79
2
21
100
99
98
83
107
82
83
242
483
1
115
25
78
74
100
80
73
97
73
51
75
55
60
60
67
67
249
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-830-0
01
1
0302-
2
GUIDE; FAN
1-21551-445-0
01
1
0302-
21
SEAL; RAD
1-21460-116-0
01
1
0302-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0302-
51
PLUG; DRAIN
W/GASKET
1-09609-023-0
01
1
0302-
55
STAY; RAD TO UPR MBR
1-21464-696-0
01
1
0302-
55
STAY; RAD TO UPR MBR
1-21464-695-0
01
1
0302-
60
GROMMET
1-09332-117-0
04
1
0302-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0302-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0302-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0302-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0302-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0302-
79
GUIDE; FAN,RAD
1-21551-496-0
01
1
0302-0408
79
GUIDE; FAN,RAD
1-21551-540-0
01
1
0409-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28080-816-0
08
1
0302-
82
COVER; FAN,RAD
1-21559-465-0
01
1
0302-
83
CLIP; FAN COVER
1-09707-152-2
02
1
0302-
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
0302-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28081-045-0
03
1
0302-
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0302-
100
RUBBER; MTG
1-09337-017-0
06
1
0302-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
04
1
0302-
115
BRACKET; FAN GUIDE
(A)
1-21559-420-1
01
1
0302-
115
BRACKET; FAN GUIDE
(B)
1-21559-421-1
01
1
0302-
115
BRACKET; FAN GUIDE
(C)
1-21559-422-0
01
1
0302-
242
BRACKET; RAD
1-21464-589-1
01
1
0302-
242
BRACKET; RAD
1-21464-588-1
01
1
0302-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
0302-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
0302-
483
BRACKET; SEAL
1-21460-100-1
01
1
0302-
483
BRACKET; SEAL
1-21460-101-1
01
1
0302-
1
528
526
529
528
529
527
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-830-0
01
1
0302-
526
TANK; UPR,RADIATOR CORE
1-21414-031-0
01
1
0302-
527
TANK; LWR,RADIATOR CORE
1-21415-031-0
01
1
0302-
528
PLATE; SIDE,RADIATOR CORE
1-21416-064-0
01
1
0302-
528
PLATE; SIDE,RADIATOR CORE
1-21416-063-0
01
1
0302-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
0302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
