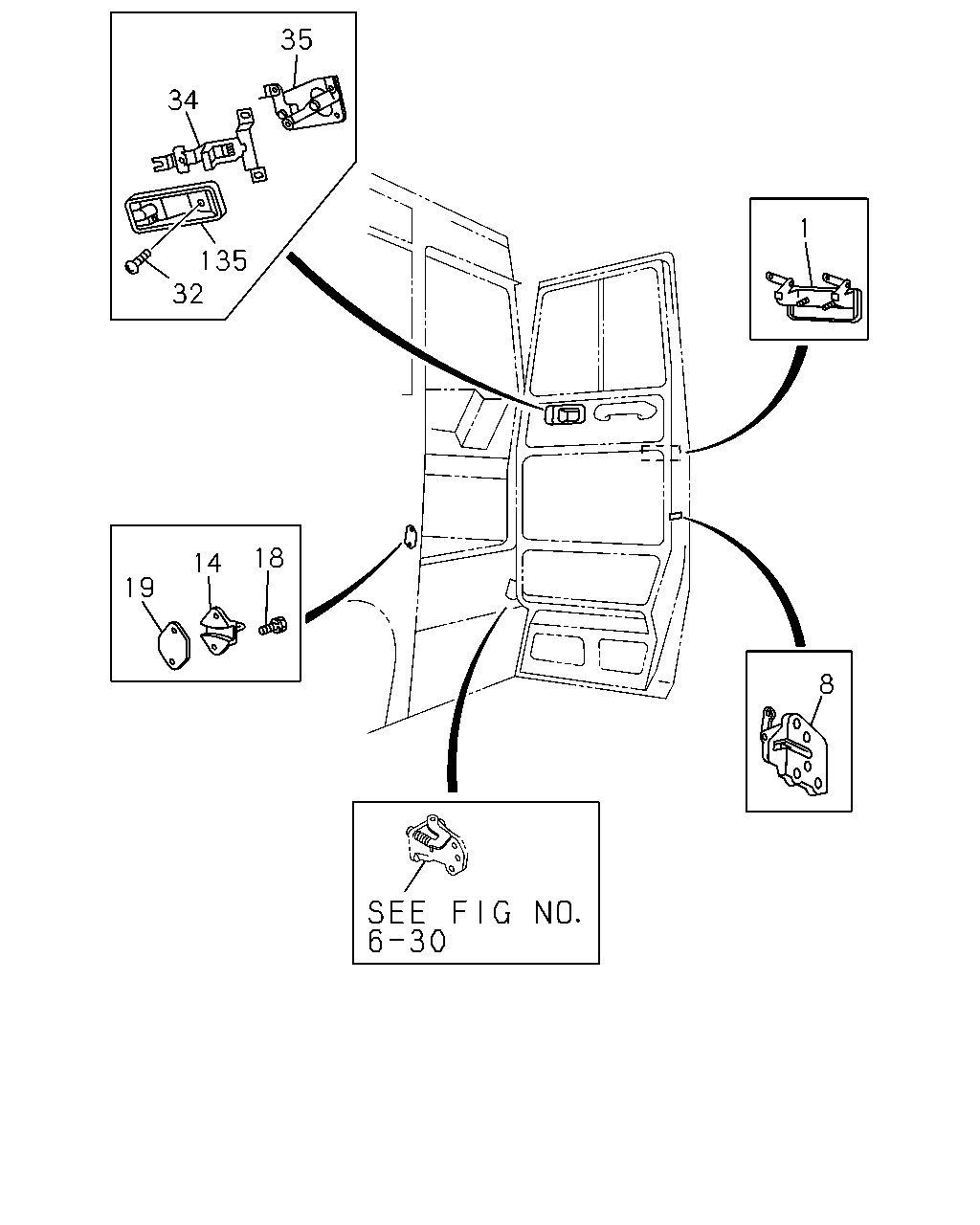

6-32 — FRONT DOOR LOCK AND HANDLE (#2691) — 13 parça

35 34 1 135 32 18 14 19 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; OUTSIDE,FRT DOOR DOOR PARTS EQUIPMENT<PT8>	8-94274-835-0	01	1	9101-	●	●
8	LOCK; DOOR,FRT DOOR DOOR PARTS EQUIPMENT<PT8>	1-74510-001-0	01	1	9101-	●
8	LOCK; DOOR,FRT DOOR DOOR PARTS EQUIPMENT<PT8>	1-74510-004-0	01	1	9101-		●
14	STRIKER; FRT DOOR DOOR PARTS EQUIPMENT<PT8>	8-94282-528-0	01	1	9101-	●	●
18	SCREW; DOOR STRIKER DOOR PARTS EQUIPMENT<PT8>	8-94279-308-0	02	1	9101-	●	●
19	SHEET; ADJ,DOOR STRIKER DOOR PARTS EQUIPMENT<PT8> T=1.4	8-94282-546-0	01	1	9101-	●	●
32	SCREW; CASE DOOR PARTS EQUIPMENT<PT8>	5-09981-004-0	02	1	9101-	●	●
34	HANDLE; INSIDE,FRT DOOR DOOR PARTS EQUIPMENT<PT8>	8-94251-746-1	01	1	9101-	●
34	HANDLE; INSIDE,FRT DOOR DOOR PARTS EQUIPMENT<PT8>	8-94251-747-1	01	1	9101-		●
35	LINK; DOOR LOCK,INSIDE DOOR PARTS EQUIPMENT<PT8>	1-74750-001-0	01	1	9101-	●
35	LINK; DOOR LOCK,INSIDE DOOR PARTS EQUIPMENT<PT8>	1-74750-002-0	01	1	9101-		●
135	CASE; INSIDE HANDLE DOOR PARTS EQUIPMENT<PT8> BLACK	8-94201-499-1	01	1	9101-	●
135	CASE; INSIDE HANDLE DOOR PARTS EQUIPMENT<PT8> BLACK	8-94201-500-1	01	1	9101-		●
