0-66 — GENERATOR (#26909) — 75 parça

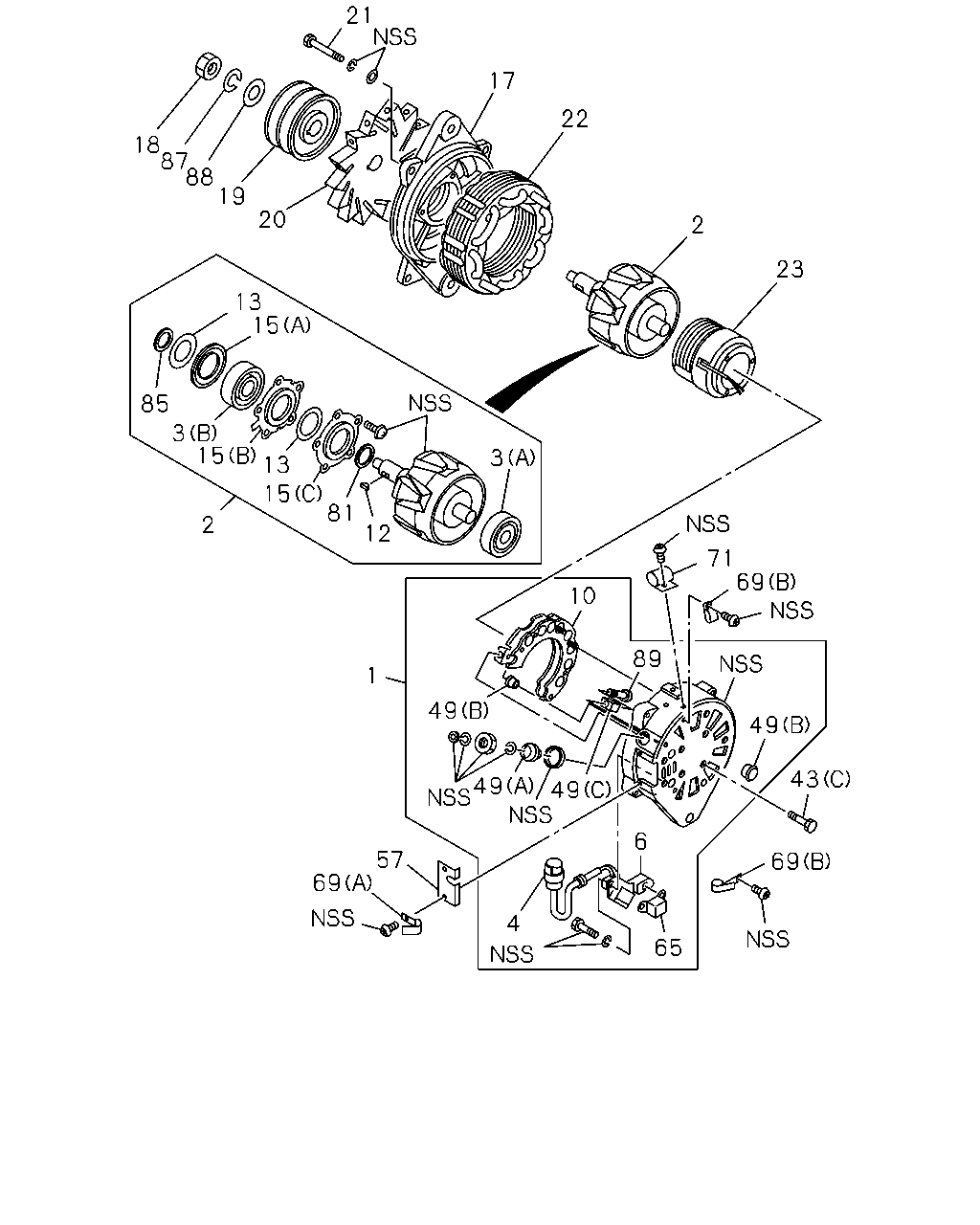

çizim 24455
21 17 22 18 87 88 19 20 2 23 13 15 85 3 15 13 15 81 3 2 12 71 69 10 89 1 49 49 43 49 49 6 57 69 69 4 65
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81222-096-0 01 1 -
1 COVER ASM; RR,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81222-129-2 01 1 -
2 ROTOR; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81221-092-0 01 1 -
2 ROTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-628-0 01 1 -
3 BEARING; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(A) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-770-0 01 1 -
4 TERMINAL; BRUSH,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-680-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81260-010-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81260-017-0 01 1 -
10 RECTIFIER; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81219-114-0 01 1 -
10 RECTIFIER; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81219-121-0 01 1 -
12 KEY; ROTOR,GEN
NIKKO ASM PART: A = 1-81200-438-3 		9-82215-867-0 01 1 -
13 GASKET; ROTOR,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-630-0 02 1 -
15 RETAINER; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-190-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-349-0 01 1 -
15 RETAINER; ROTOR,GEN
(C) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-629-0 01 1 -
17 COVER ASM; FRT,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81213-080-0 01 1 -
17 COVER ASM; FRT,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81213-101-0 01 1 -
18 NUT; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-438-3 		9-82216-098-0 01 1 -
19 PULLEY; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81222-130-2 01 1 -
19 PULLEY; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81222-153-0 01 1 -
20 FAN; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81223-003-1 01 1 -
21 BOLT; THROUGH,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-661-0 04 1 -
22 STATOR; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81211-114-0 01 1 -
22 STATOR; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81212-014-0 01 1 -
23 COIL; ROTOR GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81212-016-0 01 1 -
43 SCREW; RR END COVER
(C) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-664-0 04 1 -
43 SCREW; RR END COVER
(A) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-774-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(B) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-001-0 02 1 -
49 BUSHING; RECTIFIER,GEN
(C) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-352-0 01 1 -
49 BUSHING; RECTIFIER,GEN
(A) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-635-0 01 1 -
57 COVER; BRUSH,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-663-0 01 1 -
65 CONDENSER; GEN
NIKKO ASM PART: A = 1-81200-438-3 		8-94338-867-0 01 1 -
69 CLIP; WIRE,GEN
(A) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-516-0 01 1 -
69 CLIP; WIRE,GEN
(B) NIKKO ASM PART: A = 1-81200-438-3 		9-82215-810-0 02 1 -
71 HOLDER; TERMINAL,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81217-053-0 01 1 -
81 SPACER; ROTOR,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-627-0 01 1 -
85 SPACER; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-626-0 01 1 -
87 WASHER; PULLEY,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-672-0 01 1 -
88 WASHER; PL,PULLEY GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-673-0 01 1 -
89 BOLT; RECTIFIER,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81229-278-0 01 1 -

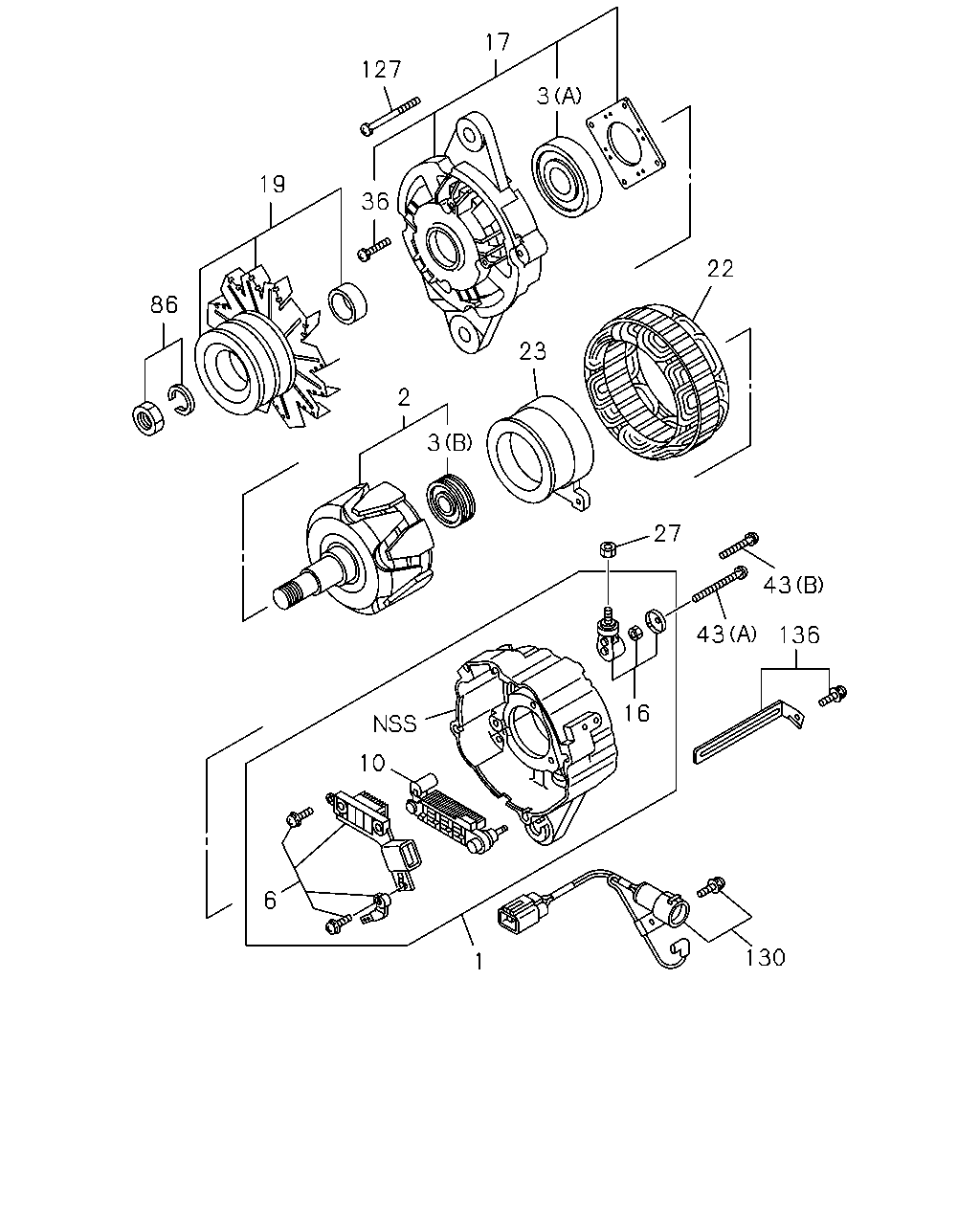

çizim 85028
17 127 3 19 36 22 86 23 2 3 27 43 43 136 16 10 6 130 1
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81222-096-0 01 1 -
1 COVER ASM; RR,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81222-129-2 01 1 -
2 ROTOR; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81221-092-0 01 1 -
2 ROTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81221-102-0 01 1 -
3 BEARING; ROTOR,GEN
(A) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-628-0 01 1 -
3 BEARING; ROTOR,GEN
(B) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-631-0 01 1 -
3 BEARING; ROTOR,GEN
(A) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-769-0 01 1 -
3 BEARING; ROTOR,GEN
(B) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-770-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81260-010-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81260-017-0 01 1 -
10 RECTIFIER; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81219-114-0 01 1 -
10 RECTIFIER; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81219-121-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-771-0 01 1 -
17 COVER ASM; FRT,GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81213-080-0 01 1 -
17 COVER ASM; FRT,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81213-101-0 01 1 -
19 PULLEY; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81222-130-2 01 1 -
19 PULLEY; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81222-153-0 01 1 -
22 STATOR; GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81211-114-0 01 1 -
22 STATOR; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81211-129-0 01 1 -
23 COIL; ROTOR GEN
NIKKO ASM PART: A = 1-81200-438-3 		1-81212-014-0 01 1 -
23 COIL; ROTOR GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81212-016-0 01 1 -
27 NUT; RECTIFIER,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-772-0 01 1 -
36 SCREW; FRT COVER
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-768-0 01 1 -
43 SCREW; RR END COVER
(C) NIKKO ASM PART: A = 1-81200-438-3 		1-81229-664-0 04 1 -
43 SCREW; RR END COVER
(A) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-773-0 01 1 -
43 SCREW; RR END COVER
(B) MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-774-0 01 1 -
86 NUT SET; PULLEY,GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-767-0 01 1 -
130 CONNECTOR; GEN
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-776-0 01 1 -
136 CLAMP; GENERATOR
MITSUBISHI ASM PART: B = 1-81200-484-7 		1-81229-775-0 01 1 -
