0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#26907) — 91 parça

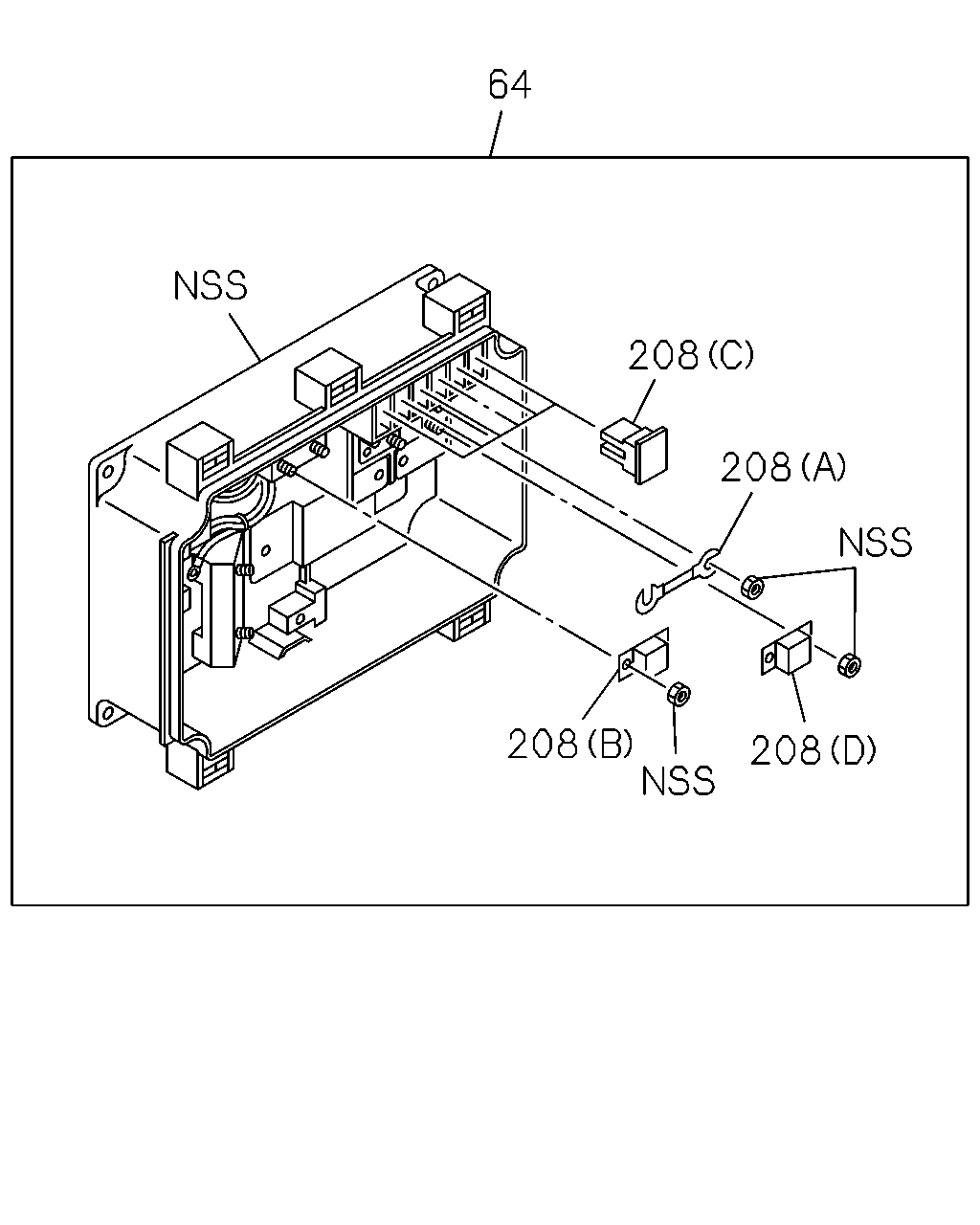

çizim 21172
64 208 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-50A 1.2KW(SLX) 		1-82510-506-4 01 1 0302-
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-509-4 01 1 0302-
208 FUSE
(B) 80A 		1-82516-031-0 01 1 0302-
208 FUSE
(C) 40A GREEN 		8-94468-662-0 05 1 0302-
208 FUSE
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (D) 100A 		1-82516-032-0 01 1 0302-
208 FUSE
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 125A 		9-82941-130-1 01 1 0302-
çizim 23977
10 23 76 21 73 12 18 18 12 24 21 9 10 10 23 101 9 99 9 23 28 28 100 24 24 12 12 26 100 99 101 25 100 28 23 99 24 27 26 25 27
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0408-
9 CLIP; BATTERY CABLE
(A) L=300 		1-09707-001-1 01 1 0302-0504
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0505-
9 CLIP; BATTERY CABLE
(B) L=250 		5-09707-030-1 01 1 0302-
9 CLIP; BATTERY CABLE
(D) ID=20 L=50 		1-09700-679-1 01 1 0302-0303
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 02 1 0302-0303
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 03 1 0304-0407
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 01 1 0408-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0302-0303
12 NUT; BATTERY CABLE CLIP
(B) M10 FLANGE 		0-91150-210-0 01 1 0302-
12 NUT; BATTERY CABLE CLIP
(A) M8 FLANGE 		0-91150-108-0 04 1 0302-
18 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0302-
18 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0302-
21 BOLT; CLIP CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 0302-
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 01 1 0302-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=120 H=35 		1-82698-088-0 01 1 0305-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47479-642-0 01 1 0302-0303
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 03 1 0302-0303
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 02 1 0304-
24 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28680-820-0 01 1 0302-0303
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28680-825-0 03 1 0302-
25 CLIP; BATTERY CABLE TO BRKT
ID=18 H=23 L=28 		1-09701-070-0 04 1 0302-0407
25 CLIP; BATTERY CABLE TO BRKT
ID=18 H=23 L=28 		1-09701-070-0 03 1 0408-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0302-0407
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 03 1 0408-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 0302-0407
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 0408-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 03 1 0302-
73 BRACKET; BATTERY CABLE 1-82699-104-0 01 1 0302-
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 05 1 0302-
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 01 1 0302-
99 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 01 1 0302-
99 CLIP; BATTERY CABLE
(B) ID=18 L=54 		1-09701-068-0 01 1 0302-
99 CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 		1-09701-070-0 02 1 0302-
99 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 02 1 0302-
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 0302-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 06 1 0302-

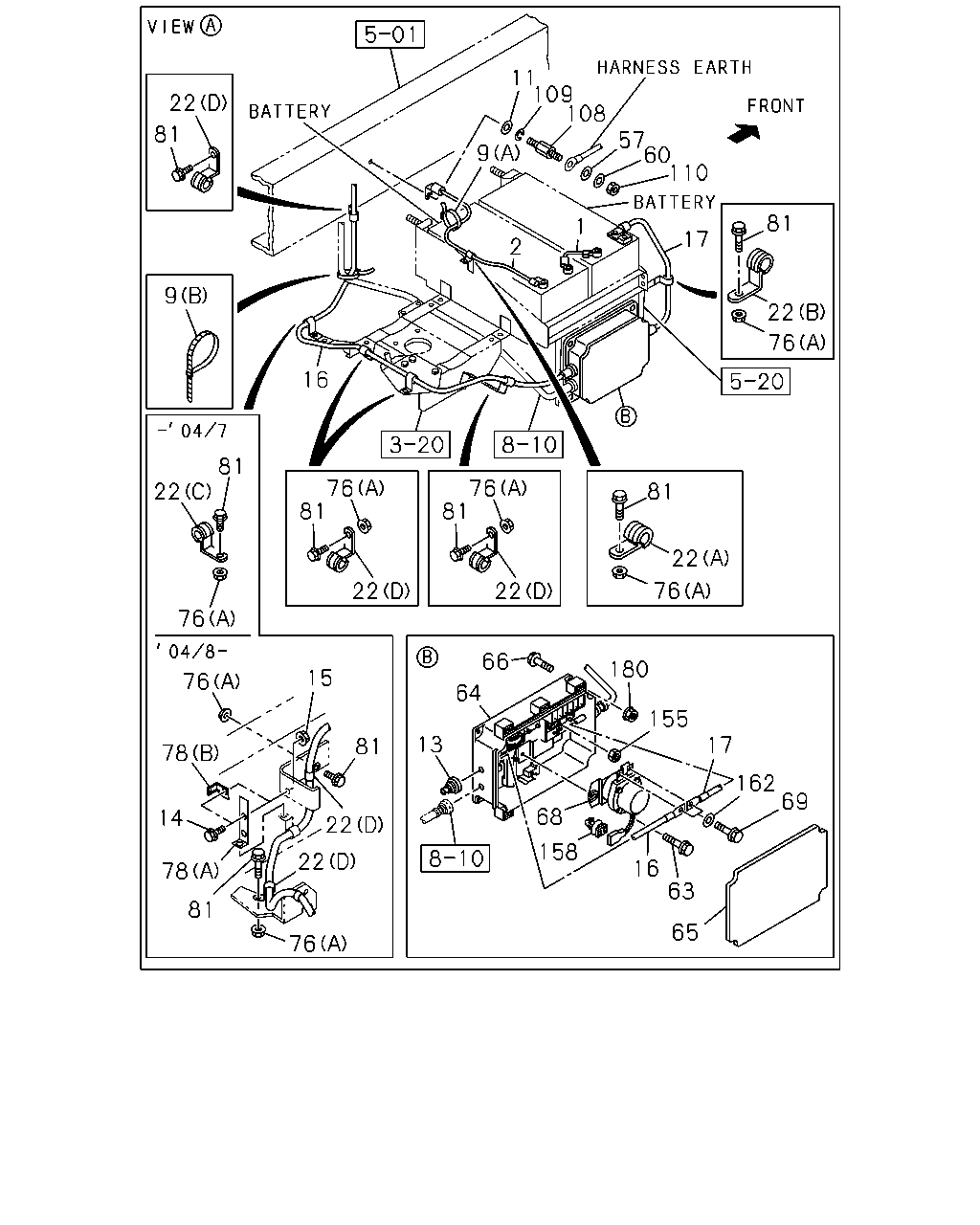

çizim 24452
11 109 108 22 81 57 60 110 9 81 1 17 2 9 22 76 16 81 22 76 81 76 81 81 22 76 22 22 76 66 180 15 76 64 155 13 17 81 78 162 69 68 14 22 22 158 16 78 63 81 65 76
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
<+> TO <-> L=265 		1-82650-388-1 01 1 0302-
2 CABLE; BATTERY
<-> TO FRAME L=680 		1-82650-385-1 01 1 0302-
9 CLIP; BATTERY CABLE
(C) ID=18 L=28 		1-09701-067-0 02 1 0408-
9 CLIP; BATTERY CABLE
(A) L=300 		1-09707-001-1 01 1 0302-0504
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 01 1 0505-
9 CLIP; BATTERY CABLE
(B) L=250 		5-09707-030-1 01 1 0302-
9 CLIP; BATTERY CABLE
(D) ID=20 L=50 		1-09700-679-1 01 1 0302-0303
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 02 1 0302-0303
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 03 1 0304-0407
9 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 01 1 0408-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0302-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0302-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0408-
15 NUT; BRKT CLIP
M8 FLANGE 		0-91150-108-0 02 1 0408-
16 CABLE; STARTER TO RELAY
L=6260 		1-82652-848-0 01 1 0302-0303
16 CABLE; STARTER TO RELAY
L=6210 		1-82652-879-1 01 1 0304-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 0302-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 04 1 0302-0407
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 05 1 0408-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 0302-
22 CLIP; BATTERY CABLE
(C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0302-0407
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0302-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0302-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0302-
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-50A 1.2KW(SLX) 		1-82510-506-4 01 1 0302-
64 BOX; BATTERY RELAY
GENERATOR NIKKO 24V-90A 2.5KW(SD2) 		1-82510-509-4 01 1 0302-
65 COVER; BATTERY RELAY 1-82510-505-2 01 1 0302-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0302-
68 RELAY; BATTERY 1-82550-313-0 01 1 0302-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0302-
76 NUT; BATTERY CABLE
(A) M8 FLANGE 		0-91150-108-0 05 1 0302-
76 NUT; BATTERY CABLE
(B) M10 FLANGE 		0-91150-210-0 01 1 0302-
78 BRACKET; CLIP BATTERY
(A) L=90 B=25 		1-47476-630-0 01 1 0408-
78 BRACKET; CLIP BATTERY
(B) 		8-97304-944-0 01 1 0408-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 07 1 0302-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0302-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0302-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0302-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91150-108-0 01 1 0302-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0302-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0302-
180 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 0302-

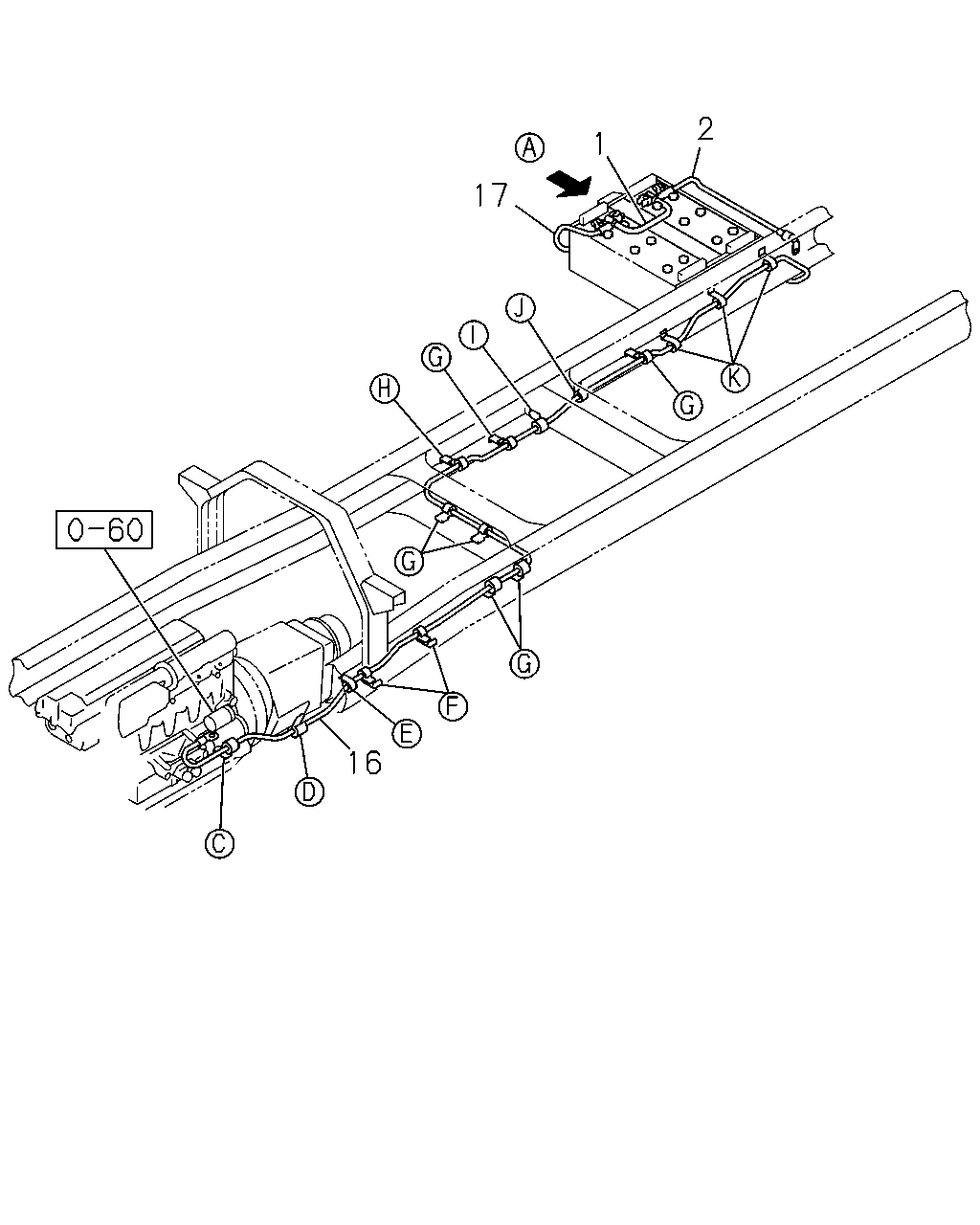

çizim 80124
2 1 17 16
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
<+> TO <-> L=265 		1-82650-388-1 01 1 0302-
2 CABLE; BATTERY
<-> TO FRAME L=680 		1-82650-385-1 01 1 0302-
16 CABLE; STARTER TO RELAY
L=6260 		1-82652-848-0 01 1 0302-0303
16 CABLE; STARTER TO RELAY
L=6210 		1-82652-879-1 01 1 0304-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 0302-
