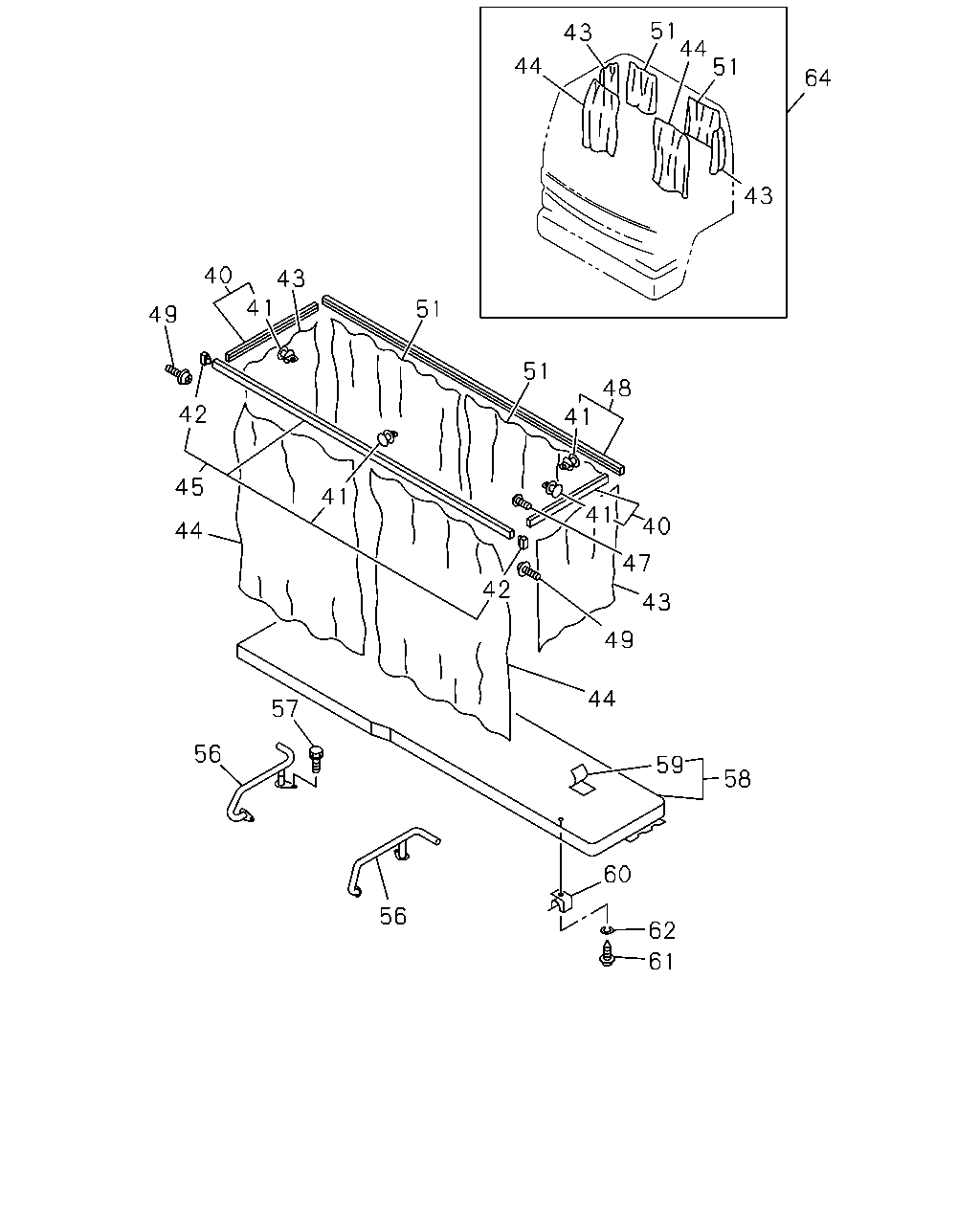

7-70 — SEPARATER AND BED (#269) — 29 parça

51 44 51 43 44 64 43 40 43 41 51 49 51 48 42 41 45 41 41 40 44 47 42 43 49 44 57 56 59 58 60 56 62 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-863-0	02	1	9212-
40	RAIL; CURTAIN,SIDE DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-739-0	02	1	9212-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14) GRAY MATT FINISH	1-73997-980-0	18	1	9212-
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-787-0	01	1	9212-
42	STOPPER; CURTAIN RAIL DELUXE CAB(W14) DARK GRAY	1-73998-786-0	01	1	9212-
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-991-0	01	1	9212-
43	CURTAIN ASM; QUARTER WINDOW CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73997-990-0	01	1	9212-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-880-0	01	1	9212-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-879-0	01	1	9212-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-862-0	01	1	9212-
45	RAIL; CURTAIN,FRT DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-738-0	01	1	9212-
47	SCREW; CURTAIN RAIL DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	16	1	9212-
47	SCREW; CURTAIN RAIL EXC. DELUXE CAB(W14) M4X16 TAPPING	1-09981-477-0	03	1	9212-
48	RAIL; CURTAIN,BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> DELUXE CAB(W14)	1-73998-864-0	01	1	9212-
48	RAIL; CURTAIN,BACK DELUXE CAB(W14) EXC. CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-740-0	01	1	9212-
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9212-9212
49	HOOK; CURTAIN DELUXE CAB(W14) M4X14 HOOK MALE	1-09981-370-0	02	1	9301-
49	HOOK; CURTAIN CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2> M4X14 HOOK MALE	1-09981-370-0	02	1	9301-
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-228-0	01	1	9212-
51	CURTAIN; BACK CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73907-227-0	01	1	9212-
56	STAND; BED PASSENGER SEAT MULTI USED<WX9>	1-75558-266-1	01	1	9212-
56	STAND; BED PASSENGER SEAT MULTI USED<WX9>	1-75558-265-1	01	1	9212-
57	BOLT; BED STAND PASSENGER SEAT MULTI USED<WX9>	1-09980-566-0	04	1	9212-
58	BED; MAT PASSENGER SEAT MULTI USED<WX9>	1-75118-986-1	01	1	9212-
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED<WX9>	1-75118-997-0	01	1	9212-
60	HOLDER PASSENGER SEAT MULTI USED<WX9>	1-75147-582-0	04	1	9212-
61	SCREW; ROD HOLDER FIX PASSENGER SEAT MULTI USED<WX9> M6X16	9-03490-616-0	14	1	9212-
62	WASHER; LK,ROD HOLDER PASSENGER SEAT MULTI USED<WX9> ID=8.2	9-09150-508-0	14	1	9212-
64	CURTAIN KIT CURTAIN SLEEPER COMPARTMENT DELUXE TYPE<SN2>	1-73998-865-0	01	1	9212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
