1 |

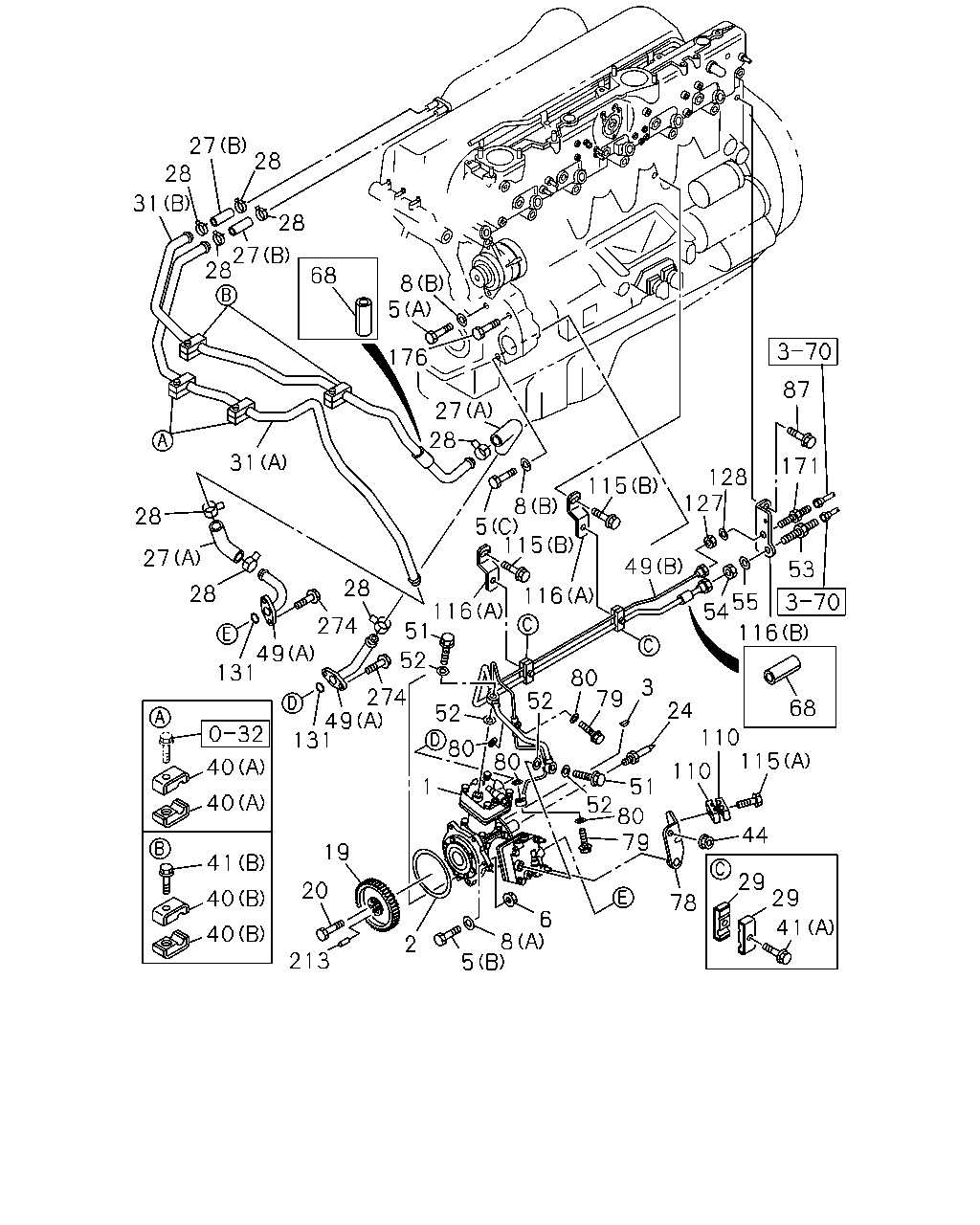

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
1-19100-332-5 |
01 |
1 |
0302- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-476-0 |
01 |
1 |
0302- |
| |
3 |
KEY; COUPLING,INJ PUMP
|
9-08055-622-0 |
01 |
1 |
0302- |
| |
5 |
BOLT; AIR CMPR FIX
(C)
M14X150
|
1-09029-027-1 |
01 |
1 |
0302- |
| |
5 |
BOLT; AIR CMPR FIX
(A)
M14X128
|
8-94399-253-1 |
01 |
1 |
0302- |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M14X90
|
9-91666-490-0 |
01 |
1 |
0302- |
| |
6 |
NUT; AIR CMPR
M14 FLANGE
|
0-91150-114-0 |
01 |
1 |
0302- |
| |
8 |
WASHER; PL,AIR CMPR
(A)
ID=14.2
|
1-09503-050-0 |
01 |
1 |
0302- |
| |
8 |
WASHER; PL,AIR CMPR
(B)
ID=15 OD=26
|
9-09164-514-0 |
02 |
1 |
0302- |
| |
19 |
GEAR; INJ PUMP
Z=54
|
1-12524-164-0 |
01 |
1 |
0302- |
| |
20 |
BOLT; GEAR TO SHAFT
M12X39 FLANGE
|
1-09070-116-0 |
05 |
1 |
0302- |
| |
24 |
POINTER; AIR CMPR
|
1-11327-017-1 |
01 |
1 |
0302- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(B)
|
0-02117-080-0 |
02 |
1 |
0302- |
| |
27 |
HOSE; AIR CMPR,SUCTION
(A)
|
1-09360-916-0 |
02 |
1 |
0302- |
| |
28 |
CLIP; HOSE,AIR CMPR
ID=22.7
|
8-94466-382-0 |
08 |
1 |
0302- |
| |
29 |
CLIP; AIR PIPE
|
1-09701-210-0 |
04 |
1 |
0302- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(A)
|
1-19193-403-0 |
01 |
1 |
0302- |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(B)
|
1-19193-404-0 |
01 |
1 |
0302-0303 |
| |
31 |
PIPE; AIR,AIR CMPR SUCTION
(B)
|
1-19193-463-0 |
01 |
1 |
0304- |
| |
40 |
CLIP; AIR PIPE
(A)
|
1-09701-210-0 |
04 |
1 |
0302- |
| |
40 |
CLIP; AIR PIPE
(B)
|
1-09701-284-0 |
04 |
1 |
0302- |
| |
41 |
BOLT; CLIP
(A)
M6X40 FLANGE
|
0-28080-640-0 |
02 |
1 |
0302- |
| |
41 |
BOLT; CLIP
(B)
M8X40 FLANGE
|
0-28080-840-0 |
02 |
1 |
0302- |
| |
44 |
NUT
M8 FLANGE
|
0-91150-208-0 |
02 |
1 |
0302- |
| |
49 |
PIPE; AIR,CHARGE
(A)
|
1-19193-402-0 |
02 |
1 |
0302- |
| |
49 |
PIPE; AIR,CHARGE
(B)
|
1-19193-448-0 |
01 |
1 |
0302- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-1 |
02 |
1 |
0302- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
04 |
1 |
0302- |
| |
53 |
UNION; CHARGE PIPE
|
1-09654-318-1 |
01 |
1 |
0302- |
| |
54 |
NUT; PIPE UNION
M22
|
9-09111-522-0 |
01 |
1 |
0302- |
| |
55 |
WASHER; LK,PIPE UNION
ID=22.5
|
9-09150-522-0 |
01 |
1 |
0302- |
| |
68 |
SLEEVE; RUBBER
ID=18 OD=22 L=25
|
8-94412-773-0 |
02 |
1 |
0302- |
| |
78 |
BRACKET; PIPE,AIR GOV
|
1-13729-095-0 |
01 |
1 |
0302- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M14X27 FLANGE
|
1-09675-086-0 |
02 |
1 |
0302- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=25
|
1-09630-141-0 |
04 |
1 |
0302- |
| |
87 |
BOLT; BRKT FIX
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
0302- |
| |
110 |
CLIP; AIR PIPE
|
1-09701-132-1 |
02 |
1 |
0302- |
| |
115 |
BOLT; AIR PIPE
(A)
M6X30 FLANGE
|
0-28080-630-0 |
01 |
1 |
0302- |
| |
115 |
BOLT; AIR PIPE
(B)
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
0302- |
| |
116 |
BRACKET; AIR PIPE
(A)
|
1-19199-221-0 |
02 |
1 |
0302- |
| |
116 |
BRACKET; AIR PIPE
(B)
|
1-19199-308-0 |
01 |
1 |
0302- |
| |
127 |
NUT; UNION
M12
|
9-09840-280-0 |
01 |
1 |
0302- |
| |
128 |
WASHER; LK,UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0302- |
| |
131 |
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=26.8
|
1-09623-415-0 |
02 |
1 |
0302- |
| |
171 |
UNION
M12 L=62.5
|
9-09223-206-1 |
01 |
1 |
0302- |
| |
176 |
BOLT; BRKT FIX
M10X130 FLANGE
|
0-28196-013-0 |
01 |
1 |
0302- |
| |
213 |
PIN; AIR CMPR GEAR
OD=5 L=10
|
9-08150-510-0 |
01 |
1 |
0302- |
| |
274 |
BOLT; PIPE
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
0302-0407 |
| |
274 |
BOLT; PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
0408- |
