0-32 — WATER PIPING; ENGINE (#26892) — 33 parça

126 126 126 127 127 126 126 126 127 126 126 127

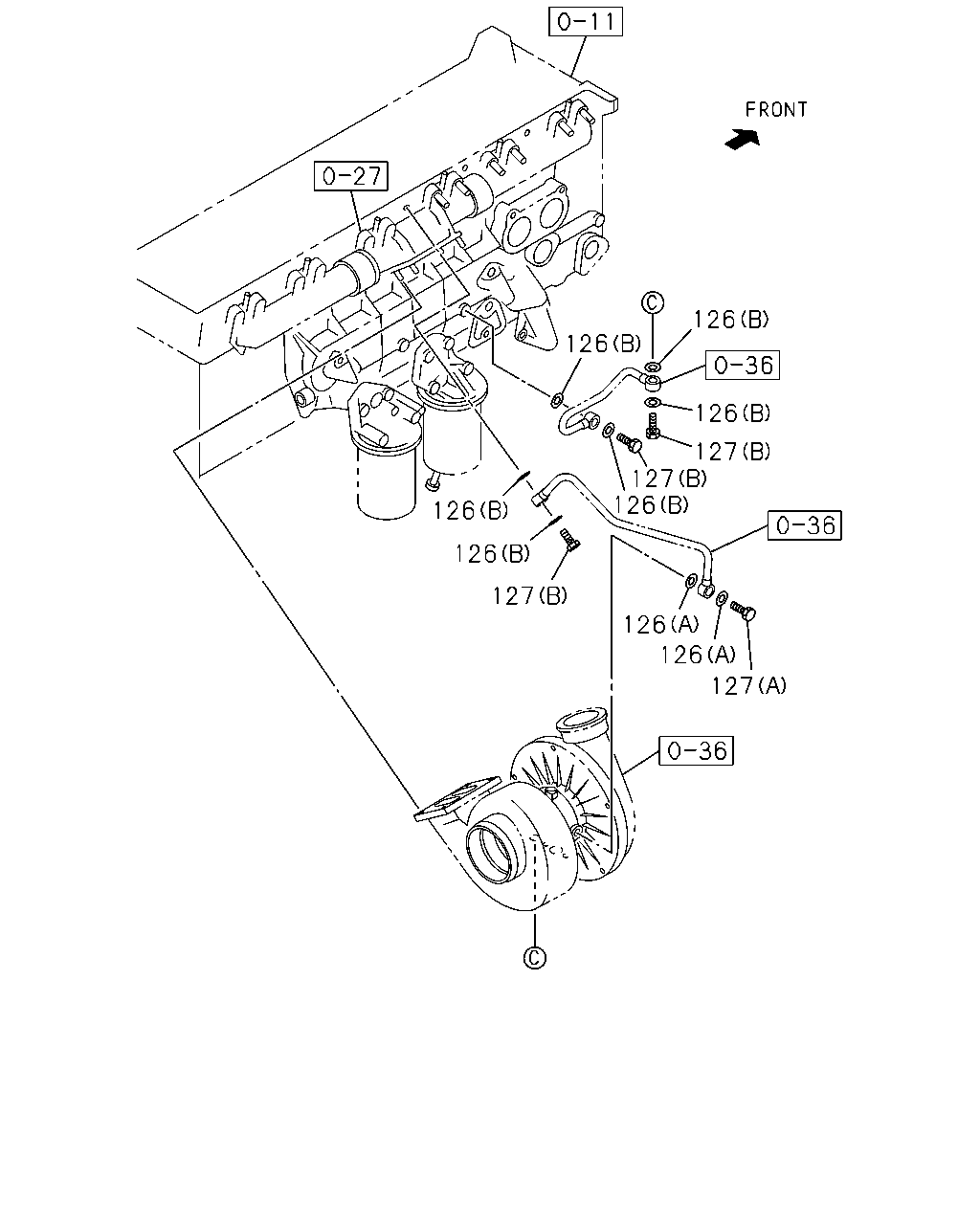

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2	1-09630-086-0	02	1	0302-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	06	1	0302-
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	01	1	0302-
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	03	1	0302-

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

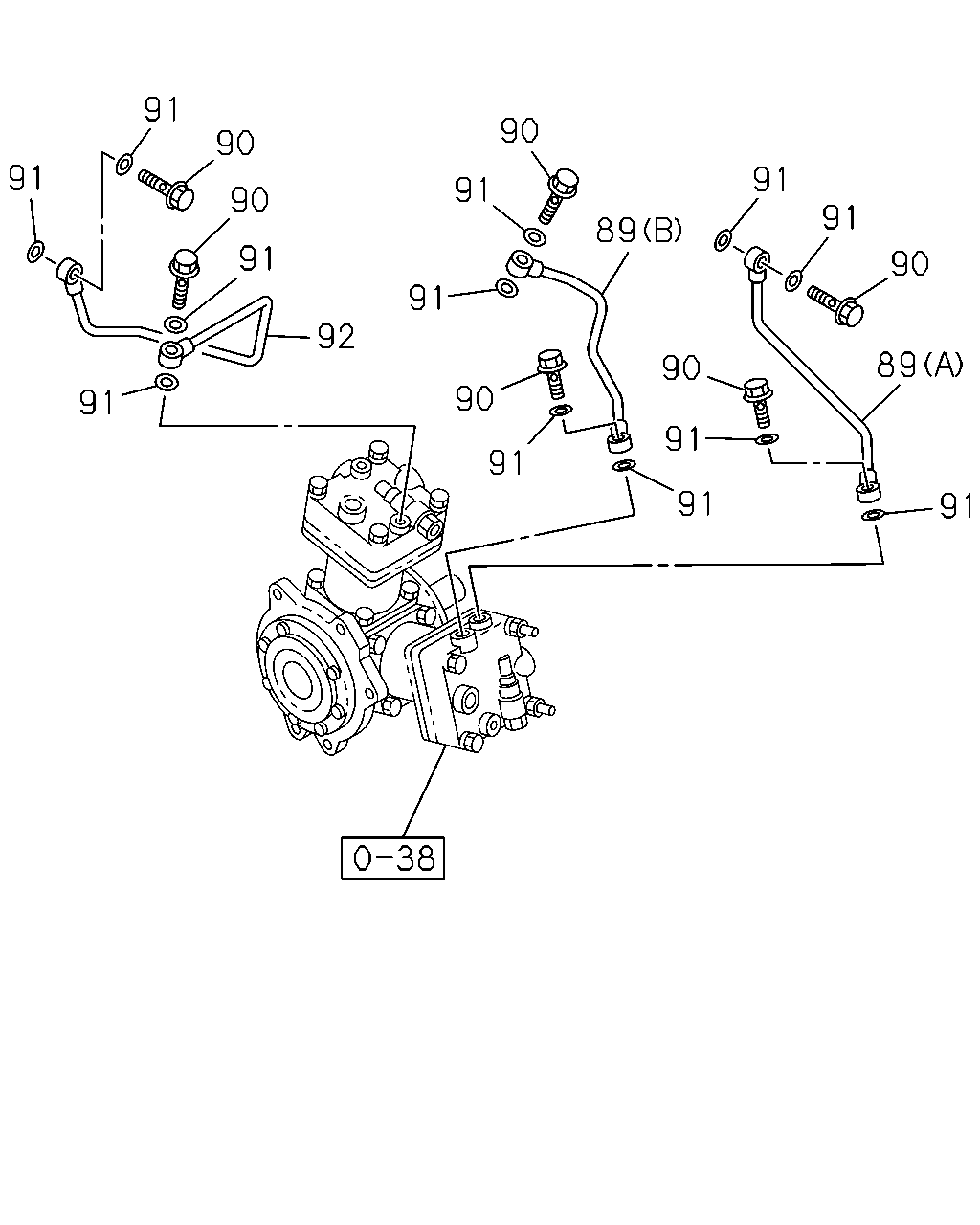

89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-007-0	01	1	0302-
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-008-0	01	1	0302-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0302-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0302-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	0302-

87 88 88 88 87 1 65 88 48 88 65 50 50 50

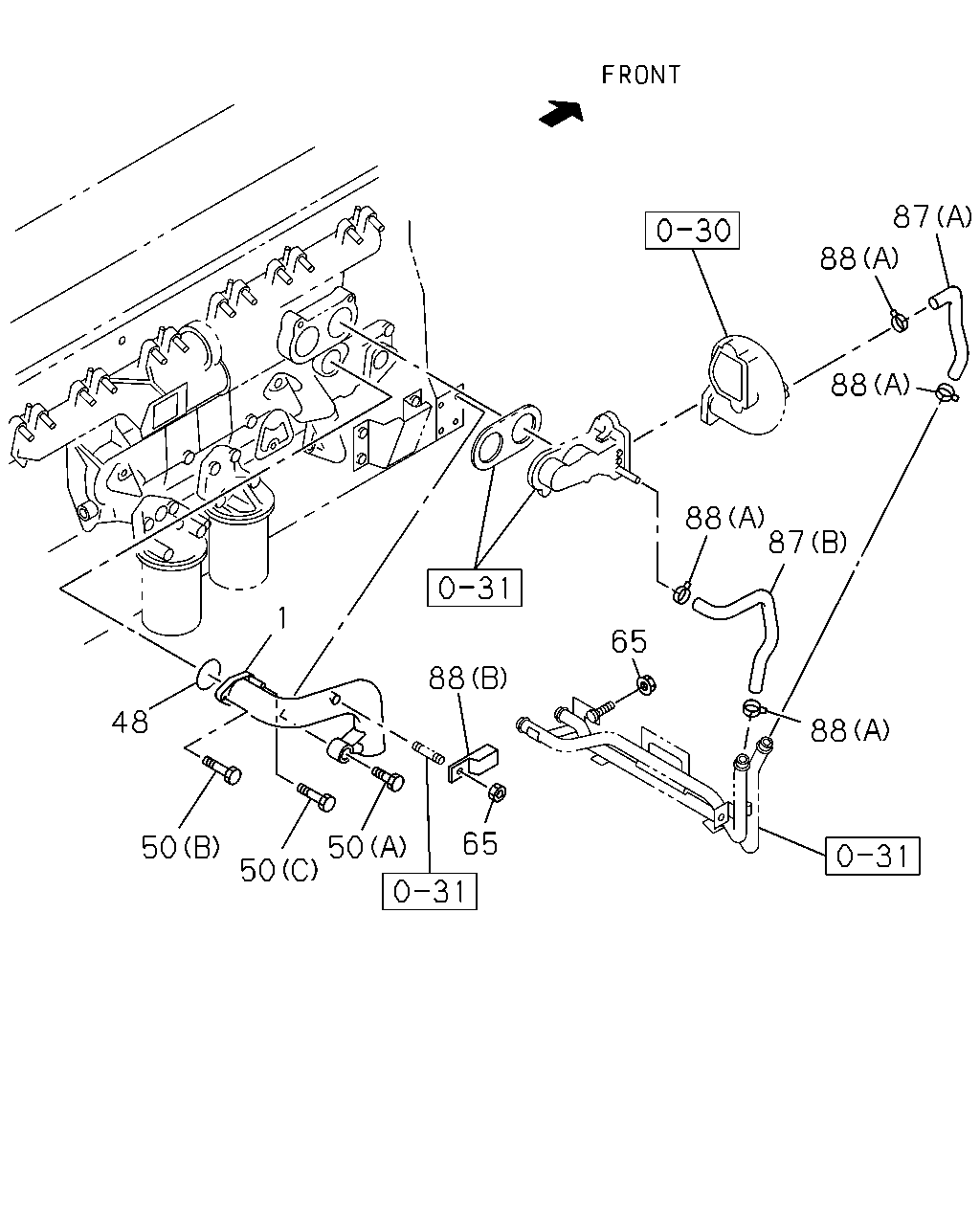

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	1-13711-611-2	01	1	0302-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0302-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0302-
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0302-
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0302-
65	NUT M10 FLANGE	0-91150-110-0	02	1	0302-
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0302-
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0302-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0302-
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0302-

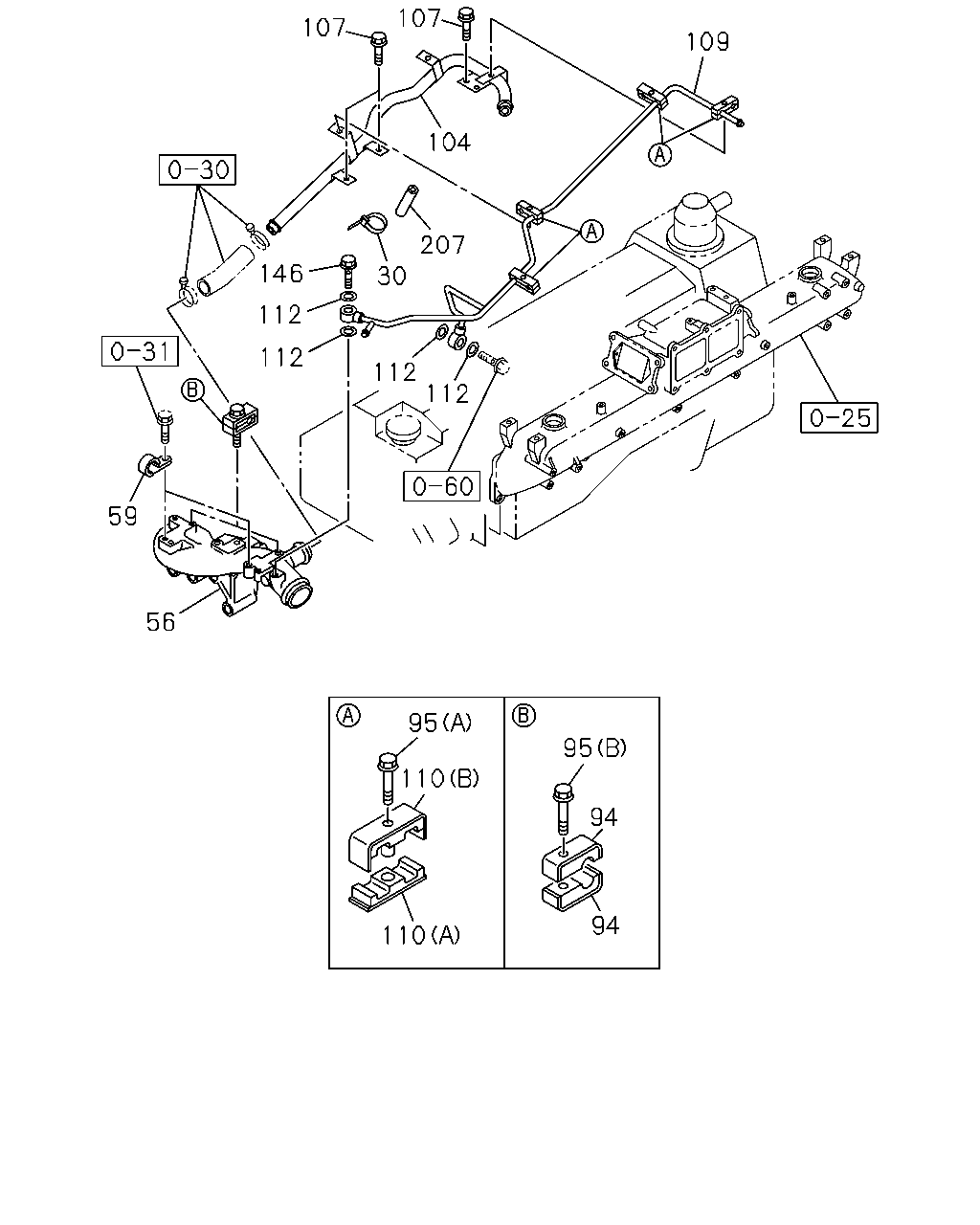

107 107 109 104 207 146 30 112 112 112 112 59 56 95 95 110 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0302-
56	PIPE; WATER OUTLET	1-13721-831-3	01	1	0302-
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0302-
94	CLIP; WATER PIPE	1-09701-282-0	04	1	0302-
95	BOLT; CLIP (A) M6X40 FLANGE	0-28080-640-0	04	1	0302-
95	BOLT; CLIP (B) M6X70 FLANGE	0-28080-670-0	02	1	0302-
104	PIPE; WATER CHARGE	1-13721-847-2	01	1	0302-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0302-
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-833-1	01	1	0302-
110	CLIP; AIR PIPE (A)	1-09701-180-0	04	1	0302-
110	CLIP; AIR PIPE (B) ID=10 & 10 L=25	8-94393-280-2	04	1	0302-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0302-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0302-
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0302-
