◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#26887) — 25 parça

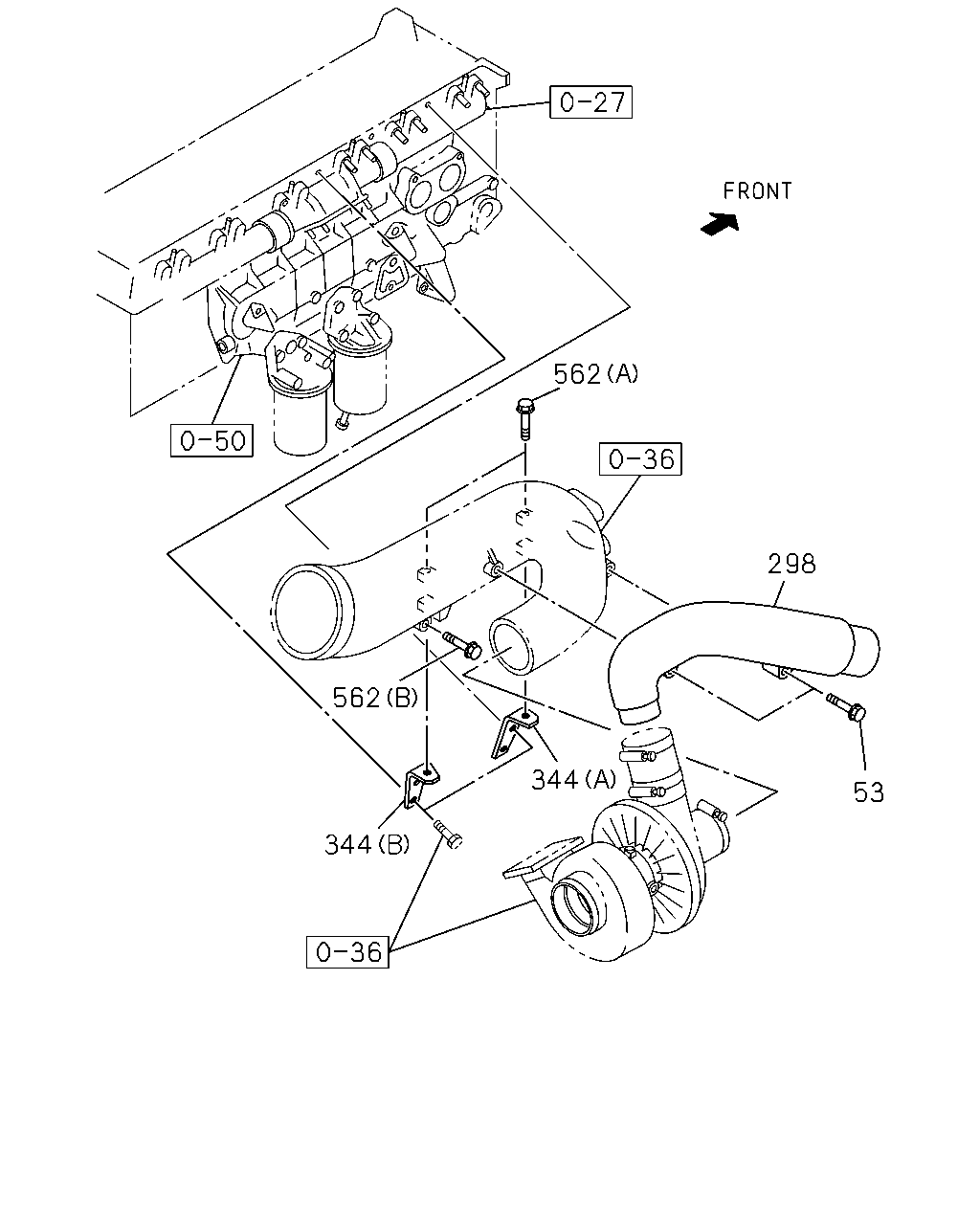

çizim 80450
562 298 562 344 53 344
BalonParca AdiParca NoAdetTipApplied Date
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0302-
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-709-0 01 1 0302-
344 BRACKET; INL PIPE
(A) 		1-14119-417-1 01 1 0302-
344 BRACKET; INL PIPE
(B) 		1-14119-418-1 01 1 0302-
562 BOLT; INL DUCT
(A) M10X100 FLANGE 		0-28081-000-0 02 1 0302-
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0302-

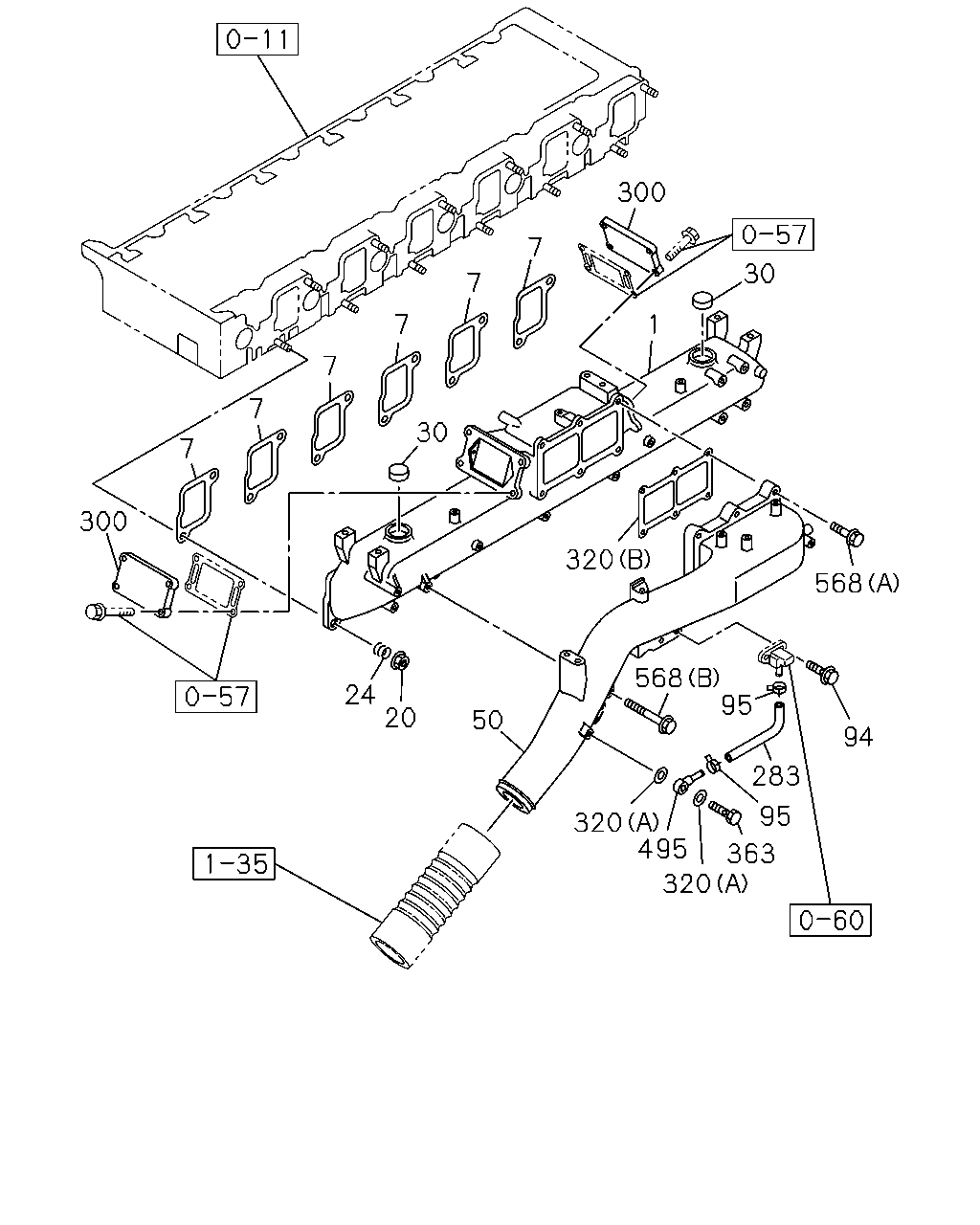

çizim 82196
300 7 30 7 7 1 7 7 30 7 300 320 568 568 95 24 20 50 94 283 95 320 495 363 320
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL 1-14112-714-5 01 1 0302-
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0302-0504
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-0 06 1 0505-0505
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0506-
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0302-
24 SPRING; INL MANIF 1-09580-156-0 12 1 0302-
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0302-
50 PIPE; INL 1-14112-711-4 01 1 0302-
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0302-
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0302-
283 RUBBER 1-14119-416-0 01 1 0302-
300 COVER; INL MANIF 1-11749-208-0 02 1 0302-
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0302-
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0302-
363 BOLT; EYE
M8X24 		1-09675-206-0 01 1 0302-0306
363 BOLT; EYE
M8X24 		8-97257-826-0 01 1 0307-
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0302-
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 06 1 0302-
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
