Isuzu WW
▶
TRUCKS
▶
CXJ
▶
10910 - CXJ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

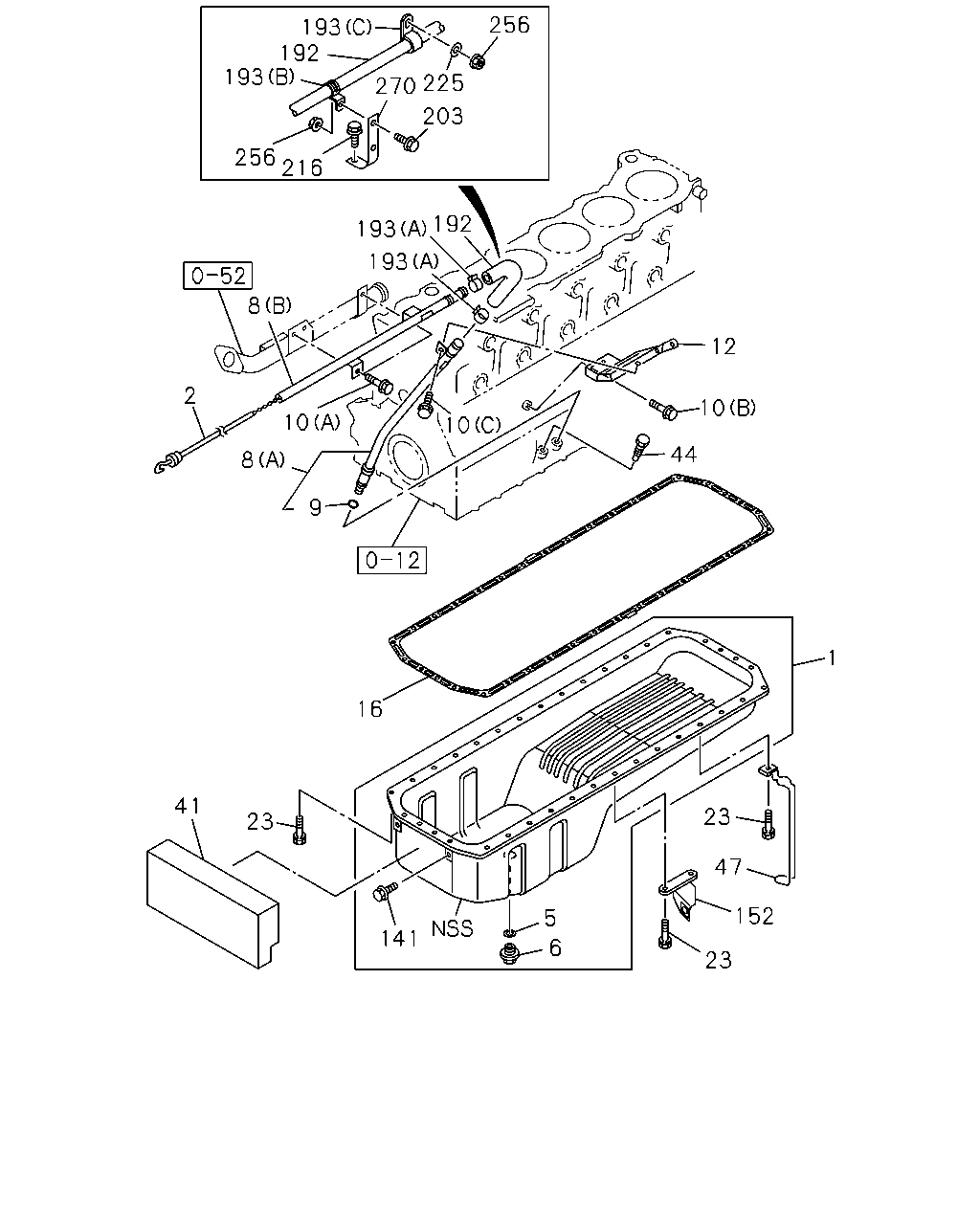

0-13 — OIL PAN AND LEVEL GAUGE
(#26882) — 31 parça
256
193
192
193
270
225
203
256
216
192
193
193
8
12
2
10
10
10
44
8
9
1
16
41
23
23
47
152
5
141
6
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-862-0
01
1
0302-0309
1
PAN ASM; OIL
1-11360-912-0
01
1
0310-
2
GAUGE; OIL LEVEL
1-11760-442-0
01
1
0302-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0302-0309
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0310-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0302-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-470-0
01
1
0302-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-556-0
01
1
0302-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-496-0
01
1
0302-
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28081-020-0
01
1
0302-
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28181-020-0
02
1
0302-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
02
1
0302-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-170-0
01
1
0302-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0302-
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0302-
41
RUBBER; SPACE
1-19389-209-0
01
1
0310-
44
PLUG
1-09604-098-0
01
1
0302-
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0302-
141
BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE
0-28081-020-0
02
1
0302-0309
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0302-
192
HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000
0-02361-300-0
01
1
0302-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21
1-09700-972-1
01
1
0302-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0302-
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28
9-09525-856-0
01
1
0302-
203
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0302-
216
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0302-
225
WASHER; PL
ID=8.4 OD=22
9-09160-708-0
01
1
0302-
256
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0302-
256
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0302-
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47478-769-0
01
1
0302-0305
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47479-855-0
01
1
0306-
