Isuzu WW
▶
BUSES
▶
MR
▶
10663 - MR
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

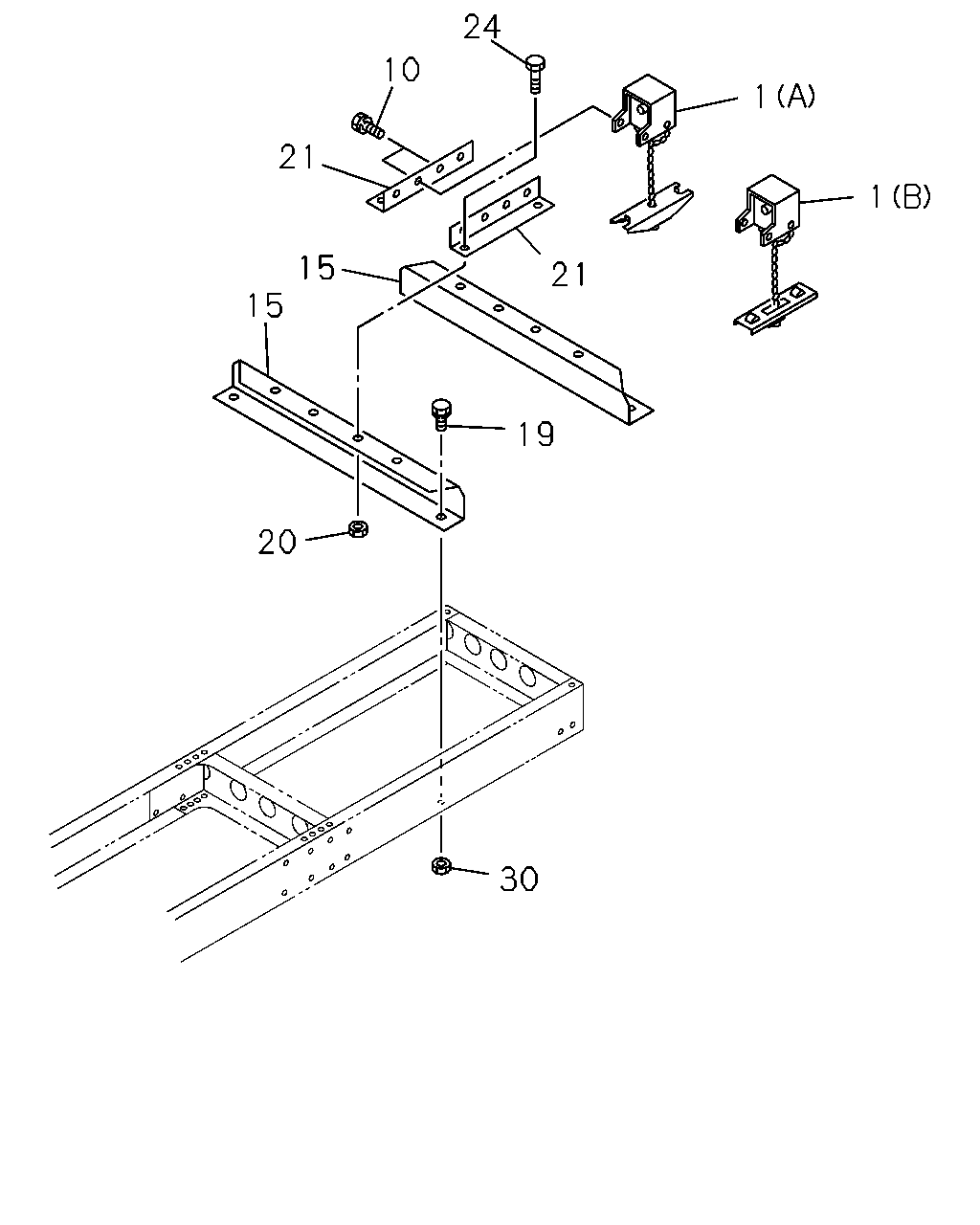

5-30 — SPARE TIRE CARRIER AND COVER
(#2688) — 11 parça
Tümü
A - MRR5FB
B - MRR6FB
24
10
1
21
1
15
21
15
19
20
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> WHEEL 8STUD 6.00SX20 135-10(SBB) (B)
1-53630-181-0
01
1
9101-
●
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. WHEEL 8STUD 6.00SX20 135-10(SBB) (A)
1-53630-038-7
01
1
9102-
●
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
0-50041-025-0
04
1
9101-
●
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-212-0
02
1
9101-
●
●
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10>
0-50041-025-0
04
1
9101-
●
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10>
9-09110-410-0
04
1
9101-9307
●
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10>
9-09110-510-0
04
1
9308-
●
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-213-0
02
1
9101-
●
●
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
0-50041-025-0
04
1
9101-
●
●
30
NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
9-09110-410-0
04
1
9101-9307
●
●
30
NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
9-09110-510-0
04
1
9308-
●
●
