Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

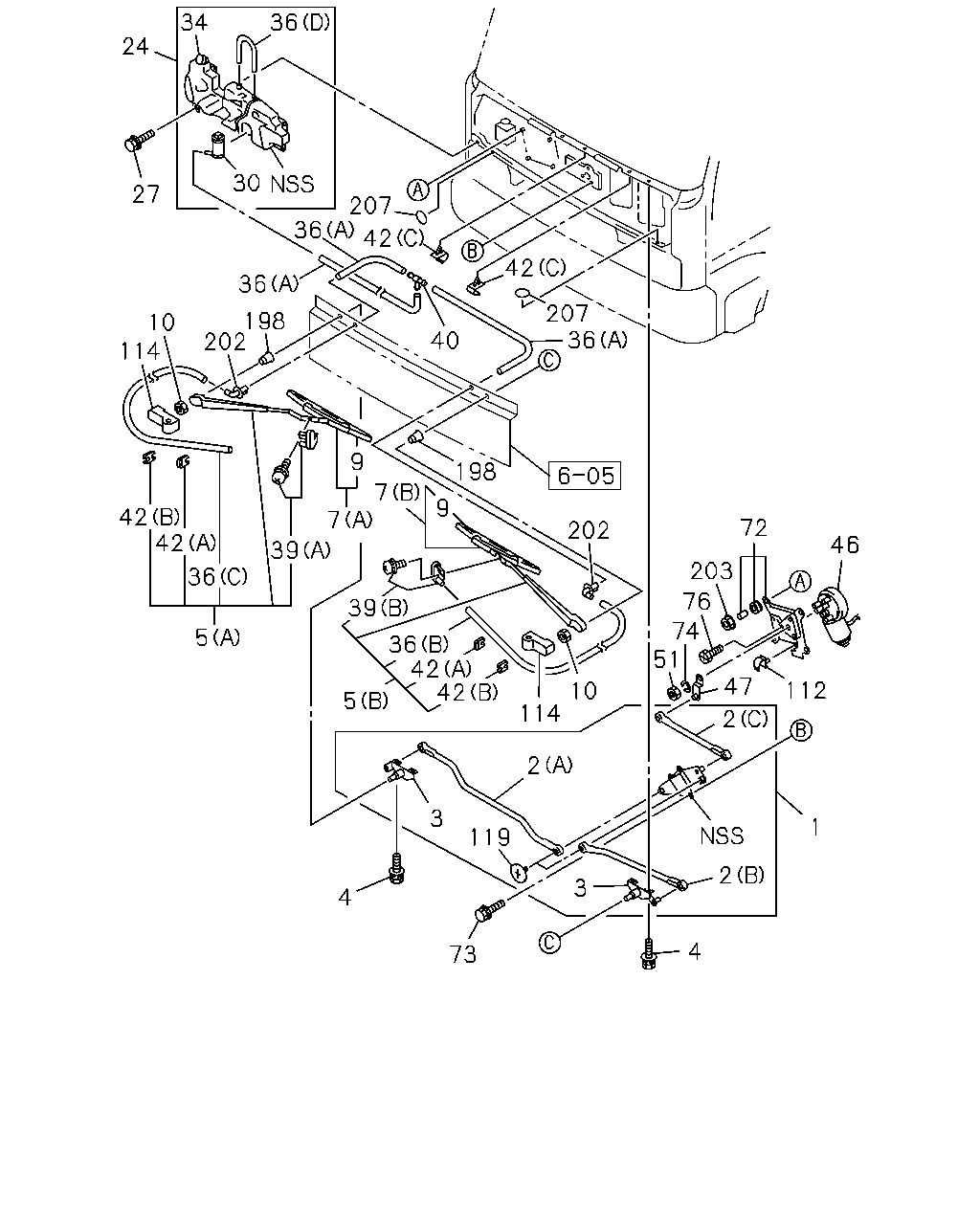

8-80 — WINDSHIELD WIPER AND WASHER
(#26875) — 40 parça
34
36
24
27
207
42
36
42
36
207
36
198
202
10
114
40
198
9
7
9
42
42
7
72
202
46
39
203
36
76
39
74
51
5
36
42
42
47
112
10
5
114
2
2
3
1
119
2
3
4
4
73
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINK ASM; FRT WIPER
1-83312-137-1
01
1
0212-
2
LINK; FRT WIPER
(B)
1-83312-142-1
01
1
0212-
2
LINK; FRT WIPER
(A)
1-83312-143-1
01
1
0212-
2
LINK; FRT WIPER
(C)
1-86810-066-1
01
1
0212-
3
PIVOT ASM; FRT WIPER
1-86810-067-1
02
1
0212-
4
BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0212-
5
ARM; WIPER
(B)
1-83315-087-0
01
1
0212-
5
ARM; WIPER
(A)
1-83315-089-0
01
1
0212-
7
BLADE; WIPER
(B)
1-83315-046-2
01
1
0212-
7
BLADE; WIPER
(A)
1-83315-045-2
01
1
0212-
9
RUBBER; FRT WIPER BLADE
1-83355-014-0
02
1
0212-
10
NUT; WIPER ARM TO WIPER PIVOT
M10
1-09984-120-0
02
1
0212-
24
TANK ASM; WASHER
1-86815-013-7
01
1
0212-
27
BOLT; WASHER TANK
M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0212-
30
MOTOR ASM; FRT WASHER TANK
1-86815-016-1
01
1
0212-
34
CAP; WASHER TANK
1-86815-018-0
01
1
0212-
36
HOSE; WASHER
(D) L=260
1-86815-019-0
01
1
0212-
36
HOSE; WASHER
(A) SERVICED BY L=10000 THA
8-94389-303-0
01
1
0212-
36
HOSE; WASHER
(B) L=660
1-86810-037-0
01
1
0212-
36
HOSE; WASHER
(C) L=670
1-86810-147-0
01
1
0212-
39
NOZZLE; WINDSHIELD WASHER
(B)
1-83315-086-0
01
1
0212-
39
NOZZLE; WINDSHIELD WASHER
(A)
1-83315-085-0
01
1
0212-
40
JOINT; WASHER HOSE
3WAY THA
1-83338-005-0
01
1
0212-
42
CLIP; WASHER HOSE
(C) THA
1-09987-247-0
05
1
0212-
42
CLIP; WASHER HOSE
(A)
1-86810-044-0
02
1
0212-
42
CLIP; WASHER HOSE
(B)
1-86810-045-0
02
1
0212-
46
MOTOR ASM; FRT WINDSHIELD WIPER
THA
1-86810-059-0
01
1
0212-
47
ARM; CRANK,WIPER MOTOR
THA
1-86810-060-0
01
1
0212-
51
NUT; WIPER MOTOR LINK
THA
1-83319-012-0
01
1
0212-
72
BRACKET; WIPER MOTOR
THA
1-86810-056-0
01
1
0212-
73
BOLT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0212-
74
WASHER; ARM TO MOTOR
THA
1-83319-011-0
01
1
0212-
76
SCREW; BRKT TO WIPER MOTOR
THA
1-86810-062-0
03
1
0212-
112
CLIP; HARNESS,WIPER MOTOR
THA
1-86810-061-0
01
1
0212-
114
COVER; FRT WIPER ARM
1-86810-144-0
02
1
0212-
119
STOPPER; WIPER LINK
THA
1-86810-074-0
02
1
0212-
198
COVER; PIVOT,WIPER
1-86810-016-3
02
1
0212-
202
GROMMET; WIPER
1-86815-003-2
02
1
0212-
203
NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
0212-
207
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
03
1
0212-
