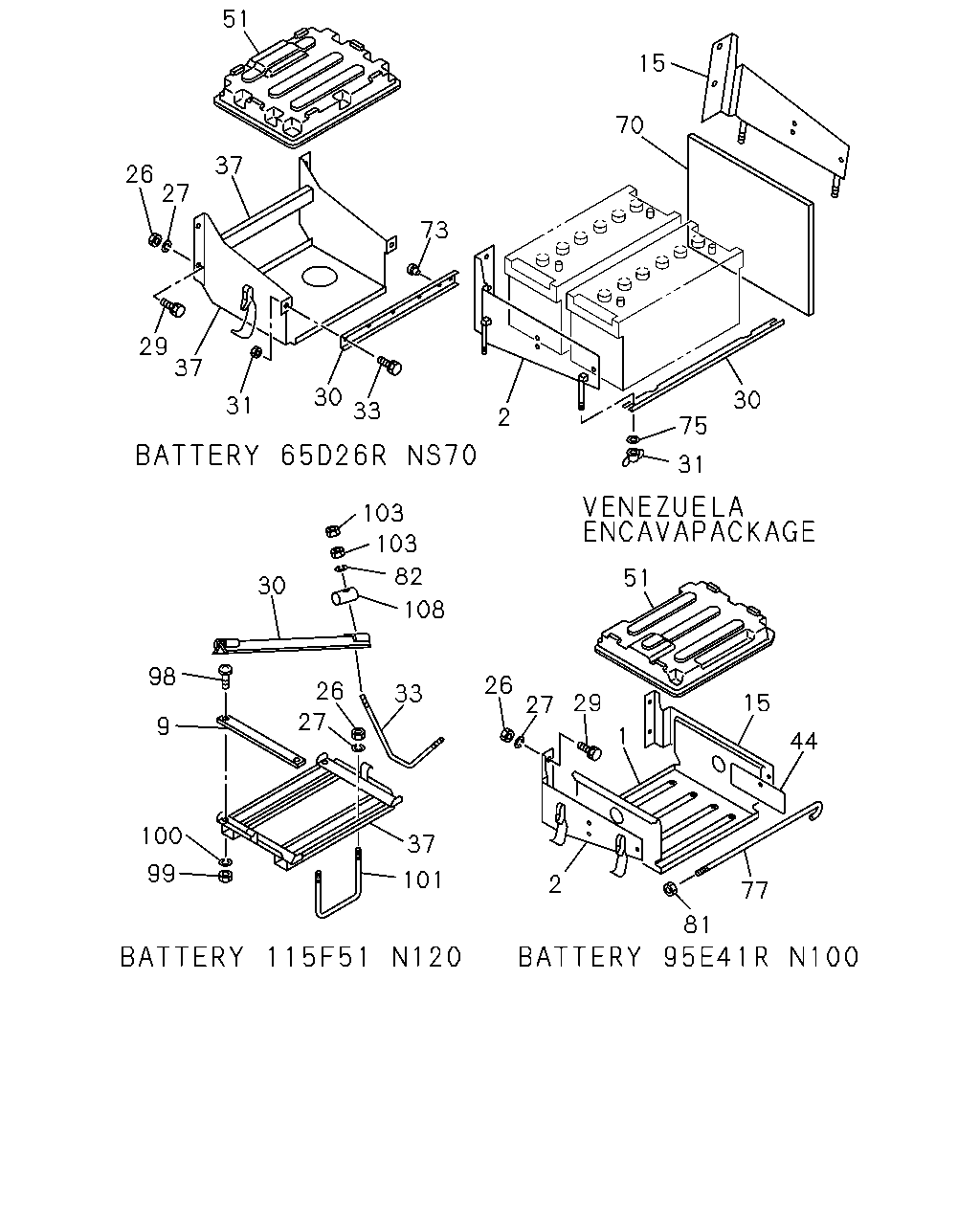

5-20 — BATTERY CARRIER (#2687) — 42 parça

51 15 70 37 26 27 73 29 37 30 30 31 33 2 75 31 103 103 82 51 30 108 98 26 26 33 15 29 27 27 9 1 44 100 37 99 101 2 77 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARRIER; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>	9-53613-584-3	01	1	9101-	●	●
2	BRACKET; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>,VENEZUELA ENCAVAPACKAGE(WN4)	1-53613-205-0	01	1	9101-	●	●
2	BRACKET; BATTERY VENEZUELA ENCAVAPACKAGE(WN4)	1-53613-258-0	01	1	9101-		●
9	SEAT; BATTERY BATTERY 115F51 N120<SJ3>	9-53613-094-0	02	1	9101-	●	●
15	BRACKET; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>,VENEZUELA ENCAVAPACKAGE(WN4)	1-53613-206-0	01	1	9101-	●	●
15	BRACKET; BATTERY VENEZUELA ENCAVAPACKAGE(WN4)	1-53613-259-0	01	1	9101-		●
26	NUT; BRKT BATTERY 65D26R NS70<SH9> BATTERY DRY<T62> M10	9-09110-410-0	04	1	9101-9307	●	●
26	NUT; BRKT BATTERY 65D26R NS70<SH9> BATTERY DRY<T62> M10	9-09110-510-0	04	1	9308-	●	●
26	NUT; BRKT EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3> M14	9-99110-414-0	04	1	9101-	●	●
27	WASHER; LK,BRKT BATTERY 115F51 N120<SJ3> ID=10.2	9-09150-510-0	04	1	9101-	●	●
27	WASHER; LK,BRKT EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3> ID=14.2	9-09150-514-0	04	1	9101-	●	●
27	WASHER; LK,BRKT VENEZUELA ENCAVAPACKAGE(WN4) ID=8.2	9-09150-508-0	04	1	9101-		●
29	BOLT; BRKT TO FRAME BATTERY 65D26R NS70<SH9> BATTERY DRY<T62> M10X28 W/LK WASHER	0-50041-028-0	04	1	9101-	●	●
29	BOLT; BRKT TO FRAME EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3> M14X35	0-20801-435-0	04	1	9101-	●	●
30	PLATE; BATTERY BATTERY 115F51 N120<SJ3>	9-53616-119-0	02	1	9101-	●	●
30	PLATE; BATTERY BATTERY 65D26R NS70<SH9>	1-53616-046-3	01	1	9101-	●	●
30	PLATE; BATTERY VENEZUELA ENCAVAPACKAGE(WN4)	1-53619-031-0	02	1	9101-		●
31	NUT; PLATE BATTERY 65D26R NS70<SH9> EXC. BATTERY DRY<T62> M8	9-09110-408-0	02	1	9101-	●	●
31	NUT; PLATE VENEZUELA ENCAVAPACKAGE(WN4) M8 WING NUT	9-09118-408-0	04	1	9101-		●
33	BOLT; PLATE TO BRKT BATTERY 115F51 N120<SJ3>	9-53616-079-1	02	1	9101-	●	●
33	BOLT; PLATE TO BRKT BATTERY 65D26R NS70<SH9> M8X20 W/LK WASHER	0-50040-820-0	02	1	9101-	●	●
37	BRACKET; BATTERY BATTERY 115F51 N120<SJ3>	9-53610-112-0	01	1	9101-	●	●
37	BRACKET; BATTERY BATTERY 65D26R NS70<SH9> BATTERY DRY<T62>	1-53613-044-0	01	1	9101-	●	●
37	BRACKET; BATTERY BATTERY 65D26R NS70<SH9> EXC. BATTERY DRY<T62>	1-53613-351-1	01	1	9101-9106	●	●
37	BRACKET; BATTERY BATTERY 65D26R NS70<SH9> EXC. BATTERY DRY<T62>	1-53613-354-3	01	1	9107-	●	●
44	SPACER; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>	1-53619-006-0	02	1	9101-	●	●
51	COVER; BATTERY BATTERY 65D26R NS70<SH9>	1-53612-019-1	01	1	9101-	●	●
51	COVER; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>,VENEZUELA ENCAVAPACKAGE(WN4)	1-53612-029-0	01	1	9101-	●	●
70	SPACER; BATTERY CARRIER EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>,VENEZUELA ENCAVAPACKAGE(WN4)	1-53619-023-0	01	1	9609-	●	●
70	SPACER; BATTERY CARRIER VENEZUELA ENCAVAPACKAGE(WN4)	1-53619-030-1	01	1	9101-		●
73	RUBBER; CUSHION,PLATE BATTERY 65D26R NS70<SH9> BATTERY DRY<T62>	1-09337-002-0	04	1	9101-	●	●
75	WASHER; PL,PLATE TO BRKT VENEZUELA ENCAVAPACKAGE(WN4)	9-09164-508-0	04	1	9101-		●
77	BOLT; BATTERY BRKT,FRT TO RR EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>	9-53616-207-0	02	1	9101-	●	●
81	NUT; BATTERY EXC. BATTERY 65D26R NS70<SH9>,BATTERY 115F51 N120<SJ3>	9-09110-408-0	04	1	9101-	●	●
82	WASHER; PL CENTER PEACE BATTERY 115F51 N120<SJ3>	9-09164-510-0	04	1	9101-	●	●
98	SCREW; SEAT BATTERY 115F51 N120<SJ3>	9-03090-625-0	04	1	9101-	●	●
99	NUT; SEAT BATTERY 115F51 N120<SJ3>	9-09110-406-0	04	1	9101-	●	●
100	WASHER; LK SEAT BATTERY 115F51 N120<SJ3>	9-09150-506-0	04	1	9101-	●	●
101	BOLT; CLIP BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53616-075-3	02	1	9101-	●	●
103	NUT; BATTERY BRKT BATTERY 115F51 N120<SJ3>	9-09110-410-0	12	1	9101-9307	●	●
103	NUT; BATTERY BRKT BATTERY 115F51 N120<SJ3>	9-09110-510-0	12	1	9308-	●	●
108	PEACE; CENTER BATTERY 115F51 N120<SJ3>	9-53619-037-0	04	1	9101-	●	●
