Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10908 - FVZ(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#26869) — 43 parça
◀

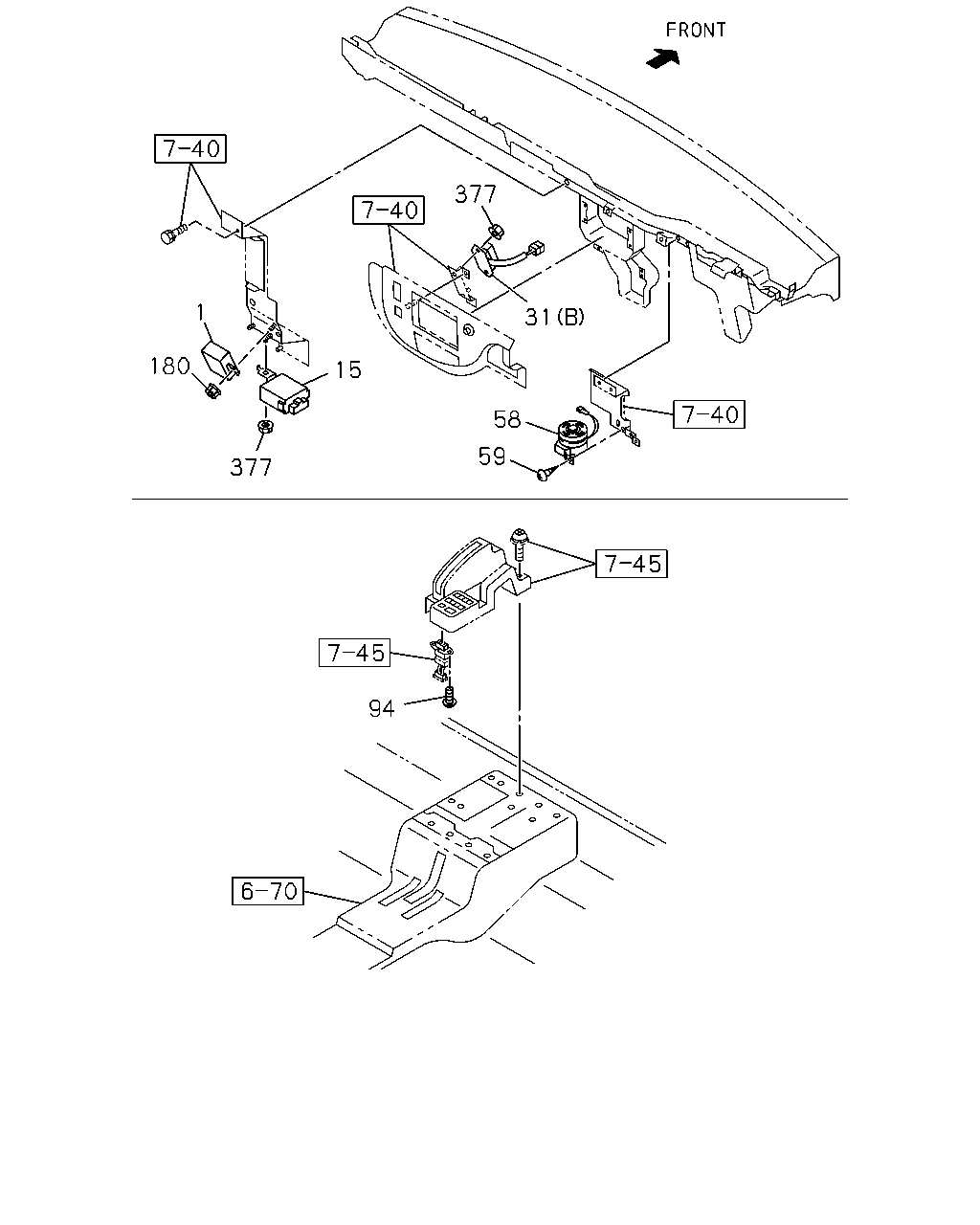

[828A] RELAY,BUZZER,CONT UNIT;INST PANEL SIDE (11 parça)

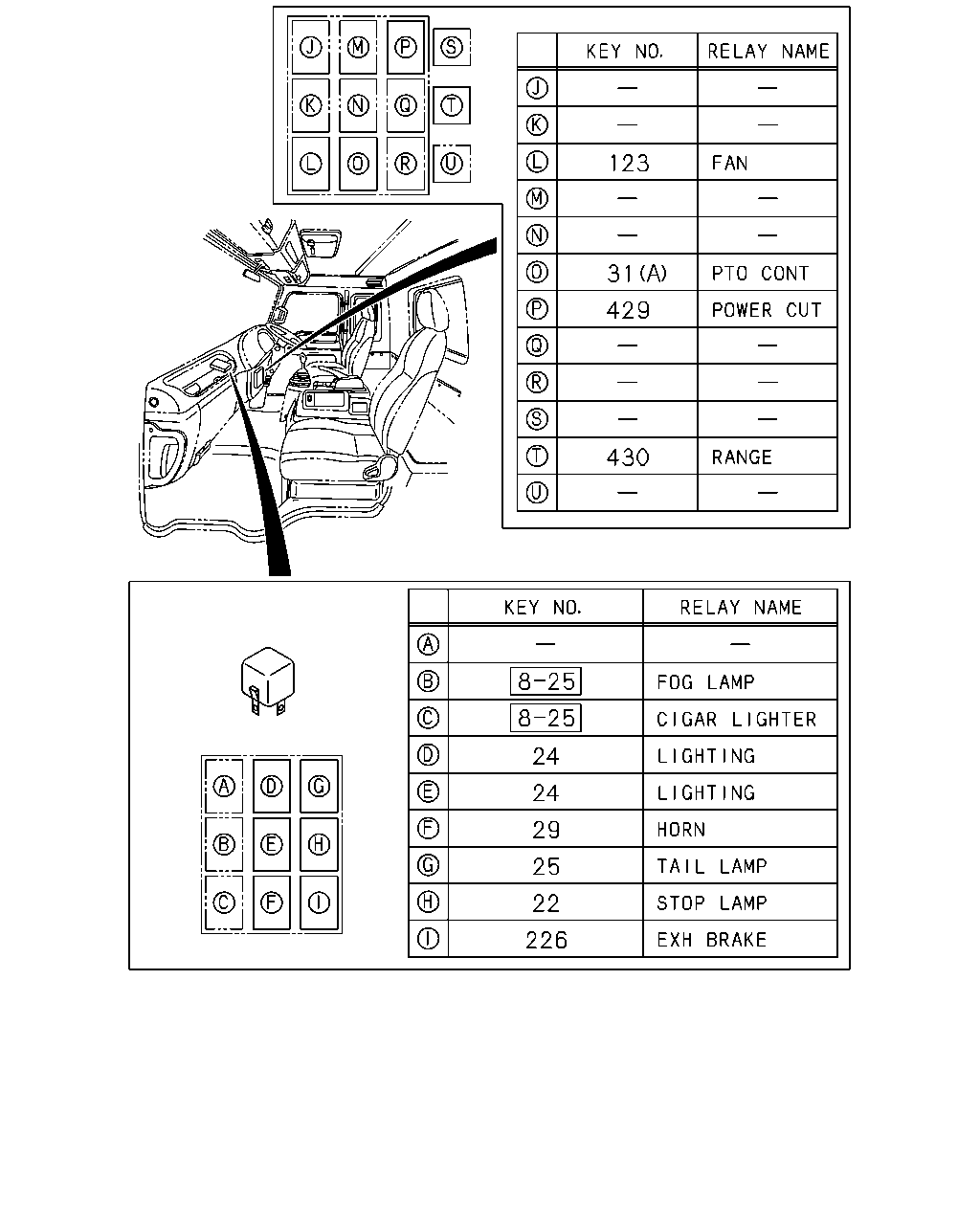

[828A] RELAY BOX;INST PANEL SIDE (10 parça)

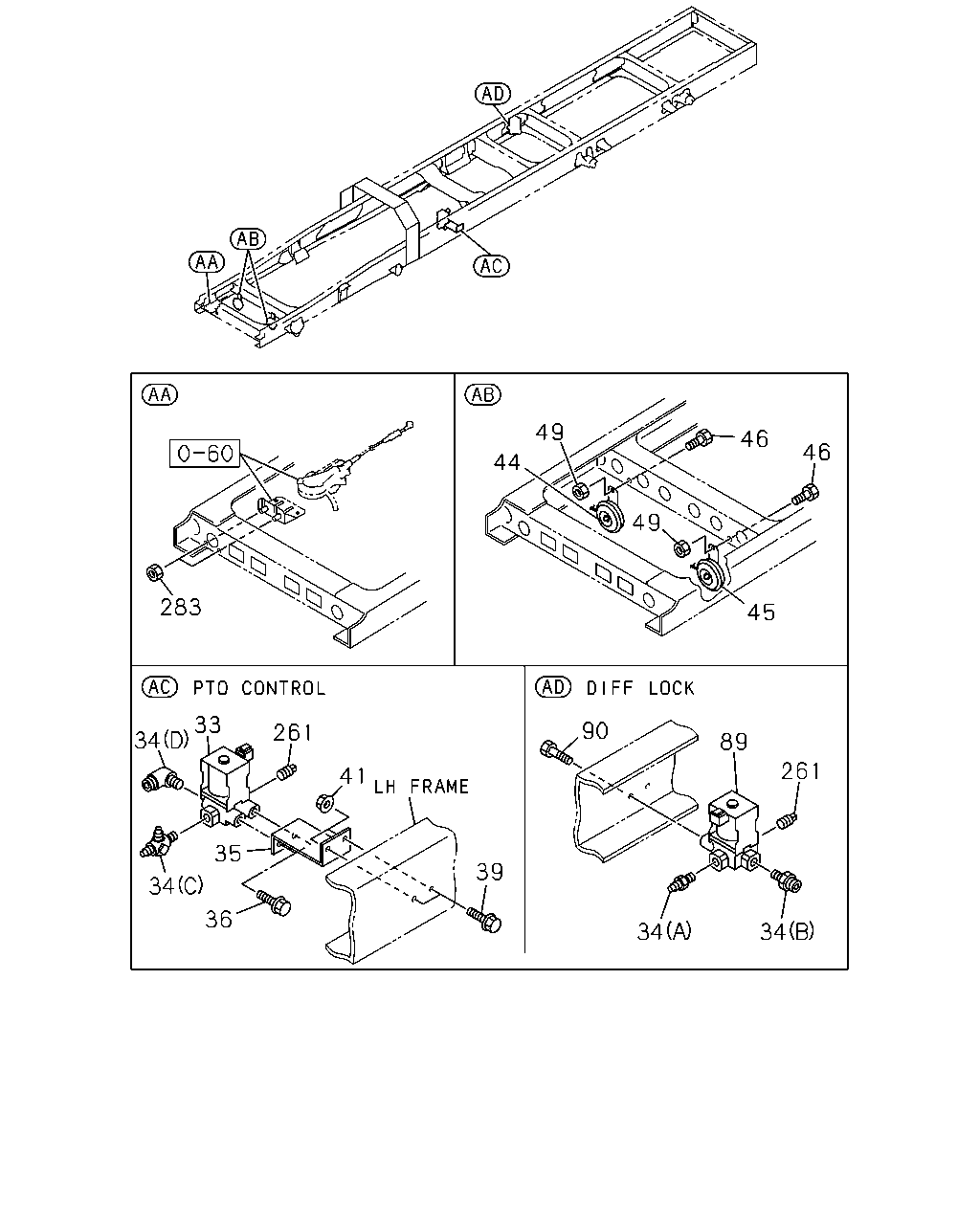

[828A] FIXING;MAG VLV,HORN AND ENG STOP ASM (22 parça)
▶
377
1
31
180
15
58
59
377
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
1-83470-060-0
01
1
0212-
15
RELAY; STOP & TAIL WARNING
24V,25WX2,10WX2
1-82550-299-0
01
1
0212-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V
1-82550-187-1
01
1
0212-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
58
BUZZER; AIR PRESSURE WARNING
NIKKO
1-83460-056-0
01
1
0212-
58
BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO
1-83460-074-1
01
1
0212-
59
SCREW; BUZZER
M5X14 THA
8-94279-325-0
01
1
0212-
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74110-510-0
02
1
0212-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91150-106-0
01
1
0212-
377
NUT; RELAY
M6 FLANGE
0-91150-106-0
01
1
0212-
377
NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE
0-91150-106-0
02
1
0212-
123
31
429
430
24
24
29
25
22
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
24
RELAY; LIGHTING
24V 12.5A MATSUSHITA THA
8-97262-933-0
02
1
0212-
25
RELAY; TAIL LAMP
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
29
RELAY; HORN
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V
1-82550-187-1
01
1
0212-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
123
RELAY; HTR
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
226
RELAY; EXH BRK
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
429
RELAY; POWER CUT
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
430
RELAY; RANGE
24V 12.5A MATSUSHITA THA
8-97262-933-0
01
1
0212-
49
46
46
44
49
283
45
33
90
261
34
89
261
41
35
39
34
36
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
1-82563-600-5
01
1
0212-
34
CONNECTOR; MAG VLV,INL PORT
ZF 9S75 DD M/T<Y1H> DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0407-
34
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 R1/4 STRAIGHT
1-09660-647-1
01
1
0212-
34
CONNECTOR; MAG VLV,INL PORT
(C)
1-09660-718-1
01
1
0212-0406
34
CONNECTOR; MAG VLV,INL PORT
FULLER FS8209HD DD M/T<Y3A>
1-09660-718-1
01
1
0407-
34
CONNECTOR; MAG VLV,INL PORT
(B) M20 & PT1/4
9-09902-386-0
01
1
0212-
34
CONNECTOR; MAG VLV,INL PORT
FULLER FS8209HD DD M/T<Y3A> (D) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0212-
34
CONNECTOR; MAG VLV,INL PORT
ZF 9S75 DD M/T<Y1H> (D) M20 & PT1/4 ELBOW
1-09660-681-0
01
1
0212-0406
34
CONNECTOR; MAG VLV,INL PORT
ZF 9S75 DD M/T<Y1H> M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0407-
35
BRACKET; MAG VLV,PTO CONT
1-47477-953-0
01
1
0212-
36
BOLT; MAG VLV,PTO CONT
M8X20 FLANGE
0-28080-820-0
02
1
0212-
39
BOLT; BRKT,MAG VLV
M8X35 FLANGE
0-28680-835-0
02
1
0212-
41
NUT; BRKT,MAG VLV
M8 FLANGE
0-91150-108-0
02
1
0212-
44
HORN; HIGH NOTE
THA
8-97915-997-1
01
1
0212-
45
HORN; LOW NOTE
THA
8-97915-998-1
01
1
0212-
46
BOLT; HORN TO BODY
M8X25 FLANGE
0-28680-825-0
02
1
0212-
49
NUT; HORN TO BODY
M8 FLANGE
0-91150-108-0
02
1
0212-
89
VALVE; MAG,DIFF LOCK
1-82563-600-5
01
1
0212-
90
BOLT; MAG VLV
M8X30 FLANGE
0-28080-830-0
02
1
0212-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0212-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0212-
283
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0212-
