8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#26867) — 13 parça
çizim 24479
1 10 257 3 10 257 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-619-0 01 1 0212-0312
1 SWITCH; COMB 1-82360-715-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0212-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-
21 SWITCH; CLU 1-82380-114-2 01 1 0212-
257 COVER; HOLE,SW 1-82389-012-2 01 1 0212-
257 COVER; HOLE,SW 1-82389-011-2 01 1 0212-

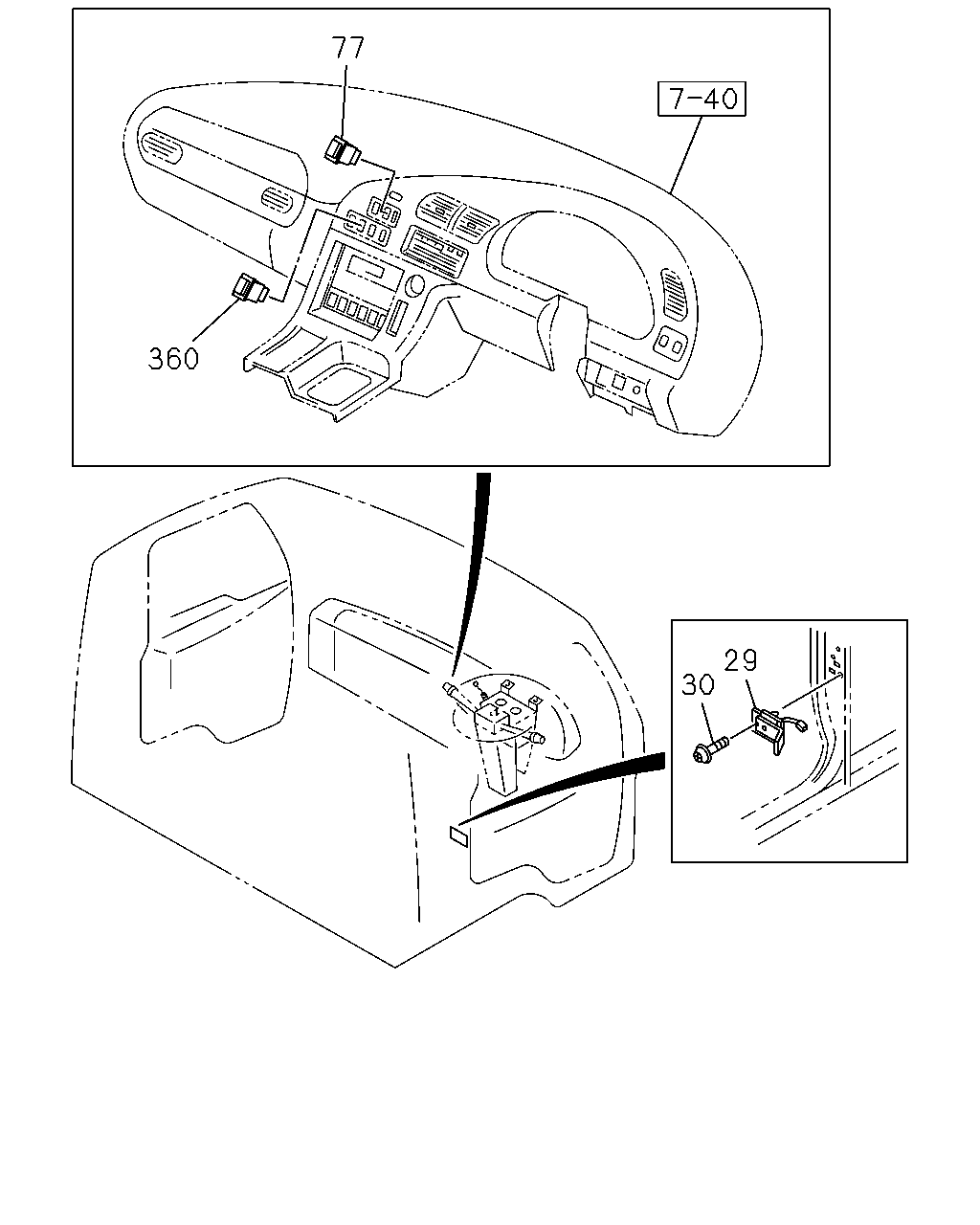

çizim 81740
77 360 29 30
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0212-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0212-
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0212-
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0212-

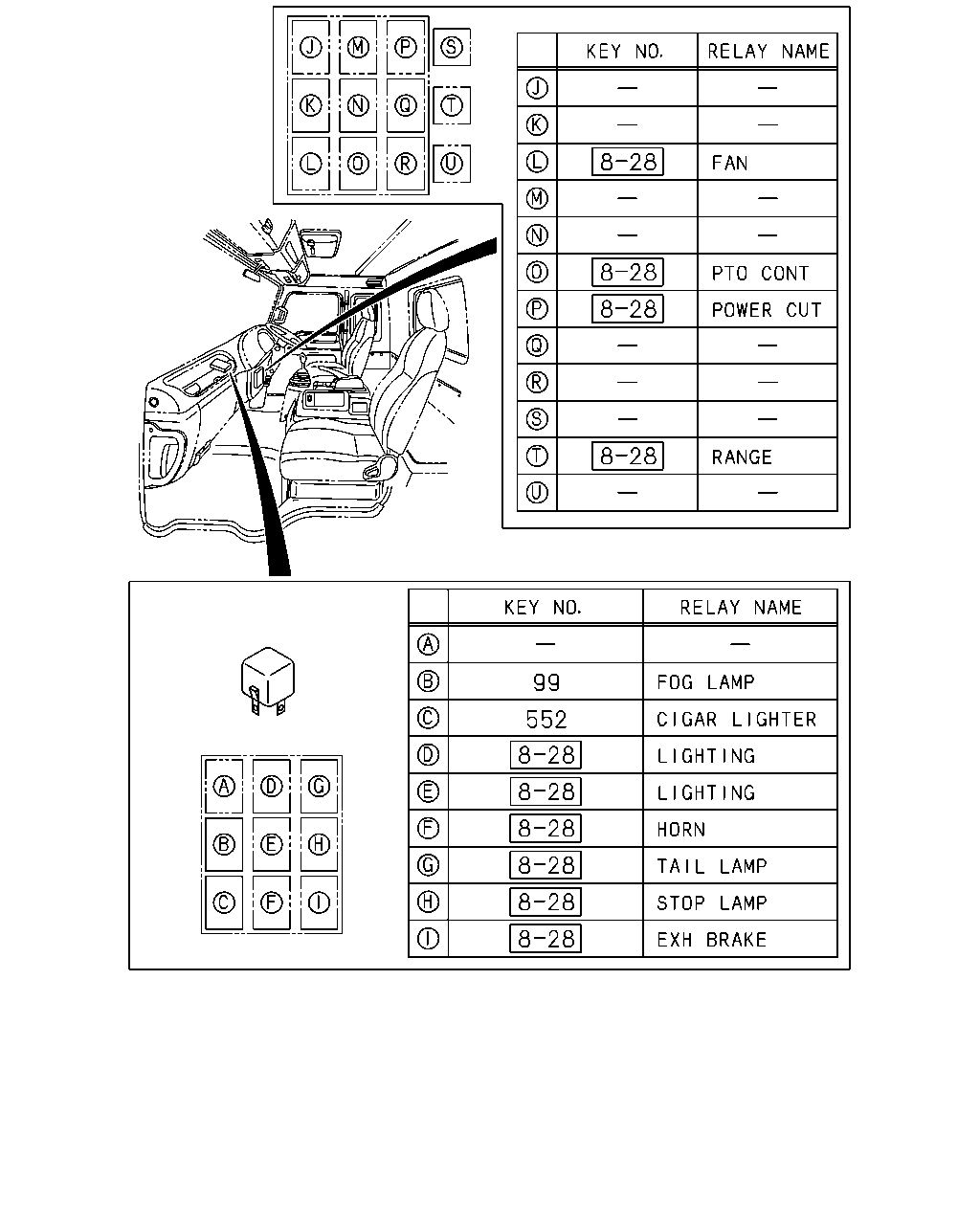

çizim 82030
99 552
BalonParca AdiParca NoAdetTipApplied Date
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0212-
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0212-
