Isuzu WW
▶
BUSES
▶
MR
▶
10663 - MR
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

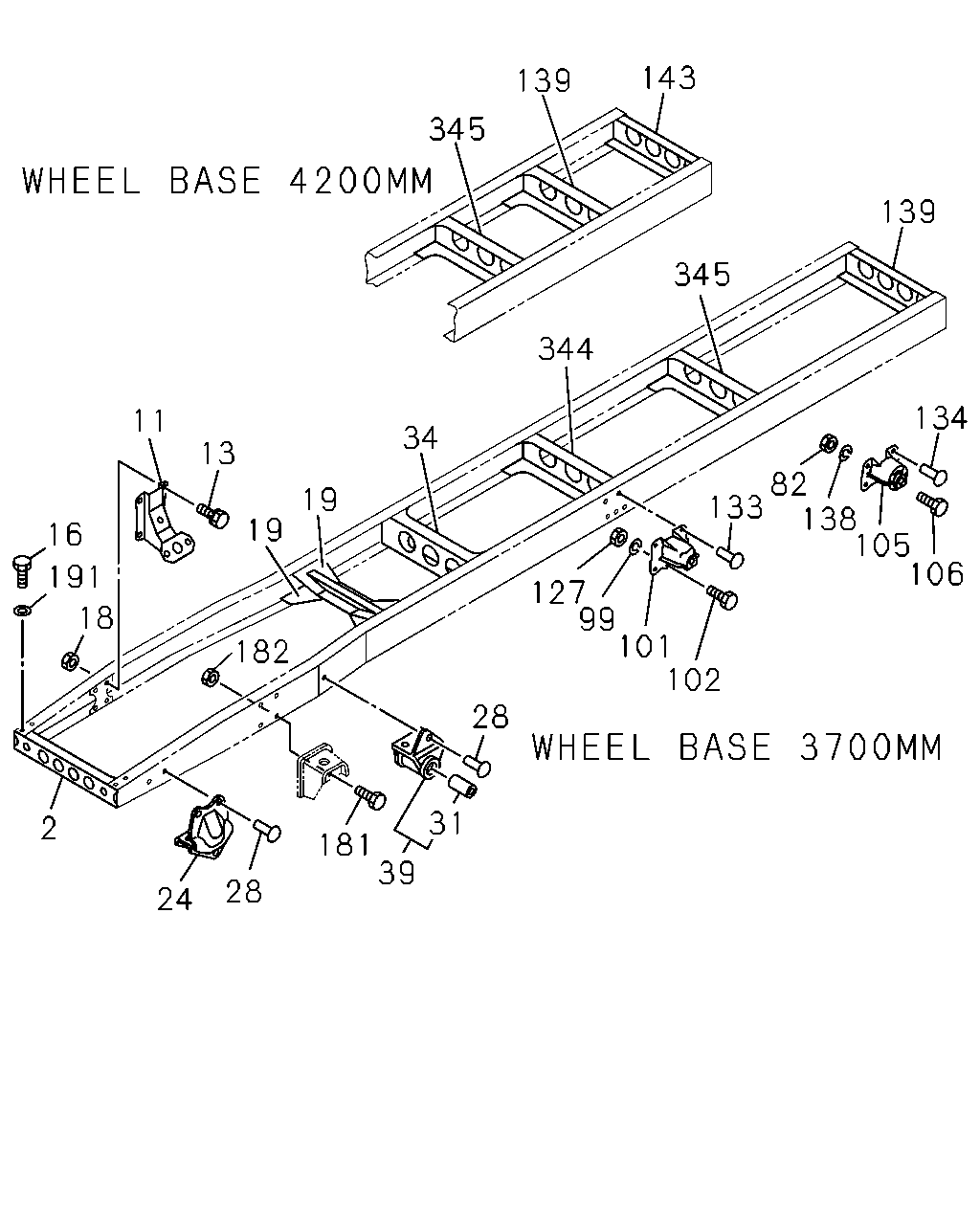

5-01 — FRAME AND OTHER PARTS
(#2686) — 41 parça
Tümü
A - MRR5FB
B - MRR6FB
143
139
345
139
345
344
134
11
34
13
82
133
138
105
106
19
19
16
191
127
99
101
102
18
182
28
31
2
181
39
28
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53173-032-1
01
1
9101-
●
●
11
BRACKET; ENG MTG
1-53211-038-0
02
1
9101-
●
●
13
BOLT; BRKT,ENG MTG
0-50041-022-0
08
1
9101-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
9-92061-428-0
12
1
9101-
●
●
18
NUT; BRKT,ENG MTG
9-09110-410-0
08
1
9101-
●
●
19
MEMBER; CROSS,2ND
UPPER
1-53175-320-1
01
1
9101-
●
●
19
MEMBER; CROSS,2ND
LOWER
1-53175-321-3
01
1
9101-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-141-0
02
1
9101-
●
●
28
RIVET; BRKT,FRT SPR
D10X30
1-09730-101-0
06
1
9101-9112
●
●
28
RIVET; BRKT,FRT SPR
D11X32
1-09730-104-0
04
1
9101-9112
●
●
28
RIVET; BRKT,FRT SPR
D12X36
1-09730-105-0
04
1
9101-9112
●
●
31
BUSHING; FRT SPR,RR
ID=25
9-51151-032-0
02
1
9101-9112
●
●
34
MEMBER; CROSS,3RD
1-53181-211-1
01
1
9101-9301
●
●
34
MEMBER; CROSS,3RD
1-53171-005-1
01
1
9302-
●
●
39
BRACKET; FRT SPR,RR
1-53352-019-0
01
1
9101-
●
●
39
BRACKET; FRT SPR,RR
1-53352-017-0
01
1
9101-
●
●
82
NUT; BRKT
9-99110-414-0
02
1
9101-9112
●
●
99
WASHER; LK,BRKT
9-09150-614-0
02
1
9101-9112
●
●
101
BRACKET; RR SPR,FRT
1-53353-060-2
02
1
9101-
●
●
102
BOLT; BRKT,RR SPR
0-20801-440-0
02
1
9101-
●
●
105
BRACKET; RR SPR,RR
1-53353-060-2
02
1
9101-
●
●
106
BOLT; BRKT
0-20801-440-0
02
1
9101-
●
●
127
NUT; BRKT
9-99110-414-0
02
1
9101-9112
●
●
127
NUT; BRKT
9-99110-414-0
04
1
9201-
●
●
133
RIVET; BRKT
D=13 L=42
1-09730-110-0
08
1
9101-9212
●
●
133
RIVET; BRKT
D=13 L=42
1-09730-090-0
08
1
9301-9611
●
●
133
RIVET; BRKT
D=13 L=42
9-06771-342-0
08
1
9612-
●
●
134
RIVET; BRKT
D=13 L=42
1-09730-110-0
08
1
9101-9212
●
●
134
RIVET; BRKT
D=13 L=42
1-09730-090-0
08
1
9301-9611
●
●
134
RIVET; BRKT
D=13 L=42
9-06771-342-0
08
1
9612-
●
●
138
WASHER; LK,BRKT
9-09150-614-0
02
1
9101-9112
●
●
138
WASHER; LK,BRKT
9-09150-614-0
04
1
9201-
●
●
139
MEMBER; CROSS,6TH
WHEEL BASE 3700MM(37W)
1-53181-045-0
01
1
9101-
●
●
139
MEMBER; CROSS,6TH
WHEEL BASE 4200MM(42W)
1-53171-005-1
01
1
9101-
●
●
143
MEMBER; CROSS,7TH
WHEEL BASE 4200MM(42W)
1-53181-045-0
01
1
9101-
●
●
181
BOLT; S/ABS BRKT TO FRAME
0-50041-025-0
08
1
9101-
●
●
182
NUT; S/ABS BRKT TO FRAME
9-09110-410-0
08
1
9101-
●
●
191
WASHER; PL,1ST C/MBR TO S/MBR
9-09651-069-0
12
1
9101-
●
●
344
MEMBER; CROSS,4TH
1-53171-869-0
01
1
9101-9301
●
●
344
MEMBER; CROSS,4TH
1-53171-005-1
01
1
9302-
●
●
345
MEMBER; CROSS,5TH
1-53171-005-1
01
1
9101-
●
●
