7-70 — SEPARATER AND BED (#26859) — 66 parça

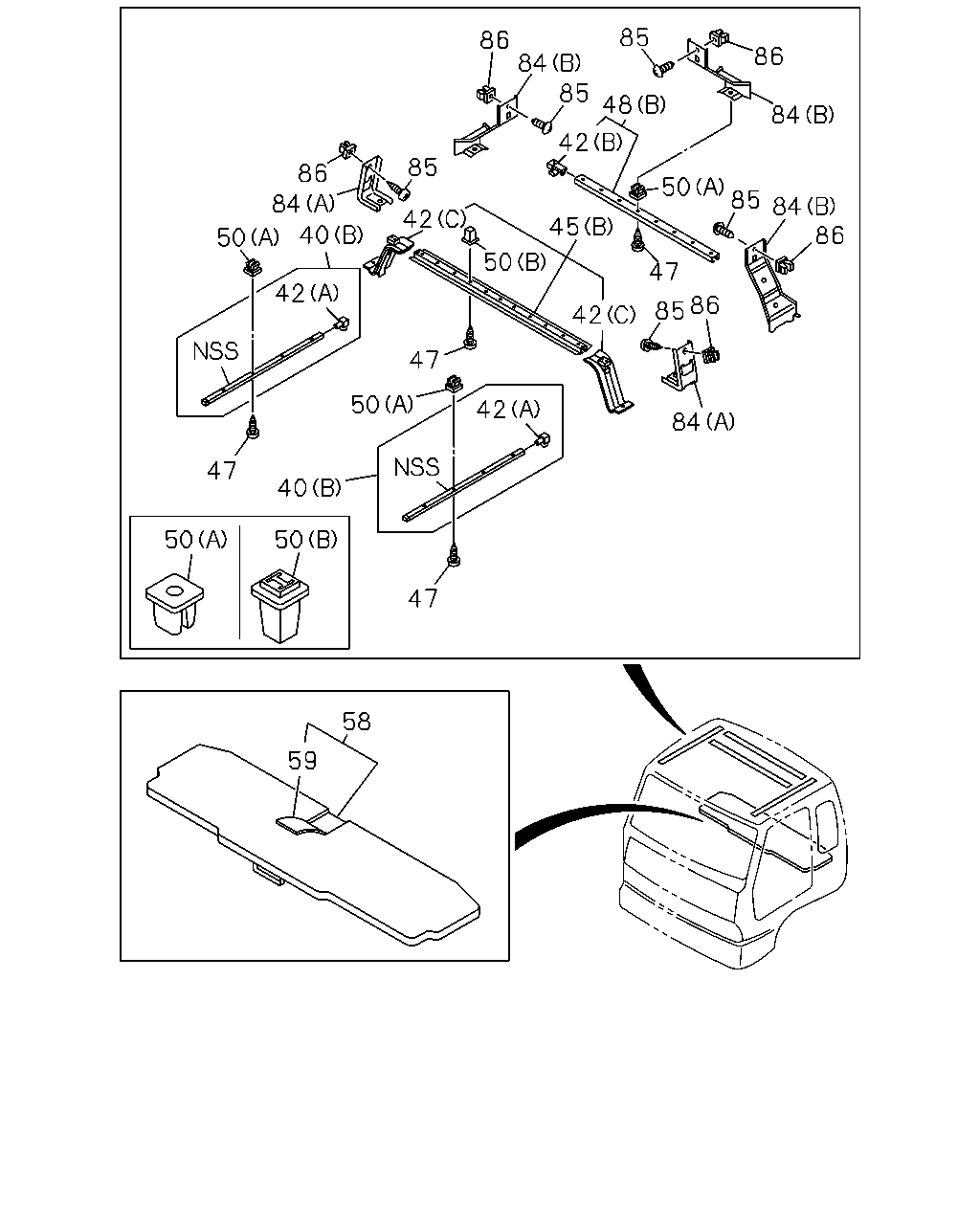

85 86 84 85 86 48 84 42 85 86 84 50 85 84 86 42 45 40 50 50 47 42 86 85 42 47 50 42 84 47 40 50 50 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-368-0	01	1	0212-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-0	01	1	0212-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-378-0	02	1	0212-
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0212-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0212-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0212-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) CENTER	1-73996-370-0	01	1	0212-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) CENTER	1-73996-369-0	01	1	0212-
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0212-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	25	1	0212-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	19	1	0212-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-0	01	1	0212-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-0	01	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.5X8.5 L=7.5 THA	8-94279-078-0	25	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.5X8.5 L=7.5 THA	8-94279-078-0	11	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97916-084-0	01	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97916-084-0	01	1	0212-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97921-662-0	01	1	0212-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97921-662-0	01	1	0212-
84	BRACKET; CURTAIN RAIL (A) RAIL SIDE	1-73998-986-2	02	1	0212-
84	BRACKET; CURTAIN RAIL (B) PAIL BACK LIGHT	1-73998-987-4	07	1	0212-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0212-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5 THA	8-94279-078-0	09	1	0212-

64 51 51 44 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-207-0	02	1	0212-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-208-0	02	1	0212-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-0	01	1	0212-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-0	01	1	0212-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	02	1	0212-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-0	02	1	0212-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-0	02	1	0212-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	0212-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-0	02	1	0212-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-0	02	1	0212-

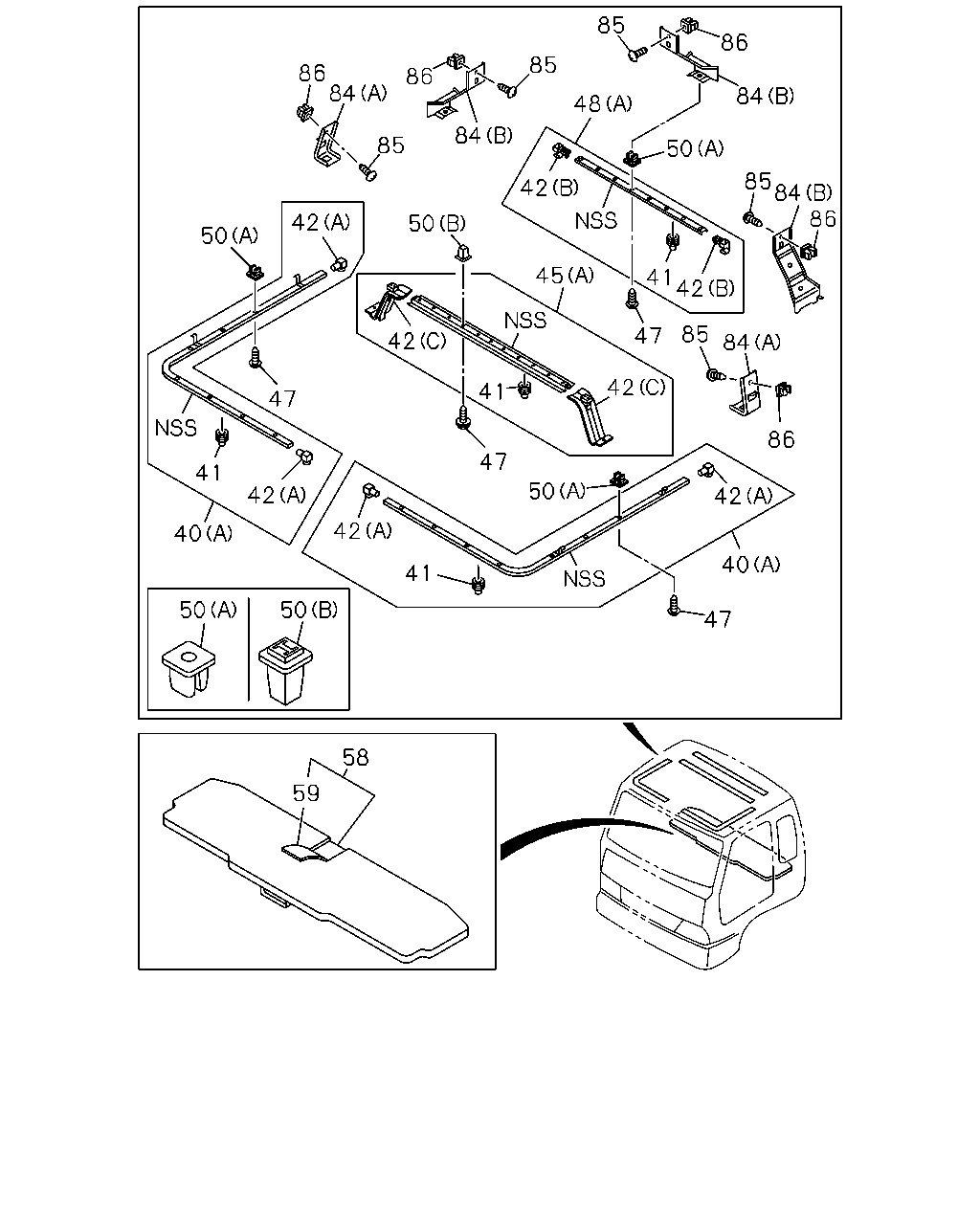

85 86 85 86 84 86 84 48 84 85 50 85 84 86 42 42 50 50 45 41 42 85 47 42 41 84 42 47 86 47 41 50 42 42 42 40 40 41 50 50 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-368-0	01	1	0212-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-0	01	1	0212-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-378-0	02	1	0212-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	33	1	0212-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0212-
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0212-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0212-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0212-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0212-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) CENTER	1-73996-370-0	01	1	0212-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) CENTER	1-73996-369-0	01	1	0212-
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0212-
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	25	1	0212-
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	19	1	0212-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-0	01	1	0212-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-0	01	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.5X8.5 L=7.5 THA	8-94279-078-0	25	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.5X8.5 L=7.5 THA	8-94279-078-0	11	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97916-084-0	01	1	0212-
58	BED; MAT MATTRESS SLEEPER CAB<E40> THA	8-97916-084-0	01	1	0212-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97921-662-0	01	1	0212-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> THA	8-97921-662-0	01	1	0212-
84	BRACKET; CURTAIN RAIL (A) RAIL SIDE	1-73998-986-2	02	1	0212-
84	BRACKET; CURTAIN RAIL (B) PAIL BACK LIGHT	1-73998-987-4	07	1	0212-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0212-
86	GROMMET; SCREW,BRKT D=8.5X8.5 L=7.5 THA	8-94279-078-0	09	1	0212-
