7-20 — MIRROR AND MIRROR STAY
(#26852) — 73 parça
◀
[720A] ROOM MIRROR (2 parça)

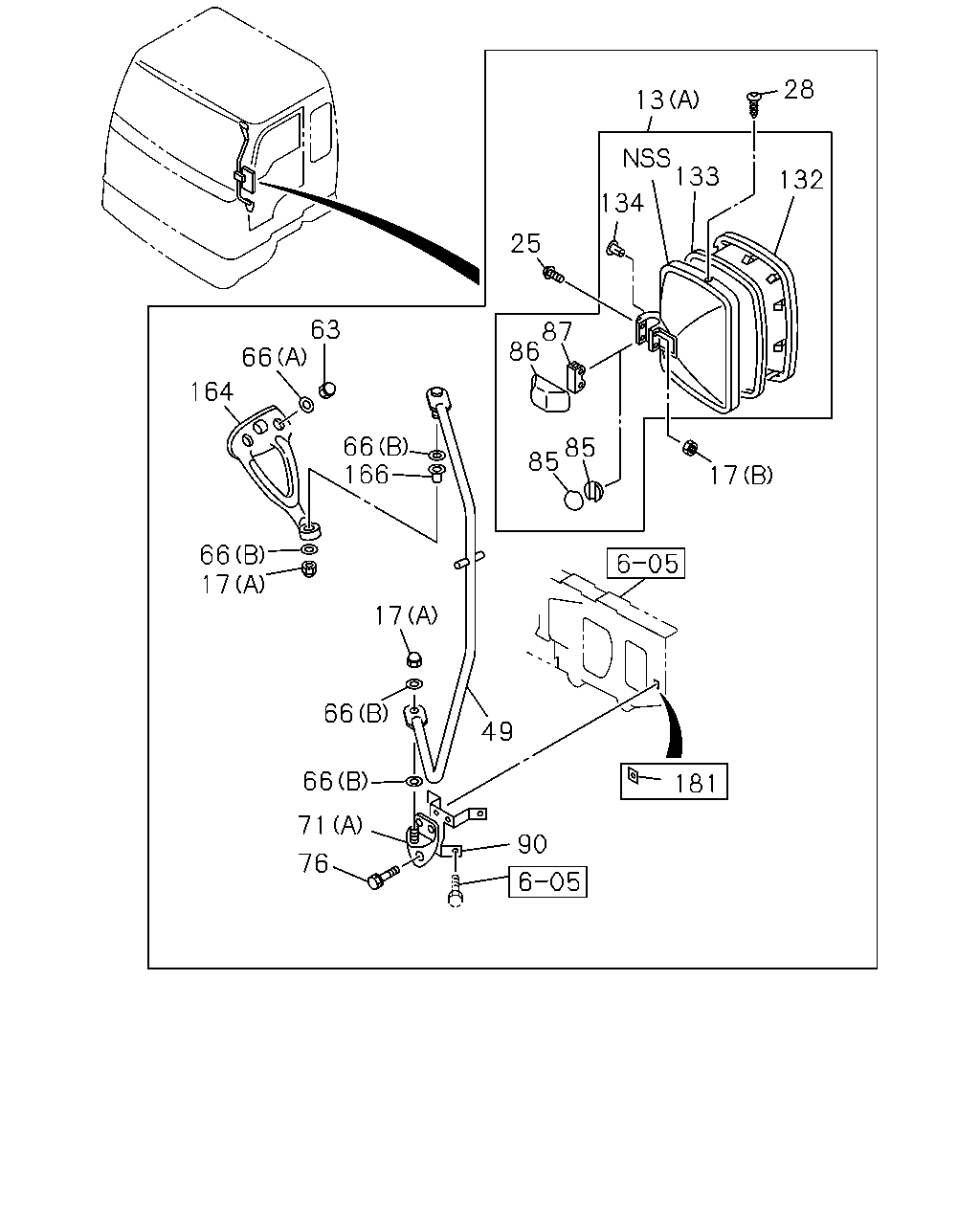

[720A] OUTSIDE RR VIEW MIRROR;LH (35 parça)

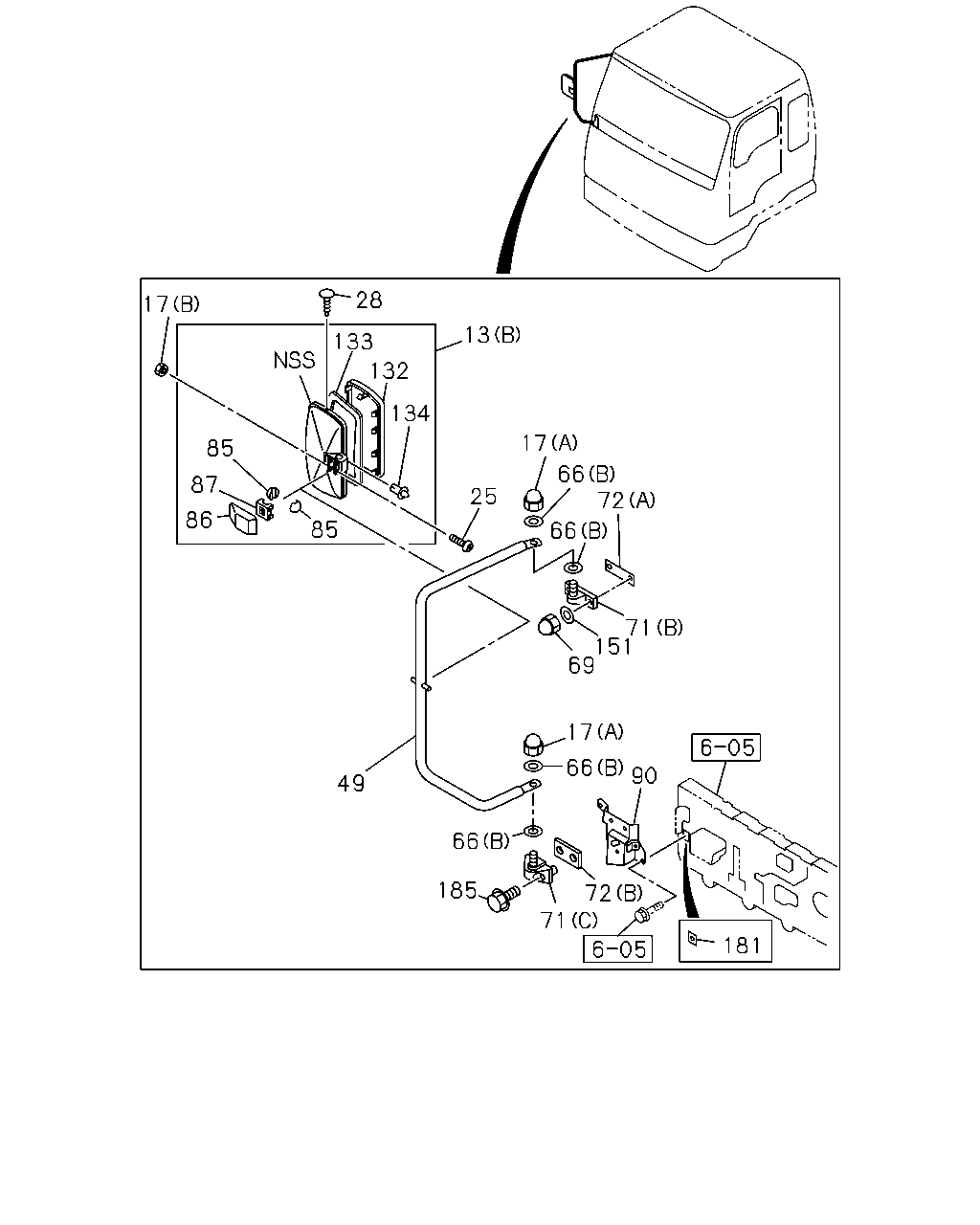

[720A] OUTSIDE RR VIEW MIRROR;RH (36 parça)
▶
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
THA
8-97917-692-1
01
1
0212-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0212-
28
13
133
132
134
25
63
87
86
66
164
66
166
85
85
17
66
17
17
66
49
66
181
71
90
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(A) THA
8-97917-731-0
01
1
0212-
13
MIRROR ASM; OUTSIDE RR VIEW
(B) THA
8-97917-754-0
01
1
0212-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-134-0
04
1
0212-
17
NUT; CAP,MIRROR STAY
(B) THA
8-97917-761-0
02
1
0212-
17
NUT; CAP,MIRROR STAY
(B) THA
8-97917-761-0
02
1
0212-
25
SCREW; OUTSIDE MIRROR
THA
8-97917-760-0
02
1
0212-
25
SCREW; OUTSIDE MIRROR
THA
8-97917-760-0
02
1
0212-
28
GROMMET; UNDER MIRROR
THA
8-97917-759-0
01
1
0212-
28
GROMMET; UNDER MIRROR
THA
8-97917-759-0
01
1
0212-
49
STAY; MIRROR SIDE
THA
8-97917-764-0
01
1
0212-
49
STAY; MIRROR SIDE
THA
8-97917-762-0
01
1
0212-
63
NUT; STAY
M8
1-09984-187-0
03
1
0212-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0212-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0212-
71
BRACKET; OUTSIDE MIRROR
(A) THA
1-71798-581-3
01
1
0212-
71
BRACKET; OUTSIDE MIRROR
(B) UPPER THA
1-71798-484-1
01
1
0212-
71
BRACKET; OUTSIDE MIRROR
(C) LOWER THA
1-71798-486-2
01
1
0212-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-1
03
1
0212-
85
PIVOT; MAIN MIRROR
THA
8-97917-763-0
02
1
0212-
85
PIVOT; MAIN MIRROR
THA
8-97917-756-0
02
1
0212-
86
COVER; STAY,OUTSIDE MIRROR
THA
8-97917-758-0
01
1
0212-
86
COVER; STAY,OUTSIDE MIRROR
THA
8-97917-758-0
01
1
0212-
87
SPACER
THA
8-97917-757-0
01
1
0212-
87
SPACER
THA
8-97917-757-0
01
1
0212-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0212-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0212-
132
RING; MIRROR
THA
8-97917-752-0
01
1
0212-
132
RING; MIRROR
THA
8-97917-752-0
01
1
0212-
133
LENS; MIRROR,OUTSIDE
THA
8-97917-753-0
01
1
0212-
133
LENS; MIRROR,OUTSIDE
THA
8-97917-753-0
01
1
0212-
134
CLIP; MIRROR LENS
THA
8-97917-755-0
01
1
0212-
134
CLIP; MIRROR LENS
THA
8-97917-755-0
01
1
0212-
164
STAY; ROOF
1-71798-299-4
01
1
0212-
166
BUSHING; STAY
1-09983-175-1
01
1
0212-
181
SEAL; BRKT
25X25 THA
8-94272-533-0
02
1
0212-
28
17
13
133
132
134
17
85
66
72
87
25
86
66
71
151
69
17
66
90
49
66
72
71
185
181
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(A) THA
8-97917-731-0
01
1
0212-
13
MIRROR ASM; OUTSIDE RR VIEW
(B) THA
8-97917-754-0
01
1
0212-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-134-0
04
1
0212-
17
NUT; CAP,MIRROR STAY
(B) THA
8-97917-761-0
02
1
0212-
17
NUT; CAP,MIRROR STAY
(B) THA
8-97917-761-0
02
1
0212-
25
SCREW; OUTSIDE MIRROR
THA
8-97917-760-0
02
1
0212-
25
SCREW; OUTSIDE MIRROR
THA
8-97917-760-0
02
1
0212-
28
GROMMET; UNDER MIRROR
THA
8-97917-759-0
01
1
0212-
28
GROMMET; UNDER MIRROR
THA
8-97917-759-0
01
1
0212-
49
STAY; MIRROR SIDE
THA
8-97917-764-0
01
1
0212-
49
STAY; MIRROR SIDE
THA
8-97917-762-0
01
1
0212-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0212-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0212-
69
NUT; CAP
M8
1-09984-187-0
02
1
0212-
71
BRACKET; OUTSIDE MIRROR
(A) THA
1-71798-581-3
01
1
0212-
71
BRACKET; OUTSIDE MIRROR
(B) UPPER THA
1-71798-484-1
01
1
0212-
71
BRACKET; OUTSIDE MIRROR
(C) LOWER THA
1-71798-486-2
01
1
0212-
72
SHEET
(A) UPPER THA
1-71798-487-3
01
1
0212-
72
SHEET
(B) LOWER THA
1-71798-488-1
01
1
0212-
85
PIVOT; MAIN MIRROR
THA
8-97917-763-0
02
1
0212-
85
PIVOT; MAIN MIRROR
THA
8-97917-756-0
02
1
0212-
86
COVER; STAY,OUTSIDE MIRROR
THA
8-97917-758-0
01
1
0212-
86
COVER; STAY,OUTSIDE MIRROR
THA
8-97917-758-0
01
1
0212-
87
SPACER
THA
8-97917-757-0
01
1
0212-
87
SPACER
THA
8-97917-757-0
01
1
0212-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0212-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0212-
132
RING; MIRROR
THA
8-97917-752-0
01
1
0212-
132
RING; MIRROR
THA
8-97917-752-0
01
1
0212-
133
LENS; MIRROR,OUTSIDE
THA
8-97917-753-0
01
1
0212-
133
LENS; MIRROR,OUTSIDE
THA
8-97917-753-0
01
1
0212-
134
CLIP; MIRROR LENS
THA
8-97917-755-0
01
1
0212-
134
CLIP; MIRROR LENS
THA
8-97917-755-0
01
1
0212-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
0212-
181
SEAL; BRKT
25X25 THA
8-94272-533-0
02
1
0212-
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
02
1
0212-
