◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#2685) — 46 parça

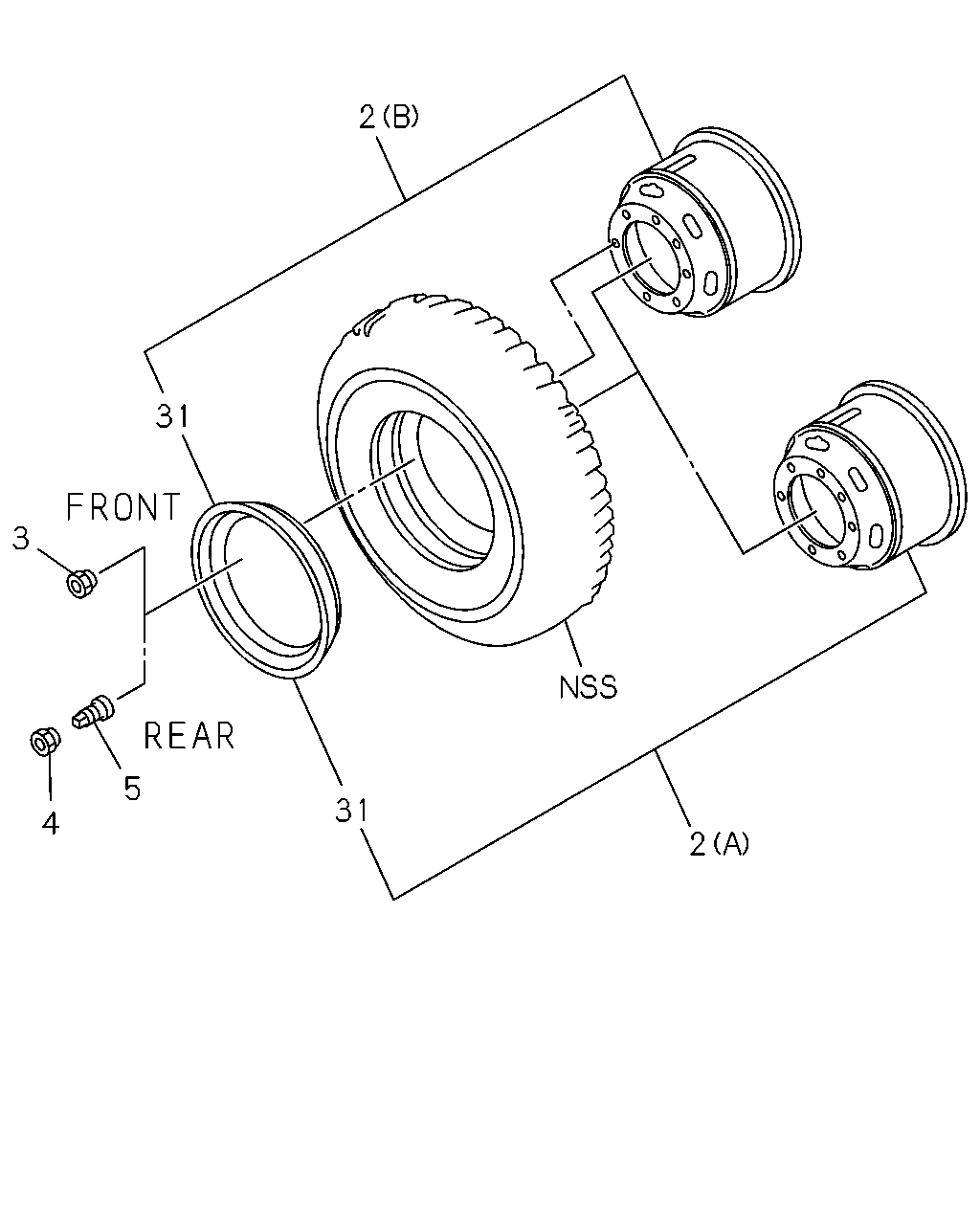

çizim 5671
2 31 3 5 31 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 		1-42350-140-3 01 1 9101-9206 ●
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9207- ●
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT&REAR 		1-42350-140-3 06 1 9101-9206 ●
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT&REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9207- ●
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (A) SPARE 		1-42350-133-1 01 1 9101-9106 ●
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (A) SPARE 		1-42350-197-0 01 1 9107- ●
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (A) FRONT&REAR 		1-42350-133-1 06 1 9101-9106 ●
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (A) FRONT&REAR 		1-42350-197-0 06 1 9107- ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB),WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 		1-42350-165-2 01 1 9101-9206 ●
2 WHEEL; DISC
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) SPARE 		1-42350-165-2 01 1 9101-9206 ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB),WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 		1-42350-415-0 01 1 9207- ●
2 WHEEL; DISC
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) SPARE 		1-42350-415-0 01 1 9207- ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB),WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT&REAR 		1-42350-165-2 06 1 9101-9206 ●
2 WHEEL; DISC
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) FRONT&REAR 		1-42350-165-2 06 1 9101-9206 ●
2 WHEEL; DISC
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB),WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT&REAR 		1-42350-415-0 06 1 9207- ●
2 WHEEL; DISC
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) FRONT&REAR 		1-42350-415-0 06 1 9207- ●
2 WHEEL; DISC
WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) SPARE 		1-42350-116-1 01 1 9101- ●
2 WHEEL; DISC
WHEEL 6STUD 6.00S-20 135-10(QJ1) (B) FRONT&REAR 		1-42350-116-1 06 1 9101- ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) WHEEL PIN RIGHT HAND<SFH> M24 		1-42333-022-0 16 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24 		1-42333-022-0 06 1 9112- ● ●
3 NUT; WHEEL,FRT AXLE
TIRE 8.25-16-12 RIB(30S) M20 LH THREAD 		1-42334-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) EXC. WHEEL PIN RIGHT HAND<SFH> M20 LH THREAD 		1-42334-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) M20 LH THREAD 		1-42334-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
RR TIRE 7.50-20<91X>,RR TIRE 8.25-16<92X> EXC. WHEEL PIN RIGHT HAND<SFH> M20 LH THREAD 		1-42334-021-0 06 1 9112- ● ●
3 NUT; WHEEL,FRT AXLE
TIRE 8.25-16-12 RIB(30S) M20 RH THREAD 		1-42333-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) EXC. WHEEL PIN RIGHT HAND<SFH> M20 RH THREAD 		1-42333-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S) M20 RH THREAD 		1-42333-021-0 06 1 9101-9111 ●
3 NUT; WHEEL,FRT AXLE
RR TIRE 7.50-20<91X>,RR TIRE 8.25-16<92X> EXC. WHEEL PIN RIGHT HAND<SFH> M20 RH THREAD 		1-42333-021-0 06 1 9112- ● ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M24 LH THREAD 		1-42334-022-0 06 1 9101-9111 ● ●
3 NUT; WHEEL,FRT AXLE
RR TIRE 7.50-16<89X> M24 LH THREAD 		1-42334-022-0 06 1 9112- ● ●
3 NUT; WHEEL,FRT AXLE
TIRE 7.50-16-12 RIB(10S),TIRE 7.50-16-12 EXP LUG(61U),TIRE 7.50-16-14 RIB EXP STD(70U),TIRE 7.50-16-14 EXP LUG(71U) M24 		1-42333-022-0 06 1 9101-9111 ● ●
3 NUT; WHEEL,FRT AXLE
WHEEL PIN RIGHT HAND<SFH> RR TIRE 7.50-20<91X> M24 		1-42333-022-0 16 1 9112- ●
4 NUT; WHEEL,RR AXLE
WHEEL PIN RIGHT HAND<SFH> M30 		1-42333-023-0 16 1 9101- ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL PIN RIGHT HAND<SFH> M30 LH THREAD 		1-42334-023-0 06 1 9101- ● ●
4 NUT; WHEEL,RR AXLE
EXC. WHEEL PIN RIGHT HAND<SFH> M30 		1-42333-023-0 06 1 9101- ● ●
5 NUT; WHEEL,INNER,RR AXLE
WHEEL PIN RIGHT HAND<SFH> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 16 1 9101- ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL PIN RIGHT HAND<SFH> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9101- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. WHEEL PIN RIGHT HAND<SFH> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9101- ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE 		1-42355-002-0 01 1 9101- ●
31 RING; SIDE,DISC WHEEL
WHEEL 6STUD 6.00S-20 135-10(QJ1) SPARE 		1-42355-002-0 01 1 9101- ●
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.00SX20 135-10(SBB) FRONT&REAR 		1-42355-002-0 06 1 9101- ●
31 RING; SIDE,DISC WHEEL
WHEEL 6STUD 6.00S-20 135-10(QJ1) FRONT&REAR 		1-42355-002-0 06 1 9101- ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9101- ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9101- ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 8STUD 6.00SX20 135-10(SBB) FRONT&REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9101- ●
31 RING; SIDE,DISC WHEEL
EXC. WHEEL 6STUD 6.00S-20 135-10(QJ1) FRONT&REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9101- ●
