7-70 — SEPARATER AND BED (#26846) — 62 parça

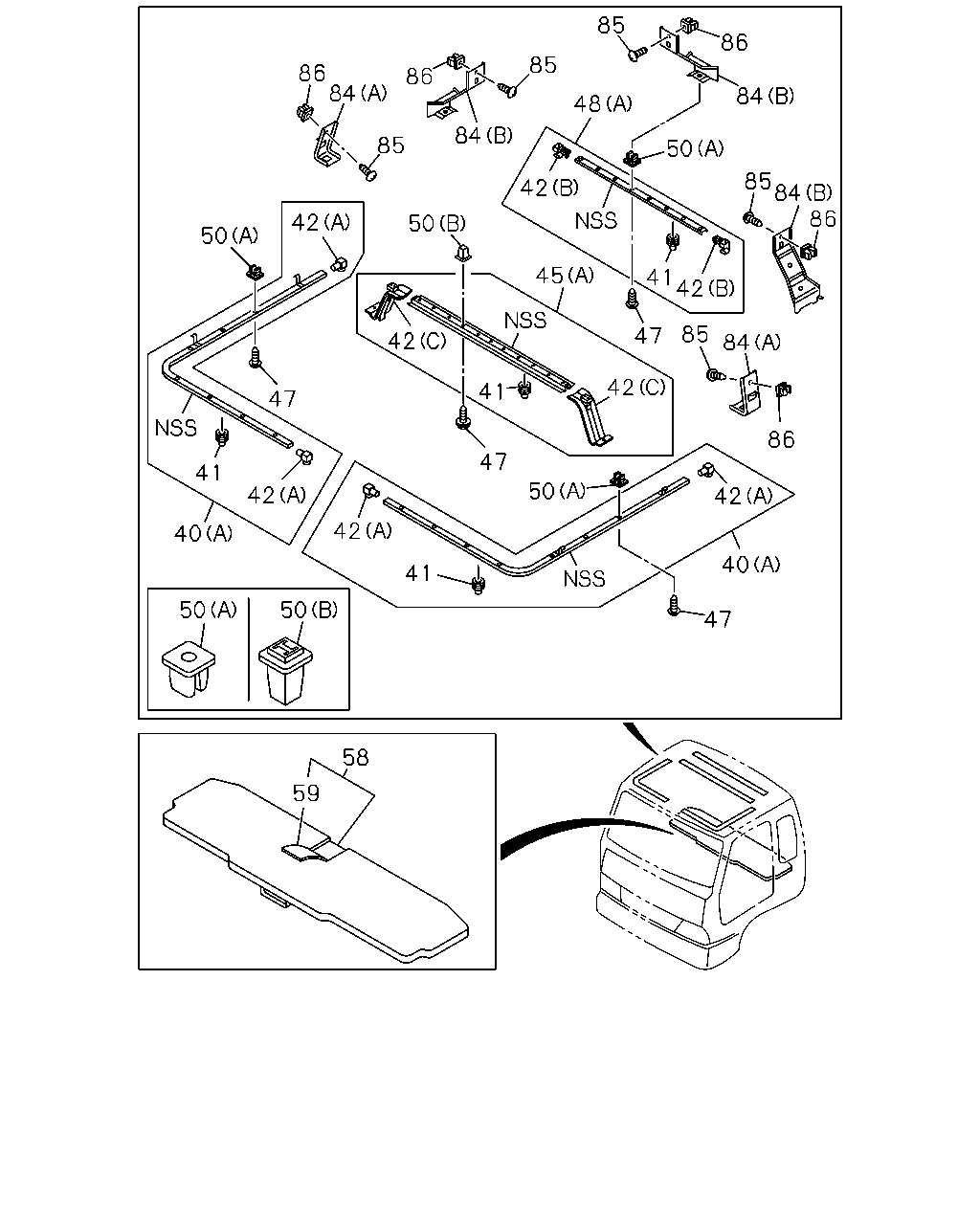

85 86 85 86 84 86 84 48 84 85 50 85 84 86 42 42 50 50 45 41 42 85 47 42 41 84 42 47 86 47 41 50 42 42 42 40 40 41 50 50 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-368-0	01	1	0210-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-0	01	1	0210-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-378-0	02	1	0210-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	33	1	0210-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0210-	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0210-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0210-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) CENTER	1-73996-370-0	01	1	0210-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) CENTER	1-73996-369-0	01	1	0210-	●	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0210-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	25	1	0210-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	19	1	0210-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-0	01	1	0210-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-0	01	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=7.5 M5 THA	8-94279-078-0	25	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=7.5 M5 THA	8-94279-078-0	11	1	0210-	●	●
58	BED; MAT THA	8-97916-084-0	01	1	0210-	●	●
59	COVER ASM; TRIM,BED MAT THA	8-97921-662-0	01	1	0210-	●	●
84	BRACKET; CURTAIN RAIL (A) RAIL SIDE	1-73998-986-2	02	1	0210-	●	●
84	BRACKET; CURTAIN RAIL (B) RAIL BACK LIGHT	1-73998-987-4	07	1	0210-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0210-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 THA	8-94279-078-0	09	1	0210-	●	●

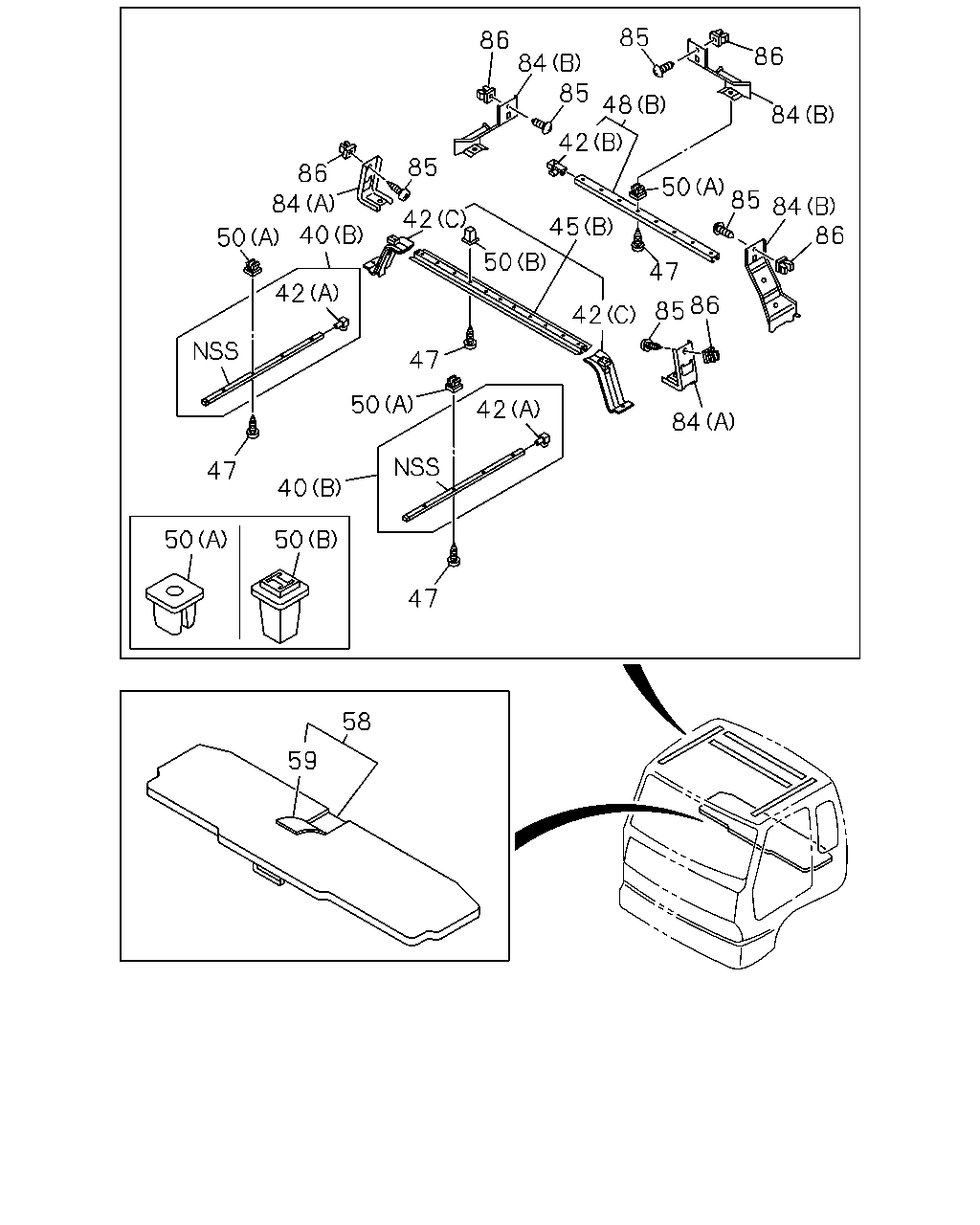

85 86 84 85 86 48 84 42 85 86 84 50 85 84 86 42 45 40 50 50 47 42 86 85 42 47 50 42 84 47 40 50 50 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-368-0	01	1	0210-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-0	01	1	0210-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-378-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0210-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0210-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0210-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) CENTER	1-73996-370-0	01	1	0210-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B) CENTER	1-73996-369-0	01	1	0210-	●	●
47	SCREW; CURTAIN RAIL M5X25	5-09981-093-0	07	1	0210-	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	25	1	0210-	●	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M5X20	5-09981-059-0	19	1	0210-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-0	01	1	0210-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-0	01	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=7.5 M5 THA	8-94279-078-0	25	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0210-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8X8 L=7.5 M5 THA	8-94279-078-0	11	1	0210-	●	●
58	BED; MAT THA	8-97916-084-0	01	1	0210-	●	●
59	COVER ASM; TRIM,BED MAT THA	8-97921-662-0	01	1	0210-	●	●
84	BRACKET; CURTAIN RAIL (A) RAIL SIDE	1-73998-986-2	02	1	0210-	●	●
84	BRACKET; CURTAIN RAIL (B) RAIL BACK LIGHT	1-73998-987-4	07	1	0210-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0210-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 THA	8-94279-078-0	09	1	0210-	●	●

64 51 51 44 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-207-0	02	1	0210-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>	1-73908-208-0	02	1	0210-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-0	01	1	0210-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-0	01	1	0210-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	02	1	0210-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-0	02	1	0210-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-0	02	1	0210-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-0	01	1	0210-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-0	02	1	0210-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-0	02	1	0210-	●	●
