◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#26843) — 14 parça

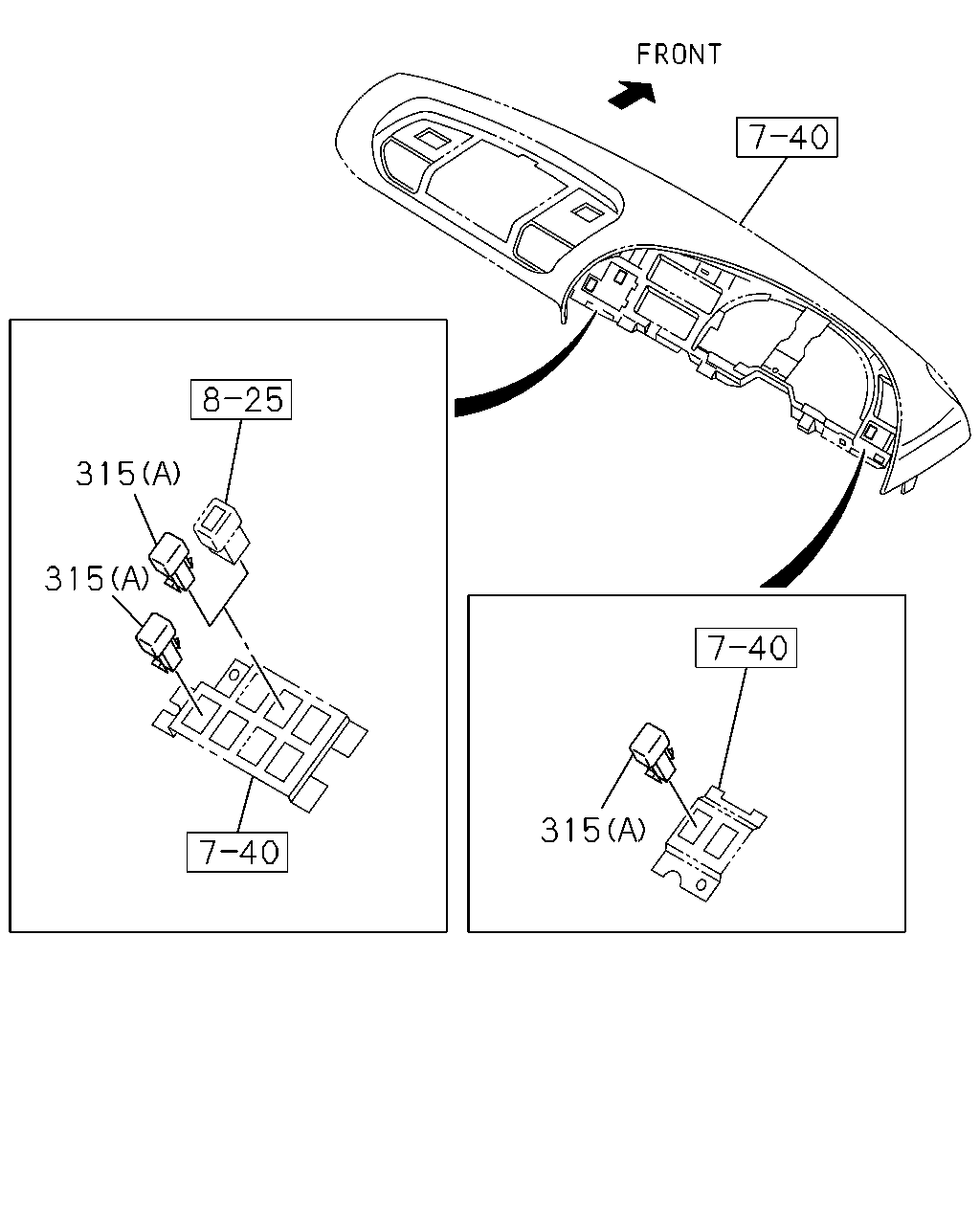

çizim 25881
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 0210- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0210- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0210- ● ●

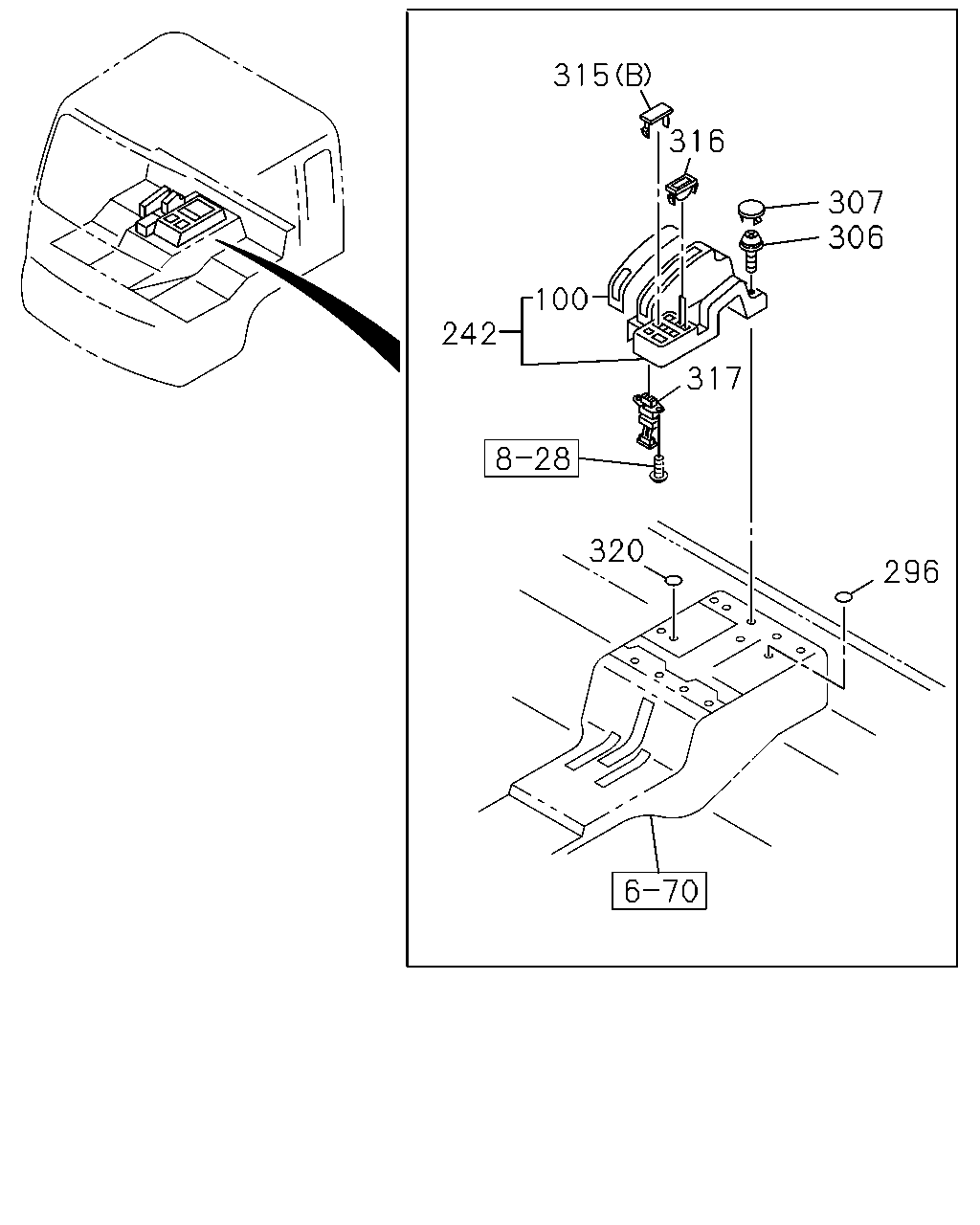

çizim 85062
315 316 307 306 100 242 317 320 296
BalonParca AdiParca NoAdetTipApplied Date A B
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 0210- ● ●
242 TRAY ASM; CTR CONSOLE 1-72538-245-0 01 1 0210- ● ●
296 SEAL
OD=25 BLACK THA 		1-76798-019-0 02 1 0210- ● ●
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0210- ● ●
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 04 1 0210- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 0210- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 05 1 0210- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 06 1 0210- ● ●
316 BOX; COIN 8-94482-280-2 02 1 0210- ● ●
317 CONSENT 1-82523-020-2 01 1 0210- ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK THA 		1-76798-019-0 02 1 0210- ● ●
