Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#26842) — 59 parça
Tümü
A - FXZ5MC
B - FXZ5MF
◀

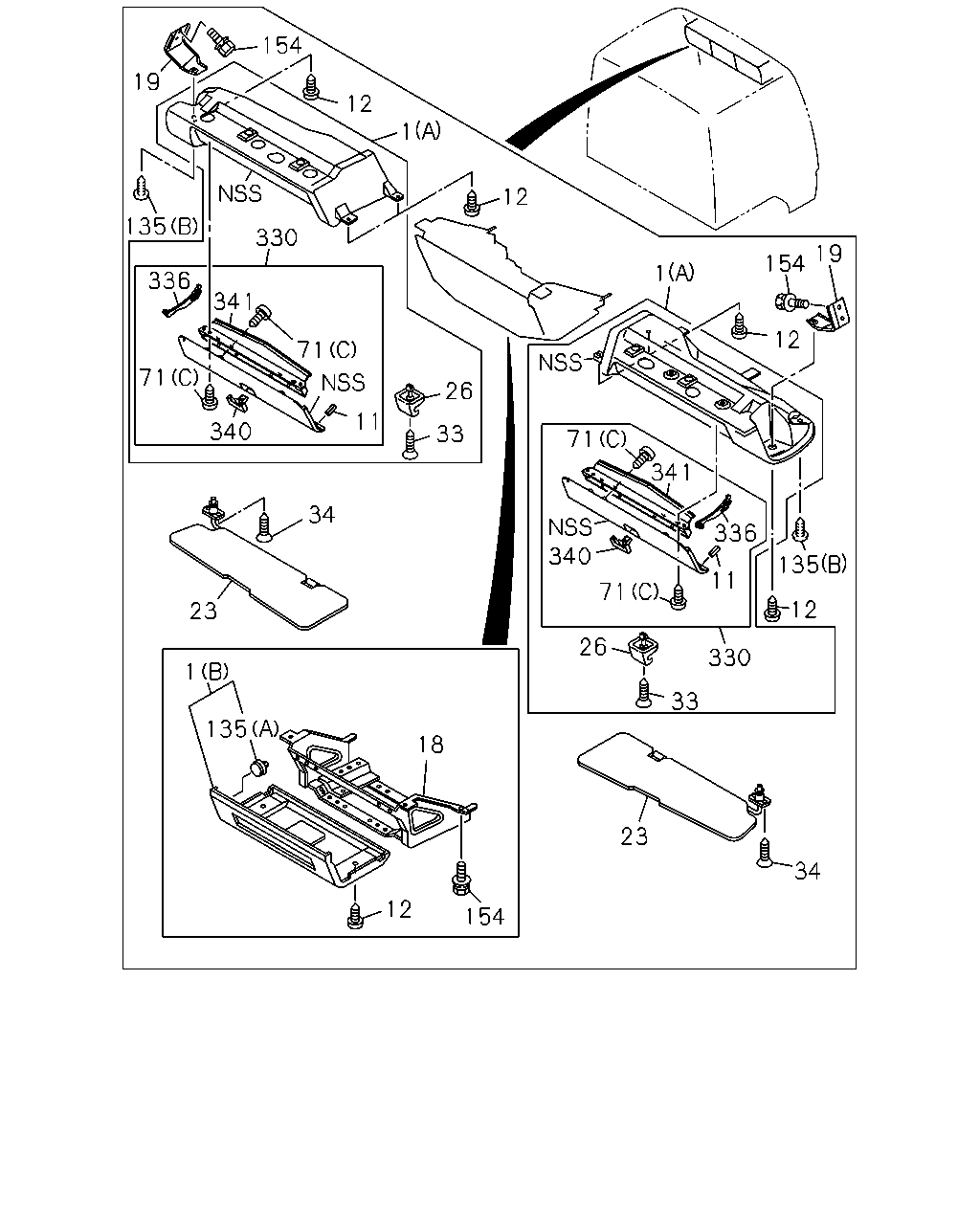

[743A] HEADER SHELF AND SUN VISOR (24 parça)
[743A] ASSIST GRIP;ROOF AND FRONT PANEL (14 parça)

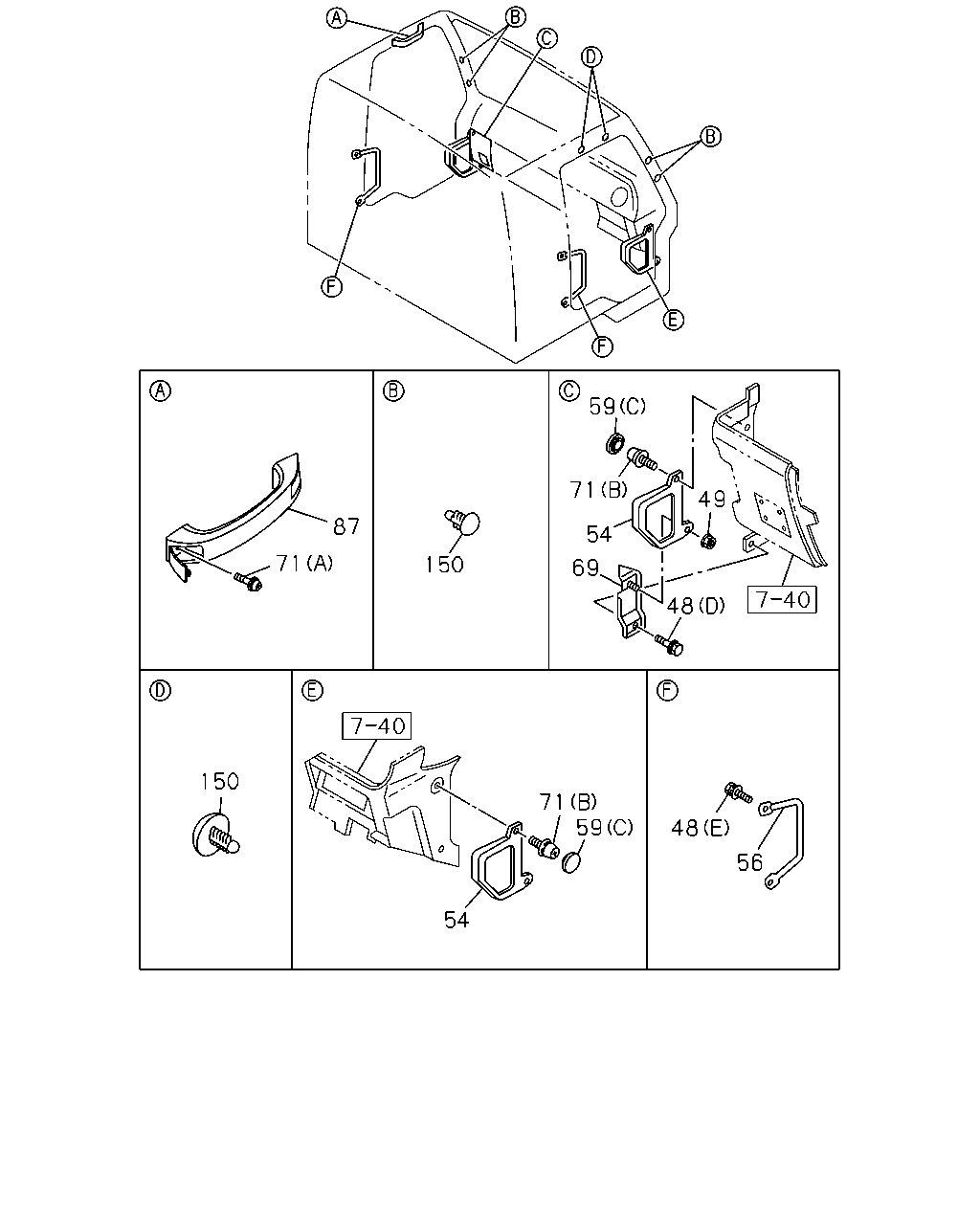

[743A] CAB INSIDE GRIP FIXING (21 parça)
▶
154
19
12
1
12
135
330
19
154
1
336
341
12
71
71
26
11
340
33
71
341
34
340
336
11
135
71
12
23
26
330
1
33
135
18
23
34
12
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BOARD; HEADER SHELF
(B) CENTER
1-72448-663-0
01
1
0210-
●
●
1
BOARD; HEADER SHELF
(A)
1-73318-691-0
01
1
0210-
●
●
1
BOARD; HEADER SHELF
(A)
1-73318-690-0
01
1
0210-
●
●
11
CAP; HEADER SHELF
THA
8-94270-538-0
04
1
0210-
●
●
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
0210-
●
●
18
SUPPORT; HEADER SHELF CENTER
THA
8-97913-541-1
01
1
0210-
●
●
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
0210-
●
●
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
0210-
●
●
23
SUN VISOR
THA
8-97917-691-0
01
1
0210-
●
●
23
SUN VISOR
THA
8-97917-690-0
01
1
0210-
●
●
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0210-
●
●
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70580-416-0
02
1
0210-
●
●
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
0210-
●
●
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0210-
●
●
71
SCREW
(A) M6X35 W/PL WASHER
1-09981-422-0
02
1
0210-0310
●
●
71
SCREW
M6X30 W/LK WASHER
5-09981-064-0
02
1
0311-
●
●
71
SCREW
(C) M5X14 W/PL WASHER THA
5-09981-050-0
06
1
0210-
●
●
135
CLIP; HEADER SHELF
(B) D6X23 BLACK
1-09987-114-0
02
1
0210-
●
●
135
CLIP; HEADER SHELF
(A) OD=7.9 BLACK THA
8-94279-974-1
06
1
0210-
●
●
154
BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
08
1
0210-
●
●
330
LID; HEADER SHELF
1-72448-679-0
02
1
0210-
●
●
336
STAY; LID
THA
1-72448-379-3
04
1
0210-
●
●
340
LOCK; HEADER SHELF
THA
1-72448-376-0
02
1
0210-
●
●
341
HINGE; LID,HEADER SHELF
THA
1-72448-403-1
02
1
0210-
●
●
64
64
64
62
64
48
48
48
48
62
68
66
103
48
59
68
66
48
48
59
103
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0210-
●
●
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0210-
●
●
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
0210-
●
●
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
0210-
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0210-
●
●
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0210-
●
●
64
SHEET; ASSIST GRIP
25X25 THA
8-94272-533-0
04
1
0210-
●
●
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0210-
●
●
68
BRACKET; ASSIST GRIP,FRT PANEL
THA
1-65580-203-0
02
1
0210-
●
●
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
0210-
●
●
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
0210-
●
●
59
71
49
87
54
71
150
69
48
150
71
59
48
56
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(E) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0210-
●
●
48
BOLT; ASSIST GRIP
(D) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0210-
●
●
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0210-
●
●
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
0210-
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-564-0
01
1
0210-
●
●
54
GRIP; ASSIST,QUARTER SIDE
1-73617-563-0
01
1
0210-
●
●
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
0210-0402
●
●
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0403-
●
●
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
0210-
●
●
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
0210-
●
●
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0210-
●
●
69
BRACKET; ASSIST GRIP
1-73618-178-2
01
1
0210-
●
●
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0210-
●
●
71
SCREW
(A) M6X35 W/PL WASHER
1-09981-422-0
02
1
0210-0310
●
●
71
SCREW
M6X30 W/LK WASHER
5-09981-064-0
02
1
0311-
●
●
71
SCREW
(C) M5X14 W/PL WASHER THA
5-09981-050-0
06
1
0210-
●
●
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
01
1
0210-
●
●
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0210-
●
●
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
04
1
0210-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
