◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#26841) — 101 parça
çizim 21462
18 554 604 599 555
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 07 1 0210- ● ●
18 BOLT; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0210- ● ●
18 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0210- ● ●
554 BRACKET; CENTER BEZEL
THA 		1-65680-963-1 01 1 0210- ● ●
555 BOLT; PAD
(B) M10X25 FLANGE 		0-28281-025-0 07 1 0210- ● ●
555 BOLT; PAD
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 03 1 0210- ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0210- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0210- ● ●

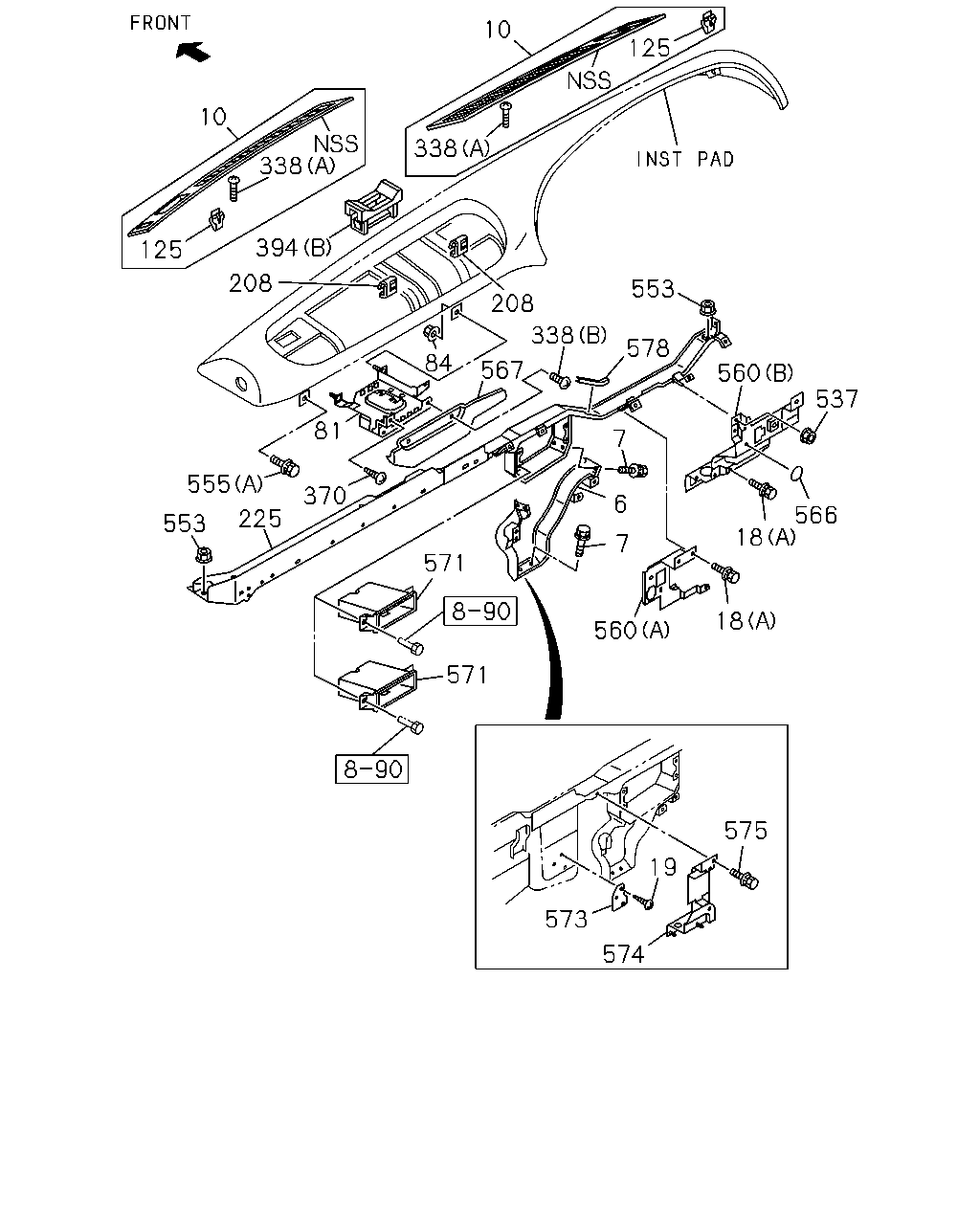

çizim 21463
10 125 10 338 338 394 125 208 553 208 338 578 84 567 560 537 81 7 370 6 566 225 553 18 7 571 18 560 571 575 19 573 574 555
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
THA 		1-65681-165-2 01 1 0210- ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 06 1 0210- ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0210- ● ●
10 PANEL ASM; GARNISH 1-72437-600-6 01 1 0210- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 07 1 0210- ● ●
18 BOLT; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0210- ● ●
18 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0210- ● ●
19 SCREW; BRKT
M5X14 THA 		8-94279-325-0 02 1 0210- ● ●
19 SCREW; BRKT
M5X14 THA 		8-94279-325-0 02 1 0210- ●
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0210- ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0210- ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0210-0309 ● ●
125 CLIP; INST PANEL 8-97217-066-0 17 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0406- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0210- ● ●
225 FRAME; FACIA
THA 		1-65681-096-2 01 1 0210- ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 10 1 0210-0309 ● ●
338 SCREW; COVER
M5X14 THA 		8-94279-325-0 20 1 0310-0405 ● ●
338 SCREW; COVER
M5X14 THA 		8-94279-325-0 10 1 0406- ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0210-0302 ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303- ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 THA 		8-94279-325-0 01 1 0210- ● ●
394 HOLDER; PANEL
(B) 		1-72438-066-0 06 1 0210- ● ●
394 HOLDER; PANEL
(A) 		1-72558-026-5 02 1 0210- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0210- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0210- ● ●
555 BOLT; PAD
(B) M10X25 FLANGE 		0-28281-025-0 07 1 0210- ● ●
555 BOLT; PAD
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 03 1 0210- ● ●
560 BRACKET
(A) 		1-65680-976-2 01 1 0210- ● ●
560 BRACKET
(B) 		1-65671-717-8 01 1 0210-0302 ● ●
560 BRACKET
(B) 		1-65671-786-1 01 1 0303- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0210- ● ●
567 COVER; CONT UNIT 1-65681-022-1 01 1 0210- ● ●
571 BEZEL; POCKET 1-72438-151-1 01 1 0210- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-72438-151-1 01 1 0210- ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0210- ● ●
574 PANEL; RELAY BOX 1-73908-252-2 01 1 0210- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0210- ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-0 01 1 0210- ● ●

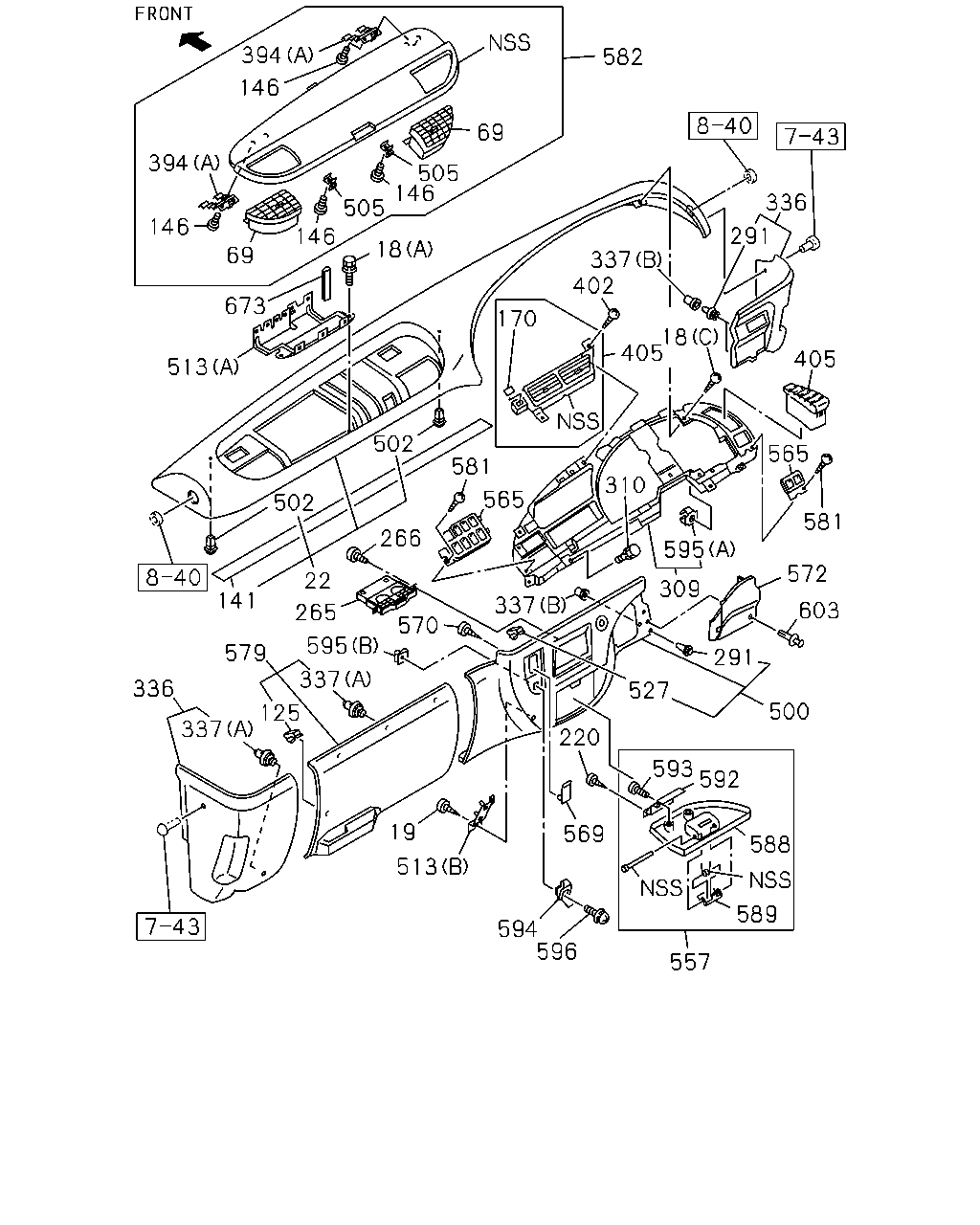

çizim 25882
394 582 146 69 394 505 146 336 505 146 291 146 18 69 337 402 673 170 18 405 405 513 502 565 581 310 565 502 581 266 595 572 22 309 141 337 603 265 570 595 579 291 337 336 527 500 125 337 220 593 592 19 569 588 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 07 1 0210- ● ●
18 BOLT; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0210- ● ●
18 BOLT; BRKT
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0210- ● ●
19 SCREW; BRKT
M5X14 THA 		8-94279-325-0 02 1 0210- ● ●
19 SCREW; BRKT
M5X14 THA 		8-94279-325-0 02 1 0210- ●
22 PAD; INST 1-72318-433-1 01 1 0210- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0210- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0210- ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0210-0309 ● ●
125 CLIP; INST PANEL 8-97217-066-0 17 1 0310-0405 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0406- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0210- ● ●
146 SCREW; TAP
M5X14 THA 		8-94279-325-0 10 1 0210- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0210- ● ●
220 SCREW; LID TO STOPPER
M5X14 THA 		8-94279-325-0 02 1 0210- ● ●
265 STAND; CUP 8-97853-172-8 01 1 0210- ● ●
266 SCREW; CUP STAND
M5X14 THA 		8-94279-325-0 02 1 0210- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0210- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0210- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 05 1 0210- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0210- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0210- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0210- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0210- ● ●
394 HOLDER; PANEL
(B) 		1-72438-066-0 06 1 0210- ● ●
394 HOLDER; PANEL
(A) 		1-72558-026-5 02 1 0210- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0210- ● ●
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 0210- ● ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0210- ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0210- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0210- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0210- ● ●
513 BRACKET; RELAY
(A) THA 		1-73908-425-0 01 1 0210- ● ●
513 BRACKET; RELAY
(B) 		1-73908-043-1 01 1 0210- ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0210- ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0210- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 0210- ● ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 0210- ● ●
569 HOLDER; CARD 1-72498-015-1 01 1 0210- ● ●
570 SCREW; HOLDER
M5X14 THA 		8-94279-325-0 01 1 0210- ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0210- ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0210- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0210- ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0210- ● ●
588 LID; BOX 1-72548-135-3 01 1 0210- ● ●
589 KNOB; LID 1-72548-143-0 01 1 0210- ● ●
592 HINGE; LID 1-72548-133-3 01 1 0210- ● ●
593 SCREW; HINGE
M5X14 THA 		8-94279-325-0 02 1 0210- ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0210- ● ●
595 NUT; HOOK
(B) M5 		1-09984-162-0 01 1 0210- ● ●
595 NUT; HOOK
(A) 		1-72418-013-0 11 1 0210- ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0210- ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0210- ● ●
673 FINISHER; BRKT,RELAY
L=50 THA 		8-94270-377-1 01 1 0210- ● ●
