4-65 — REAR LEAF SPRING (#2684) — 14 parça

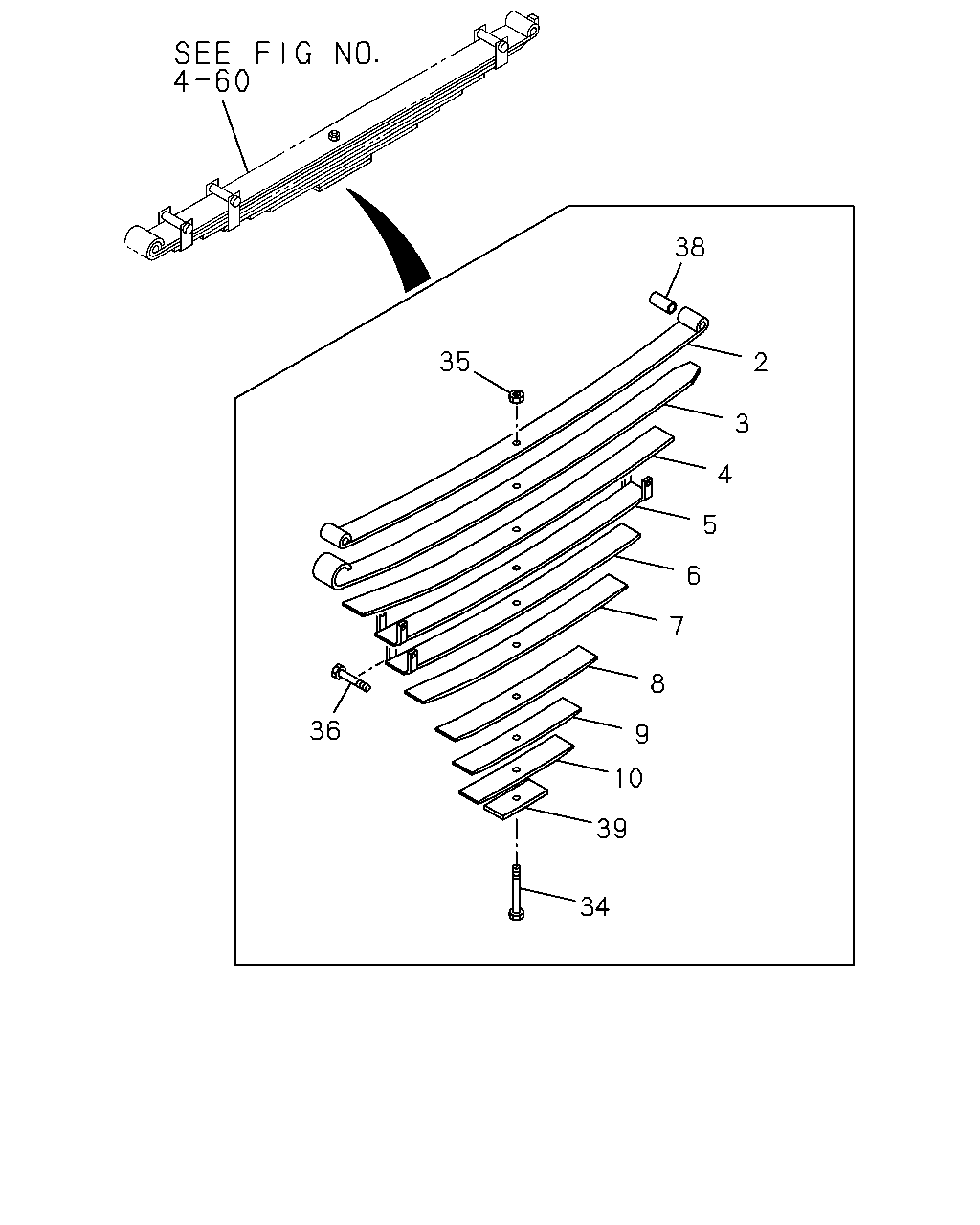

çizim 36409
38 35 2 3 4 5 6 7 8 36 9 10 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51311-669-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51312-669-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51313-669-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51314-669-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51315-669-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51316-669-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51317-669-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51318-669-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 1-51310-669-0 		1-51319-669-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 1-51310-669-0 		1-51356-070-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-669-0 		9-99110-112-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-669-0 		1-09000-300-0 03 1 -
38 BUSHING; LEAF SPR,RR
ID=25 ASM PART: A = 1-51310-669-0 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=6 ASM PART: A = 1-51310-669-0 		1-51377-192-0 01 1 -
