◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#26837) — 16 parça
çizim 23365
110
BalonParca AdiParca NoAdetTipApplied Date A B
110 EMBLEM; "ISUZU",RR BODY
THA 		1-76210-663-0 01 1 0210- ● ●

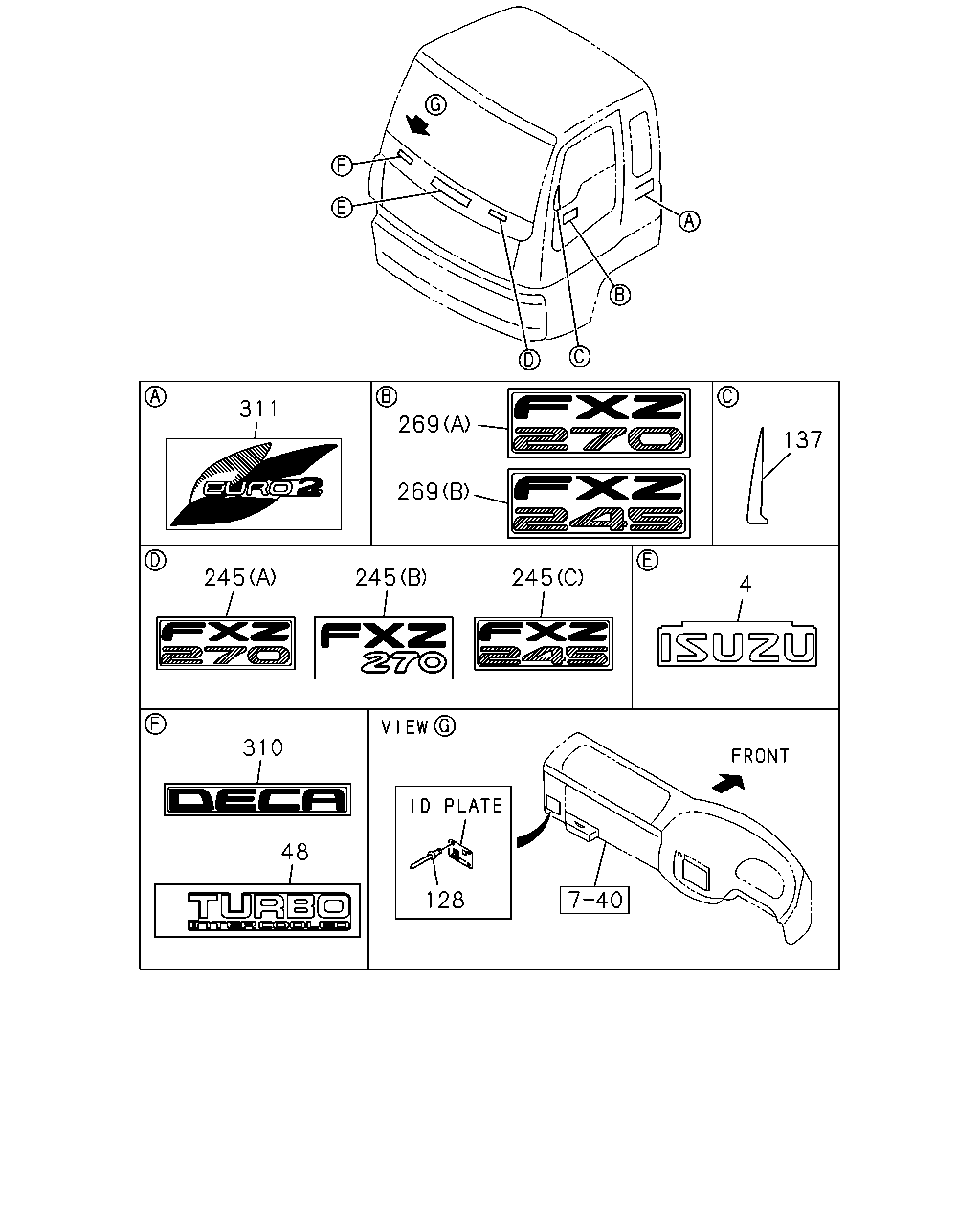

çizim 81984
311 269 137 269 245 245 245 4 310 48 128
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0210- ● ●
48 DECAL; TURBOCHARGER
THA 		1-76218-114-0 01 1 0210- ● ●
128 RIVET; POP,NAME PLATE
THA 		8-97916-562-0 04 1 0210- ● ●
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0210- ● ●
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0210- ● ●
245 DECAL; MODEL
(A) FXZ 270 THA 		8-97922-193-0 01 1 0210- ●
245 DECAL; MODEL
6SD1 TCN ENG<31L> (A) FXZ 270 THA 		8-97922-193-0 01 1 0210- ●
245 DECAL; MODEL
(B) FXZ 270 THA 		8-97913-980-0 01 1 0210- ● ●
245 DECAL; MODEL
6SD1 TCR ENG<98L> (C) FXZ 245 THA 		8-97922-194-0 01 1 0210- ●
269 DECAL; SIDE DOOR
(A) FXZ 270 THA 		8-97922-193-0 02 1 0210- ●
269 DECAL; SIDE DOOR
6SD1 TCN ENG<31L> (A) FXZ 270 THA 		8-97922-193-0 02 1 0210- ●
269 DECAL; SIDE DOOR
6SD1 TCR ENG<98L> (B) FXZ 245 THA 		8-97922-194-0 02 1 0210- ●
310 DECAL; "DECA"
THA 		8-97922-190-0 01 1 0210- ● ●
311 DECAL; "EURO 2"
THA 		8-97917-875-0 01 1 0210- ● ●
311 DECAL; "EURO 2"
THA 		8-97917-876-0 01 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
