◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#26831) — 11 parça

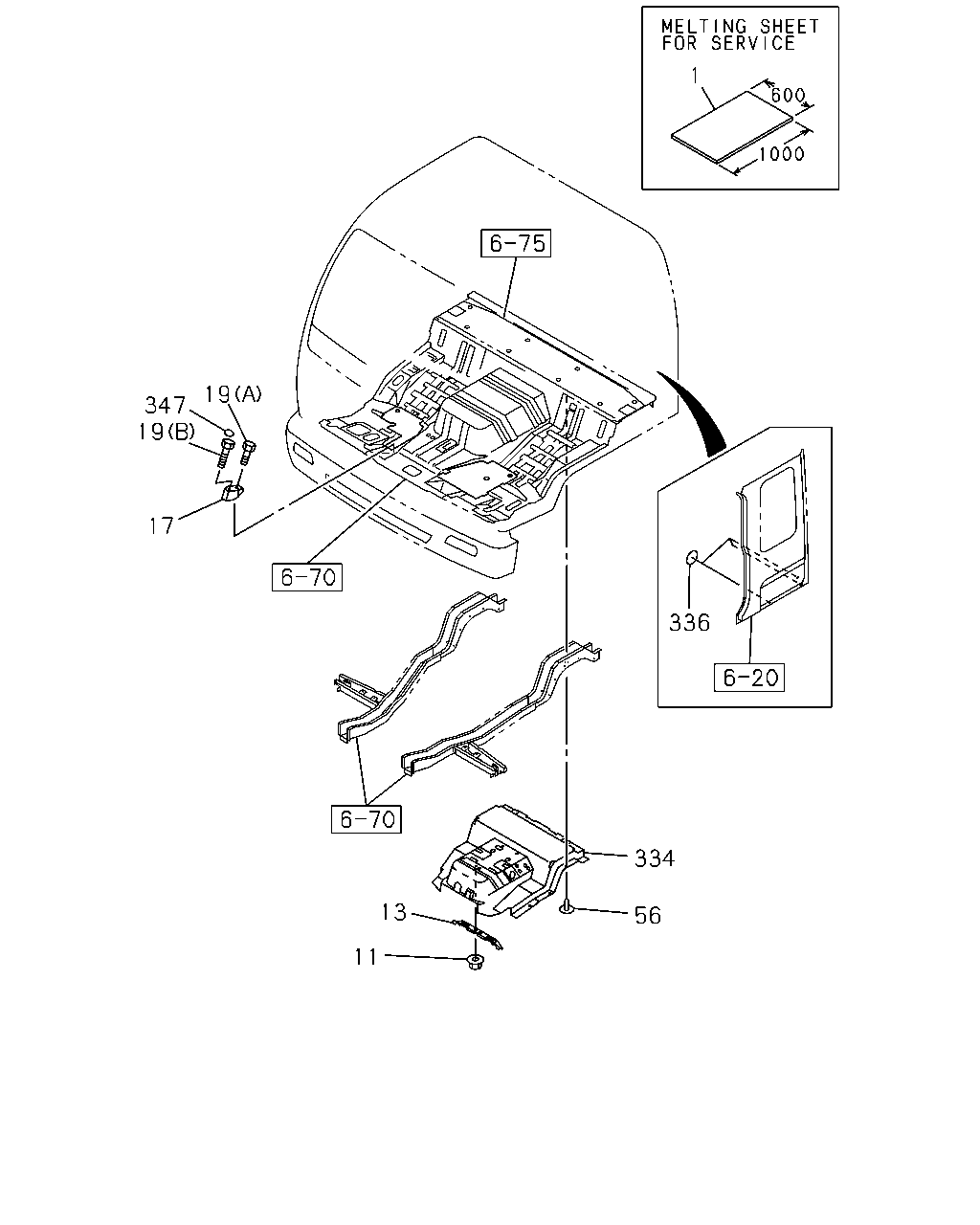

çizim 80962
1 19 347 19 17 336 334 13 56 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 THA 		1-61970-039-0 AR 1 0210- ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE THA 		8-94279-518-0 02 1 0210-0401 ● ●
11 NUT; HEAT INSULATOR
M8 FLANGE THA 		1-75538-207-0 02 1 0402- ● ●
13 PLATE; HEAT INSULATOR
THA 		1-71998-812-4 01 1 0210- ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 0210- ● ●
19 BOLT; FOOT REST
(A) M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 01 1 0210- ● ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 0210- ● ●
56 CLIP; HEAT INSULATOR,ENG HOOD
ID=6.2 L=11.4 THA 		8-97808-623-0 17 1 0210- ● ●
334 INSULATOR; ENG HOOD 1-71998-811-9 01 1 0210- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK THA 		1-76798-019-0 04 1 0210- ● ●
347 SEAL; FOOT RESTR
OD=25 BLACK THA 		1-76798-019-0 02 1 0210- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
