◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#26829) — 19 parça

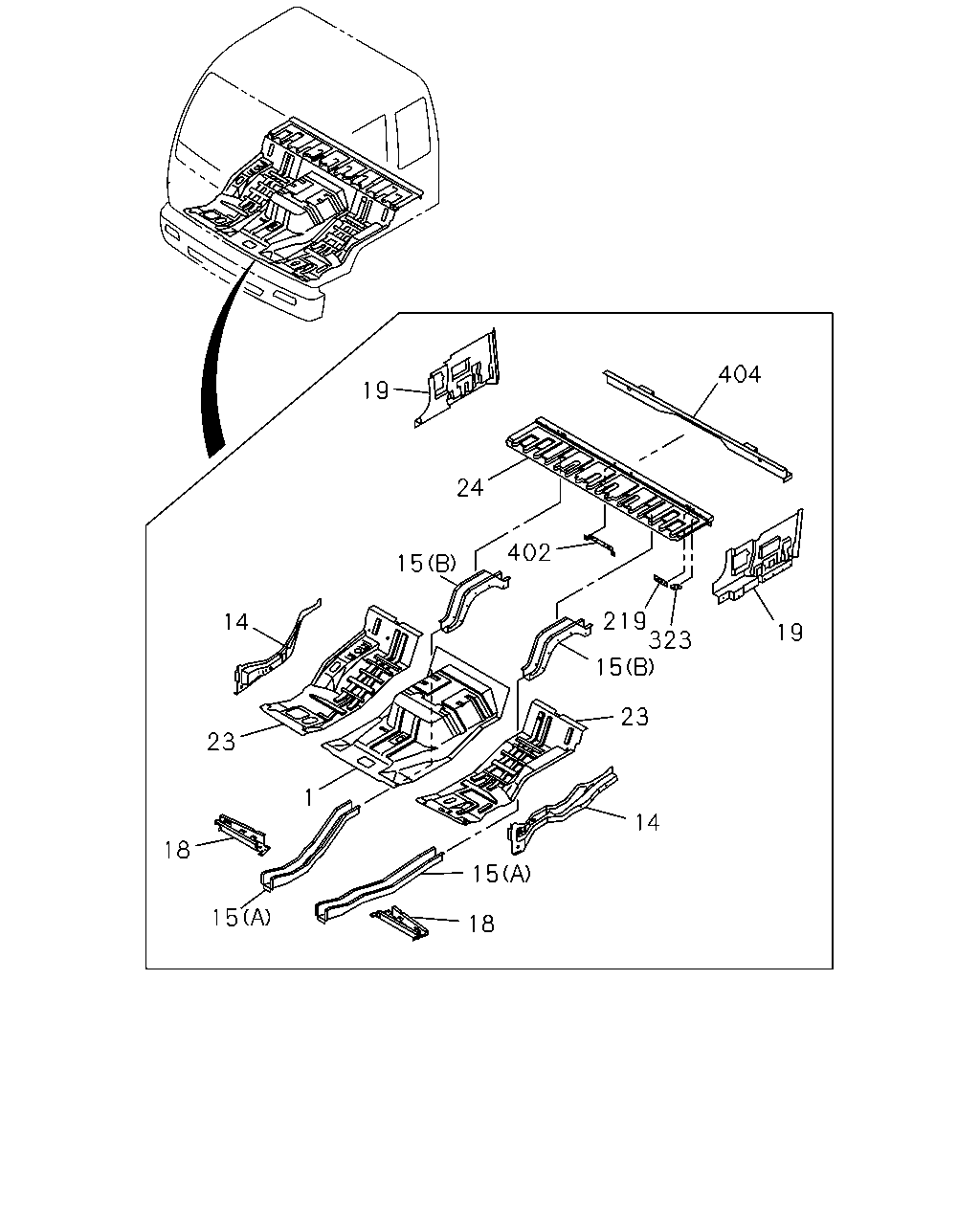

çizim 81868
404 19 24 402 15 219 323 15 14 19 23 23 1 14 18 15 15 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
THA 		1-62183-334-4 01 1 0210- ● ●
14 PANEL; FLOOR SIDE,FRT
THA 		1-62482-918-6 01 1 0210- ● ●
14 PANEL; FLOOR SIDE,FRT
THA 		1-62482-917-6 01 1 0210- ● ●
15 FRAME; UNDER
(A) THA 		1-62482-931-8 01 1 0210- ● ●
15 FRAME; UNDER
(B) THA 		1-62483-154-3 01 1 0210- ● ●
15 FRAME; UNDER
(A) THA 		1-62482-930-9 01 1 0210-0310 ● ●
15 FRAME; UNDER 1-62483-333-1 01 1 0311- ● ●
15 FRAME; UNDER
(B) THA 		1-62483-153-3 01 1 0210- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-5 01 1 0210- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-5 01 1 0210- ● ●
19 PANEL; FLOOR SIDE,REAR
THA 		1-62482-924-6 01 1 0210- ● ●
19 PANEL; FLOOR SIDE,REAR
THA 		1-62482-923-5 01 1 0210- ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97917-767-0 01 1 0210- ● ●
23 PANEL; FLOOR,SIDE
THA 		8-97917-766-0 01 1 0210- ● ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0210- ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0210- ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0210- ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0210- ● ●
404 RAIL ASM; MTG,RR
THA 		1-62483-123-1 01 1 0210- ● ●
