6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

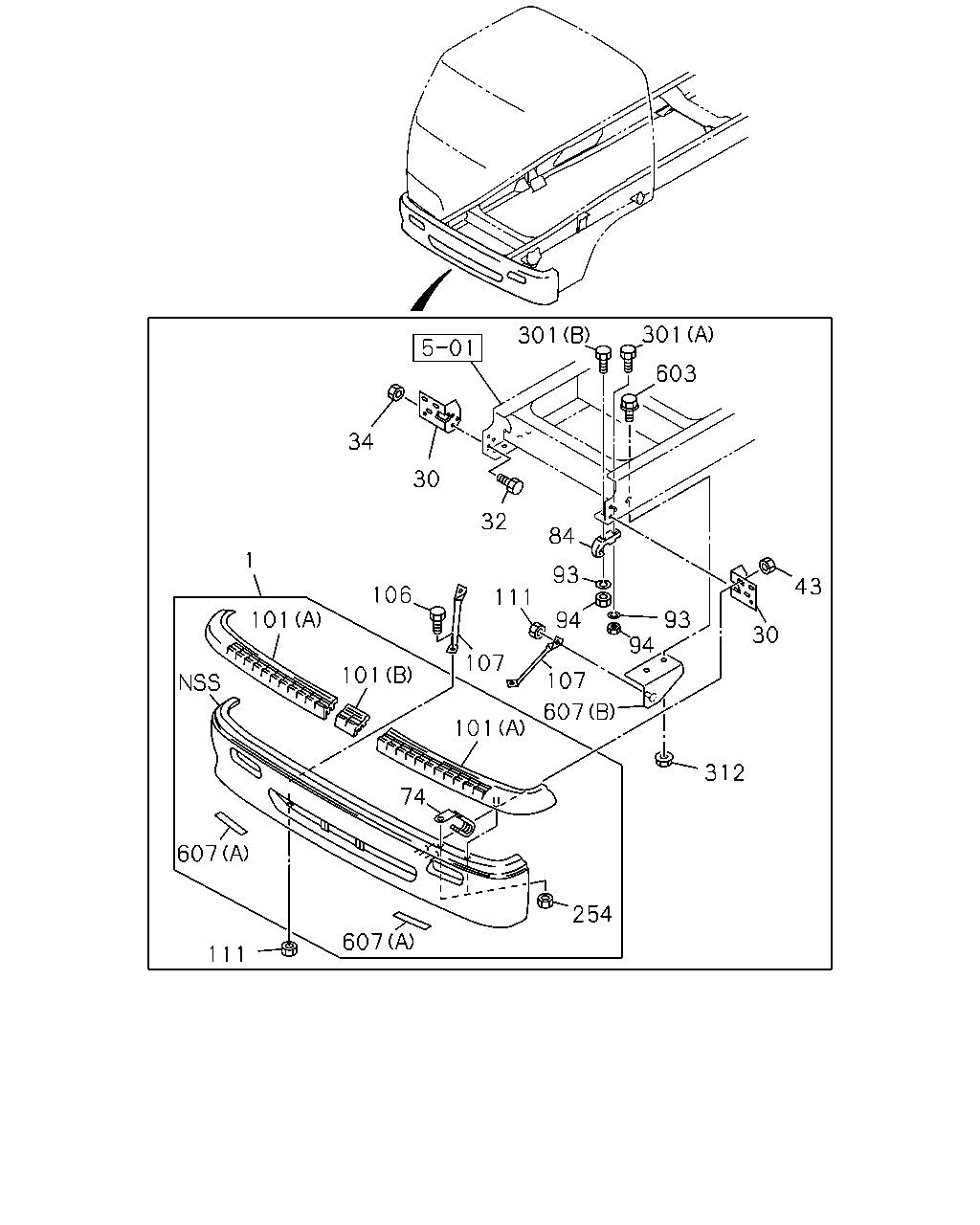

6-01 — FRONT BUMPER
(#26815) — 25 parça
Tümü
A - FXZ5MC
B - FXZ5MF
301
301
603
34
30
32
84
1
93
43
106
111
101
93
94
30
94
107
101
107
607
101
312
74
607
254
607
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER ASM; FRT
THA
8-97910-521-0
01
1
0210-
●
●
30
BRACKET; FRT BUMPER
THA
1-71230-208-3
01
1
0210-
●
●
30
BRACKET; FRT BUMPER
THA
1-71230-568-0
01
1
0210-
●
●
32
BOLT; BRKT,BUMPER
9-04901-022-0
06
1
0210-
●
●
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91150-210-0
06
1
0210-
●
●
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91150-210-0
06
1
0210-
●
●
74
CLIP; FOG LAMP HARNESS
THA
1-09701-203-0
05
1
0210-
●
●
84
HOOK
THA
8-97917-059-0
01
1
0210-
●
●
93
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0210-
●
●
94
NUT; HOOK
M16
9-99110-416-0
02
1
0210-
●
●
101
STEP; BUMPER
(B) CENTER THA
1-71260-082-1
01
1
0210-
●
●
101
STEP; BUMPER
(A) THA
1-71260-081-1
01
1
0210-
●
●
101
STEP; BUMPER
(A) THA
1-71260-080-1
01
1
0210-
●
●
106
BOLT; AIR DAM
M10X25 FLANGE
0-28681-025-0
02
1
0210-
●
●
107
STAY; AIR DAM
1-71260-132-1
01
1
0210-
●
●
107
STAY; AIR DAM
1-71260-131-1
01
1
0210-
●
●
111
NUT; STAY
M10 FLANGE
0-91150-210-0
04
1
0210-
●
●
254
NUT; STEP
M8 FLANGE
0-91150-108-0
11
1
0210-
●
●
301
BOLT; HOOK TO FRAME
(A) M16X60
0-10811-660-0
01
1
0210-
●
●
301
BOLT; HOOK TO FRAME
(B) M16X70
0-10811-670-0
01
1
0210-
●
●
312
NUT; BRKT
M12 FLANGE
0-91150-212-0
04
1
0210-
●
603
BOLT; BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0210-
●
607
BRACKET
(A) THA
8-97916-690-0
02
1
0210-
●
●
607
BRACKET
(B) THA
8-97913-981-0
01
1
0210-
●
607
BRACKET
(B) THA
8-97913-982-0
01
1
0210-
●
