Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

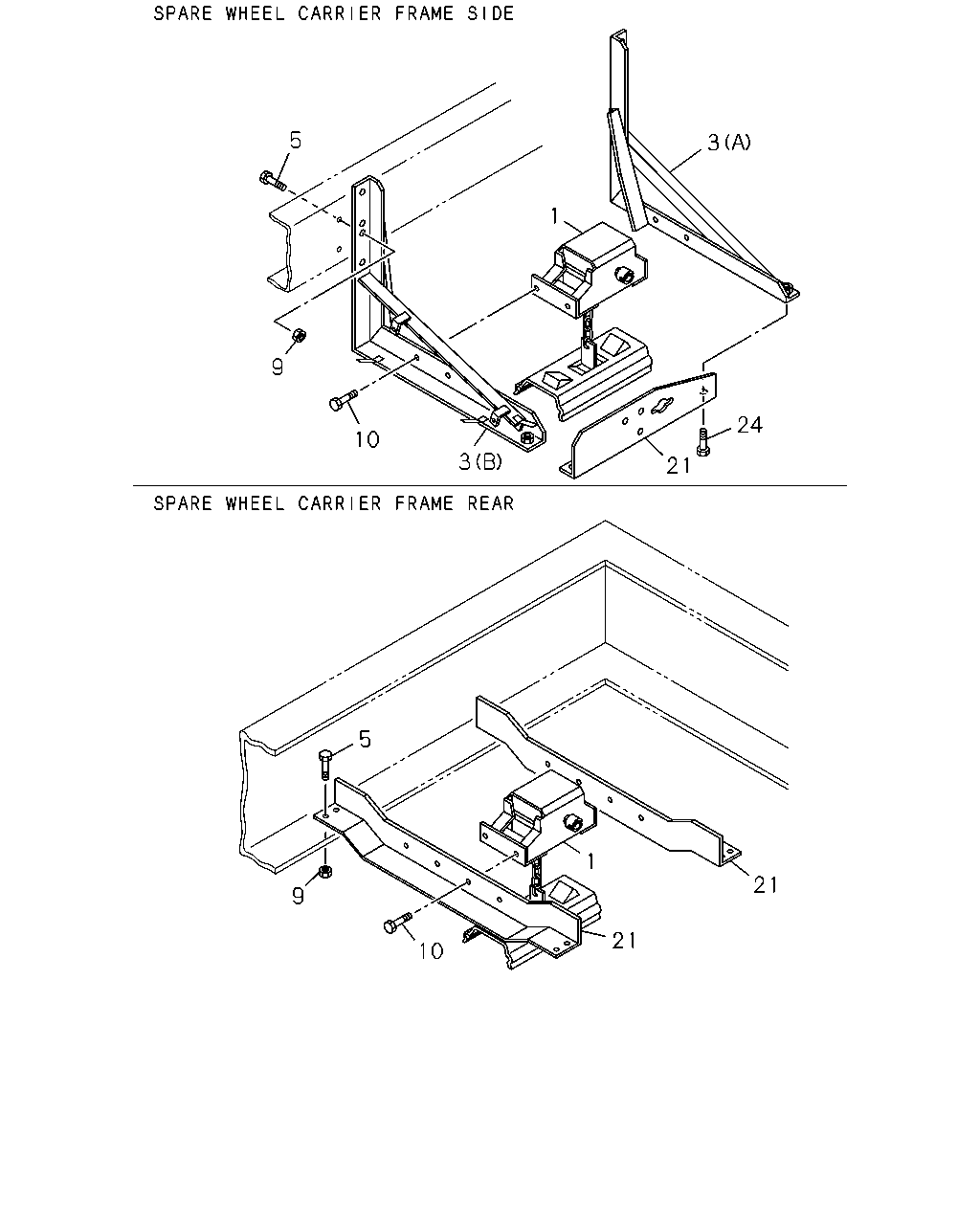

5-30 — SPARE TIRE CARRIER AND COVER
(#26814) — 13 parça
Tümü
A - FXZ5MC
B - FXZ5MF
5
3
1
9
24
10
3
21
5
1
21
9
21
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> THA
1-53630-208-1
01
1
0210-
●
1
HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10> THA
1-53630-208-1
01
1
0210-
●
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
1-53631-389-0
01
1
0210-
●
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
1-53631-393-0
01
1
0210-
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE
0-28681-240-0
06
1
0210-
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE
0-28081-035-0
08
1
0210-
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
9-99110-512-0
06
1
0210-
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME REAR<P10> M10
9-09110-410-0
08
1
0210-
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE
0-28081-225-0
04
1
0210-
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X25 FLANGE
0-28081-225-0
04
1
0210-
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-128-1
01
1
0210-
●
21
BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> THA
8-97913-545-1
02
1
0210-
●
24
BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28681-230-0
02
1
0210-
●
