◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 10907 - FXZ(THAI) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#26810) — 32 parça

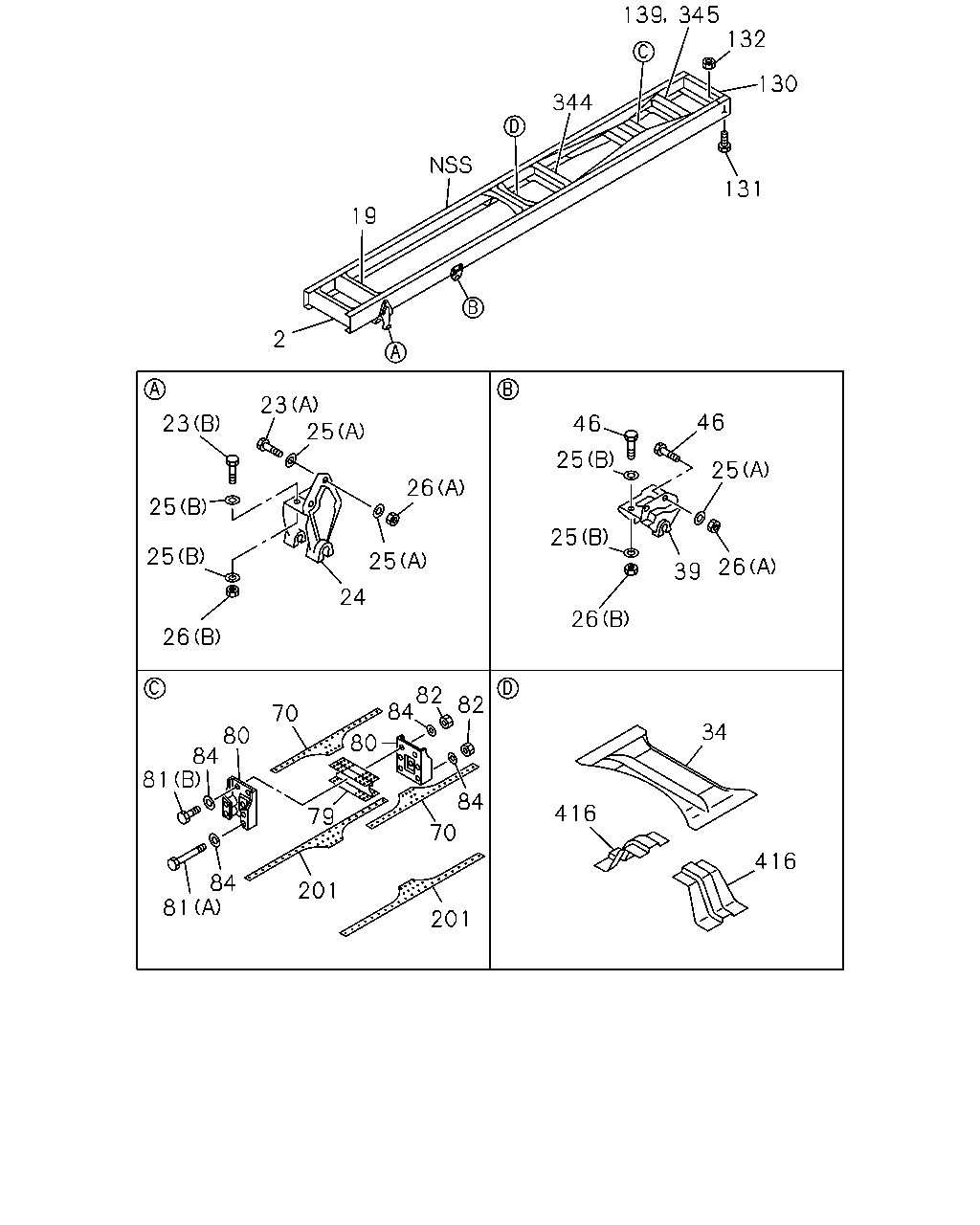

çizim 25908
139 345 132 130 344 131 19 2 23 25 46 23 46 25 25 26 25 25 25 25 26 39 24 26 26 82 84 80 79 82 70 34 80 84 81 84 416 70 416 84 81 201 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST
THA 		8-97912-224-4 01 1 0210- ● ●
19 MEMBER; CROSS,2ND
THA 		8-97913-977-1 01 1 0210- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-92061-450-0 06 1 0210- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		9-92061-660-0 04 1 0210- ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97916-024-1 01 1 0210- ● ●
24 BRACKET; FRT SPR,FRT
THA 		8-97916-023-1 01 1 0210- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0210- ● ●
25 WASHER; PL,BRKT
(A) ID=15 THA 		9-09651-069-0 28 1 0210- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0210- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0210- ● ●
34 MEMBER; CROSS,3RD
THA 		8-97917-349-0 01 1 0210- ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97916-043-1 01 1 0210- ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97916-025-1 01 1 0210- ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 08 1 0210- ● ●
70 GUSSET; TRUNNION,UPR 1-53161-575-0 02 1 0210- ●
70 GUSSET; TRUNNION,UPR 1-53161-565-0 02 1 0210- ●
72 SPACER; TRUNNION
THA 		8-97922-399-0 02 1 0212- ● ●
79 MEMBER; CROSS,TRUNNION ASM
THA 		8-97913-978-1 01 1 0210- ● ●
80 BRACKET; C/MBR
THA 		8-97916-034-0 02 1 0210- ● ●
81 BOLT; BRKT
(A) M14X205 		1-09000-147-0 02 1 0210- ● ●
81 BOLT; BRKT
(B) M14X50 		9-92061-450-0 02 1 0210- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 04 1 0210- ● ●
84 WASHER; PL,BRKT
ID=15 THA 		9-09651-069-0 08 1 0210- ● ●
130 MEMBER; CROSS,END
THA 		8-97913-979-0 01 1 0210- ● ●
131 BOLT; END C/MBR
M12X35 FLANGE 		0-28681-235-0 08 1 0210- ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-212-0 04 1 0210- ● ●
139 MEMBER; CROSS,6TH
THA 		8-97916-039-0 01 1 0210- ●
201 GUSSET; C/MBR 1-53161-582-0 02 1 0210- ●
201 GUSSET; C/MBR 1-53161-561-1 02 1 0210- ●
344 MEMBER; CROSS,4TH
THA 		8-97916-030-0 01 1 0210- ●
345 MEMBER; CROSS,5TH
THA 		8-97916-039-0 01 1 0210- ●
416 GUSSET; 3RD C/MBR
THA 		8-97917-350-0 02 1 0210- ● ●
