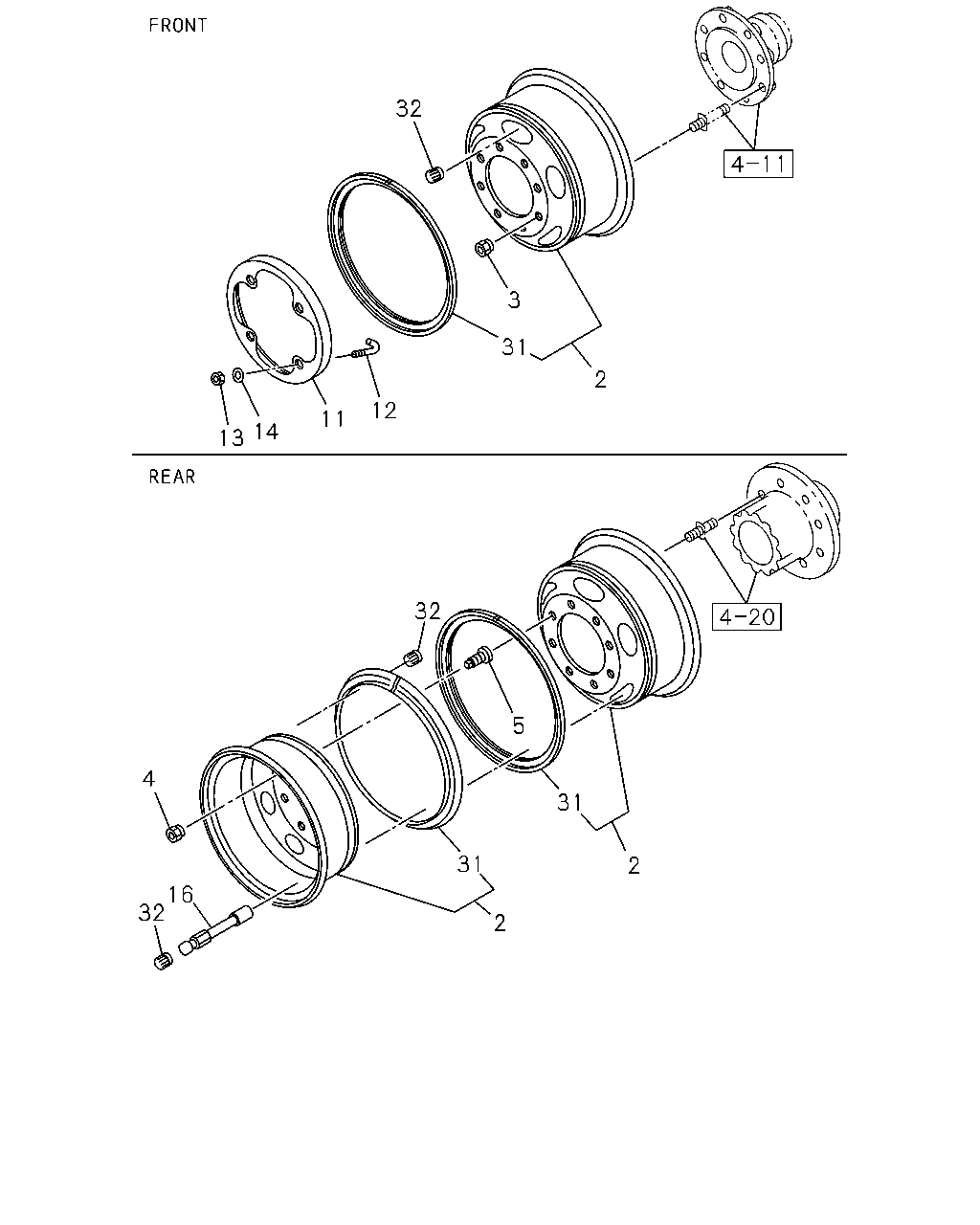

4-80 — ROAD WHEEL (#26809) — 38 parça

32 3 31 2 12 11 14 13 32 5 4 31 31 2 16 32 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE	1-42350-478-0	01	1	0210-	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42350-478-0	01	1	0210-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> SPARE	1-42350-478-0	01	1	0210-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42350-478-0	01	1	0210-		●
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE	1-42350-362-0	01	1	0210-	●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42350-362-0	01	1	0210-	●
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT,REAR	1-42350-478-0	10	1	0210-	●
2	WHEEL; DISC FRONT,REAR	1-42350-478-0	10	1	0210-		●
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT,REAR	1-42350-362-0	10	1	0210-	●
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0210-	●	●
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0210-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0210-	●	●
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0210-	●	●
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0210-	●	●
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0210-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0210-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0210-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0210-	●	●
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0210-	●	●
11	STEP; DISC WHEEL SIDE THA	8-97916-040-0	02	1	0210-	●	●
12	U-BOLT; STEP DISC L=44 THA	9-43139-023-1	06	1	0210-	●	●
13	NUT; STEP DISC M10	9-09110-510-0	06	1	0210-	●	●
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	0210-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0210-	●	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	02	1	0210-0305	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-004-1	02	1	0210-0305	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	01	1	0306-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-004-1	01	1	0306-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	20	1	0210-0305	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42355-004-1	10	1	0306-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	03	1	0210-	●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0210-	●
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0210-		●
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0210-		●
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	30	1	0210-	●
31	RING; SIDE,DISC WHEEL	1-42355-003-1	30	1	0210-		●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0210-	●	●
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0210-	●	●
