◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#2680) — 30 parça

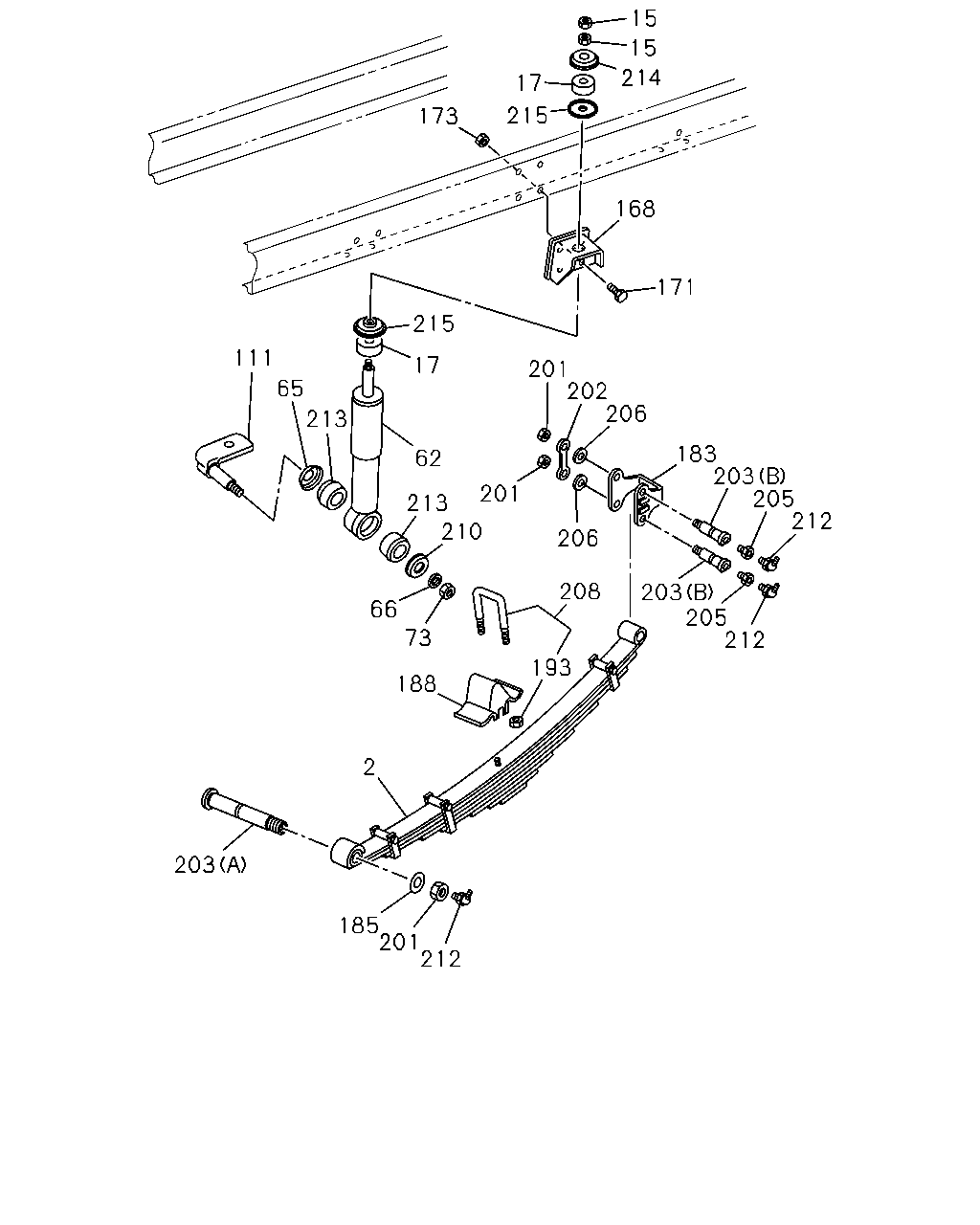

çizim 5280
15 15 214 17 215 173 168 171 215 111 17 201 202 206 65 213 183 203 205 212 62 201 213 210 206 208 203 205 212 66 73 193 188 2 203 185 201 212
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51110-662-0 02 1 9101- ● ●
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 04 1 9101- ● ●
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9101- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-202-0 02 1 9101- ● ●
65 WASHER; S/ABS 1-51631-019-0 02 1 9101- ● ●
66 WASHER; LK,S/ABS SETTING 9-09150-516-0 02 1 9101- ● ●
73 NUT; BRKT,SHOCK 9-99110-416-0 02 1 9101- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
POWER STEERING(N40) 		1-51681-313-0 01 1 9101- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
POWER STEERING(N40) 		1-51681-311-0 01 1 9101- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. POWER STEERING(N40) 		1-51681-487-0 01 1 9101- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. POWER STEERING(N40) 		1-51681-486-0 01 1 9101- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-360-0 02 1 9101- ● ●
171 BOLT; S/ABS BRKT 0-50041-025-0 08 1 9101-9112 ● ●
173 NUT; S/ABS 9-09110-410-0 08 1 9101-9112 ● ●
183 SHACKLE; FRT SUSP 1-51162-028-0 02 1 9101- ● ●
185 WASHER; LK,PIN
ID=23 		1-51169-003-0 02 1 9101- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-056-1 02 1 9101- ● ●
193 NUT; U BOLT 9-99112-814-0 08 1 9101- ● ●
201 NUT; PIN LK 9-09111-522-0 06 1 9101- ● ●
202 PLATE; LK,SPR PIN 1-51169-015-0 02 1 9101- ● ●
203 PIN; SPR TO SHACKLE
(A) 		1-51161-004-3 02 1 9101- ● ●
203 PIN; SPR TO SHACKLE
(B) 		1-51161-005-3 04 1 9101- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9101- ● ●
206 WASHER; LK,SPRING PIN
ID=25.5 		1-09503-011-0 04 1 9101- ● ●
208 U-BOLT SET; FRT SPRING
L=155 		1-87870-270-0 04 1 9101- ● ●
210 WASHER; S/ABS,OUTER 1-51631-020-0 02 1 9101- ● ●
212 NIPPLE; GREASE,ELBOW
PT1/8 ELBOW 67.5? 		9-09031-110-0 06 1 9101- ● ●
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9101- ● ●
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9101- ● ●
215 WASHER; S/ABS,UPR,OUTER 9-51631-051-0 04 1 9101- ● ●
