Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

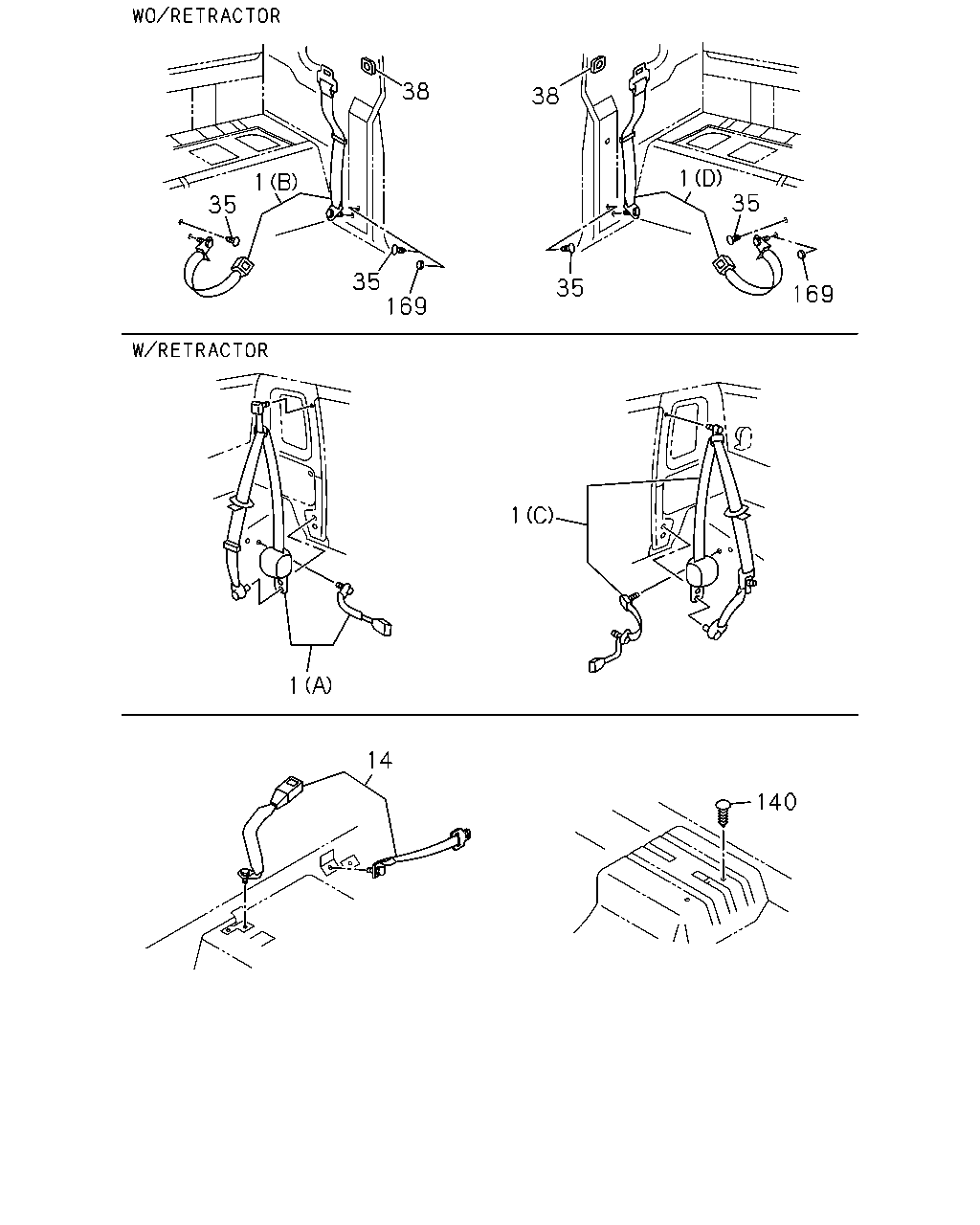

7-60 — SEAT BELT
(#268) — 17 parça
38
38
1
35
1
35
35
169
35
169
1
1
14
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> (A)
1-75618-517-1
01
1
9212-9312
1
BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> (A)
1-75618-517-1
01
1
9401-
1
BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> SUSPENSION SEAT<SA3> (A)
1-75618-517-1
01
1
9401-
1
BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> PASSENGER SEAT MULTI USED<WX9> (C)
1-75617-295-2
01
1
9212-
1
BELT; SEAT
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> EXC. PASSENGER SEAT MULTI USED<WX9> (C)
1-75618-619-0
01
1
9212-
1
BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> EXC. SAUDI ARABIA EQUIPMENT(WH1),SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)
1-75618-589-1
01
1
9212-
1
BELT; SEAT
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> (B)
1-75618-613-1
01
1
9212-
1
BELT; SEAT
SAUDI ARABIA EQUIPMENT(WH1) FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> (D)
1-75618-617-0
01
1
9212-
14
BELT; SEAT,CENTER
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25>
1-75618-519-1
01
1
9212-
35
GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
12
1
9212-
35
GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22
9-61168-535-0
04
1
9212-
35
GROMMET; SEAT BELT ANCHOR
FRONT SEAT BELT WO/RETRACTOR<A37> EXC. SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=22
9-61168-535-0
02
1
9212-
35
GROMMET; SEAT BELT ANCHOR
SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22
9-61168-535-0
02
1
9212-
38
GROMMET; SEAT BELT HOOK
BLACK
8-94453-739-0
02
1
9212-
140
PLUG; CENTER SEAT,PARCEL BOX SIDE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11
1-76378-154-0
02
1
9212-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>, FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=20 T=0.4 BLACK
1-76798-020-0
02
1
9212-
169
SEAL
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT WO/RETRACTOR 2 POINT<W25> SUSP SEAT W/SEAT BELT ANCHORAGE<WN5> OD=20 T=0.4 BLACK
1-76798-020-0
01
1
9212-
