◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#26786) — 180 parça

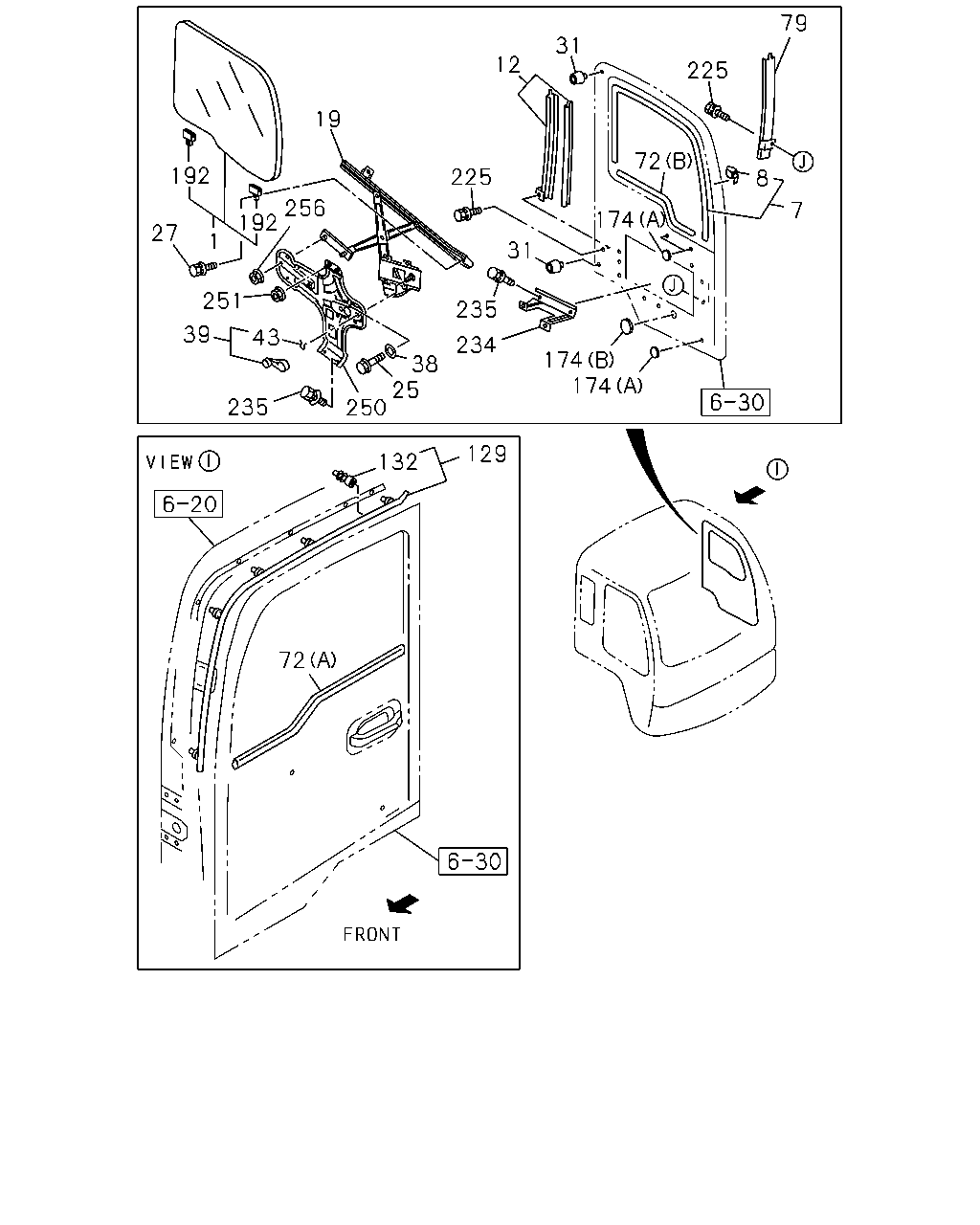

çizim 90882
79 31 12 225 19 72 192 225 8 256 192 7 174 27 1 31 251 235 39 43 234 174 174 38 25 250 235 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0610-
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0610-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0610-
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-5 01 1 0610-
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-5 01 1 0610-
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0610-0710
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0610-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0610-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0610-
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0610-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0610-
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0610-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0610-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0610-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0610-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0610-
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 16 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0610-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0610-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0610-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0610-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0610-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0610-0710
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0610-
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0610-
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0610-
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0610-

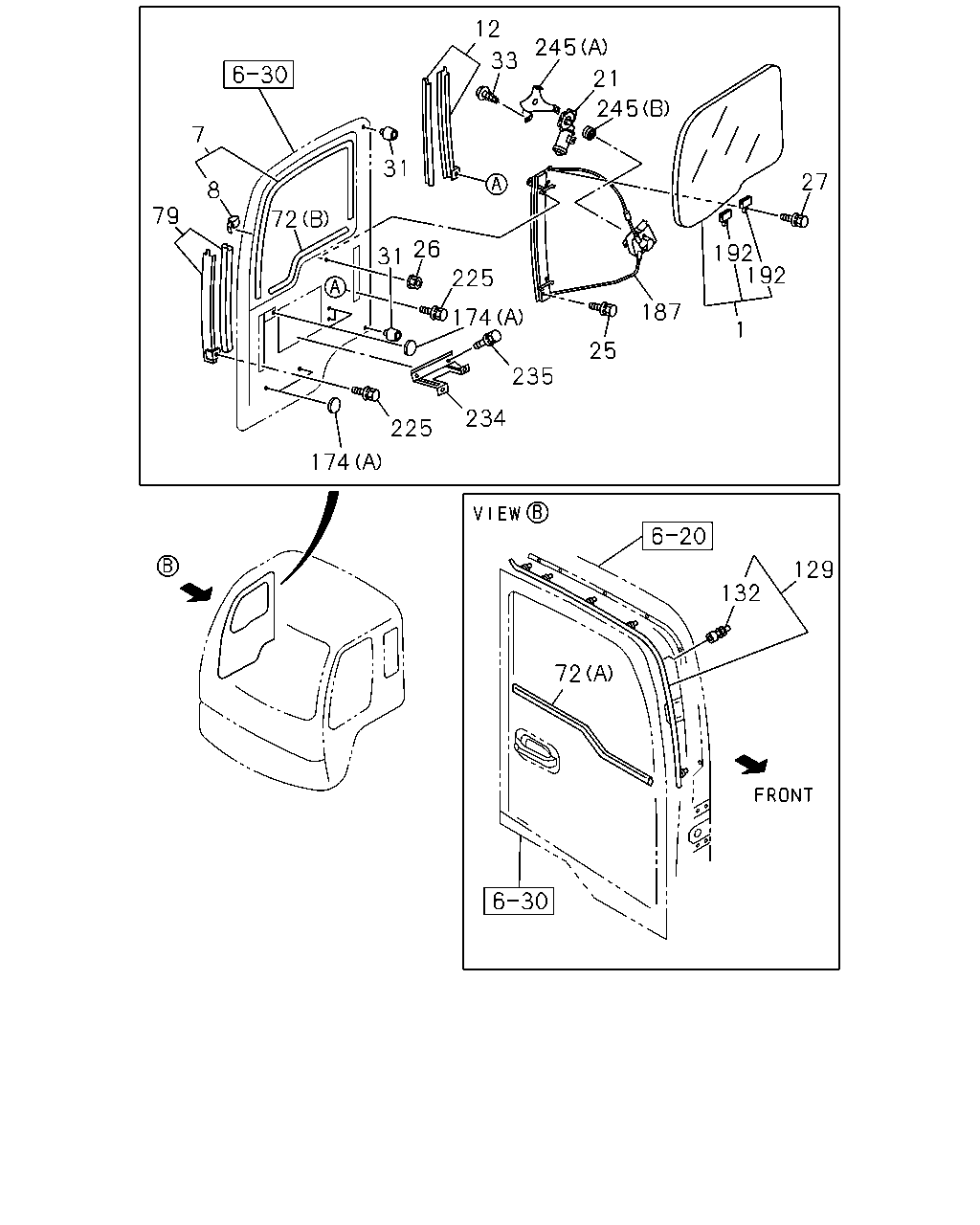

çizim 90883
12 245 33 21 245 7 31 27 8 79 72 26 192 192 31 225 187 174 1 25 235 234 225 174 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0610-
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0610-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0610-
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0610-
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-177-0 01 1 0610-
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0610-0710
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0610-
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 06 1 0610-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0610-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0610-
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 06 1 0610-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0610-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0610-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0610-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0610-
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 16 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0610-
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0610-
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-179-3 01 1 0610-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0610-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0610-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0610-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0610-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0610-0710
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 02 1 0610-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0610-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-181-0 01 1 0610-

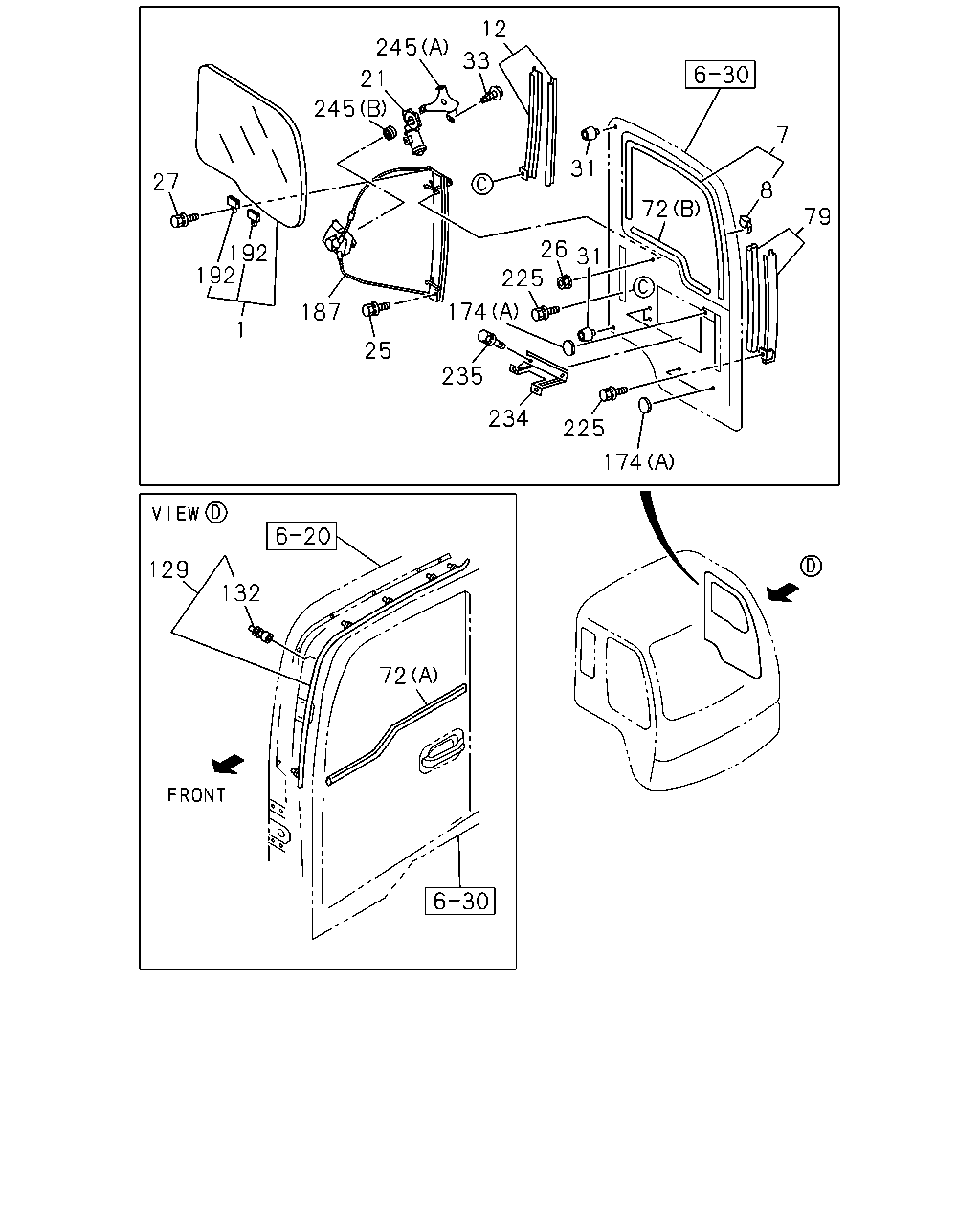

çizim 90943
12 245 33 21 245 7 31 27 8 72 79 26 31 192 192 225 174 187 1 25 235 234 225 174 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0610-
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0610-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0610-
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0610-
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-177-0 01 1 0610-
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0610-0710
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0610-
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 06 1 0610-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0610-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0610-
33 SCREW; REG MOTOR
AUTO DOOR LOCK<AU4> 		8-98099-646-0 06 1 0610-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0610-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0610-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0610-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0610-
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 16 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0610-
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0610-
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-179-3 01 1 0610-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0610-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0610-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0610-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0610-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0610-0710
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 02 1 0610-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0610-
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-181-0 01 1 0610-

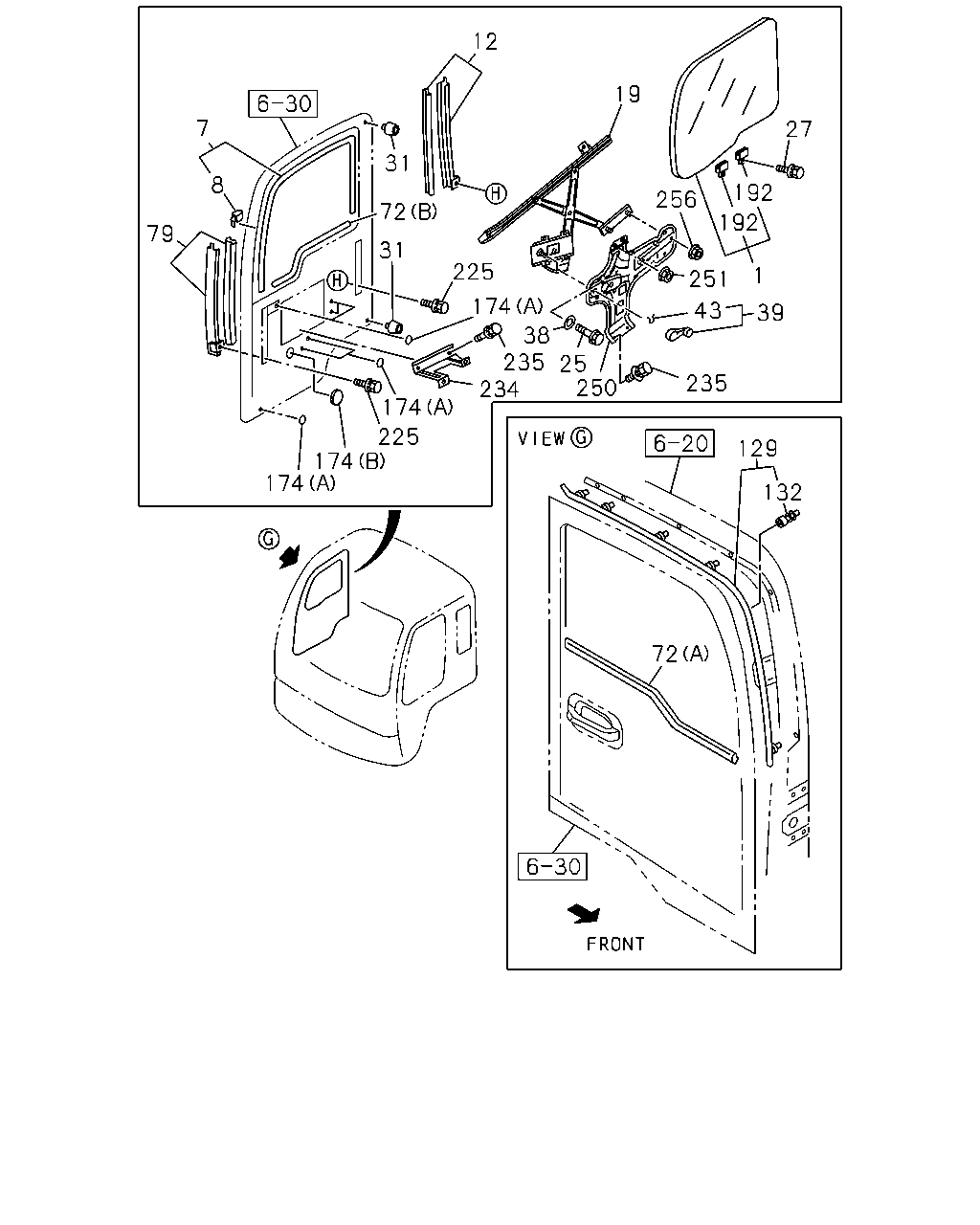

çizim 91926
12 19 7 27 31 8 192 256 72 192 79 31 225 1 251 174 43 39 38 235 234 25 250 235 174 225 174 174 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76148-095-2 01 1 0610-
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0610-
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0610-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0610-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0610-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0610-
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-5 01 1 0610-
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-5 01 1 0610-
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 10 1 0610-0710
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 10 1 0711-
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0610-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0610-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0610-
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0610-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0610-
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0610-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0610-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0610-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0610-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0610-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0610-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0610-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0610-
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 16 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0610-
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0610-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0610-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0610-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0610-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0610-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0610-0710
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE 		0-28050-610-0 08 1 0711-
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0610-
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0610-
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0610-
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
