4-40 — STEERING UNIT (#2678) — 121 parça

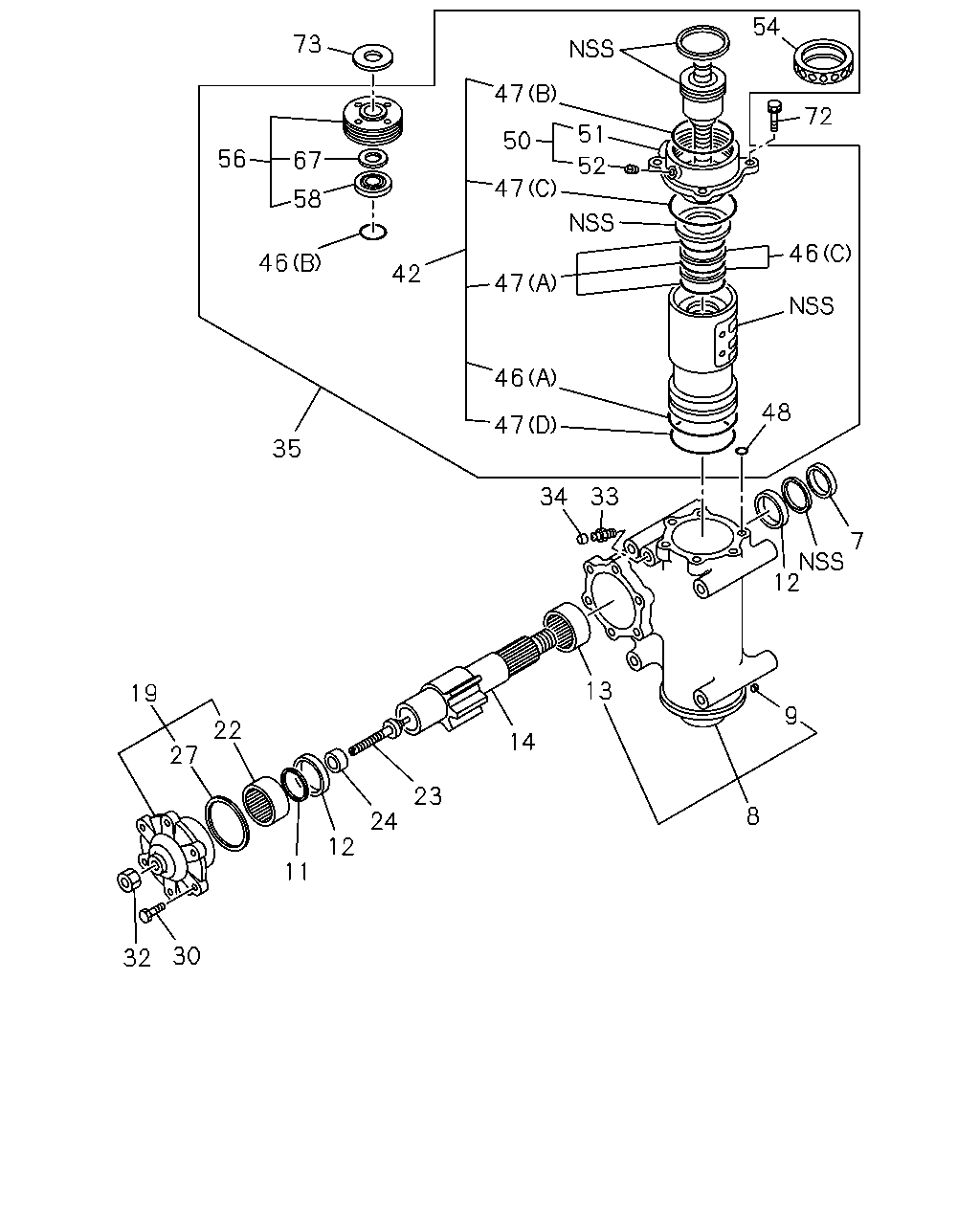

çizim 5417
54 73 47 72 51 50 56 67 52 47 58 46 46 42 47 46 48 47 35 34 33 7 12 13 19 9 22 14 27 23 8 24 12 11 30 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 1-44000-786-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4 		1-09625-392-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44241-091-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44241-094-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44241-103-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-99202-024-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-226-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-105-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44321-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44261-029-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-99110-414-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44150-012-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44150-016-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44569-154-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44569-159-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44569-155-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44569-160-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44561-010-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44561-012-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44159-039-0 01 1 -

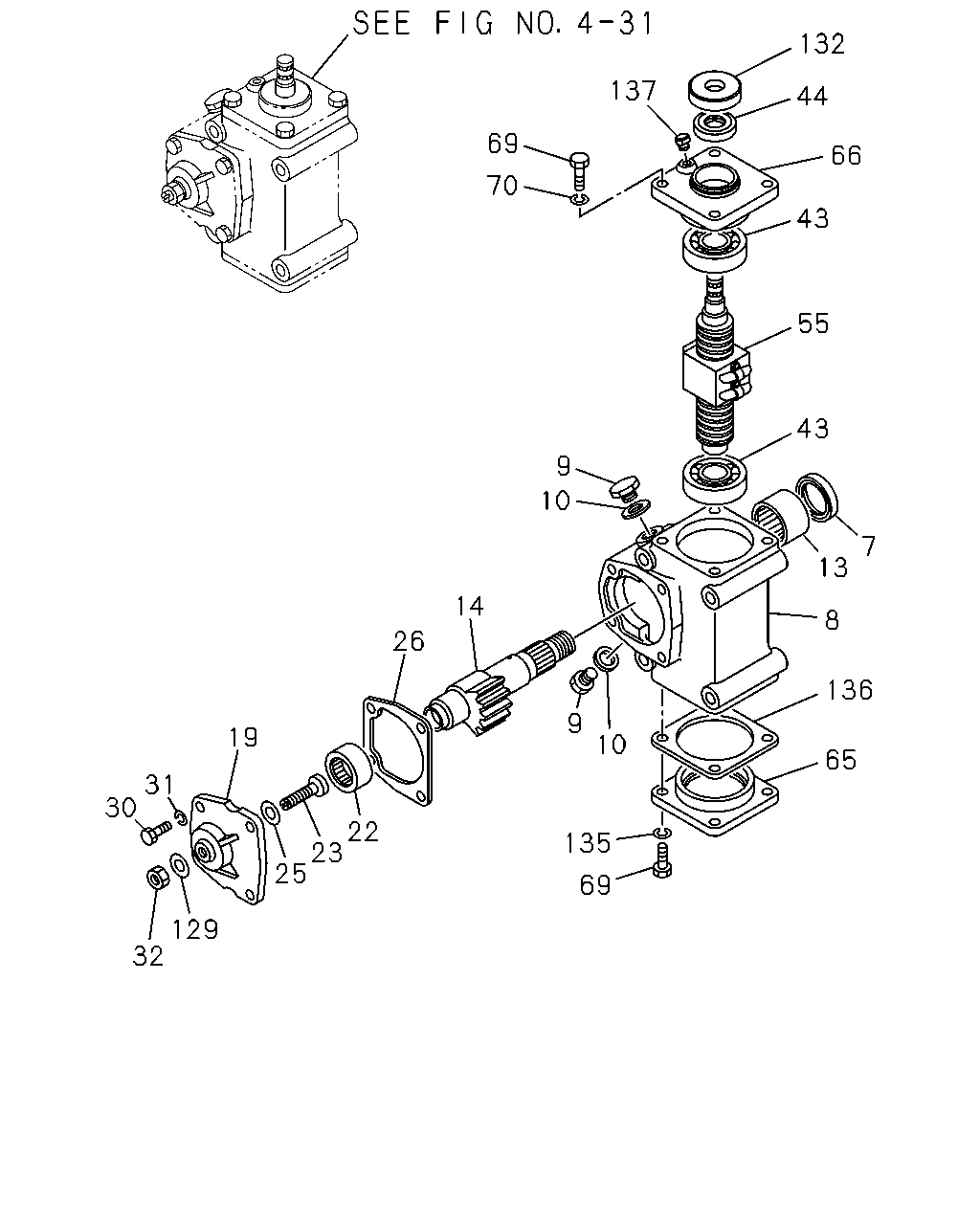

çizim 36075
132 137 44 69 66 70 43 55 43 9 10 7 13 14 8 26 136 9 19 10 65 31 30 22 23 25 135 69 129 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 1-44000-786-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4 		1-09625-392-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-720-5 		1-44241-091-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-719-4 		1-44241-094-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44241-103-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-99202-024-0 02 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-09920-392-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-105-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44321-019-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44321-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44261-027-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44261-029-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ASM PART: D = 1-44000-786-0 		9-09150-514-0 12 1 -
31 WASHER; COVER STRG UNIT
ASM PART: A = 1-44000-682-4 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-99110-414-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44139-052-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: D = 1-44000-786-0 		1-44130-241-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-682-4 		1-44130-257-0 01 1 -
65 COVER; FRT,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44251-055-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-682-4 		1-44251-054-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: D = 1-44000-786-0 		1-44251-062-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-92051-435-0 08 1 -
70 WASHER; COVER FIX STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44139-053-0 01 1 -
135 WASHER; COVER FIX,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-09150-514-0 04 1 -
136 SHIM; FRT COVER
T=0.04 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-014-0 AR 1 -
136 SHIM; FRT COVER
T=0.05 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-015-0 AR 1 -
136 SHIM; FRT COVER
T=0.06 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-016-0 AR 1 -
136 SHIM; FRT COVER
T=0.07 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-017-0 AR 1 -
136 SHIM; FRT COVER
T=0.08 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-018-0 AR 1 -
136 SHIM; FRT COVER
T=0.10 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-019-0 AR 1 -
136 SHIM; FRT COVER
T=0.20 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-020-0 AR 1 -
136 SHIM; FRT COVER
T=0.50 ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		1-44253-021-0 AR 1 -
137 PLUG; BREATHER STRG UNIT
ASM PART: D = 1-44000-786-0 		1-09893-002-0 01 1 -

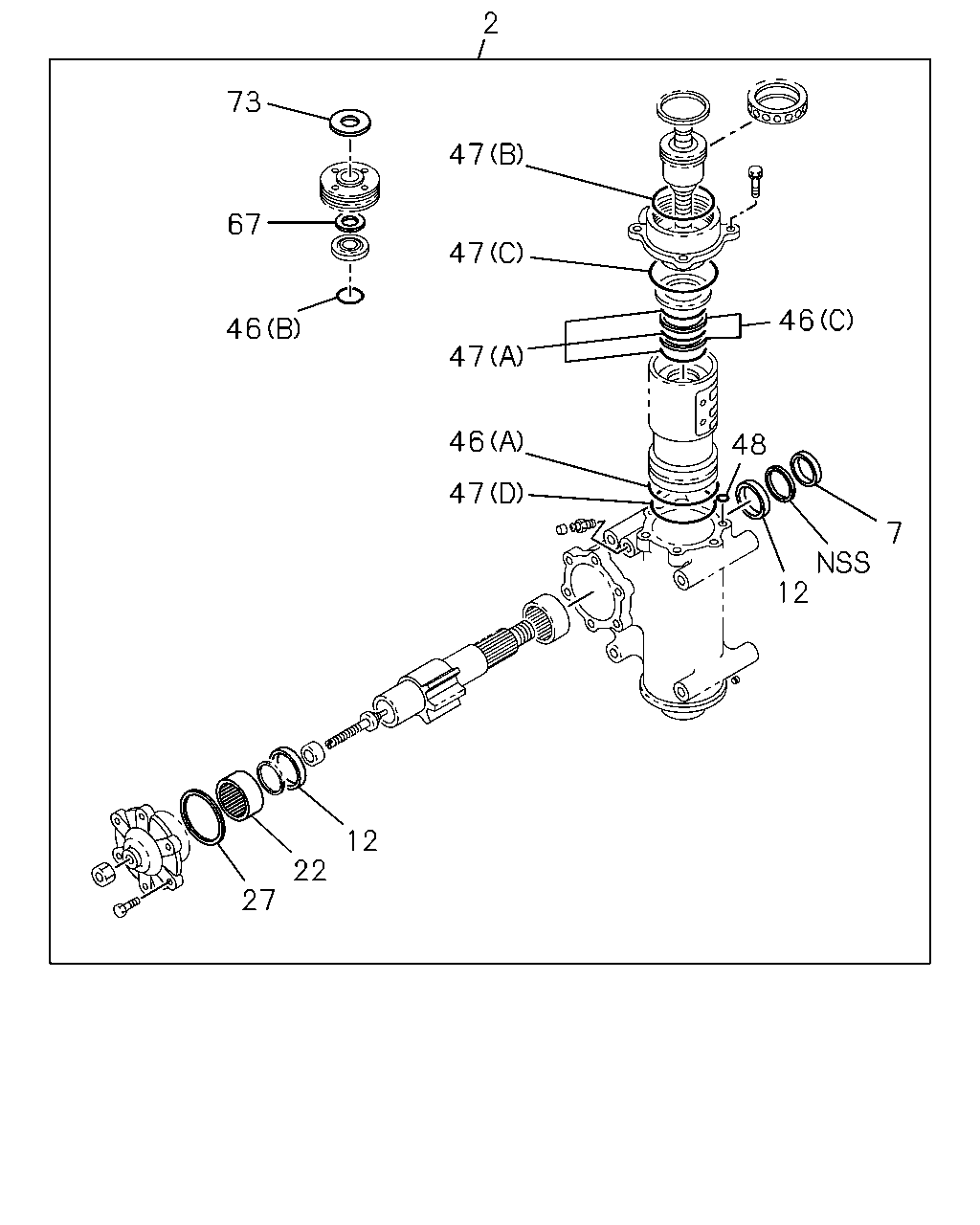

çizim 36950
2 73 47 67 47 46 46 47 46 48 47 7 12 12 22 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-85574-014-1 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: D = 1-44000-786-0 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-682-4 		1-09625-392-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-102-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-226-0 02 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-682-4, D = 1-44000-786-0 		9-00096-071-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-109-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-719-4, C = 1-44000-720-5 		1-44159-039-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
