4-36 — POWER STEERING CONTROL; ENGINE SIDE (#2677) — 12 parça

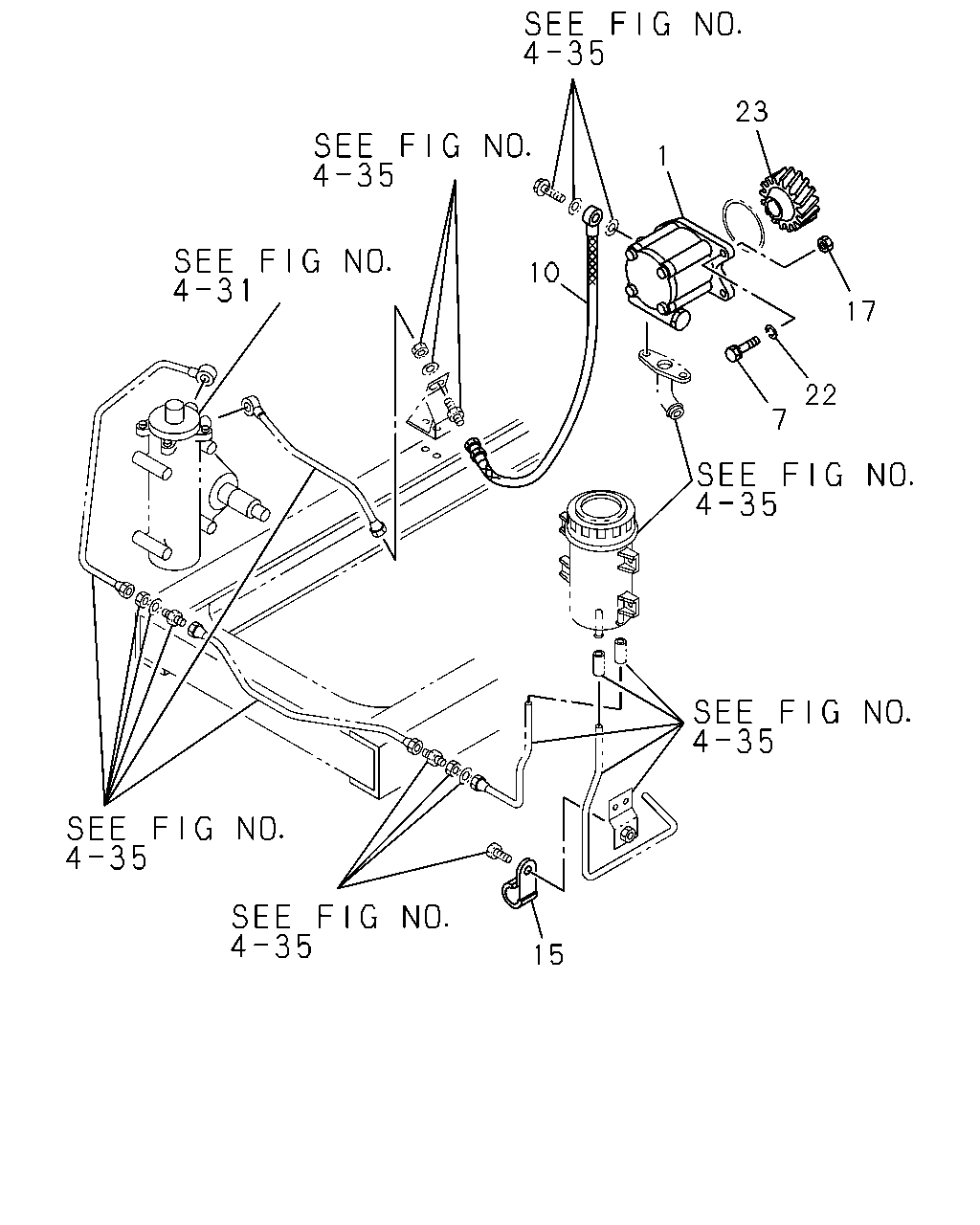

çizim 36128
23 1 10 17 22 7 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING(N40) 		1-19500-230-4 01 1 9101- ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101-9707 ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X25 FLANGE 		0-28081-025-0 01 1 9708- ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9101-9707 ● ●
7 BOLT; OIL PUMP,P/S
POWER STEERING(N40) M10X60 FLANGE 		0-28081-060-0 01 1 9708- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER STEERING(N40) 		1-09364-598-0 01 1 9101- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
POWER STEERING(N40) 		1-09364-529-1 01 1 9101- ●
15 CLIP; OIL PIPE SUCTION
POWER STEERING(N40) ID=19 L=28 		9-09525-856-0 01 1 9101- ●
15 CLIP; OIL PIPE SUCTION
POWER STEERING(N40) ID=19 L=20 		9-09525-836-0 01 1 9101- ●
17 NUT; POWER STRG PUMP
POWER STEERING(N40) 		9-09110-410-0 01 1 9101- ● ●
22 WASHER; LK,OIL PUMP,P/S
POWER STEERING(N40) 		9-09150-510-0 01 1 9101- ● ●
23 GEAR; OIL PUMP
POWER STEERING(N40) Z=28 		5-19581-001-3 01 1 9101- ● ●
