4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#26763) — 95 parça

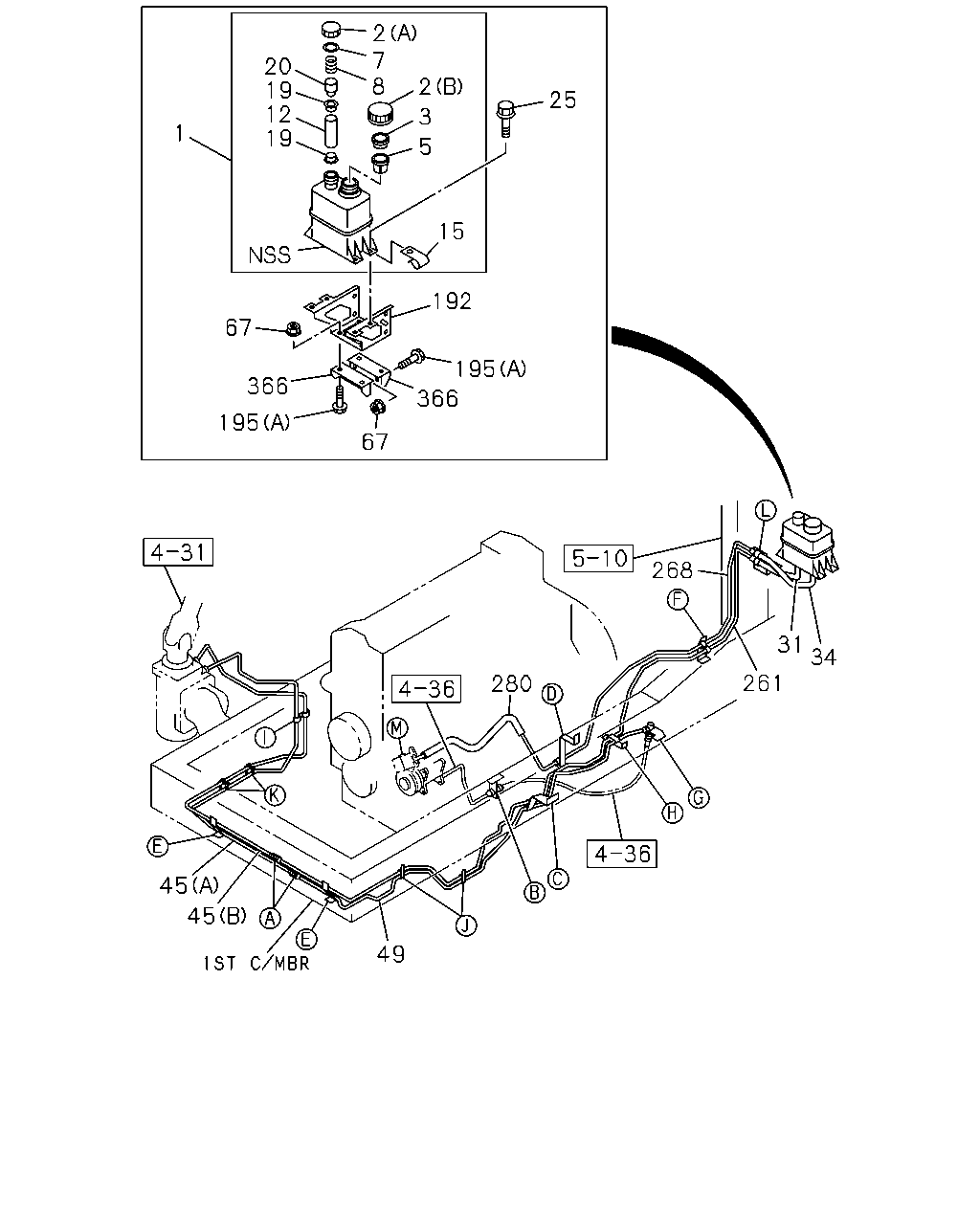

1 19 12 19 20 2 7 8 2 3 5 15 25 67 366 195 67 366 195 192 45 45 49 280 261 31 34 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0610-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0610-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0610-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0610-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0610-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0610-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0610-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0610-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0610-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0610-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0610-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0610-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0610-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0610-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0610-1309
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0610-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0610-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0610-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0610-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0610-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0610-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0610-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0610-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0610-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0610-

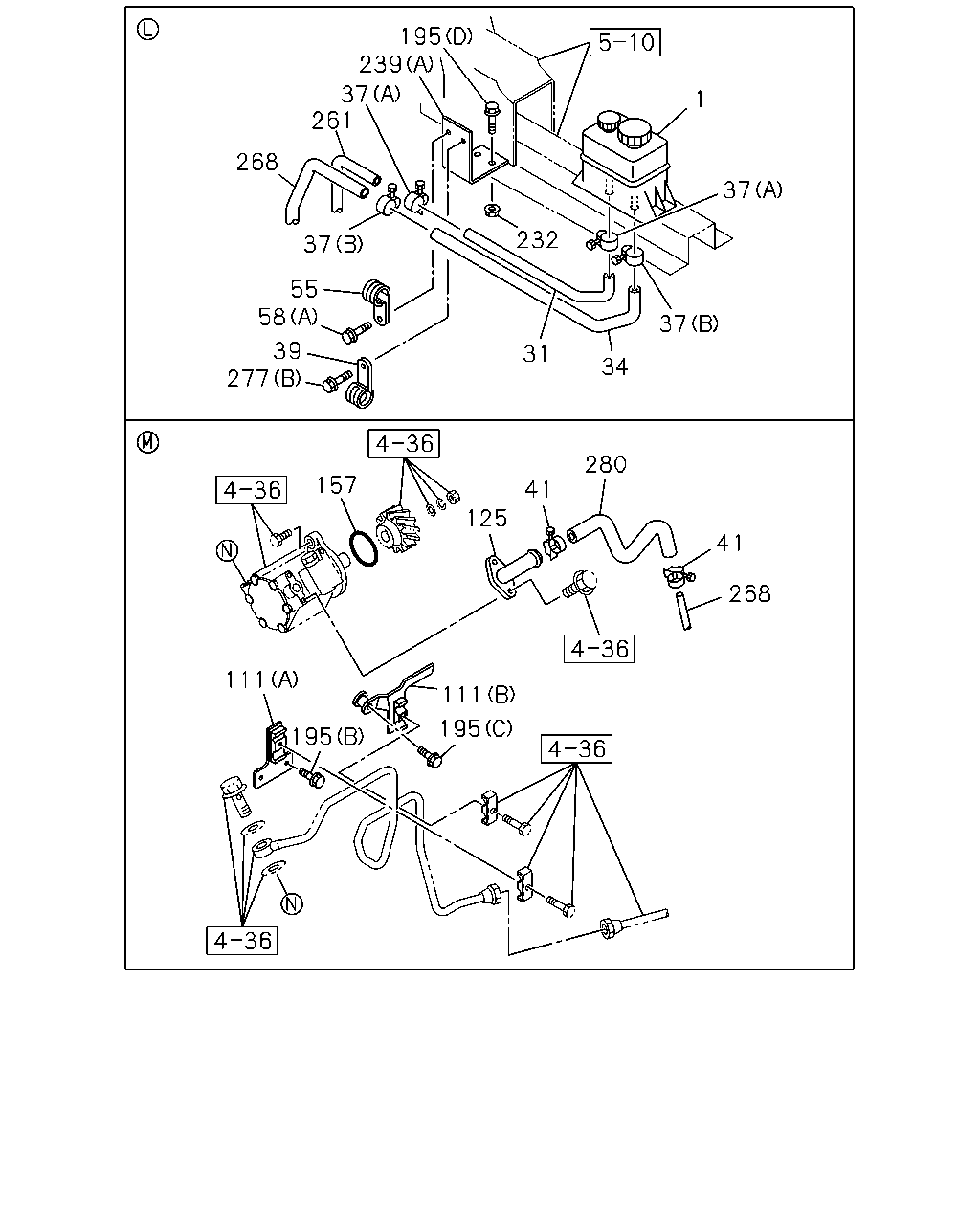

195 239 37 261 268 37 55 58 39 277 1 37 37 34 31 232 157 41 280 41 268 125 111 195 111 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0610-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0610-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0610-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0610-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0610-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0610-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0610-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0610-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-0610
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-0610
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-0610
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0610-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0610-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0610-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0610-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0610-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0610-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0610-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0610-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0610-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0610-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0610-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0610-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0610-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0610-

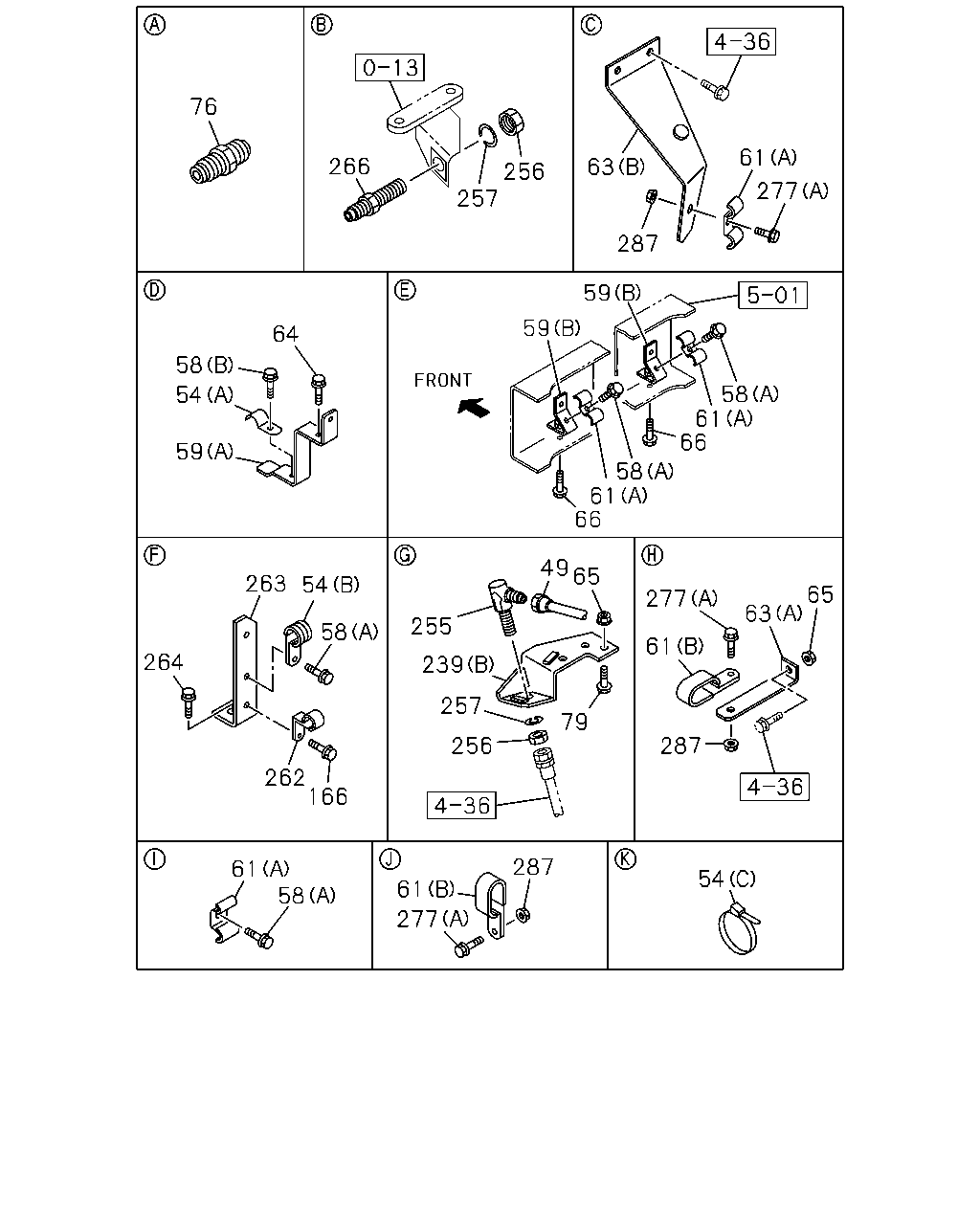

76 266 257 256 63 287 61 277 59 59 58 66 61 58 61 66 64 58 54 59 263 54 58 262 264 255 239 257 256 79 65 49 277 63 65 61 287 61 287 277 61 58 54 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0610-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0610-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0610-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-0610
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0611-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0610-0610
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-0610
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	0610-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0610-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0610-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0610-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0610-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0610-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0610-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0610-0610
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0611-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0610-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0610-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0610-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0610-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0610-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0610-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0610-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0610-
256	NUT; UNION M22	0-91111-522-0	01	1	0610-
256	NUT; UNION M22	0-91111-522-0	01	1	0610-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0610-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0610-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0610-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0610-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0610-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0610-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0610-
