4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#2676) — 109 parça

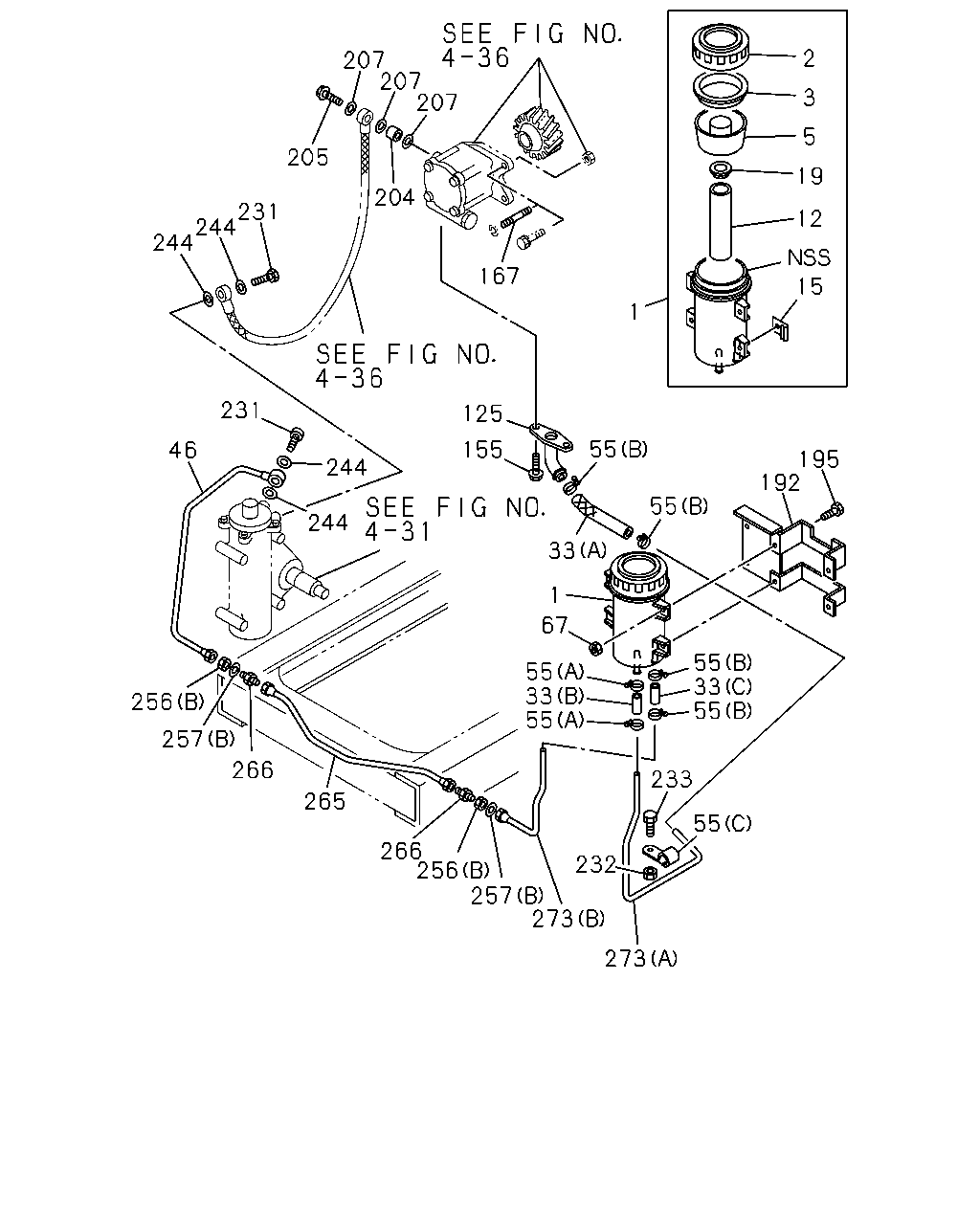

2 207 207 207 3 5 205 19 204 231 244 244 12 15 167 1 231 125 55 155 46 195 192 244 55 244 33 1 67 55 33 55 55 33 55 256 257 266 233 265 55 266 256 257 273 232 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING(N40)	1-21210-152-6	01	1	9101-	●	●
2	CAP; OIL TANK,P/S POWER STEERING(N40)	1-21241-004-3	01	1	9101-	●	●
3	GASKET; OIL TANK,P/S POWER STEERING(N40)	1-21249-003-1	01	1	9101-	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING(N40)	1-21235-007-1	01	1	9101-	●	●
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING(N40)	1-21235-004-1	01	1	9101-	●	●
15	PLATE; FILTER,OIL TANK POWER STEERING(N40)	1-21249-007-1	04	1	9101-	●	●
19	SEAT; OIL TANK POWER STEERING(N40)	1-21249-004-0	02	1	9101-	●	●
33	HOSE; RUBBER,POWER STRG POWER STEERING(N40) (C)	0-09814-080-0	01	1	9101-	●
33	HOSE; RUBBER,POWER STRG POWER STEERING(N40) (B)	0-09818-080-0	01	1	9101-	●
33	HOSE; RUBBER,POWER STRG POWER STEERING(N40) (A)	0-09818-560-0	01	1	9101-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21113-080-0	01	1	9101-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21113-174-0	01	1	9101-		●
55	CLIP; P/S RUBBER HOSE POWER STEERING(N40) (A) ID=28	9-09915-672-1	02	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING(N40) (B) ID=32	9-09915-692-1	04	1	9101-	●
55	CLIP; P/S RUBBER HOSE POWER STEERING(N40) (C) ID=19 L=20	9-09525-836-0	01	1	9208-	●
67	NUT; BRKT POWER STEERING(N40)	9-09110-408-0	06	1	9101-	●	●
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	1-21122-005-1	01	1	9101-	●
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	1-21122-011-1	01	1	9101-		●
155	BOLT; CONNECTOR POWER STEERING(N40)	0-50140-818-0	02	1	9101-	●	●
167	STUD; OIL PIPE FIX POWER STEERING(N40)	1-09300-040-0	01	1	9101-	●	●
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21219-086-1	01	1	9101-	●
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21219-089-0	01	1	9101-		●
195	BOLT; BRKT POWER STEERING(N40)	0-50040-820-0	06	1	9101-	●	●
204	SPACER; PUMP TO FLEX HOSE POWER STEERING(N40)	1-21219-073-0	01	1	9101-	●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40)	1-09675-141-0	01	1	9101-	●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	01	1	9101-9310		●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9311-		●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING(N40) ID=18	9-09571-418-0	03	1	9101-	●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING(N40) ID=18	9-09571-418-0	02	1	9101-		●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	02	1	9101-9310	●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	02	1	9311-	●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	01	1	9101-9310		●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9311-		●
232	NUT; BRKT POWER STEERING(N40)	9-09110-408-0	01	1	9101-		●
233	BOLT; PIPE CLIP,P/S POWER STEERING(N40)	9-01900-825-0	01	1	9101-9204	●	●
233	BOLT; PIPE CLIP,P/S POWER STEERING(N40)	0-50040-825-0	01	1	9205-	●	●
244	GASKET; OIL PIPE,P/S POWER STEERING(N40) ID=18	9-09571-418-0	04	1	9101-	●	●
256	NUT; UNION POWER STEERING(N40) (B)	9-09111-422-0	02	1	9101-	●	●
256	NUT; UNION POWER STEERING(N40) (A) M22	9-09111-422-0	01	1	9101-		●
257	WASHER; LK,UNION POWER STEERING(N40) (B)	9-09150-522-0	02	1	9101-9312	●	●
257	WASHER; LK,UNION POWER STEERING(N40) (A) ID=22.5	9-09150-522-0	01	1	9101-9312		●
265	PIPE; OIL,UNION TO UNION POWER STEERING(N40)	1-21112-982-0	01	1	9101-	●
265	PIPE; OIL,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) POWER STEERING(N40)	1-21112-982-0	01	1	9101-		●
265	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	1-21113-107-0	01	1	9101-		●
266	UNION; OIL PIPE,P/S POWER STEERING(N40)	9-09233-215-1	02	1	9101-	●	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (A)	1-21113-078-0	01	1	9101-	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (B)	1-21113-079-0	01	1	9101-	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (A)	1-21113-082-0	01	1	9101-		●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (B)	1-21113-458-0	01	1	9101-		●

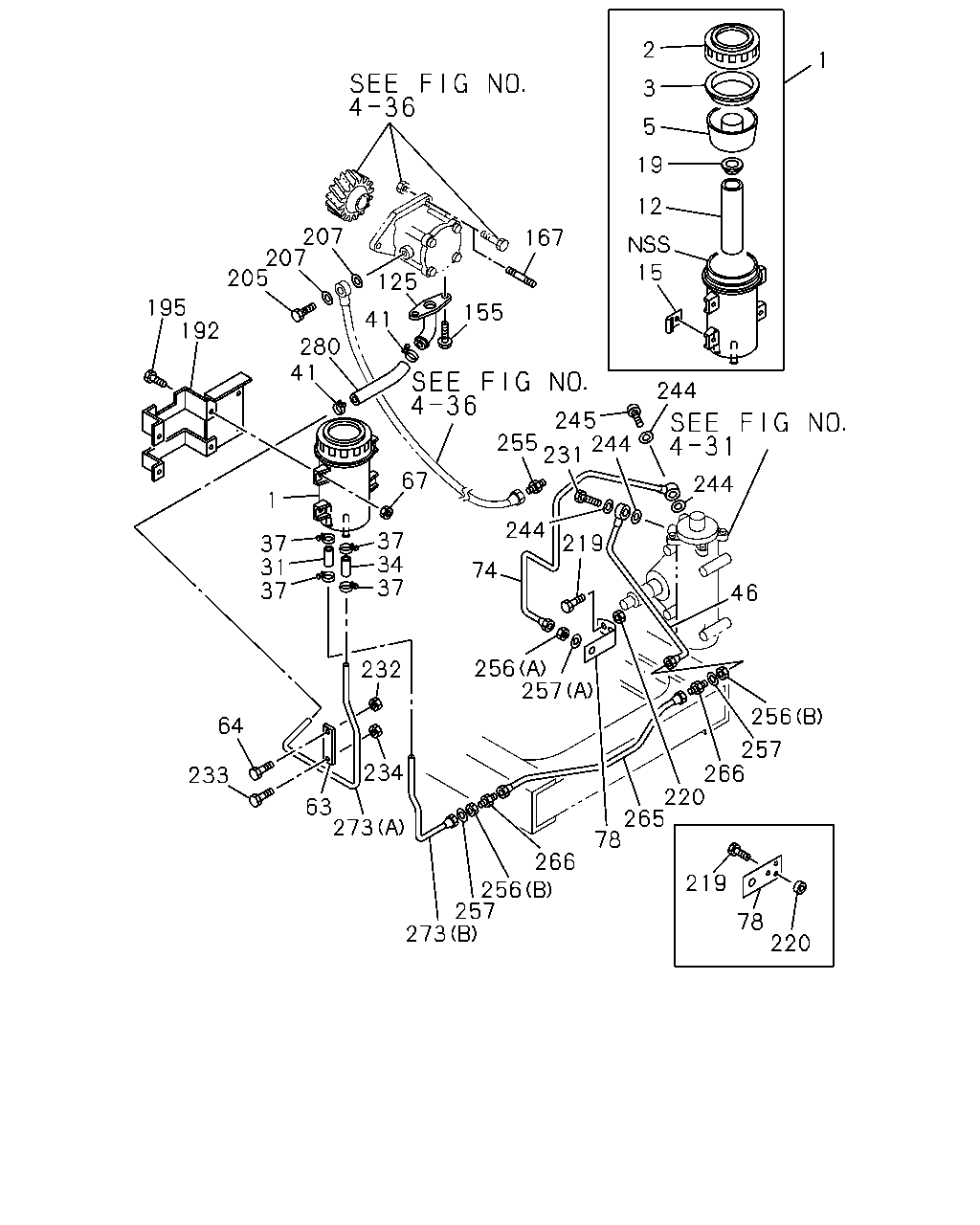

2 1 3 5 19 12 207 207 205 167 15 125 195 192 155 41 280 41 244 245 244 255 231 67 244 1 244 37 34 37 219 37 31 37 74 46 256 257 232 256 64 257 266 220 265 78 234 233 63 273 266 256 257 273 219 78 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING(N40)	1-21210-152-6	01	1	9101-	●	●
2	CAP; OIL TANK,P/S POWER STEERING(N40)	1-21241-004-3	01	1	9101-	●	●
3	GASKET; OIL TANK,P/S POWER STEERING(N40)	1-21249-003-1	01	1	9101-	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING(N40)	1-21235-007-1	01	1	9101-	●	●
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING(N40)	1-21235-004-1	01	1	9101-	●	●
15	PLATE; FILTER,OIL TANK POWER STEERING(N40)	1-21249-007-1	04	1	9101-	●	●
19	SEAT; OIL TANK POWER STEERING(N40)	1-21249-004-0	02	1	9101-	●	●
31	HOSE; P/S OIL TANK,INL POWER STEERING(N40)	0-09814-080-0	01	1	9101-		●
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING(N40)	0-09818-080-0	01	1	9101-		●
37	CLIP; HOSE,P/S POWER STEERING(N40) ID=26	1-09707-108-0	02	1	9101-		●
37	CLIP; HOSE,P/S POWER STEERING(N40) ID=32	9-09915-692-1	02	1	9101-		●
41	CLIP; HOSE,P/S POWER STEERING(N40) ID=32	9-09915-692-1	02	1	9101-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21113-080-0	01	1	9101-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21113-174-0	01	1	9101-		●
63	BRACKET; CLIP,P/S POWER STEERING(N40)	1-47475-601-0	01	1	9101-		●
64	BOLT; CLIP BRKT POWER STEERING(N40)	9-01900-825-0	01	1	9101-9204		●
64	BOLT; CLIP BRKT POWER STEERING(N40)	0-50040-825-0	01	1	9205-		●
67	NUT; BRKT POWER STEERING(N40)	9-09110-408-0	06	1	9101-	●	●
74	PIPE; OIL,P/S,UNION TO FLEX HOSE POWER STEERING(N40)	1-21113-369-0	01	1	9101-		●
78	BRACKET; UNION POWER STEERING(N40)	1-47475-351-0	01	1	9101-		●
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	1-21122-005-1	01	1	9101-	●
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	1-21122-011-1	01	1	9101-		●
155	BOLT; CONNECTOR POWER STEERING(N40)	0-50140-818-0	02	1	9101-	●	●
167	STUD; OIL PIPE FIX POWER STEERING(N40)	1-09300-040-0	01	1	9101-	●	●
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21219-086-1	01	1	9101-	●
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21219-089-0	01	1	9101-		●
195	BOLT; BRKT POWER STEERING(N40)	0-50040-820-0	06	1	9101-	●	●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40)	1-09675-141-0	01	1	9101-	●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	01	1	9101-9310		●
205	BOLT; EYE,FLEX HOSE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9311-		●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING(N40) ID=18	9-09571-418-0	03	1	9101-	●
207	GASKET; FLEX HOSE,P/S PUMP POWER STEERING(N40) ID=18	9-09571-418-0	02	1	9101-		●
219	BOLT; BRKT,UNION,OIL PIPE POWER STEERING(N40)	9-01960-822-0	02	1	9101-9204		●
219	BOLT; BRKT,UNION,OIL PIPE POWER STEERING(N40)	0-50140-822-0	02	1	9205-		●
220	NUT; BRKT,OIL PIPE POWER STEERING(N40)	9-09110-408-0	02	1	9101-		●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	02	1	9101-9310	●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	02	1	9311-	●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-059-0	01	1	9101-9310		●
231	BOLT; EYE,OIL PIPE,P/S POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9311-		●
232	NUT; BRKT POWER STEERING(N40)	9-09110-408-0	01	1	9101-		●
233	BOLT; PIPE CLIP,P/S POWER STEERING(N40)	9-01900-825-0	01	1	9101-9204	●	●
233	BOLT; PIPE CLIP,P/S POWER STEERING(N40)	0-50040-825-0	01	1	9205-	●	●
234	NUT; PIPE CLIP,P/S POWER STEERING(N40)	9-09110-408-0	01	1	9101-	●	●
244	GASKET; OIL PIPE,P/S POWER STEERING(N40) ID=18	9-09571-418-0	04	1	9101-	●	●
245	BOLT; EYE,OIL PIPE POWER STEERING(N40) M18X36	1-09675-059-0	01	1	9101-9310		●
245	BOLT; EYE,OIL PIPE POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9311-		●
255	UNION; FLEX HOSE POWER STEERING(N40)	1-09664-020-1	01	1	9101-		●
256	NUT; UNION POWER STEERING(N40) (B)	9-09111-422-0	02	1	9101-	●	●
256	NUT; UNION POWER STEERING(N40) (A) M22	9-09111-422-0	01	1	9101-		●
257	WASHER; LK,UNION POWER STEERING(N40) (B)	9-09150-522-0	02	1	9101-9312	●	●
257	WASHER; LK,UNION POWER STEERING(N40) (A) ID=22.5	9-09150-522-0	01	1	9101-9312		●
265	PIPE; OIL,UNION TO UNION POWER STEERING(N40)	1-21112-982-0	01	1	9101-	●
265	PIPE; OIL,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) POWER STEERING(N40)	1-21112-982-0	01	1	9101-		●
265	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER STEERING(N40)	1-21113-107-0	01	1	9101-		●
266	UNION; OIL PIPE,P/S POWER STEERING(N40)	9-09233-215-1	02	1	9101-	●	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (A)	1-21113-078-0	01	1	9101-	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (B)	1-21113-079-0	01	1	9101-	●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (A)	1-21113-082-0	01	1	9101-		●
273	PIPE; OIL,P/S,UNION TO OIL TANK POWER STEERING(N40) (B)	1-21113-458-0	01	1	9101-		●
280	HOSE; P/S OIL PUMP,INL POWER STEERING(N40)	0-09818-220-0	01	1	9101-		●
