Isuzu WW
▶
TRUCKS
▶
EXR
▶
11037 - EXR RHD EURO4
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#26750) — 58 parça
◀

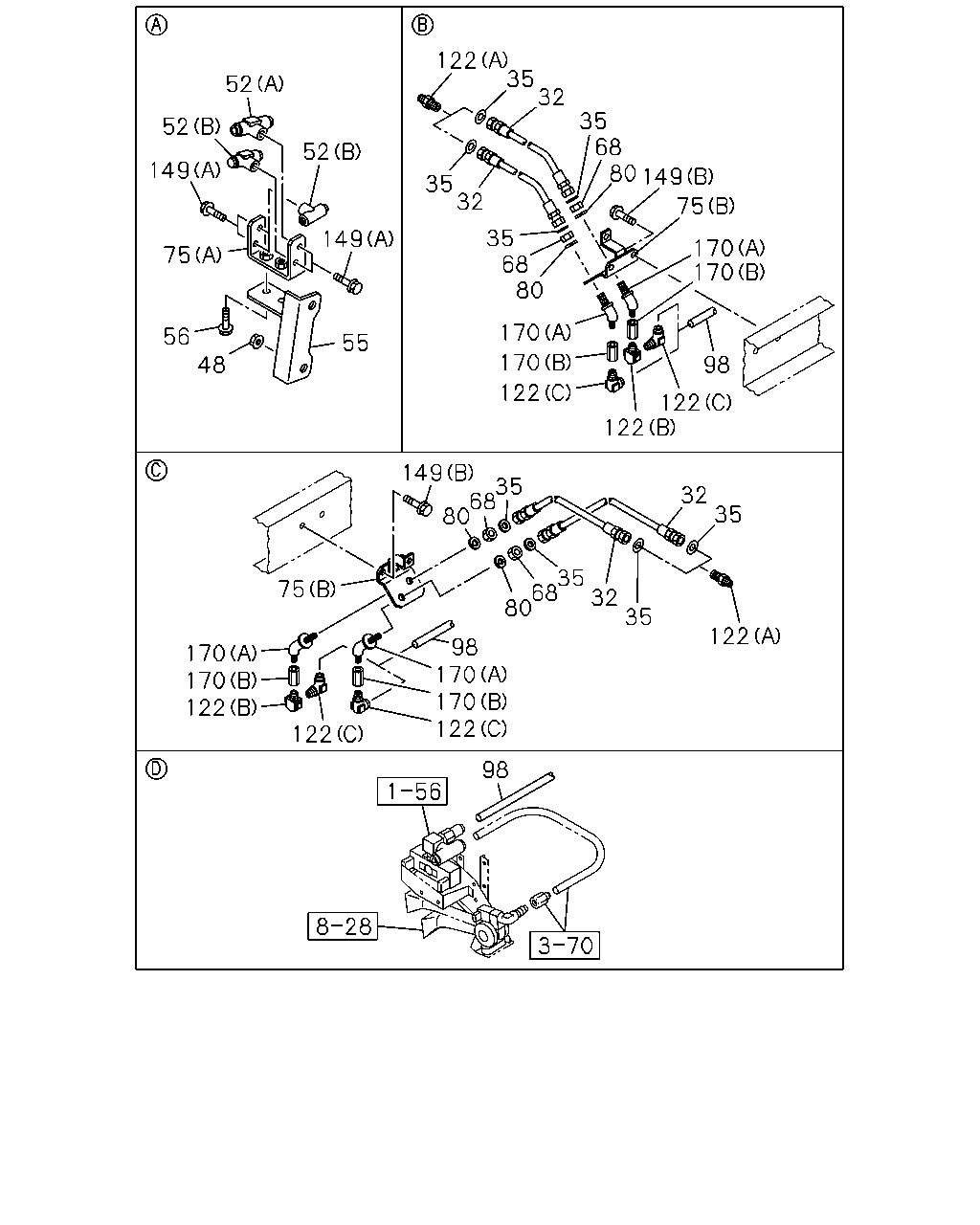

[375A] NO.1 (26 parça)

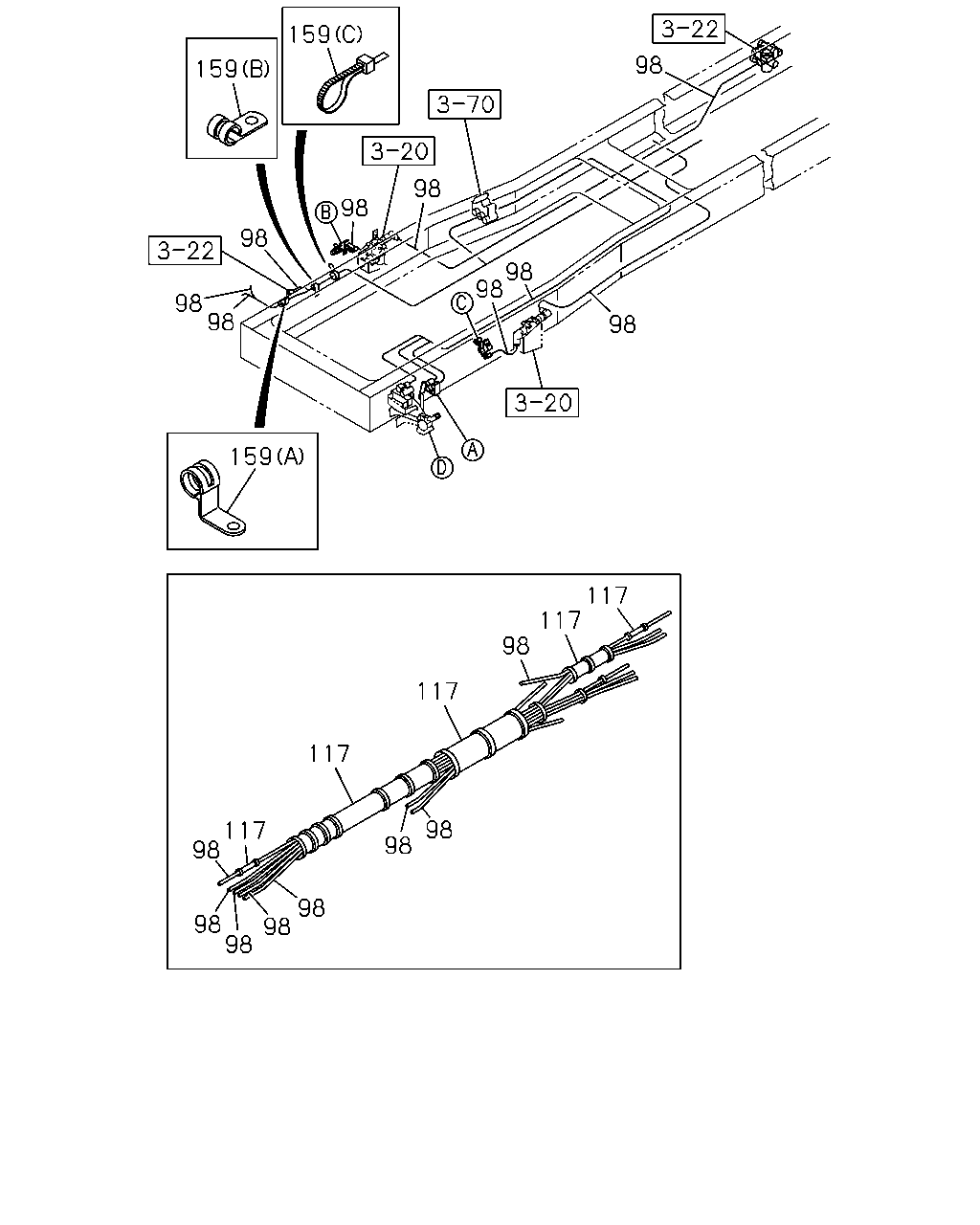

[375A] NO.2 (32 parça)
▶
159
98
159
98
98
98
98
98
98
98
98
159
117
117
98
117
117
98
117
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
L=200 OD=12
1-49222-062-0
02
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
1-87411-016-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0610-
159
CLIP; NYLON TUBE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=35 H=45 L=33
1-09700-947-0
01
1
0907-
159
CLIP; NYLON TUBE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33
1-09700-945-0
03
1
0907-
159
CLIP; NYLON TUBE
(B) ID=35 L=33
1-09700-945-0
03
1
0610-0906
159
CLIP; NYLON TUBE
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) ID=35 L=33
1-09700-945-0
04
1
0907-
159
CLIP; NYLON TUBE
(A) ID=21 L=30 H=40
1-09700-991-1
02
1
0610-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
02
1
0610-0906
159
CLIP; NYLON TUBE
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=31 H=30 L=35
1-09700-994-0
02
1
0907-
159
CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0610-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
25
1
0610-
122
35
32
52
35
68
80
149
52
52
149
35
32
75
149
35
68
80
170
170
75
170
56
48
55
170
98
122
122
122
149
35
68
80
32
35
35
68
32
80
35
75
122
98
170
170
122
170
170
122
122
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
0-87847-470-1
04
1
0610-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
08
1
0610-
48
NUT; UNION BRKT
M12 FLANGE
0-91180-212-0
02
1
0610-
52
CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY
1-09661-128-0
01
1
0610-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
0610-
55
BRACKET; TUBE UNION
1-47478-381-1
01
1
0610-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0610-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0610-
68
NUT; UNION
M20
0-91111-520-0
04
1
0610-
75
BRACKET; UNION
(B)
1-47471-367-0
01
1
0610-
75
BRACKET; UNION
(B)
1-47471-368-0
01
1
0610-
75
BRACKET; UNION
(A)
1-47478-382-0
01
1
0610-
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
04
1
0610-
98
TUBE; NYLON
L=200 OD=12
1-49222-062-0
02
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0610-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
122
CONNECTOR; FLEX HOSE
FRONT AXLE F063(FS7) (A) M20 & PT3/8
1-09660-731-0
04
1
1003-1004
122
CONNECTOR; FLEX HOSE
(A) M20 & PT3/8
1-09660-731-0
04
1
0610-1002
122
CONNECTOR; FLEX HOSE
FRONT AXLE F075(FH5) (A) M20 & PT3/8
1-09660-731-0
05
1
1003-1004
122
CONNECTOR; FLEX HOSE
(A) M20 & PT3/8
1-09660-731-1
04
1
1005-
122
CONNECTOR; FLEX HOSE
(B) PT3/8 ELBOW
1-09660-696-0
02
1
0610-
122
CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0610-
149
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
04
1
0610-
149
BOLT; UNION
(B) M8X30 FLANGE
0-28650-830-0
04
1
0610-
170
UNION; FLARE
(A) M20
1-09654-199-2
04
1
0610-
170
UNION; FLARE
(B) M20 & RC3/8 STRAIGHT
1-09660-883-0
04
1
0610-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
