◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#2675) — 21 parça

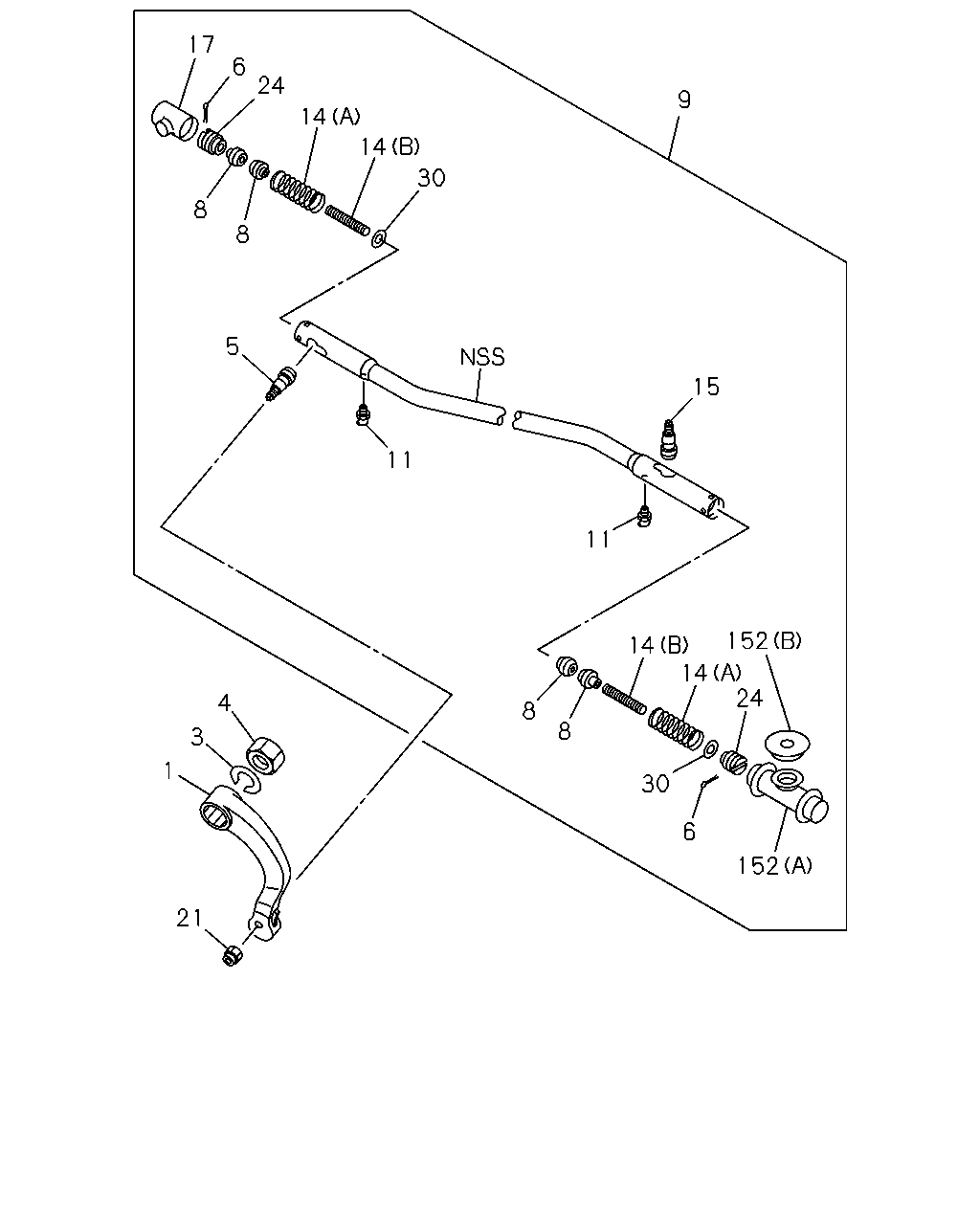

çizim 36076
17 6 24 9 14 14 30 8 8 5 15 11 11 152 14 14 24 4 8 8 3 1 30 6 152 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-210-0 01 1 9101- ●
1 ARM; PITMAN,STRG 1-44341-213-0 01 1 9101- ●
3 WASHER; LK,PITMAN ARM
POWER STEERING(N40) ID=30.5 		1-09500-026-0 01 1 9101- ● ●
3 WASHER; LK,PITMAN ARM
EXC. POWER STEERING(N40) ID=30.5 		9-09150-530-0 01 1 9101- ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9101- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-107-0 01 1 9101- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08114-055-0 02 1 9101- ● ●
8 SEAT; SPR,ROD END 1-44371-002-1 04 1 9101- ● ●
9 LINK; DRAG 1-44350-948-0 01 1 9101- ●
9 LINK; DRAG 1-44350-947-0 01 1 9101- ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9101- ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-409-0 02 1 9101- ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-410-0 02 1 9101- ● ●
15 JOINT; BALL,KNUCKLE SIDE 1-44361-048-4 01 1 9101- ● ●
17 GUARD; MUD,DRAG LINK 9-44365-054-1 01 1 9101- ● ●
21 NUT; LK,JOINT BALL 1-09449-014-0 02 1 9101- ● ●
24 PLUG; ADJ,DRAG LINK 1-44375-021-1 02 1 9101- ● ●
30 SPACER; DRAG LINK 1-44379-013-0 02 1 9101- ●
30 SPACER; DRAG LINK 1-44379-008-0 02 1 9101- ●
152 RING; HOLD,DRAG LINK
(A) 		1-44365-010-1 01 1 9101- ● ●
152 RING; HOLD,DRAG LINK
(B) 		1-44365-011-1 01 1 9101- ● ●
