◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11037 - EXR RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#26740) — 42 parça

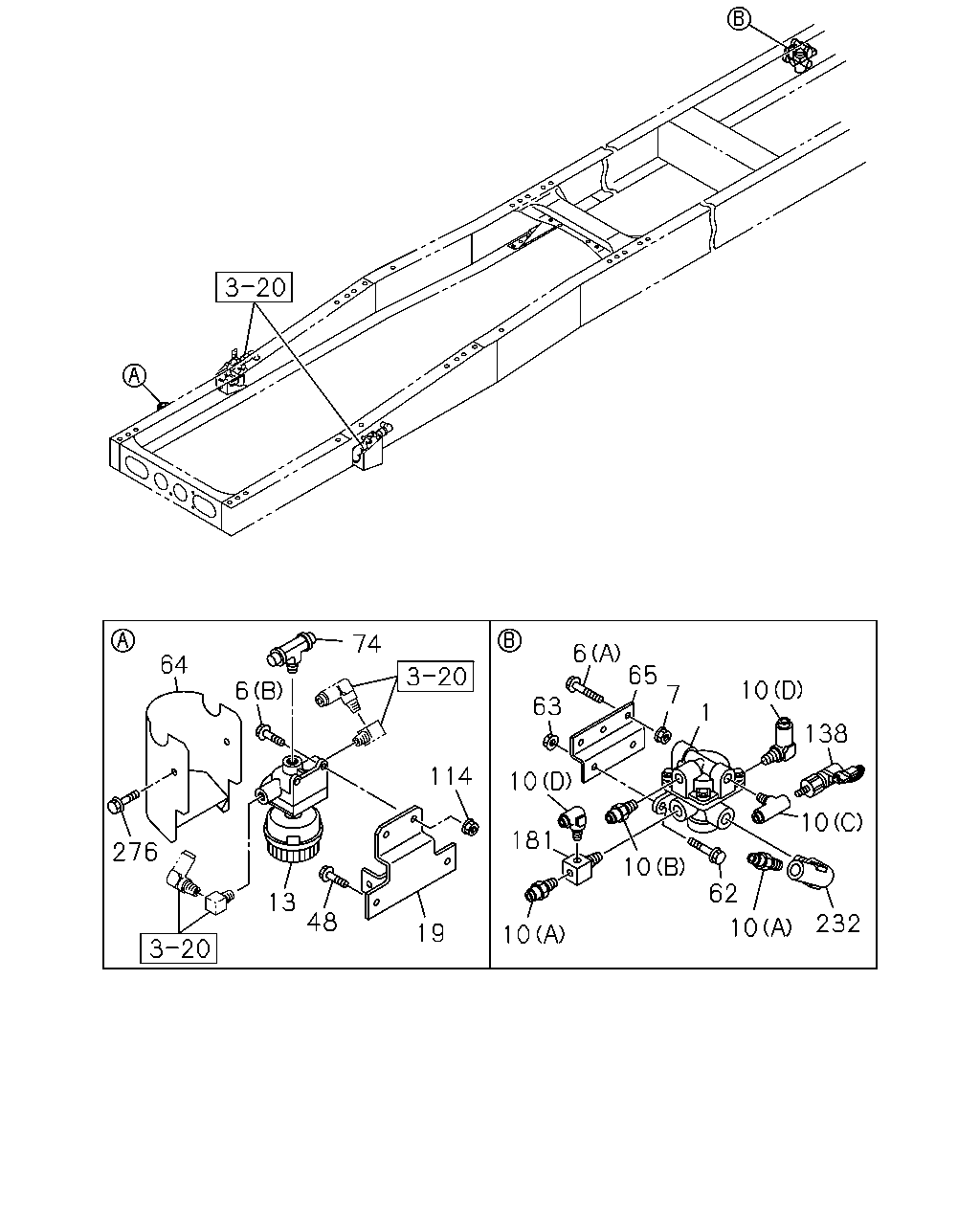

çizim 90737
74 6 65 7 64 10 6 63 1 138 114 10 10 181 276 10 62 13 48 232 10 19 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0610-
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0610-
6 BOLT; VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0610-
7 NUT; RELAY VLV
M8 FLANGE 		0-91180-108-0 02 1 0610-
10 CONNECTOR
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0610-
10 CONNECTOR
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0610-
10 CONNECTOR
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0610-
10 CONNECTOR
(C) 		1-09661-537-0 01 1 0610-0704
10 CONNECTOR
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0705-
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0610-
19 BRACKET; QUICK RELEASE VLV 1-47471-014-0 01 1 0610-
48 BOLT; QUICK RELEASE VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0610-
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0610-
64 PROTECTOR; QUICK RELEASE VALVE 8-98043-421-0 01 1 0610-
65 BRACKET; RELAY VLV RR 1-47479-328-0 01 1 0610-
74 CONNECTOR; 3WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 0610-
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0610-
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0610-
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 01 1 0610-
232 VALVE; CHECK 1-48320-031-1 01 1 0610-
276 BOLT; PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
çizim 90741
13 157 216 158 262
BalonParca AdiParca NoAdetTipApplied Date
13 VALVE ASM; QUICK RELEASE 1-48410-726-1 01 1 0610-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0610-
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0610-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0610-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0610-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 01 1 0610-1109
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-484-0 01 1 1110-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0610-

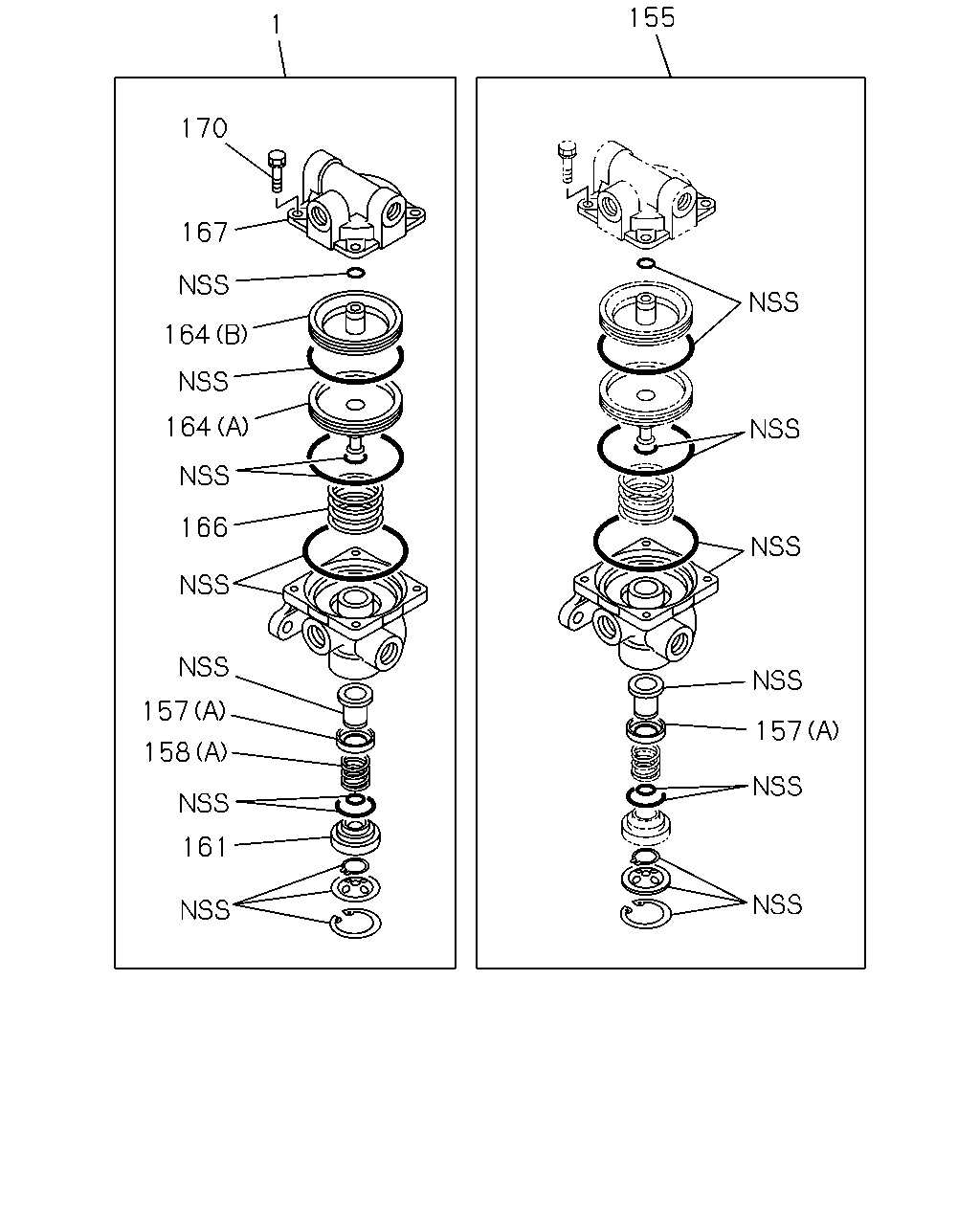

çizim 90752
155 1 170 167 164 164 166 157 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-041-1 01 1 0610-
155 REPAIR KIT; RELAY VALVE 1-85576-035-0 01 1 0610-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0610-
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0610-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0610-
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0610-
161 GUIDE; VALVE 1-48129-014-0 01 1 0610-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0610-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0610-
166 SPRING; PISTON 1-48219-048-0 01 1 0610-
167 COVER; VALVE 1-48219-050-1 01 1 0610-
170 SCREW; COVER TO BODY 1-48219-041-0 04 1 0610-
