4-31 — STEERING COLUMN AND SHAFT (#2674) — 130 parça

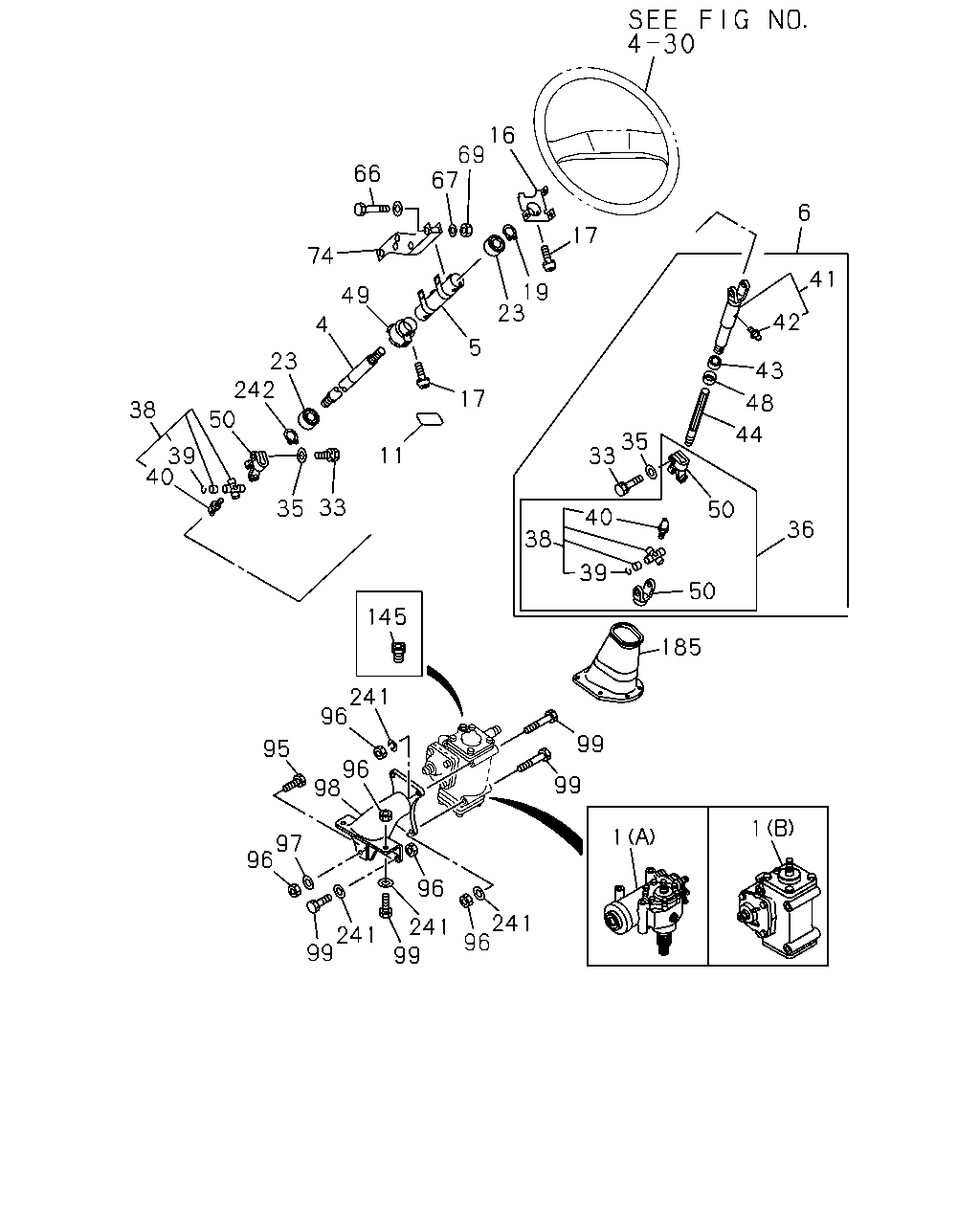

16 69 67 66 6 17 74 41 19 23 49 42 4 5 23 242 43 17 48 38 50 44 35 33 39 40 11 33 35 50 40 36 38 39 50 145 185 241 96 99 95 96 98 99 1 1 97 96 96 241 96 241 99 241 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) (A)	1-44000-720-5	01	1	9101-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) (B)	1-44000-786-0	01	1	9101-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) (A)	1-44000-719-4	01	1	9101-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) (B)	1-44000-682-4	01	1	9101-		●
4	SHAFT; STRG	1-44131-117-1	01	1	9101-	●	●
5	COLUMN; STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44211-042-1	01	1	9101-	●	●
5	COLUMN; STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44211-065-0	01	1	9101-	●	●
6	SHAFT; STRG LWR STEERING COLUMN TILT TELESCOPING(N37)	1-44130-393-2	01	1	9101-	●
6	SHAFT; STRG LWR EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44130-396-1	01	1	9101-	●
6	SHAFT; STRG LWR STEERING COLUMN TILT TELESCOPING(N37)	1-44130-394-2	01	1	9101-		●
6	SHAFT; STRG LWR EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44130-397-1	01	1	9101-		●
11	SEAL; JOURNAL,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44139-077-0	01	1	9101-	●	●
16	BRACKET; COMB SW	1-44227-074-2	01	1	9101-	●	●
17	SCREW; BRKT STEERING COLUMN TILT TELESCOPING(N37) M5X10 PAN-HD	9-93490-510-0	03	1	9101-	●	●
17	SCREW; BRKT EXC. STEERING COLUMN TILT TELESCOPING(N37) M5X10 W/LK WASHER	9-03910-510-0	03	1	9101-	●	●
19	RING; SNAP,STRG SHAFT	1-09588-140-0	02	1	9101-	●	●
23	BEARING; BALL,STRG SHAFT	1-09800-157-0	02	1	9101-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	02	1	9101-	●	●
35	WASHER; LK,STRG SHAFT	9-09150-810-0	01	1	9101-	●	●
36	YOKE; STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-124-1	01	1	9101-	●
36	YOKE; STRG SHAFT STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	01	1	9101-	●	●
36	YOKE; STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-097-1	01	1	9101-		●
38	JOURNAL; STRG SHAFT	1-44135-098-0	02	1	9101-	●	●
39	RING; SNAP,JOURNAL T=1.2	1-09587-061-1	08	1	9101-	●	●
40	NIPPLE; GREASE,JOURNAL	1-09380-004-0	02	1	9101-	●	●
41	YOKE; SLEEVE,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44135-155-0	01	1	9101-	●
41	YOKE; SLEEVE,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-145-0	01	1	9101-	●
41	YOKE; SLEEVE,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44135-154-0	01	1	9101-		●
41	YOKE; SLEEVE,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-144-0	01	1	9101-		●
42	NIPPLE; GREASE,SLEEVE YOKE	9-09031-006-0	01	1	9101-	●	●
43	RING; FELT,SLEEVE YOKE	1-44139-081-0	01	1	9101-	●	●
44	SHAFT; SPLINE,STRG	1-44131-130-0	01	1	9101-	●	●
48	RETAINER; FELT RING SLEEVE	1-44139-075-0	01	1	9101-	●	●
49	COVER; UPR,STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44139-108-0	01	1	9101-	●	●
50	YOKE; SPLINE,STRG SHAFT STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	02	1	9101-	●	●
50	YOKE; SPLINE,STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	03	1	9101-	●	●
66	BOLT; STRG COLUMN STEERING COLUMN TILT TELESCOPING(N37) M6X20 W/LK WASHER	0-50040-620-0	03	1	9101-	●	●
66	BOLT; STRG COLUMN EXC. STEERING COLUMN TILT TELESCOPING(N37) M12X75	0-10806-275-0	02	1	9101-	●	●
67	WASHER; LK,BRKT,STRG COLUMN STEERING COLUMN TILT TELESCOPING(N37)	1-44227-082-0	02	1	9101-	●	●
67	WASHER; LK,BRKT,STRG COLUMN EXC. STEERING COLUMN TILT TELESCOPING(N37)	9-09150-512-0	02	1	9101-	●	●
69	NUT; TILT CENTER EXC. STEERING COLUMN TILT TELESCOPING(N37) M12	9-99110-412-0	02	1	9101-	●	●
74	BRACKET; SUPPORT,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44221-047-0	01	1	9101-	●
74	BRACKET; SUPPORT,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44221-065-1	01	1	9101-	●	●
74	BRACKET; SUPPORT,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44221-049-1	01	1	9101-		●
95	BOLT; STRG UNIT M14X165	1-09000-115-2	02	1	9101-	●	●
95	BOLT; STRG UNIT M14X150	1-09000-251-2	02	1	9101-	●	●
96	NUT; STRG UNIT	9-99110-514-0	07	1	9101-	●	●
97	WASHER; PL,STRG UNIT	9-09651-069-0	06	1	9101-	●	●
98	BRACKET; STRG GEAR BOX	1-44226-100-1	01	1	9101-	●
98	BRACKET; STRG GEAR BOX	1-44226-031-3	01	1	9101-		●
99	BOLT; BRKT TO FRAME	9-92061-445-0	05	1	9101-	●	●
145	PLUG; AIR BREATHER EXC. POWER STEERING(N40)	1-09893-002-0	01	1	9101-	●	●
185	COVER ASM; STEERING	1-79998-184-1	01	1	9101-	●	●
241	WASHER; PL	9-09651-069-0	10	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.0	1-09588-145-0	AR	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.1	1-09588-146-0	AR	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.2	1-09588-147-0	AR	1	9101-	●	●

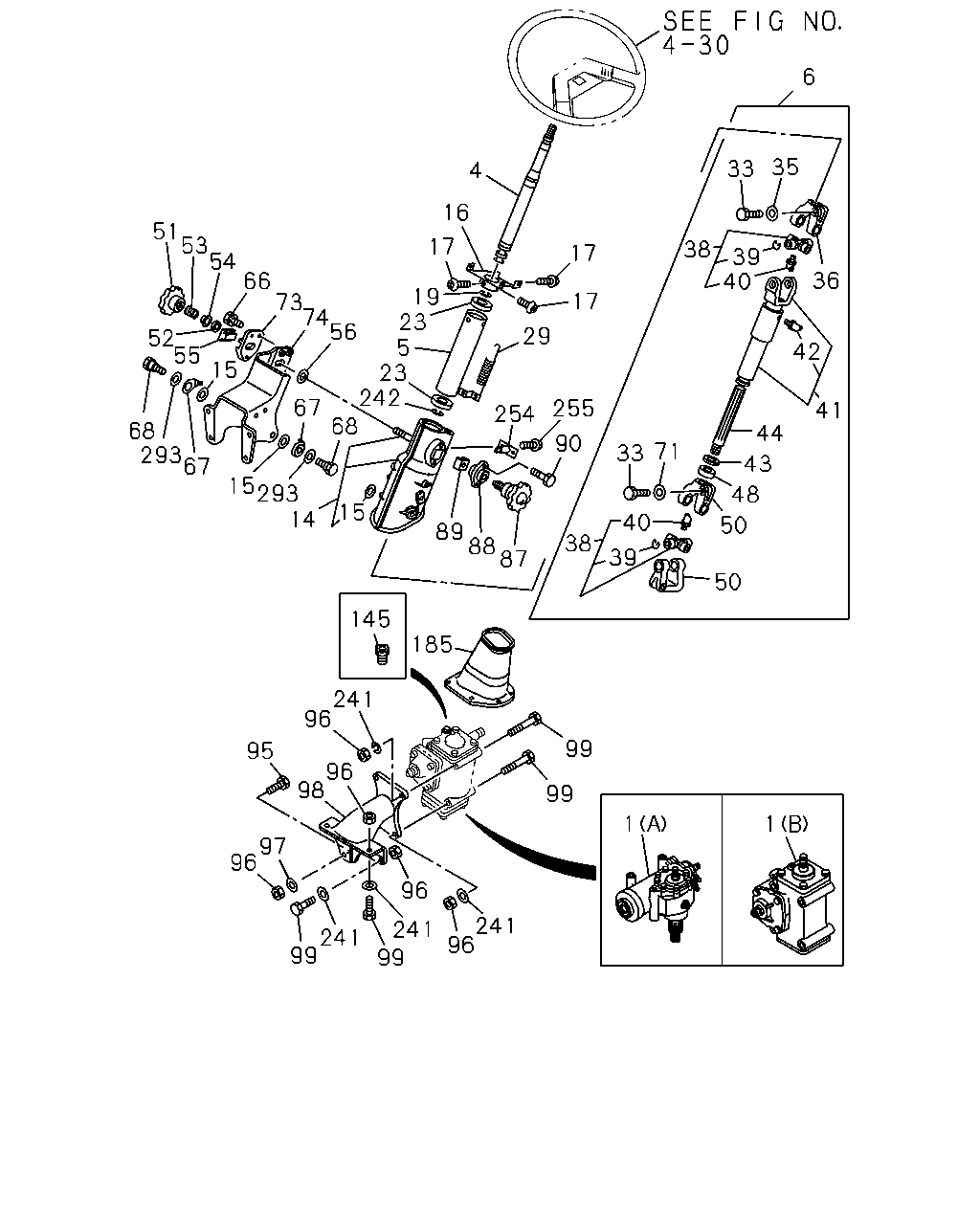

6 35 33 4 16 51 53 54 66 73 74 56 17 38 17 39 40 36 19 23 5 23 242 68 17 29 52 55 15 42 67 255 41 254 68 293 67 44 90 71 33 43 15 293 14 48 15 40 50 89 88 87 38 39 50 145 185 241 96 99 95 96 98 99 1 1 97 96 96 241 96 241 99 241 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) (A)	1-44000-720-5	01	1	9101-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) (B)	1-44000-786-0	01	1	9101-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING(N40) (A)	1-44000-719-4	01	1	9101-		●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING(N40) (B)	1-44000-682-4	01	1	9101-		●
4	SHAFT; STRG	1-44131-117-1	01	1	9101-	●	●
5	COLUMN; STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44211-042-1	01	1	9101-	●	●
5	COLUMN; STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44211-065-0	01	1	9101-	●	●
6	SHAFT; STRG LWR STEERING COLUMN TILT TELESCOPING(N37)	1-44130-393-2	01	1	9101-	●
6	SHAFT; STRG LWR EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44130-396-1	01	1	9101-	●
6	SHAFT; STRG LWR STEERING COLUMN TILT TELESCOPING(N37)	1-44130-394-2	01	1	9101-		●
6	SHAFT; STRG LWR EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44130-397-1	01	1	9101-		●
14	CASE ASM; STRG SHAFT STEERING COLUMN TILT TELESCOPING(N37)	1-44221-046-3	01	1	9101-	●	●
15	WASHER; TILT CENTER STEERING COLUMN TILT TELESCOPING(N37)	1-44227-077-1	04	1	9101-	●	●
16	BRACKET; COMB SW	1-44227-074-2	01	1	9101-	●	●
17	SCREW; BRKT STEERING COLUMN TILT TELESCOPING(N37) M5X10 PAN-HD	9-93490-510-0	03	1	9101-	●	●
17	SCREW; BRKT EXC. STEERING COLUMN TILT TELESCOPING(N37) M5X10 W/LK WASHER	9-03910-510-0	03	1	9101-	●	●
19	RING; SNAP,STRG SHAFT	1-09588-140-0	02	1	9101-	●	●
23	BEARING; BALL,STRG SHAFT	1-09800-157-0	02	1	9101-	●	●
29	SPRING; COLUMN STEERING COLUMN TILT TELESCOPING(N37)	1-09583-223-0	01	1	9101-	●	●
33	BOLT; STRG SHAFT TO UNIT M10X35	1-09009-126-1	02	1	9101-	●	●
35	WASHER; LK,STRG SHAFT	9-09150-810-0	01	1	9101-	●	●
36	YOKE; STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-124-1	01	1	9101-	●
36	YOKE; STRG SHAFT STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	01	1	9101-	●	●
36	YOKE; STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-097-1	01	1	9101-		●
38	JOURNAL; STRG SHAFT	1-44135-098-0	02	1	9101-	●	●
39	RING; SNAP,JOURNAL T=1.2	1-09587-061-1	08	1	9101-	●	●
40	NIPPLE; GREASE,JOURNAL	1-09380-004-0	02	1	9101-	●	●
41	YOKE; SLEEVE,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44135-155-0	01	1	9101-	●
41	YOKE; SLEEVE,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-145-0	01	1	9101-	●
41	YOKE; SLEEVE,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44135-154-0	01	1	9101-		●
41	YOKE; SLEEVE,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-144-0	01	1	9101-		●
42	NIPPLE; GREASE,SLEEVE YOKE	9-09031-006-0	01	1	9101-	●	●
43	RING; FELT,SLEEVE YOKE	1-44139-081-0	01	1	9101-	●	●
44	SHAFT; SPLINE,STRG	1-44131-130-0	01	1	9101-	●	●
48	RETAINER; FELT RING SLEEVE	1-44139-075-0	01	1	9101-	●	●
50	YOKE; SPLINE,STRG SHAFT STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	02	1	9101-	●	●
50	YOKE; SPLINE,STRG SHAFT EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44135-179-0	03	1	9101-	●	●
51	KNOB; TILT STEERING COLUMN TILT TELESCOPING(N37)	1-44227-076-0	01	1	9101-	●	●
52	WASHER; PL,ADJ LEVER STEERING COLUMN TILT TELESCOPING(N37)	1-44227-086-0	01	1	9101-	●	●
53	SPRING; TILT KNOB STEERING COLUMN TILT TELESCOPING(N37)	1-09580-343-0	01	1	9101-	●	●
54	GUIDE; SPR STEERING COLUMN TILT TELESCOPING(N37)	1-44227-072-0	01	1	9101-	●	●
55	PLATE; GUIDE STEERING COLUMN TILT TELESCOPING(N37)	1-44227-091-0	01	1	9101-	●	●
56	WASHER; LOCATING PLATE STEERING COLUMN TILT TELESCOPING(N37)	1-09503-127-1	01	1	9101-	●	●
66	BOLT; STRG COLUMN STEERING COLUMN TILT TELESCOPING(N37) M6X20 W/LK WASHER	0-50040-620-0	03	1	9101-	●	●
66	BOLT; STRG COLUMN EXC. STEERING COLUMN TILT TELESCOPING(N37) M12X75	0-10806-275-0	02	1	9101-	●	●
67	WASHER; LK,BRKT,STRG COLUMN STEERING COLUMN TILT TELESCOPING(N37)	1-44227-082-0	02	1	9101-	●	●
67	WASHER; LK,BRKT,STRG COLUMN EXC. STEERING COLUMN TILT TELESCOPING(N37)	9-09150-512-0	02	1	9101-	●	●
68	PIN; TILT CENTER STEERING COLUMN TILT TELESCOPING(N37)	1-44227-080-1	02	1	9101-	●	●
71	WASHER; LK,SHAFT TO UNIT STEERING COLUMN TILT TELESCOPING(N37)	9-09150-810-0	01	1	9101-	●	●
73	PLATE; LOCATING STEERING COLUMN TILT TELESCOPING(N37)	1-44227-092-0	01	1	9101-	●	●
74	BRACKET; SUPPORT,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44221-047-0	01	1	9101-	●
74	BRACKET; SUPPORT,STRG EXC. STEERING COLUMN TILT TELESCOPING(N37)	1-44221-065-1	01	1	9101-	●	●
74	BRACKET; SUPPORT,STRG STEERING COLUMN TILT TELESCOPING(N37)	1-44221-049-1	01	1	9101-		●
87	KNOB; TELESCOPIC STEERING COLUMN TILT TELESCOPING(N37)	1-44227-075-0	01	1	9101-	●	●
88	FLANGE; KNOB STEERING COLUMN TILT TELESCOPING(N37)	1-44227-056-1	01	1	9101-	●	●
89	PLUNGER; STRG COLUMN STEERING COLUMN TILT TELESCOPING(N37)	1-44227-093-0	01	1	9101-	●	●
90	BOLT; FLANGE STEERING COLUMN TILT TELESCOPING(N37) M8X18 W/LK WASHER	9-01900-818-0	02	1	9101-	●	●
95	BOLT; STRG UNIT M14X165	1-09000-115-2	02	1	9101-	●	●
95	BOLT; STRG UNIT M14X150	1-09000-251-2	02	1	9101-	●	●
96	NUT; STRG UNIT	9-99110-514-0	07	1	9101-	●	●
97	WASHER; PL,STRG UNIT	9-09651-069-0	06	1	9101-	●	●
98	BRACKET; STRG GEAR BOX	1-44226-100-1	01	1	9101-	●
98	BRACKET; STRG GEAR BOX	1-44226-031-3	01	1	9101-		●
99	BOLT; BRKT TO FRAME	9-92061-445-0	05	1	9101-	●	●
145	PLUG; AIR BREATHER EXC. POWER STEERING(N40)	1-09893-002-0	01	1	9101-	●	●
185	COVER ASM; STEERING	1-79998-184-1	01	1	9101-	●	●
241	WASHER; PL	9-09651-069-0	10	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.0	1-09588-145-0	AR	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.1	1-09588-146-0	AR	1	9101-	●	●
242	RING; SNAP,INTERNAL T=2.2	1-09588-147-0	AR	1	9101-	●	●
254	PIN; GUIDE STEERING COLUMN TILT TELESCOPING(N37)	1-44227-071-0	01	1	9101-	●	●
255	SCREW; GUIDE PIN STEERING COLUMN TILT TELESCOPING(N37)	9-03910-612-0	01	1	9101-	●	●
293	WASHER; TILT CENTER STEERING COLUMN TILT TELESCOPING(N37)	1-44227-077-1	02	1	9409-	●	●
